Title: Memory Management


1
Memory Management

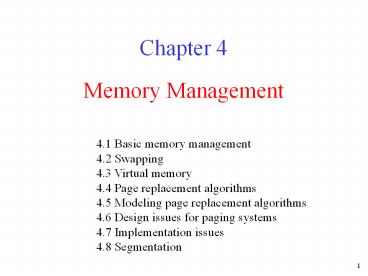

  • Chapter 4

4.1 Basic memory management 4.2 Swapping 4.3
Virtual memory 4.4 Page replacement
algorithms 4.5 Modeling page replacement
algorithms 4.6 Design issues for paging
systems 4.7 Implementation issues 4.8 Segmentation
2
Memory Management
  • Ideally programmers want memory that is
  • large
  • fast
  • non volatile
  • Memory hierarchy
  • small amount of fast, expensive memory cache
  • some medium-speed, medium price main memory
  • gigabytes of slow, cheap disk storage
  • Memory manager handles the memory hierarchy

3
Basic Memory ManagementMonoprogramming without
Swapping or Paging
  • Three simple ways of organizing memory
  • - an operating system with one user process

4
Multiprogramming with Fixed Partitions
  • Fixed memory partitions
  • separate input queues for each partition
  • single input queue

5
Memory Management
  • The CPU utilization can be modeled by the formula
  • CPU utilization 1 - pn
  • where there are n processes in memory and
    each process spends a fraction p of its time
    waiting for I/O.
  • CPU utilization is a function of n, which is
    called the degree of multiprogramming.
  • A more accurate model can be constructed using
    queuing theory.
  • Example
  • A computer has 32 MB. The OS takes 16 MB.
    Each process takes 4 MB. 80 percent of time is
    waiting for I/O. The CPU utilization is 1 0.84
    60. If 16 MB is added, then the utilization is
    1 0.88 83.

6
Modeling Multiprogramming
Degree of multiprogramming
  • CPU utilization as a function of number of
    processes in memory

7
Analysis of Multiprogramming System Performance
  • Arrival and work requirements of 4 jobs
  • CPU utilization for 1 4 jobs with 80 I/O wait
  • Sequence of events as jobs arrive and finish
  • note numbers show amout of CPU time jobs get in
    each interval

8
Relocation and Protection
  • Multiprogramming introduces two problems
    relocation and protection.
  • Relocation - Cannot be sure where program will be
    loaded in memory
  • address locations of variables, code routines
    cannot be absolute
  • must keep a program out of other processes
    partitions
  • Protection - Use base and limit values
  • address locations added to base value to map to
    physical addr
  • address locations larger than limit value is an
    error

9
Swapping
  • Two approaches to overcome the limitation of
    memory
  • Swapping puts a process back and forth in memory
    and on the disk.
  • Virtual memory allows programs to run even when
    they are only partially in main memory.
  • When swapping creates multiple holes in memory,
    memory compaction can be used to combine them
    into a big one by moving all processes together.

10
Swapping
  • Memory allocation changes as
  • processes come into memory
  • leave memory
  • Shaded regions are unused memory

11
Swapping
  • Allocating space for growing data segment
  • Allocating space for growing stack data segment

12
Memory Management with Bit Maps and Linked Lists
  • There are two ways to keep track of memory usage
    bitmaps and free lists.
  • The problem of bitmaps is to find a run of
    consecutive 0 bits in the map. This is a slow
    operation.
  • Four algorithms can be used in memory management
    with linked lists (double-linked list)
  • First fit searches from the beginning for a hole
    that fits.
  • Next fit searches from the place where it left
    off last time for a hole that fits.
  • Best fit searches the entire list and takes the
    smallest hole that fits.
  • Worst fit searches the largest hole that fits.

13
Memory Management with Bit Maps
  • Part of memory with 5 processes, 3 holes
  • tick marks show allocation units
  • shaded regions are free
  • Corresponding bit map
  • Same information as a list

14
Memory Management with Linked Lists
  • Four neighbor combinations for the terminating
    process X

15
Virtual Memory
  • Problem Program too large to fit in memory
  • Solution
  • Programmer splits program into pieces called
    Overlays - too much work
  • Virtual memory - Fotheringham 1961 - OS keeps
    the part of the program currently in use in
    memory
  • Paging is a technique used to implement virtual
    memory.
  • Virtual Address is a program generated address.
  • The MMU (memory management unit) translates a
    virtual address into a physical address.

16
Virtual MemoryPaging
  • The position and function of the MMU

17
Virtual Memory
  • Suppose the computer can generate 16-bit
    addresses, (0-64k). However, the computer only
    has 32k of memory ? 64k program can be written,
    but not loaded into memory.
  • The virtual address space is divided into
    (virtual) pages and those in the physical memory
    are (page) frames.
  • A Present/Absent bit keeps track of whether or
    not the page is mapped.
  • Reference to an unmapped page causes the CPU to
    trap to the OS.
  • This trap is called a Page fault. The MMU
    selects a little used page frame, writes its
    contents back to disk, fetches the page just
    referenced, and restarts the trapped instruction.

18
Paging
  • The relation betweenvirtual addressesand
    physical memory addres-ses given bypage table

19
Paging Model Example
20
Page Tables
  • Example Virtual address 4097 0001
    000000000001

  • Virtual page 12-bit offset
  • See Figure 4-11.
  • The purpose of the page table is to map virtual
    pages into page frames. The page table is a
    function to map the virtual page to the page
    frame.
  • Two major issues of the page tables are faced
  • Page tables may be extremely large (e.g. most
    computers use)
  • 32-bit address with 4k page size,
    12-bit offset
  • ? 20 bits for virtual page number
  • ?1 million entries!
  • The mapping must be fast because it is done on
    every memory access!!

21
Pure paging
22
Page Tables
  • Internal operation of MMU with 16 4 KB pages

23
Two-Level Paging Example
  • A logical address (on 32-bit machine with 4K page
    size) is divided into
  • a page number consisting of 20 bits.
  • a page offset consisting of 12 bits.
  • Since the page table is paged, the page number is
    further divided into
  • a 10-bit page number.
  • a 10-bit page offset.
  • Thus, a logical address is as follows
  • where p1 is an index into the outer page
    table, and p2 is the displacement within the page
    of the outer page table.

page number
page offset
p2
p1
d
12
10
10
24
Address-Translation Scheme
  • Address-translation scheme for a two-level 32-bit
    paging architecture is shown as below.

25
Two-Level Page-Table Scheme
26
Page Tables
  • Multilevel page tables - reduce the table size.
    Also, don't keep page tables in memory that are
    not needed.
  • See the diagram in Figure 4-12
  • Top level entries point to the page table for
  • 0 program text
  • 1 program data
  • 1023 stack
  • ? 4M stack
  • 4M data
  • 4M code

27
Page Tables
Second-level page tables
Top-level page table
  • 32 bit address with 2 page table fields
  • Two-level page tables

28
Page Tables
  • Most operating systems allocate a page table for
    each process.
  • Single page table consisting of an array of
    hardware registers. As a process is loaded, the
    registers are loaded with page table.
  • Advantage - simple
  • Disadvantage - expensive if table is large and
    loading the full page table at every context
    switch hurts performance.
  • Leave page table in memory - a single register
    points to the table
  • Advantage - context switch cheap
  • Disadvantage - one or more memory references to
    read table entries

29
Hierarchical Paging
  • Examples of page table design
  • PDP-11 uses one-level paging.
  • The Pentium-II uses this two-level architecture.
  • The VAX architecture supports a variation of
    two-level paging (section page offset).
  • The SPARC architecture (with 32-bit addressing)
    supports a three-level paging scheme.
  • The 32-bit Motorola 68030 architecture supports a
    four-level paging scheme.
  • Further division could be made for large
    logical-address space.
  • However, for 64-bit architectures, hierarchical
    page are general infeasible.

30
Page Tables
  • Typical page table entry

31
Structure of a Page Table Entry
  • Page frame number map the frame number
  • Present/absent bit 1/0 indicates valid/invalid
    entry
  • Protection bit what kids of access are
    permitted.
  • Modified (dirty bit) set when modified and
    writing to the disk occur
  • Referenced - Set when page is referenced (help
    decide which page to evict)
  • Caching disabled - Cache is used to keep data
    that logically belongs on the disk in memory to
    improve performance. (Reference to I/O may
    require no cache!)

32
TLB
  • Observation Most programs make a large number of
    references to a small number of pages.
  • Solution Equip computers with a small hardware
    device, called Translation Look-aside Buffers
    (TLBs) or associative memory, to map virtual
    addresses to physical addresses without using the
    page table.
  • Modern RISC machines do TLB management in
    software. If the TLB is large enough to reduce
    the miss rate, software management of the TLB
    become acceptably efficient.
  • Methods to reduce TLB misses and the cost of a
    TLB miss
  • Preload pages
  • Maintain large TLB

33
TLBs Translation Lookaside Buffers
  • A TLB to speed up paging

34
Paging Hardware With TLB
35
Effective Access Time
  • Associative Lookup ? time unit
  • Assume memory cycle time is t time unit
  • Hit ratio percentage of times that a page
    number is found in the associative registers
    ration related to number of associative
    registers.
  • Hit ratio ?
  • Effective Access Time (EAT)
  • EAT ? (t ?) (1 ?) (2t ?)
  • ? t ? ? 2t ? - 2?t - ? ?
  • (2 ?)t
    ?
  • Example ? 0.8, ? 20 ns, t 100 ns
  • EAT 0.8 x 120 0.2 x (200 20) 140 ns.

36
Inverted Page Table
  • Usually, each process has a page table associated
    with it. One of drawbacks of this method is that
    each page table may consist of millions of
    entries.
  • To solve this problem, an inverted page table can
    be be used. There is one entry for each real page
    (frame) of memory.
  • Each entry consists of the virtual address of the
    page stored in that real memory location, with
    information about the process that owns that
    page.
  • Examples of systems using the inverted page
    tables include 64-bit UltraSPARC and PowerPC.

37
Inverted Page Table
  • To illustrate this method, a simplified version
    of the implementation of the inverted page is
    described as ltprocess-id, page-number, offsetgt.
  • Each inverted page-table entry is a pair
    ltprocess-id, page-numbergt. The inverted page
    table is then searched for a match. If a match i
    found, then the physical address lti, offsetgt is
    generated. Otherwise, an illegal address access
    has been attempted.
  • Although it decreases memory needed to store each
    page table, but increases time needed to search
    the table when a page reference occurs.
  • Use hash table to limit the search to one or at
    most a few page-table entries.

38
Inverted Page Table Architecture
39
Inverted Page Tables
  • Comparison of a traditional page table with an
    inverted page table

40
Page Replacement Algorithms
  • Page fault forces choice
  • which page must be removed
  • make room for incoming page
  • Modified page must first be saved
  • unmodified just overwritten
  • Better not to choose an often used page
  • will probably need to be brought back in soon
  • Applications Memory, Cache, Web pages

41
Optimal Page Replacement Algorithm
  • Replace the page which will be referenced at the
    farthest point
  • Optimal but impossible to implement and is only
    used for comparison
  • Estimate by
  • logging page use on previous runs of process
  • although this is impractical

42
Not Recently Used Page Replacement Algorithm
  • Each page has Reference bit (R) and Modified bit
    (M).
  • bits are set when page is referenced (read or
    written recently), modified (written to)
  • when a process starts, both bits R and M are set
    to 0 for all pages.
  • periodically, (on each clock interval (20msec) ),
    the R bit is cleared. (i.e. R0).
  • Pages are classified
  • Class 0 not referenced, not modified
  • Class 1 not referenced, modified
  • Class 2 referenced, not modified
  • Class 3 referenced, modified
  • NRU removes page at random
  • from lowest numbered non-empty class

43
FIFO Page Replacement Algorithm
  • Maintain a linked list of all pages
  • in order they came into memory with the oldest
    page at the front of the list.
  • Page at beginning of list replaced
  • Advantage easy to implement
  • Disadvantage
  • page in memory the longest (perhaps often used)
    may be evicted

44
Second Chance Page Replacement Algorithm
  • Inspect R bit
  • if R 0 ? evict the page
  • if R 1 ? set R 0 and put page at end
    (back) of list. The page is treated like a newly
    loaded page.
  • Clock Replacement Algorithm a different
    implementation of second chance

45
Second Chance Page Replacement Algorithm
  • Operation of a second chance
  • pages sorted in FIFO order
  • Page list if fault occurs at time 20, A has R bit
    set(numbers above pages are loading times)

46
The Clock Page Replacement Algorithm
47
Least Recently Used (LRU)
  • Assume pages used recently will used again soon
  • throw out page that has been unused for longest
    time
  • Software Solution Must keep a linked list of
    pages
  • most recently used at front, least at rear
  • update this list every memory reference ? Too
    expensive!!
  • Hardware solution Equip hardware with a 64 bit
    counter.
  • That is incrementing after each instruction.
  • The counter value is stored in the page table
    entry of the page that was just referenced.
  • choose page with lowest value counter
  • periodically zero the counter

48
Least Recently Used (LRU)
  • Hardware solution
  • Equip hardware with a 64 bit counter.
  • That is incrementing after each instruction.
  • The counter value is stored in the page table
    entry of the page that was just referenced.
  • choose page with lowest value counter
  • periodically zero the counter
  • Problem page table is larger.
  • Maintain a matrix of n x n bits for a machine
    with n page frames.
  • When page frame K is referenced
  • (i) Set row K to all 1s.
  • (ii) Set column K to all 0s.
  • The row whose binary value is smallest is the
    LRU page.

49
Simulating LRU in Software
  • LRU using a matrix pages referenced in order
    0,1,2,3,2,1,0,3,2,3

50
Simulating LRU in Software
  • LRU hardware is not usually available. NFU (Not
    Frequently Used) is implemented in software.
  • At each clock interrupt, the R bit is added to
    the counter associated with each page. When a
    page fault occurs, the page with the lowest
    counter is replaced.
  • Problem NFU never forgets, so a page referenced
    frequency long ago may have the highest counter.
  • Modified NFU NFU with Aging - at each clock
    interrupt
  • the counters are shifted right one bit, and
  • the R bits are added to the leftmost bit.
  • In this way, we can give higher priority to
    recent R values.

51
Simulating LRU in Software
  • The aging algorithm simulates LRU in software
  • Note 6 pages for 5 clock ticks, (a) (e)

52
Working-Set Model
  • Pages are loaded only on demand. This strategy is
    called demand paging.
  • During the phase of execution the process
    references relatively small fraction of its
    pages. This is called a locality of reference.
  • The set of pages that a process is currently is
    called its working set.
  • A program causing page faults every few
    instructions is said to be thrashing.
  • Paging systems keep each process working set in
    memory before letting the process run. This
    approach is called the working set model.

53
Locality In A Memory-Reference Pattern
54
Working-Set Model
  • Loading the pages before letting processes run is
    called prepaging.
  • ? ? w (k, t) ? working-set window containing k
    page references at time t
  • Example 10,000 instruction
  • WSSi (working set of Process Pi) total number
    of pages referenced in the most recent ? (varies
    in time)
  • if ? too small will not encompass entire
    locality.
  • if ? too large will encompass several localities.
  • if ? ? ? will encompass entire program.

55
Working-set model
56
The Working Set Page Replacement Algorithm
  • The working set is the set of pages used by the k
    most recent memory references
  • w(k,t) is the size of the working set at time, t

57
Working-Set Model
  • The idea is to examine the most recent ? page
    references. Evict a page that is not in the
    working set.
  • The working set of a process is the set of pages
    it has referenced during the past t seconds of
    virtual time (the amount of CPU time a process
    has actually used).
  • Scan the entire page table and evict the page
  • Its referenced bit is clean and its age is
    greater than t.
  • Its referenced bit is clean if no page has the
    age greater than t.
  • Its age is largest if no page has its referenced
    bit clear.
  • The basic working set algorithm is expensive.
    Instead, WSCLock is used in practice.

58
The Working Set Page Replacement Algorithm
  • The working set algorithm

59
The WSClock Page Replacement Algorithm
  • Operation of the WSClock algorithm

60
Review of Page Replacement Algorithms
61
Modeling Page Replacement Algorithms
  • Belady discovered more page frames might not
    always have fewer page faults. This is called
    Belady's anomaly.
  • Conceptually, a process memory access can be
    characterized by an (ordered) list of page
    numbers. This list is called the reference
    string.
  • A paging system can be characterized by three
    items
  • The reference string of the executing process.
  • The page replacement algorithm.
  • The number of page frames available in memory, m.

62
Modeling Page Replacement AlgorithmsBelady's
Anomaly
  • FIFO with 3 page frames
  • FIFO with 4 page frames
  • P's show which page references show page faults

63
Modeling Page Replacement Algorithms
  • Modeling LRU Algorithms
  • When a page is referenced, it is always moved to
    the top entry in pages in memory.
  • If the page referenced was already in memory, all
    pages above it move down one position.
  • Pages that below the referenced page are not
    moved.
  • The algorithms that do not suffer from Beladys
    algorithm such as LRU and optimal page replace
    algorithm are called stack algorithms.

64
Stack Algorithms
  • State of memory array, M, after each item in
    reference string is processed.
  • n virtual pages and m page frames.

65
FIFO Page Replacement
  • 15 page faults

66
Optimal Page Replacement
  • 9 page faults

67
LRU Page Replacement
  • 12 page faults

68
Distance String
  • Distance String - A page reference can be denoted
    by the distance it is from the top. Pages not in
    memory are at a distance infinity. The string so
    generated for a given reference string is called
    the distance string.
  • (Distance 1 ltgt page is at the top.)
  • (Distance infinity ltgt page is not in memory
    and has not been accessed yet.

69
The Distance String
  • Probability density functions for two
    hypothetical distance strings
  • Which needs more page frames?

70
The Distance String
  • Computation of page fault rate from distance
    string
  • the C vector
  • the F vector

71
Local versus Global Allocation Policies
  • Global algorithms dynamically allocate page
    frames among all runnable processes. Local
    algorithms allocate pages for a single process.
  • A global algorithm such as page fault frequency
    (PFF) algorithm is used to prevent thrashing and
    keep the paging rate within acceptable bounds.
  • too high ? assign more page frames to the
    process.
  • too low ? assign process fewer page frames.

72
Design Issues for Paging SystemsLocal versus
Global Allocation Policies
  • Original configuration
  • Local page replacement
  • Global page replacement

73
Local versus Global Allocation Policies
  • Page fault rate as a function of the number of
    page frames assigned

74
Load Control
  • Despite good designs, system may still thrash
  • When PFF (page fault frequency) algorithm
    indicates
  • some processes need more memory
  • but no processes need less
  • Solution Reduce number of processes competing
    for memory
  • swap one or more to disk, divide up pages they
    held
  • reconsider degree of multiprogramming

75
Page Size
  • Small page size
  • Advantages
  • less internal fragmentation
  • better fit for various data structures, code
    sections
  • less unused program in memory
  • Disadvantages
  • programs need many pages, larger page tables

76
Page Size
  • Overhead due to page table and internal
    fragmentation
  • Where
  • s average process size in bytes
  • p page size in bytes
  • e page entry

77
Page Size
  • Example
  • s 128K
  • e 8
  • p square root of (2(128K)(8)) 1448
  • p 1k or 2k
  • In general, 512 lt page size lt 8k.

78
Separate Instruction and Data Spaces
  • Most systems separate address spaces for
    instructions (program text) and data.
  • A process can have two pointers in its process
    table one to the instruction page and one to the
    data page. A shared code can be pointed by two
    processes.
  • For the shared data only the data pages that are
    written need be copied. This approach is Copy on
    write.

79
Separate Instruction and Data Spaces
  • One address space
  • Separate I and D spaces

80
Shared Pages
  • Two processes sharing same program sharing its
    page table

81
Cleaning Policy
  • Need for a background process, paging daemon
  • periodically inspects state of memory
  • When too few frames are free
  • selects pages to evict using a replacement
    algorithm
  • It can use a two-handed clock.
  • The font hand is controlled by the paging system.
  • The back hand is used for page replacement
    algorithm.

82
Implementation IssuesOperating System
Involvement with Paging
  • Four times when OS involved with paging
  • Process creation
  • determine program size
  • create page table
  • Process execution
  • MMU reset for new process
  • TLB flushed
  • Page fault time
  • determine virtual address causing fault
  • swap target page out, needed page in
  • Process termination time
  • release page table, pages

83
Page Fault Handling
  1. Hardware traps to kernel
  2. General registers saved
  3. OS determines which virtual page needed
  4. OS checks validity of address, seeks page frame
  5. If selected frame is dirty, write it to disk

84
Page Fault Handling
  • OS brings schedules new page in from disk
  • Page tables updated
  • Faulting instruction backed up to when it began
  • Faulting process scheduled
  • Registers restored
  • Program continues

85
Instruction Backup
  • An instruction causing a page fault

86
Locking Pages in Memory
  • Virtual memory and I/O occasionally interact
  • Process issues call for read from device into
    buffer
  • while waiting for I/O, another processes starts
    up
  • has a page fault
  • buffer for the first process may be chosen to be
    paged out
  • If a page transferring data through the I/O is
    paged out, it will cause part of the data in
    buffer and part in the newly loaded page. In this
    case, the page need be locked (pinning).

87
Backing Store
  • Two approaches can be used to allocate page space
    on the disk
  • Paging to static swap area - Reserve separate
    swap areas for the text, data, and stack when the
    process is started.
  • Backing up pages dynamically with a disk map -
    Allocate disk space for each page when it is
    swapped in and out.

88
Backing Store
  • (a) Paging to static swap area
  • (b) Backing up pages dynamically

89
Separation of Policy and Mechanism
  • To managing the complexity of any system the
    policy is separated from the mechanism.
  • The memory management system can be divided into
    three parts
  • A low-level MMU handler.
  • A page fault handler that is part of the kernel.
  • An external pager running in user space.

90
Separation of Policy and Mechanism
  • Page fault handling with an external pager

91
Segmentation
  • Consider a compiler which has many tables.
  • In one-dimensional design the table will grow and
    bump into another.
  • A segmented memory allows each table to grow or
    shrink.

92
Segmentation
  • One-dimensional address space with growing tables
  • One table may bump into another

93
Segmentation
  • Allows each table to grow or shrink, independently

94
Segmentation
  • Comparison of paging and segmentation

95
Segmentation
  • A segment is a logically independent address
    space.
  • segments may have different sizes
  • their sizes may change dynamically
  • the address space uses 2-dimensional memory
    addresses and has 2 parts
  • (segment , offset within segment)
  • segments may have different protections
  • allows for the sharing of procedures and data
    between processes. An example is the shared
    library.

96
Implementation of Pure Segmentation
  • The implementation of segmentation differs from
    paging in an essential way pages are fixed size
    and segments are not.
  • External fragmentation or checkerboarding is
    wasted memory in the holes. It can be dealt with
    by compaction.

97
Implementation of Pure Segmentation
  • (a)-(d) Development of checkerboarding
  • (e) Removal of the checkerboarding by compaction

98
Pure paging
  • Address generated by CPU is divided into
  • Page number (p) used as an index into a page
    table which contains base address of each page in
    physical memory.
  • Page offset (d) combined with base address to
    define the physical memory address that is sent
    to the memory unit.
  • page number page
    offset
  • m n
    n
  • Where p is an index to the page table and d is
    the displacement within the page.

p d
99
Pure paging
100
Pure Segmentation
101
Segmentation with Paging
  • Paging segments allows the large segments to fit
    in main memory..
  • MULTICS ran on the Honeywell 6000 machines
    Motorola 68000 line is designed based on a
    flat-address space, whereas the Intel 80x86 and
    Pentium family are based on segmentation. Both
    are merging memory models toward a mixture of
    paging and segmentation.

102
Segmentation with Paging MULTICS
  • A 34-bit MULTICS virtual address

103
Segmentation with Paging MULTICS
  • Descriptor segment points to page tables
  • Segment descriptor numbers are field lengths

104
Segmentation with Paging MULTICS
  • Conversion of a 2-part MULTICS address into a
    main memory address

105
Segmentation with Paging MULTICS
  • Simplified version of the MULTICS TLB
  • Existence of 2 page sizes makes actual TLB more
    complicated

106
Segmentation with Paging Intel 386
  • On 386, the logical-address space of a process is
    divided into two partitions. The first partition
    is private to that process and the second is
    shared among all process.
  • Information about the first partition is kept in
    the local descriptor table (LDT), information
    about the second partition is kept in the global
    descriptor table (GDT).
  • The physical address on the 386 is 32 bits. The
    segment register points to the appropriate entry
    in the LDT or GDT.

107
Segmentation with Paging Intel 386
  • The base and limit information about the segment
    are used to generate a linear address. It is
    divided into a page number of 20 bits, and a page
    offset consisting of 12 bits.
  • As shown in the following diagram, the Intel 386
    uses segmentation with paging for memory
    management with a two-level paging scheme.

108
Segmentation with Paging Pentium
  • A Pentium selector

109
Segmentation with Paging Pentium
  • Pentium code segment descriptor
  • Data segments differ slightly

110
Segmentation with Paging Pentium
  • Conversion of a (selector, offset) pair to a
    linear address

111
Segmentation with Paging Pentium
  • Mapping of a linear address onto a physical
    address

112
Segmentation with Paging Pentium
Level
  • Protection on the Pentium
Write a Comment
User Comments (0)
About PowerShow.com
