IEEE 802.15.4 Eaton Call for Applications

1

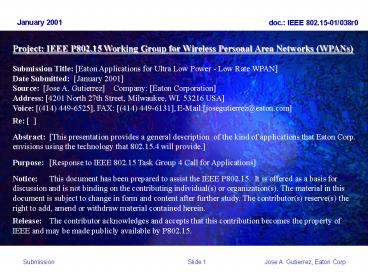

doc. IEEE 802.15-01/038r0
January 2001
Project IEEE P802.15 Working Group for Wireless
Personal Area Networks (WPANs) Submission Title
Eaton Applications for Ultra Low Power - Low
Rate WPAN Date Submitted January
2001 Source Jose A. Gutierrez Company
Eaton Corporation Address 4201 North 27th
Street, Milwaukee, WI. 53216 USA Voice (414)
449-6525, FAX [phone],
E-Mailjosegutierrez_at_eaton.com Re
Abstract This presentation provides a general
description of the kind of applications that
Eaton Corp. envisions using the technology that
802.15.4 will provide. Purpose Response to
IEEE 802.15 Task Group 4 Call for Applications
Notice This document has been prepared to
assist the IEEE P802.15. It is offered as a
basis for discussion and is not binding on the
contributing individual(s) or organization(s).
The material in this document is subject to
change in form and content after further study.
The contributor(s) reserve(s) the right to add,
amend or withdraw material contained
herein. Release The contributor acknowledges and
accepts that this contribution becomes the
property of IEEE and may be made publicly
available by P802.15.
Slide 1
Submission
Jose A. Gutierrez, Eaton Corp.
2
Eaton Applications for Ultra Low Power - Low
RateWPANMaking the case for Wireless Sensors
Communications
Jose A. Gutierrez Principal Engineer RF/Communicat
ions Group Innovation Center - Eaton Corp. Phone
1-414-449-6525 Fax [phone] josegutierr
ez_at_eaton.com
3
Industrial Diversified Company Diversified
Applications

• Industrial
• Vehicular
• Residential/Commercial

4
Our Focus . . .

• Industrial Applications
• Power Distribution Protection
• Control Automation
• Industrial sensors
• Vehicular Applications
• Automotive
• Trucks
• Off-Road Vehicles
• Residential/Commercial Applications
• Home Automation Control

5
Drivers . . .
Future
Past
Present
Wired Power Wired Communications
Wired Power Wireless Communications
Completely untethered Communications Power
We are here
Low Cost Low Power Self Configuring
6
Usage Scenarios

• Stick-On Sensor Network
• Monitoring
• Diagnostic
• Control
• Wireless Hub for a network of sensors
• Sensor parameters programming (IEEE 1451)
• Diagnostic/Monitoring

7
Our Applications do NOT require

• High data Rates (more than 20kbps)
• High duty cycle or quick response time
• High Level of security
• Connection handling Hand-off
• Real-Time Operation
• Long range (30 ft is more than enough)

8
Our Applications DO require

• Very Low Power Consumption
• Disposable wireless sensors
• Should last at least five years for automotive
  applications and from a few months to 10 years in
  Industrial applications
• Low Cost
• Automotive applications
• Robustness to handle industrial/vehicular
  environments
• Temperature, vibration, humidity, etc

9
Scenario Topologies
Master-Slave Configuration

• Piconet
• Scatternet
• Point to point
• Multihop
• Peer to peer
• Unidirectional/Bi-directional

10
Our Requirements Vs. Existing Solutions
11
Application Description
12
Application Description
13
Application Description
