Title: Automatic Generation of Dynamics Models


1

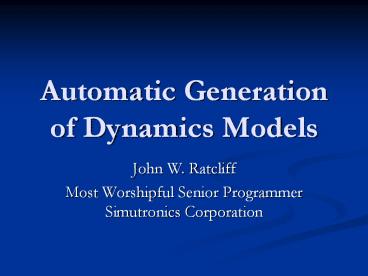

Automatic Generation of Dynamics Models
  • John W. Ratcliff
  • Most Worshipful Senior Programmer Simutronics
    Corporation

2
Introduction
  • Work for this presentation was supported by Ageia
    Technologies.
  • This is an open source project to facilitate the
    rapid production of physics content from raw
    source graphics data
  • Much assistance provided by Matthias Mueller,
    Pierre Terdiman, Adam Moravansky, Billy Zelsnack
    and Dilip Sequeira

3
The Code Suppositorywww.codesuppository.blogspot.
com
  • A Place Where I Insert My Code into the Anus of
    the Internet John W. Ratcliff, Flipcode, January
    12, 2000

Yes, I know what that word means John W.
Ratcliff in response to an email received on
January 13, 2000.
4
The Problem
  • The rapid acceptance of pervasive physics in
    games has created new authoring and asset
    requirements.
  • There is a general lack of tools to facilitate
    the rapid creation of dynamics assets.
  • Many games send their raw graphics assets to the
    physics engine which is highly inefficient and
    often causes significant problems.

5
Where should Physics Content be Authored?
  • Physics models are usually derived from a final
    production art asset.
  • Iteration on physics assets is primarily a
    design problem rather than an art issue.
  • Ideally editing of dynamics data assets should
    occur directly in the game engine/editor for
    rapid iteration cycles to test the behavior and
    interaction of the models in real-time.

6
Existing Tools to Author Physics Content
  • Feeling Software www.feelingsoftware.com
  • PhysX Plugin for 3D Studio Max (free open source)
  • Nima for Maya (Unsupported version Free)
  • Lead developer Christian Laforte
  • Blender 3D www.blender.org (Free open source)
  • Lead developer Ton Roosendaal
  • Bullet Physics Library www.continuousphysics.com
    (Free open source)
  • Developed by Erwin Coumans
  • CreateDynamics www.codesuppository.blogspot.com
    (Free open source)
  • Developed by John W. Ratcliff
  • Unreal Editor www.epicgames.com
  • Proprietary tools.
  • Physics authoring happens in the game editor
  • Uses some of the CreateDynamics toolkit for
    generating compound objects.
  • Lead developer on the physics tools James Golding
  • Scythe Physics Editor www.physicseditor.com
  • Supports ODE, Newton, PhysX
  • Free and Commercial vesions available
  • Lead developer Chris Hunt

7
Existing Standardized File Formats for Physics
Content
  • COLLADA 1.4.1 www.collada.org
  • Supports basic rigid body physics markup in an
    XML format.
  • NxuStream www.ageia.com
  • Provided as part of the free PhysX SDK.
  • Source library.
  • Exact reflective object model of every component
    in the SDK, including rigid body, constraints,
    all shapes, including heightfields, cloth,
    softbodies, fluids, collision filters, energy
    fields, and much more.
  • XML, Binary, and supports COLLADA 1.4.1 physics
    only specification.
  • Scythe www.physicseditor.com

8
Multiple Collision Models Per Asset
  • For any given art asset there are usually at
    least three, if not more, physics
    representations.
  • Raycast model A static triangle mesh that is
    identical to the original graphics model for
    precise line of sight evaluation as well as
    certain graphics support such as decal
    generation.
  • Static collision model An often dramatically
    simplified version which corresponds to what the
    player character would collide with (rarely
    should be the raycast version.) May be a
    simplified mesh, a convex hull, or a compound
    shape.
  • Dynamic collision model(s) One or more versions
    to be used when the object is dynamic. Should
    never be a triangle mesh. Typically a single
    convex hull or compound object.

9
Components of a Physics Asset
  • Rigid Body properties
  • Collision Shapes
  • Triangle Mesh
  • Box
  • Capsule
  • Convex Hull
  • Sphere
  • HeightField
  • Constraints
  • Cloth properties and topology
  • Soft Body properties and topology
  • Fluid and fluid emitter properties
  • Energy Fields

10
Typical Rigid Body Properties
  • World Transform (global pose)
  • List of collision shapes
  • Collision group and/or other flags
  • Dynamics Properties
  • Linear Velocity and Angular Velocity
  • Mass or Density
  • Mass Local Pose and Mass Space Inertia Tensor
  • Engine specific components
  • Solver Iterations
  • Sleep Threshold
  • Maximum Angular Velocity
  • Etc.

11
Collision Shape Properties
  • Local Transform (relative to parent rigid body)
  • Material Index
  • Collision filtering information
  • Contact report flags
  • Shape data
  • Box dimensions
  • Sphere radius
  • Capsule height and radius
  • Convex hull faces
  • Triangle mesh triangles
  • Heightfield sample data
  • Plane equation

12
Programmable ConstraintCustomizable on all 6
degrees of freedom angular and linearPhysX SDK
implementation by Matthias Mueller-Fischer
  • A constraint that can be configured on three
    angular and three linear degrees of freedom.
    Each degree of freedom can be fixed, free, or
    limited and can be configured to support drive,
    motors, and springs.
  • Advantages
  • A single model can be configured to behave in any
    of the most common custom joint configurations.
  • Allows for a much simpler and easier to maintain
    code path.
  • Provides new types of constraints not typically
    available with most engines.
  • Predictable behavior in all configurations.
  • Orthogonal data definition.
  • Disadvantages
  • Initially can be more difficult to configure.
    This can be improved by providing helper setup
    routines for common constraint types.

13
Authoring Collision Shapes
  • For simple objects, when a single shape is
    sufficient, collision fitting is not difficult

Single Collision Shape with Oriented Bounding Box
approximation
Single Collision Shape Convex Hull approximation
14
Compound ShapesApproximate Convex Decomposition
  • Published work
  • Approximate Convex Decomposition
  • Texas AM University
  • Algorithms Applications Group
  • Jyh-Ming Lien and Nancy M. Amato
  • (parasol.tamu.edu/groups/amatogroup/research/app-c
    d)
  • Variational, meaningful shape decomposition
  • University of British Columbia
  • Vladislav Krayevoy and Alla Scheffer
  • (www.cs.ubc.ca/vlady/Papers/Segmentation.pdf)

15
Convex DecompositionAlgorithm by John W. Ratcliff
  • Inspired by the work of Jyh-Ming Lien and Nancy
    M. Amato at Texas AM. However, this brute force
    implementation has little in common with their
    technique.
  • Accepts open meshes
  • Not real time
  • Available as a plug-in or open source library
  • Simple interface

16
The Algorithm
  • A recursive routine is passed, as input, the
    source triangle mesh
  • The first step is to compute the volume of
    concavity
  • Build a convex hull around the mesh.
  • Project each triangle on the original mesh onto
    the hull.
  • Compute the volume of the mesh that results from
    the projected triangle onto the convex hull skin.
  • The sum of the volume of all projected triangles
    to the convex hull surrounding it becomes the
    volume of concavity
  • Compute the percentage volume of concavity by
    dividing it by the volume of the hull around the
    original source mesh.
  • If the percentage volume of concavity is below a
    user supplied threshold then accept this mesh as
    sufficiently convex.
  • By measuring against the total volume this allows
    highly concave pieces to be ignored if they are
    quite small and unimportant relative to the
    overall size of the object.

17
The Algorithm cont.
  • Compute the best fit oriented bounding box
  • If the mesh is concave then compute the best fit
    oriented bounding box around the mesh.
  • Compute a split plane along the long axis of the
    OBB
  • Split all of the input triangles against the
    plane producing two output meshes
  • Each triangle is tested to see which side of the
    plane it lies on.
  • If the triangle straddles the plane it is split
    and one triangle piece is sent to the top mesh
    and the other sent to the bottom mesh.
  • The edge of each split triangle is added to an
    edge list.

18
The Algorithm cont.
  • Using the edges that lie along the split plane
    compute a delaunay triangulation.
  • Project the points onto the plane so the
    operation can be performed in 2d
  • Must support multiple polygons
  • Must support holes by testing polygons inside
    other polygons (example splitting a glass in
    half)
  • See Triangle A Two-Dimensional Quality Mesh
    Generator and Delaunay Triangulator by Jonathan
    Richard Shewchuk http//www.cs.cmu.edu/quake/tri
    angle.html
  • Project the polygon points back into 3d and weld
    them into the mesh producing a whole piece.
  • Without this operation deep recursion produces
    hollow objects and does not converge to an
    optimal solution set.

19
The Algorithm cont.
  • Pass the top and bottom split meshes back into
    the recursive routine.
  • Wash, rinse, and repeat until there are no
    concave pieces left or at the maximum recursion
    depth provided by the user.
  • This results in an oriented bounding volume tree
    based on the original source mesh.
  • The output hulls are over described since an
    optimal split was not performed.
  • To correct for this a cleanup phase is run where
    hulls are merged back together again if they are
    largely convex afterwards.
  • In short, what the process has done is created
    too many hulls but a straightforward cleanup pass
    can easily stitch them back together again.
    Simply compute the volume of two hulls separate
    then compute the volume of the two hulls
    combined. If the volume is within a percentage
    threshold provided by the user (called the merge
    threshold) then these two hulls are combined back
    into one.

20
The Algorithm cont.
  • Attempt to merge hulls by largest volume first.
  • At each phase of the merge process select the
    largest hull first and then attempt to merge it
    in order of the largest volume to the smallest.
  • The end result is that even though the mesh was
    chopped up more than was necessary, the
    post-process cleanup phase ends up producing
    results as if the most optimal split had been
    performed in the first place. Behold the power
    of brute force, sometimes a blunt instrument
    beats out the most advanced mathematics.

21
Create DynamicsConvex Decomposition User
Interface
22
Approximate Convex DecompositionExamples using
various fitting rules
23
Approximate Convex Decomposition Examples
24
VideoA high poly count helix mesh simulated as a
rigid body composed of only 15 convex hull shapes
25
Automatic Rag Doll GenerationDirectly from
Skeletal Deformed Mesh
  • Creating Ragdoll models can be very time
    consuming. Artists spend a great deal of time
    rigging up a skeletal system for an art asset to
    begin with. There should not be a need to spend
    an equal amount of time producing a physics
    representation of the same.
  • Embedded within a standard skeletal deformed mesh
    is sufficient information to auto-generate a
    reasonable approximate ragdoll model.

26
Automatic Rag Doll GenerationStep 1 Skeleton
Pruning
  • The skeleton used for a ragdoll physics
    simulation is typically far simpler than what is
    used for graphics.
  • The graphics version may include many details
    such as fingers, toes, facial bones and marker
    bones for game play elements. None of these
    bones are desirable in the physics representation
  • Before attempting to generate constraints for all
    of the bones in the skeleton the skeleton needs
    to be pruned and a new skeleton created which is
    usable for a real-time physics simulation.

27
Automatic Rag Doll GenerationStep 1 Skeleton
Pruning
  • Traverse the skeleton and examine the triangles
    which have significant weightings to each bone.
  • Bones which are not influenced by any geometry
    are marked for deletion.
  • For the rest of the bones compute the volume of
    the convex hull around the triangles weighted to
    it.
  • Compare the volume of the geometry associated
    with the volume of the whole. If the volume is
    below a user supplied percentage threshold this
    bone should be marked for removal. This will
    leave only bones associated with larger
    components of the source mesh in a humanoid
    character this would correspond to head, arms,
    legs, and torso, but not eyes, fingers, or toes.

28
Automatic Rag Doll GenerationStep 1 Skeleton
Pruning
  • Now a new skeleton must be produced that leaves
    only the bones which were marked for removal.
  • Leaf node bones marked for deletion may simply be
    removed.
  • Bones marked for removal that are not leaf nodes
    must have their child/parent relationship patched
    up so the skeleton will still be intact. The
    parent should keep track of the now dead child
    bones it has inherited.
  • Now that a reduced skeleton has been created the
    deformed mesh geometry has to be revised so the
    bone indices point to the correct locations in
    the new skeleton.
  • For each bone referenced in the source mesh
    re-assign it to the corresponding bone in the new
    skeleton for the output mesh.
  • If a vertex refers to a bone that has been
    deleted then attach it to the parent bone that
    the original bone was collapsed into.

29
Automatic Rag Doll GenerationStep 2 Generating
Collision Shapes
  • Walk the reduced skeleton and collect the
    triangles associated with each bone.
  • On a per-bone basis run the CreateDynamics shape
    fitting tool and approximate the shape as a box,
    sphere, capsule, or convex hull based on user
    input selection.
  • Using a rules based system, different shape
    fitting techniques can be applied to the skeleton
    using wildcards and inheritance.

30
Automatic Rag Doll GenerationStep 3 Generating
Constraints
  • Constraints are created based on the transforms
    of the reduced skeleton.
  • Joint types and limits are selected from user
    input using the same rules system for deciding
    shape fitting.
  • Though not currently implemented it would be
    feasible to infer joint types and limits by
    interpreting a reference animation.
  • Joint limits and types are supported by Maya and
    might be able to be passed as part of the export
    process.

31
Automatic Rag Doll GenerationStep 4 Generating
Collision Filters
  • To prevent the ragdoll model from constantly
    colliding with itself collision filters are
    needed to prevent this artifact.
  • Walk the skeleton and compute the skeletal
    distance between bones. Bones which are near
    each other along the skeleton should have
    collisions disabled between their bodies.
  • For more accurate collision modeling (such as
    convex hulls) the filtering need not be too deep.
    For cruder collision models such as capsules or
    boxes, filtering to avoid the model colliding
    with itself will need to be more aggressive.
  • Though not currently implemented, it might be
    best to decide where collision filters are needed
    by detecting contacts while the skeletal model is
    in its rest pose.

32
Simplified Auto Generated RagDoll
33
Detailed Auto Generated Ragdoll
34
Video Auto Generated RagDoll Models Simulated
with the PhysX SDK
35
Auto Generated Constraints
  • The previous example showed how to create a
    ragdoll from a skeletal deformed mesh rigged up
    by an artist.
  • If you dont have an already rigged up skeletal
    deformed mesh but still want to get a fast
    ragdoll or cheap illusion of soft body then a
    skeletal deformed mesh can be automatically
    generated.

36
Auto Generated Constraints
  • First generate an oriented bounding volume system
    for the raw source mesh.
  • This is easy to implement because all we have to
    do is disable the merge portion of the convex
    decomposition algorithm.
  • By removing the merge option the system is much
    more balanced and will simulate more
    realistically.

37
Auto Generated Constraints
Auto-Generated Oriented Bounding Volume System
using Approximate Convex Decomposition without
Merge
Original Raw Source Mesh No Skeleton No Bone
Weightings
38
Auto Generated Constraints
  • Auto-generating the constraints uses a recursive
    algorithm that begins with finding the largest
    volume hull in the decomposed object. The
    largest hull is used as the root node for the
    skeleton.
  • From this hull locate all hulls which touch it.
  • Touching is determined by finding two triangles
    which have roughly the same vector normal
    pointing in opposite directions.
  • If the two triangles lie along the same plane,
    then they are projected into 2d along that plane
    and a 2d triangle-triangle intersection test is
    performed.
  • If these two triangles intersect then they are
    considered touching and are added to an
    intersection bounding volume.
  • If the two hulls were found to be touching then
    the median intersection point of those touching
    surfaces becomes the anchor point for the
    constraint.
  • This same process is repeated for every hull in
    the object, each time starting with the last
    hulls that were connected.
  • In the end each hull will have a single
    constraint at the location where it touches a
    neighbor hull.

39
Auto Generated Skinned Meshes
  • Once the auto-generated constrained rigid body
    system has been saved there are now run-time
    considerations.
  • A skeletal deformed mesh has to be created from
    the original raw source mesh. This could be done
    as a pre-process step but is more powerful to do
    on the fly at run time.
  • Converting the raw mesh to a skeletal deformed
    mesh requires that each vertex be assigned bone
    indices and bone weightings.
  • For each vertex in the source mesh, compute the
    four nearest bones (rigid bodies) and the
    distance of those bones from the vertex.
  • Compute the weighting of each bone based on the
    ratio of the distance of that bone relative to
    the sum total of the distances of all four. An
    additional weighting bias can be applied if
    desired (Example 4x bone1, 2x bone2, 1x, bone 3
    and 4.)

40
Video Auto-Generated constrained system mapped
to an auto-generated skinned mesh
41
Auto-Generated Pre-Fractured Objects
  • The same technique used to produce skeletal
    meshes from raw mesh data can be applied for
    pre-fractured objects
  • Do not disable the merge in this case.
  • Constraints are generated against fewer shapes at
    more natural break boundaries.
  • The constraints are rigged up to be fixed joints
    with a particular breaking force based on game
    design.
  • The difficult part is producing fracture artwork.
    This is a hard problem, but not unsolvable.
    Currently the CreateDynamics toolkit cannot
    produce pre-fracture graphics, only pre-fracture
    physics.

42
Video
43
Cloth Authoring
  • Cloth is simulated based on a source triangle
    mesh.
  • Authoring is straightforward as the physics
    representation is simply the source triangle mesh
    with duplicate vertex positions removed.
  • Additional data associated with cloth are
    numerous physics properties describing how the
    simulation should behave.
  • Attachment points must be captured where needed.

44
Cloth at Run-Time
  • The graphics representation of the cloth usually
    does not exactly match up to the physics
    representation due to material assignments.
  • A mapping table must exist between the indices in
    the physics mesh to the indices in the graphics
    mesh.
  • Additional challenges arise from dealing with
    torn cloth which creates new triangle indices,
    and those indices must be remapped to the
    graphics representation on the fly.
  • Double sided cloth can be visualized using a
    shader that renders the cloth twice flipping the
    normals and culling direction on the back side.
  • Cloth is typically authored in a rest pose so a
    simulation may need to be run a number of frames
    before rendering it initially to avoid watching
    the cloth fall into place.

45
Cloth Simulation Video
46
Authoring Fluids
  • Fluids are represented as a set of simulation
    properties and emitters.
  • 3D fluids have numerous and often complex
    physical properties that influence the behavior
    of the simulation.
  • Emitters can be attached to rigid body actors.
  • Numerous emitter properties can be edited as
    well.
  • A real-time preview tool to rapidly iterate on
    fluid properties is essential to achieve good
    results.

47
Rendering Fluids
  • The challenges in turning a set of 3d points into
    a compelling visual illusion of fluid surfaces
    would take a whole talk by itself.
  • Think outside the box. Just because you are
    using a physics simulation called fluids
    doesnt mean you have to visualize it as a fluid
    surface.
  • Smoke
  • Sparks
  • Micro-Debris
  • Fog
  • Energy fields
  • And whatever your artists imagination can come up
    with.

48
Common Fluid Visualization Methods
  • Sprites
  • Each fluid particle is rendered using a camera
    facing billboard sprite.
  • Excellent opportunity to use hardware point
    sprites.
  • Multi-Pass techniques on each sprite can produce
    interesting layered effects.
  • Full Screen multipass effects can produce the
    illusion of refraction and reflection by
    rendering sprites as normals which are then
    Gaussian blurred in an off-screen buffer.
  • Surface Mesh
  • Algorithm by Matthias Mueller
  • Performs mesh operations in 2d and then
    back-projects the results producing a highly
    efficient 3d mesh.

49
Video Screen Space Surfaces
50
Video Comparison Fluid Visualization Techniques
51
Video
52
Soft Body Authoring
  • Soft Bodies are simulated as a tetrahedral
    volumetric mesh.
  • Similar to the cloth simulation presented in the
    paper Position Based Dynamics authors Matthias
    Müller, Bruno Heidelberger, Marcus Hennix, and
    John Ratcliff. (http//graphics.ethz.ch/mattmuel/
    publications/posBasedDyn.pdf)
  • Rather than solving for stretching along vertex
    edges instead solve for conservation of volume.
  • Highly dependent upon the quality of the input
    tetrahedral mesh.

53
Soft Body AuthoringMathias Mueller-Fischer,
PhDhttp//graphics.ethz.ch/mattmuel/Ageia
Technologies
  • Begin with arbitrary 3d mesh
  • Does not need to be a closed mesh.
  • Generate an isosurface for the input mesh.
  • Generate an iso-surface of the distance field to
    the triangle mesh and triangulate it via marching
    cubes.
  • Perform a quadric mesh optimization on the
    isosurface
  • This is a mesh simplification technique which
    does not affect the morphology of large scale
    features. This will produce fewer tetrahdrons
    without affecting the visual quality of the
    simulation and, therefore, simulate faster.
  • Using the optimized isosurface mesh perform the
    delaunay tetrahedralization to produce the set of
    tetrahedrons for simulation. Adding randomly
    distributed vertices inside the isosurface will
    reduce the tetrahedral size.
  • Finally allow the user the option of editing
    individual tetrahedron based on game design needs.

54
Soft Body Visualization
  • Use free form deformation to produce the
    real-time graphics mesh synchronized to the
    tetrahedral physics simulation.
  • For each vertex in the graphics mesh compute the
    nearest tetrahedron to it.
  • Compute the set of barycentric coordinates that
    map the four vertices of the tetrahedron to the
    single vertex on the graphics mesh.
  • These barycentric coordinates can be pre-computed
    and stored as part of the graphics mesh data, or
    can be built on the fly when the mesh is
    initially loaded.
  • During rendering, for each vertex in the graphics
    mesh deform it by the projection of the
    tetrahedron that maps to that vertex using the
    current positions and the previously computed
    barycentric values.
  • This deformation is difficult to perfom in a
    vertex shader unless, perhaps under DirectX 10.
    Even then, the operation is so fast in software
    that it difficult to imagine significant
    performance gains.

55
Video
56
Video
57
The Production Pipeline
  • For each source asset in the product generate a
    default INI file.
  • The default file should correspond to the minimum
    expected set of physics models required for any
    asset. Typically this would include a raycast
    version, a static collision version, and a
    dynamic collision version.
  • Provide a user interface within the game editor
    that allows designers to modify all of the
    default settings and add additional physical
    representations.
  • Save the INI file as a permanent asset that
    corresponds to the source graphics model. The
    physics assets only need to be regenerated if the
    morphology of the graphics asset changes or the
    user makes explicit editing changes.

58
The Production Pipeline
  • During game editing or prior to producing final
    production assets.
  • Auto-generate the various physics versions for
    each asset by using the CreateDynamics library.
    This will produce an ASCII version of the physics
    representation as either COLLADA or NxuStream.
  • Since the COLLADA specification cannot represent
    many of the types of physics presented here
    cloth, soft body, fluids, heightfields, it is
    recommended to use NxuStream.
  • If you do not use the PhysX SDK or COLLADA it is
    easy to modify the source code in CreateDynamics
    to output the physics data in a format that is of
    your choosing. (Accumulate.cpp)
  • Store the various ASCII versions of the physics
    asset in your repository for day to day use.

59
The Production Pipeline
  • At run-time, and for final production content,
    convert the XML version of the art assets into a
    binary cooked form.
  • The XML version can be converted into a binary
    representation very easily and quickly.
  • The binary versions are not backwards compatible
    and should never be used as a persistent storage
    format for the physics data.
  • It is best to create the binary versions on the
    fly on the users machine and store it in a local
    repository.
  • During level load time, the pre-cooked binary
    assets are in a format that can be rapidly
    submitted to the physics engine. Not only is
    parsing of XML and other ASCII data avoided, but
    all mesh preprocessing is bypassed as well.
  • Extremely fast level load times can be achieved
    using this technique. Massive game levels can be
    loaded and submitted to a physics engine in under
    a second.

60
The Future of CreateDynamics
  • This is a hobby project and while it is being
    used in a production environment no guarantees
    can be made as to a schedule of features, bug
    fixes, or support.
  • Open to discussion for collaboration or
    sponsorship of the future development of these
    tools.
  • Special thanks to Matthias Muller, Pierre
    Terdiman, Adam Moravansky, Billy Zelsnack, Dilip
    Sequeira, James Dolan, James Golding, David
    Whatley, Simon Schirm, Erwin Coumans, Christian
    Laforte, Stan Melax, Worshipful Brother Lou
    Castle, Jesus Christ, Mahatma Ghandi, etc.

61
Questions???
  • Contact
  • John W. Ratcliff
  • Email jratcliff_at_infiniplex.net
  • Coding website www.codesuppository.com
  • Skype jratcliff63367
  • Skype Phone US (636)-486-4040
  • Karma Contribution Site www.amillionpixels.us
Write a Comment
User Comments (0)
About PowerShow.com
