Title: Computer Graphics (Spring 2003)


1

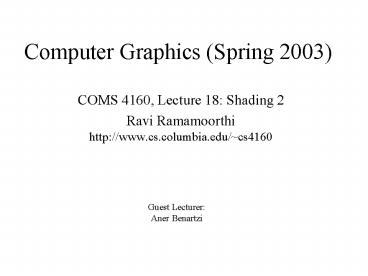

Computer Graphics (Spring 2003)
  • COMS 4160, Lecture 18 Shading 2
  • Ravi Ramamoorthi
  • http//www.cs.columbia.edu/cs4160

Guest Lecturer Aner Benartzi
2
Building up the BRDF
  • Bi-Directional Reflectance Distribution Function
  • Function based on viewing direction.
  • Tells us how bright a surface is.
  • Why should a surface be bright?
  • Incoming Hemisphere
  • Incoming Intensity
  • Relates incoming light energy to outgoing light
    energy.

3
Function of Viewing direction
  • A direction in 3-D, in relation to a point on a
    surface, can be given with 2 angles
  • ,
  • same as the angles in spherical coordinates
  • r is not needed for direction only

4
Solid Angels
  • Not enough to view an object from a single line
    of sight.
  • infinitesimally small viewing area leads to 0
    incoming energy.
  • need a range of directions.
  • In 2D the span of directions is an angle.
  • In 3D the equivalent value is a solid angle

5
Differential Solid Angles
6
BRDF as a Ratio
  • Just a ratio of the incoming light to the
    outgoing light.
  • 4D function.

7
The Reflection Equation
8
Brdf Viewer plots
Diffuse
Torrance-Sparrow
Anisotropic
bv written by Szymon Rusinkiewicz
9
Incoming vs. Outgoing Energy
  • Desirable properties of BRDF
  • Ratio between Zero and One.
  • Linear
  • Reciprocity (Hemholtz reciprocity)

10
Properties of BRDFs
11
Emperical BRDF
  • Sample many incoming and outgoing directions.
  • Store the results in a 4D data structure

12
Analytical BRDF TS example
  • One famous analytically derived BRDF is the
    Torrance-Sparrow model.
  • T-S is used to model specular surface, like the
    Phong model.
  • more accurate than Phong
  • has more parameters that can be set to match
    different materials
  • derived based on assumptions of underlying
    geometry. (instead of because it works well)

13
Torrance-Sparrow
  • Assume the surface is made up grooves at the
    microscopic level.
  • Assume the faces of these grooves (called
    microfacets) are perfect reflectors.
  • Take into account 3 phenomena

Masking
Interreflection
Shadowing
14
Torrance-Sparrow Result
Geometric Attenuation reduces the output based
on the amount of shadowing or masking that occurs.
Fresnel term allows for wavelength
dependency (ignore for now)
Distribution distribution function determines
what percentage of microfacets are oriented to
reflect in the viewer direction.
How much of the macroscopic surface is visible to
the light source
How much of the macroscopic surface is visible to
the viewer
15
Other BRDFs
  • Toon Shaders
  • view independent
  • discrete in lighting dependance
  • Anisotropic
  • some BRDFs depend on the orientation of the
    surface.
  • Hair, Brushed Steel

16
Anisotropic vs. Isotropic
  • The 4D BRDF weve seen so far can handle
    anisotropic surfaces.
  • Most surfaces are isotropic
  • Appear the same when rotated about the normal
  • The overall orientation in the phi direction
    doesnt matter
  • only need to worry about the difference between
  • BRDF becomes a 3D function

17
Complex Lighting
  • So far weve looked at simple, discrete light
    sources.
  • Real environments contribute many colors of light
    from many directions.
  • The complex lighting of a scene can be captured
    in an Environment map.
  • Just paint the environment on a sphere.

18
Environment Maps
  • Instead of determining the lighting direction by
    knowing what lights exist...
  • Determine what light exists by knowing the
    lighting direction.

Blinn and Newell 1976, Miller and Hoffman,
1984 Later, Greene 86, Cabral et al. 87
19
Limitations
  • Carefully constructed BRDFs can create very
    realistic scenes. A good BRDF alone still has
    limitations
  • The silhouettes of objects are still polygonal.
  • The resolution of surface normals is only as fine
    as the number of polygons.
  • Can use bump maps
  • Nothing takes into account objects shadowing
    themselves.
  • Can use shadow maps

20
Limitations (cont)
  • More limitations of modeling appearance only with
    a BRDF
  • Any reflections or transparency cant include
    other scene objects.
  • requires ray-tracing
  • Sometimes light leaves a different point from the
    one it entered (subsurface scattering).
  • Some objects contribute significantly to the
    lighting in the scene.
  • requires global illumination
