Title: ECE 551 - Digital System Design


1

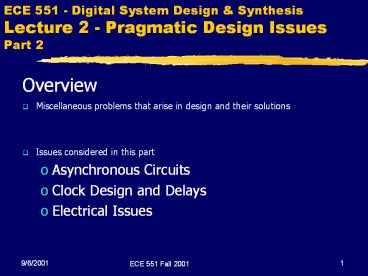

ECE 551 - Digital System Design Synthesis
Lecture 2 - Pragmatic Design Issues Part 2
  • Overview
  • Miscellaneous problems that arise in design and
    their solutions
  • Issues considered in this part
  • Asynchronous Circuits
  • Clock Design and Delays
  • Electrical Issues

2
Asynchronous Circuits
  • Delay-dependent design
  • Combinational hazards
  • Level/pulse conversion
  • Synchronization
  • Memory timing

3
Delay-Dependent Design
A
DA
A
DA
4
Combinational Hazards
  • Hazard in a Multiplexer

A
1
B
F
C
1
B
F
5
Combinational Hazards (continued)
  • Classification of Combinational Hazards
  • Static
  • Dynamic
  • Essential
  • Consequences of Hazards
  • Signals with hazards in or entering asynchronous
    environments
  • Hazard Prevention
  • Redundant Logic
  • Delay Control

6
Level/Pulse Conversion
DATA_IN
DATA_OUT
Clock
  • Level on DATA_IN must be longer than a clock
    period and must not rise close to the positive
    clock edge. Ideally synchronous with the Clock.

7
Synchronization
D
Q
Clock
C
Clock
Req
Rep
  • Asynchronous Rep can cause sequential circuit
    malfunction since it reaches two or more
    flip-flops.
  • Solution Put synchronizer (PET DFF) in Rep path.

8
Metastability
  • A specific phenomena that in the present of
    certain closely timed events on the inputs can
    cause bizarre latch and flip-flop behavior
  • Hanging for a time at a threshold level
  • Produce a damped oscillation
  • One remedy Use two to three synchronizers in
    series

9
Memory Timing
  • Many memories are asynchronous circuits, e. g.,
    SRAMs are latch-based without a clock on the
    latch
  • Their inputs can respond to glitches such as
    hazards.
  • A majority of all memory inputs need to be
    glitch-free.
  • Since memories involve capture of data in
    selectively-addressed cells, set-up and hold
    times apply to many of the inputs, notably the
    addresses.
  • Memory outputs often involve 3-state buses one
    must be sure that the bus is active whenever data
    is being read.
  • When designing with memories, careful attention
    must be given to meeting fully all of the timing
    specifications.

10
Asynchronous Design
  • Using classical techniques, because of the
    difficulty of eliminating the hazards, very
    difficult to insure correct operation under all
    timing possibilities
  • Therefore, dont do it!
  • If you truly need it, investigate some of the
    more contemporary approaches which avoid some of
    the many difficulty.

11
Clocking Design
  • Clock skew
  • Clock gating
  • Clock jitter
  • Clock buffers
  • Interconnect delay control

12
Clock Skew
  • Clock skew is the arrival of the active clock
    edge(s) at different times in different parts of
    a chip or system.
  • Clock skew can result from
  • logic delays, as in clock gating and buffering
  • interconnection delays.
  • Clock skew can cause
  • Premature capture of new state values
  • The shortening of the effective allowable delay
    along a path from flip-flop to flip-flop
  • Lengthening of the effective allowable delay
    along a path from flip-flop to flip-flop

13
Clock Gating
  • Use of gate logic to interrupt the clock signal
    to a portion of the logic to prevent the state
    from changing
  • Why use it?
  • Simplifies logic
  • Reduces power consumption
  • Why not use it?
  • Can circuit failure due to clock skew
  • Complicates circuit testing

14
Clock Jitter
  • Clock does not provide a signal having a fixed
    frequency. Clock period is
  • slightly shorter, or
  • slightly longer
  • on any given cycle.
  • The clock jitter is the absolute value of the
    maximum difference between
  • the nominal period, and
  • the shortest and the longest clock periods
  • Can be very serious if circuit has multiple
    clocks with independent jitter.

15
Combinational Logic Delay Upper Bound
  • Components of the Bounds
  • Nominal Clock Period CP
  • FF Propagation Delay tFF
  • FF Set-up Time tSU
  • Clock skew (of destination FF clock with respect
    to source FF clock) ( or ) tsc
  • Clock Jitter Magnitude tCJ
  • Combinational Logic Delay Upper Bound along
    Particular FF to FF path
  • DCL lt CP tsc tCJ tFF tSU
  • From this equation, we see that
  • Clock jitter degrades performance
  • Clock skew may either degrade (if negative) or
    enhance (if positive) performance!

16
Combinational Logic Delay Lower Bound
  • Related to incorrect function due to hold time
    violation
  • Left as an exercise

17
Clock Buffers
  • Reasons for buffering
  • Large driven load
  • Long clock interconnects
  • Must be designed to minimize skew
  • Overall, clock distribution in an aggressive
    design is a major separate task

18
Interconnect Delay Control
  • Interconnect delay (exclusive of clocks) for
    global interconnects is a significant component
    of the FF to FF delay in submicron channel length
    circuits.
  • Implication Interconnect delay has a significant
    impact on performance in submicron channel length
    designs.
  • Ideally global routes are from FF to FF.
  • If combinational logic involved, all interconnect
    delay subtracted from combinational logic delay
    upper bound

19
Interconnect Delay Control (continued)
  • Methods of handling interconnect delay
  • Chip floorplanning to reduce global routing
  • Interconnect driver strength and inserted buffers
  • Interconnect sizing
  • Circuit retiming (if combinational logic in
    series with global interconnect)
  • Last resort addition of FFs to very troublesome
    paths and redesign of parts of system affected.

20
Electrical Issues
  • Loading
  • Constant inputs
  • Slew rate and ground bounce

21
Loading
  • The loading of a gate or other component can
    affect
  • Output levels
  • Local Power Dissipation
  • Delay
  • Consider two logic families assuming both loads
    and drivers are in the families
  • TTL
  • CMOS

22
Loading of TTL Gates
  • TTL (Transistor-Transistor Logic) is a current
    sinking technology.
  • For driven TTL gates, at LOW, a substantial
    current flows out of inputs into the driving
    output.
  • The static current for the driving gate at LOW
  • IC VCC /(RC RB/FO)
  • where RC is the output resistance of the TTL
    driver transistor in saturation, RB is the
    resistance in the driven gates governing the
    input current, and FO is the fanout in terms of
    number of gates driven.

23
Loading of TTL Gates
  • As FO increases, the current increases which
    increases
  • the LOW output level
  • the power dissipation
  • Also, the additional gates driven add to the
    capacitance driven which increases delay.
  • The increase in the low level can cause noise
    problems.
  • The increase in power dissipation can cause
    thermal problems and possible IC damage.

24
Loading of CMOS Gates
  • The current into or out of a CMOS gate output
    flows only during transitions and is otherwise
    negligible.
  • Increased fanout FO increases the capacitive load
    on the driving gate which increases
  • the delay of a transition
  • the duration of time during which a sizable
    current flows into or out of the driving gate.
  • If the output changes frequently, then the
    dynamic current could cause power dissipation to
    produce a local thermal problem and possible IC
    damage.

25
Constant Inputs
  • If a constant input is to be applied to an IC
    from outside, it is generally a good idea to
    include a resistance between the ground or supply
    and the input for the following reasons
  • prevents a large current at the input for some
    technologies at power-up that can cause damage or
    disable the IC.
  • allows the fixed signal to be changed during
    testing.

26
Slew Rate and Ground Bounce
  • If large dynamic currents are drawn from the
    power supply, there can be significant changes in
    the GND or VCC voltage values on chip due to lead
    inductance.
  • This phenomena is called ground bounce in the
    case of the ground voltage.
  • The high current problem most often arises with
    output buffers driving large off-chip
    capacitances.

27
Slew Rate and Ground Bounce Remedies
  • The voltage transient is related to
  • L dI/dt where I is the power or ground current.
  • Reduce the effective lead inductance L by using
    multiple supply and ground leads.
  • It is not uncommon for a significant percentage
    of all leads on an IC to be supply or ground
    leads.
  • Reduce dI/dt by reducing the slew rate, the rate
    of change in the output voltage.
  • By reducing C dV/dt, the current and its
    derivative are reduced.

28
Summary
  • Design Issues
  • Three-State and Other Hi-Z States
  • Sequential Circuit Basics
  • Asynchronous Circuits
  • Clock Design
  • Electrical Issues
  • All are important
  • Far from exhaustive

29
References
  • Seidensticker, Robert B., The Well-Tempered
    Digital Design, Addison-Wesley Publishing
    Company, 1986.
  • Wakerly, John F., Digital Design - Principles and
    Practices, 3rd Ed., Prentice-Hall, 2000.
  • Johnson, Howard W., and Martin Graham, High-Speed
    Digital Design A Handbook of Black Magic,
    Prentice Hall PTR, 1993.
