Damped oscillations

1

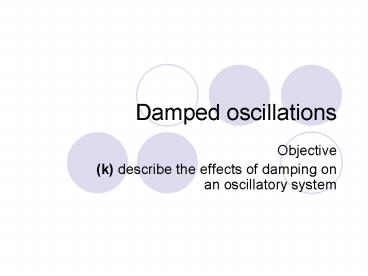

Damped oscillations

• Objective
• (k) describe the effects of damping on an
  oscillatory system

2
Outcomes

• ALL MUST
• Be able to define damping.
• Be able to understand where damping may occur.
• Be able to understand what an exponential
  relationship is.
• MOST SHOULD
• Be able to describe an investigation where
  damping is caused (i) by the drag of the air and
  (ii) by eddy currents (electromagnetic damping).
• To show that for light damping, the amplitude of
  oscillations decays exponentially with time.

3
The Velocipede

• Or Boneshaker from the 1860s
• Its adjustable wooden seat has no springs under
  it hence it was known as a "boneshaker". Lacking
  the comforts of the modern bicycle, it has been
  relegated to the museum.

4
Penny Farthing

• Rubber wheels made this more comfortable for a
  while

5
The Pneumatic-Tyre

• From the 1890s air was used is the tyres for
  added comfort

6
Suspension Bikes

• Suspension is used now on bikes especially
  those that are designed to go off road

7
Suspension

• Spring suspension is made up of two parts
• A spring
• And a shock absorber or Damper
• Why?

8
Suspension

• Springs are good at absorbing energy
• But not so good at dissipating it
• You want to absorb an impact
• But then dont want the spring to keep bouncing
• The oscillations must be damped

9
Dampers (Shock absorbers)

• Using oil (a viscous fluid)
• Which is a sticky substance that objects cant
  move through easily
• Here, the spring takes the shock and then its
  oscillations are slowed with oil

10
Other examples

• Compressed air shocks
• Spring shocks a pair of springs working against
  each other
• Electromagnetic damping using a magnetic field
  to slow oscillations (used in Galvonometers)
• The paper cone of a loud speaker vibrates but is
  heavily damped as it transforms its kinetic
  energy into sound energy in the surrounding air

11
Oscillations and damping

• In S.H.M, (i) the period is independent of the
  amplitude and (ii) the total energy remains
  constant
• In practise many objects only undergo approximate
  s.h.m because (i) the restoring force is not
  exactly proportional to the displacement and (ii)
  resisting forces oppose the motion (e.g. air
  resistance)

12
Amplitude of damped oscillations

• Light
• Critical
• Heavy

13
Light
14
(No Transcript)
15
Critical
