Transcript and Presenter's Notes

Title: SCTP: Stream Control Transmission Protocol


1

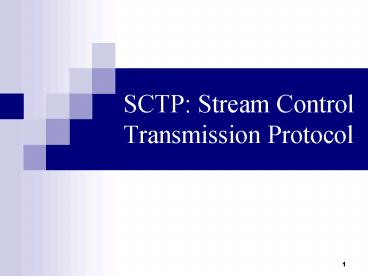

SCTP Stream Control Transmission Protocol
2
Table of Content
  • Introduction
  • Motivations for Developing SCTP
  • SCTP Features
  • SCTP Terminology
  • SCTP Packets
  • SCTP States
  • SCTP Data Transmission
  • SCTP and Multihoming
  • SCTP Streams
  • SCTP Extensions
  • Other STCP Research Topics
  • References and Resources

3
Introduction
4
  • SCTP
  • is a reliable transport protocol operating on top
    of a potentially unreliable connectionless packet
    service such as IP.
  • offers acknowledged error-free non-duplicated
    transfer of datagrams.
  • a selective retransmission mechanism is applied
    to correct loss or corruption of data.

5
Motivations for Developing SCTP
6
  • Development by IETF SIGTRAN working group
  • To create a new, IP based transport protocol
  • For transport of signaling data over IP-based
    networks
  • Anticipation of carrier network convergence
  • All-IP networks
  • 3GPP networks based on IPv6 possible
  • communication between signaling gateways (SGs),
    media gateway controllers (MGCs) and signaling
    end- and transfer-points (SEP, STPs)

7
  • Problems for TCP
  • Byte-Stream Oriented
  • Provide strict ordering of information, which
    causes Head of Line (HOL) Blocking problem
  • No built-in support for multi-homed IP hosts
  • Vulnerable for SYN flooding attacks (a kind of
    DoS attack using TCP three-way handshake
  • Problems for UDP
  • Unreliable data transfer
  • No congestion/flow control (applications must
    handle it by themselves)

8
SCTP Features
9
  • Provide an end-to-end reliable transmission
    service over IP networks
  • Support multiple streams multiple streams per
    path
  • Support multi-homed hosts
  • Multiple IP addresses per host
  • More tolerant to network failures
  • Message-oriented conserve message boundaries
  • Unordered delivery SCTP can deliver messages as
    ordered or unordered.
  • Congestion Control SCTP congestion control is
    similar to TCP.
  • Enable seamless introduction of SCTP into IP
    networks
  • SCTP is rate adaptive similar to TCP
  • slow start, congestion avoidance, fast retransmit
    and fast recovery
  • delayed Selective ACKs (SACKs) and duplicate SACKs

10
Features Comparison
11
SCTP Terminology
12
  • Chunk
  • A unit of information within an SCTP packet,
    consisting of a chunk header and chunk-specific
    content.
  • SCTP association
  • A protocol relationship between SCTP endpoints.
  • It is composed of the two SCTP endpoints and
    protocol state information including Verification
    Tags and the currently active set of Transmission
    Sequence Numbers (TSNs), etc.
  • An association can be uniquely identified by the
    transport addresses used by the endpoints in the
    association.
  • Two SCTP endpoints MUST NOT have more than one
    SCTP association between them at any given time.

13
  • Path
  • The route taken by the SCTP packets sent by one
    SCTP endpoint to a specific destination transport
    address of its peer SCTP endpoint.
  • Primary Path
  • The destination and source address that will be
    put into a packet outbound to the peer endpoint
    by default.
  • The above definition includes the source address
    since an implementation MAY wish to control the
    return path taken by reply chunks better and on
    which interface the packet is transmitted when
    the data sender is multi-homed.
  • Stream
  • A uni-directional logical channel established
    from one to another associated SCTP endpoint.
  • All user messages are delivered in sequence
    except for those submitted to the unordered
    delivery service.

14
(No Transcript)
15
TSNSSN
Data Chunk
Application
Application
SCTP
SCTP
s1
s2
s3
s1
s2
s3
Association
73
83
93
42
52
62
11
21
31
buffer
buffer
10.0.1.1999
10.0.2.1999
10.0.2.2888
10.0.1.2888
Primary Path
Retransmission Path
16
  • Idle destination address
  • An address that has not had user messages sent to
    it within some length of time.
  • Inactive destination transport address
  • An address which is considered inactive due to
    errors and unavailable to transport user
    messages.
  • SCTP packet
  • The unit of data delivery across the interface
    between SCTP and the connectionless packet
    network (e.g., IP).
  • An SCTP packet includes the common SCTP header,
    possible SCTP control chunks, and user data
    encapsulated within SCTP DATA chunks.

17
  • Transmission Sequence Number (TSN)
  • A 32-bit sequence number used internally by SCTP.
  • One TSN is attached to each chunk containing user
    data to permit the receiving SCTP endpoint to
    acknowledge its receipt and detect duplicate
    deliveries.
  • Stream Sequence Number (SSN)
  • A 16-bit sequence number used internally by SCTP
    to assure delivery of the user messages within a
    given stream.
  • One stream sequence number is attached to each
    user message.

18
  • Message Authentication Code (MAC)
  • An integrity check mechanism based on
    cryptographic hash functions using a secret key.
  • It is used by an endpoint to validate the State
    Cookie information that is returned from the peer
    in the COOKIE ECHO chunk.
  • Verification Tag
  • A 32 bit unsigned integer that is randomly
    generated.
  • It provides a key allowing a receiver to verify
    that the SCTP packet belongs to the current
    association and is not an old or stale packet
    from a previous association.

19
SCTP Packets
20
  • An SCTP packet forms the payload of an IP packet.
  • An SCTP packet is composed of a common header and
    chunks.
  • A chunk may contain either control information or
    user data.
  • Multiple chunks may be multiplexed into one SCTP
    packet up to the Path-MTU size.
  • Control chunks bundled before data chunks

21
An SCTP-Protocol Data Unit with several chunks
22
SCTP Common Header
  • Source and Destination Port
  • the same port concept as TCP and UDP
  • Verification Tag
  • the receiver of this packet uses the Verification
    Tag to validate the sender of this SCTP packet.
  • Checksum
  • each SCTP packet is protected by a 32 bit
    checksum (Adler-32 algorithm), which is thus more
    robust than the 16 bit checksum of TCP and UDP

23
SCTP Chunks
24
Payload Data (DATA) (0)
  • Stream Identifier
  • Identifies the stream to which the following user
    data belongs.
  • Stream Sequence Number
  • this value represents the stream sequence number
    of the following user data within the stream S.

25
Initiation (INIT)
  • Initiate Tag
  • This value MUST be placed into the Verification
    Tag field of every SCTP packet.
  • Advertised Receiver Window Credit (a_rwnd)
  • This value represents the dedicated buffer space.

26
Initiation Acknowledgement (INIT ACK)
  • The parameter part of INIT ACK is formatted
    similarly to the INIT chunk. It uses two extra
    variable parameters The State Cookie and the
    Unrecognized Parameter

27
Selective Acknowledgement (SACK)
28
Selective Acknowledgement (SACK)
  • SACK is sent to the peer endpoint to acknowledge
    received DATA chunks and to inform the peer
    endpoint of gaps in the received subsequences of
    DATA chunks as represented by their TSNs.
  • Cumulative TSN Ack
  • This parameter contains the TSN of the last DATA
    chunk received in sequence before a gap.
  • Gap Ack Block Start
  • Indicates the Start offset TSN for this Gap Ack
    Block.
  • Gap Ack Block End
  • Indicates the End offset TSN for this Gap Ack
    Block.
  • Gap Ack Blocks
  • TSNs gt (Cumulative TSN Ack Gap Ack Block
    Start) and TSNs lt (Cumulative TSN Ack Gap Ack
    Block End)
  • These TSNs are assumed to have been received
    correctly.

29
Selective Acknowledgement (SACK)
  • Duplicate TSN
  • Indicates the number of times a TSN was received
    in duplicate since the last SACK was sent.
  • Every time a receiver gets a duplicate TSN
    (before sending the SACK) it adds it to the list
    of duplicates. The duplicate count is
    re-initialized to zero after sending each SACK.

30
Selective Acknowledgement (SACK)
Cumulative TSN Ack 12 Cumulative TSN Ack 12
a_rwnd 4660 a_rwnd 4660
Num of block2 Num of dup0
Block 1 start2 Block 1 end3
Block 2 start5 Block 2 end5
TSN17
miss
TSN15
TSN14
miss
TSN12
TSN11
TSN10
122 123
125 125
31
Selective Acknowledgement (SACK)
Cumulative TSN Ack 10 Cumulative TSN Ack 10
a_rwnd 4660 a_rwnd 4660
Num of block1 Num of dup1
Block 1 start2 Block 1 end6
Duplicate TSN 13 Duplicate TSN 13
TSN16
TSN15
TSN14
TSN13
TSN13
TSN12
miss
TSN10
102 106
32
Heartbeat Request (HEARTBEAT)
  • Sent by endpoint and to probe the reachability of
    a particular destination transport address.

Heartbeat Acknowledgement (HEARTBEAT ACK)
33
Abort Association (ABORT)
  • It is sent to the peer of an association to close
    the association.
  • If an endpoint receives an ABORT with a format
    error or for an association that doesnt exist,
    it MUST silently discard it.
  • DATA chunks MUST NOT be bundled with ABORT.

34
Shutdown Association (SHUTDOWN)
  • An endpoint in an association MUST use this chunk
    to initiate a graceful close of the association
    with its peer.

Shutdown Acknowledgement (SHUTDOWN ACK)
35
Operation Error (ERROR)
  • An endpoint sends this chunk to its peer endpoint
    to notify it of certain error conditions.
  • Error causes are defined as variable-length
    parameters

36
Operation Error (ERROR)
  • Each error cause may carry its own set of
    parameters. The error causes that have been
    defined are

37
Cookie Echo (COOKIE ECHO)
  • It is used only during the initiation of an
    association
  • It must precede any DATA chunk sent within the
    association, but may be bundled with one or more
    DATA chunks in the same packet.

Cookie Acknowledgement (COOKIE ACK)
38
Shutdown Complete (SHUTDOWN COMPLETE)
  • Be sent to acknowledge the receipt of the
    SHUTDOWN ACK chunk at the completion of the
    shutdown process.

39
SCTP States
40
  • Association establishment and shutdown. SCTP uses
    a cookie mechanism in a four-way handshake to
    establish an association.
  • The shutdown process is a three-way handshake.

41
Normal Association Establishment
a
42
The endpoint that initiates the association will
be referred to as Node A the peer endpoint
that receives the association establishment
requests will be referred to as Node B.
  1. Node A generates an INIT chunk and sends it to
    Node B. Node A starts the INIT timer.
  2. If Node B wishes to accept the association, it
    generates an INIT_ACK chunk that includes a
    cookie. It then sends the INIT ACK chunk, along
    with a cookie, back to Node A.

43
  1. Node A receives the INIT ACK chunk and stops INIT
    timer. Node A generates a COOKIE ECHO chunk,
    which is then sent to Node B. Node A starts the
    cookie timer. DATA chunks may be also be bundled
    in this packet.
  2. Node B checks the validity of the cookie.
    Following validation it sends a COOKIE ACK back
    to Node A.
  3. Node A receives the COOKIE ACK and enters into
    the next phase of data transmission.

44
Association Termination
a
45
  1. Node A sends a SHOTDOWN chunk to Node B and start
    the shutdown timer.
  2. Node B acknowledges the receipt of the SHUTDOWN
    chunk through the generation of SHUTDOWN ACK
    chunk, which is sent to Node A.
  3. Node A receives the SHUTDOWN ACK and responds by
    stopping the SHUTDOWN timer. Then, Node A
    generates a SHUTDOWN COMPLETE chunk and sends the
    chunk to Node B.

46
SCTP Data Transmission
47
General Concepts
  • Detection of loss and duplication of data chunks
    is enabled by numbering all data chunks in the
    sender with the so-called Transmission Sequence
    Number (TSN).
  • The acknowledgements sent from the receiver to
    the sender are based on TSNs.
  • Retransmissions are timer-controlled. The timer
    duration is derived from continuous measurements
    of the round trip delay (RTT).
  • Whenever such a retransmission timer expires,
    (and congestion control allows transmissions) all
    non-acknowledged data chunks are retransmitted
    and the timer is started again doubling its
    initial duration (like in TCP).

48
General Concepts
  • When the receiver detects one or more gaps in the
    sequence of data chunks, each received SCTP
    packet is acknowledged by sending a Selective
    Acknowledgement (SACK) which reports all gaps.
  • Whenever the sender receives four consecutive
    SACKs reporting the same data chunk missing, this
    data chunk is immediately retransmitted (fast
    retransmit).
  • Most up-to-date operating systems already support
    a similar optional extension to TCP.

49
Flow Control
  • SCTP uses an end-to-end window based flow and
    congestion control mechanism similar to the one
    that is well known from TCP.
  • The receiver of data may control the rate at
    which the sender is sending by specifying an
    octet-based window size (the so-called Receiver
    Window), and returning this value along with all
    SACK chunks.
  • The sender itself keeps a variable known as
    Congestion Window (CWND) that controls the
    maximum number of outstanding bytes
  • Each received data chunk must be acknowledged,
    and the receiver may wait a certain time before
    that is done

50
Selective Acknowledgement
  • The acknowledgements carry all TSN numbers that
    have been received by one side with them.
  • That is, there is a so called Cumulative TSN Ack
    value, that indicates all the data that have
    successfully been reassembled at the receivers
    side, and has either already been delivered to
    the receiving Upper Layer Process, or may readily
    be delivered upon request.
  • Moreover, there are so-called Gap Blocks that
    indicate which segments of data chunks have
    arrived, with some data chunks missing in between.

51
Selective Acknowledgement
  • Should some data chunks have been lost in the
    course of transmission, they will either be
    retransmitted after the transmission timer has
    expired, or after four SACK chunks have reported
    gaps with the same data chunk missing. In the
    latter case, the missing data is retransmitted
    via the Fast Retransmit mechanism.

52
Flow Control for Multihomed Endpoints
  • By default, all transmission is done to a
    previously selected address from the set of
    destination addresses, which is called the
    Primary Address (or Primary Path).
  • Retransmissions should be done on different
    paths, so that if one path is overloaded,
    retransmissions do not affect this path.
  • Acknowledgements shall be sent to the transport
    address from which originated the data.

53
Congestion Control
  • According to RFC2960, the congestion control
    behavior of an SCTP implementation may have an
    impact where timely delivery of messages is
    required.
  • The congestion control mechanisms for SCTP have
    been derived from RFC 2581 - TCP Congestion
    Control, and been adapted for multihoming.
  • For each destination address (i.e. each possible
    path), a discrete set of flow and congestion
    control parameters is kept.
  • From the point of view of the network, an SCTP
    association with a number of paths may behave
    similarly as the same number of TCP connections.

54
Slow Start and Congestion Avoidance
  • Similar to TCP, SCTP has two modes, Slow Start
    and Congestion Avoidance.
  • The mode is determined by a set of congestion
    control variables, which are path specific.
  • For successfully delivered and acknowledged data,
    the congestion window variable (CWND) is steadily
    increased, and once it exceeds a certain boundary
    (called Slow Start Threshold, SSTRESH), the mode
    changes from Slow Start to Congestion Avoidance.
  • In Slow Start, the CWND is increased faster
    (roughly one MTU per received SACK chunk), and in
    Congestion Avoidance mode, it is only increased
    by one MTU per Round Trip Time (RTT) measurement.

55
Slow Start and Congestion Avoidance
  • RTO timeout or fast retransmission will trigger
    retransmission and cause the SSTHRESH to be cut
    down drastically and reset the CWND.
  • Fast Retransmission
  • ssthresh max(cwnd/2, 2MTU)
  • cwnd ssthresh
  • RTO timeout
  • ssthresh max(cwnd/2, 2MTU)
  • cwnd MTU

56
SCTP and Multihoming
57
  • An essential property of SCTP is its support of
    multi-homed nodes, i.e. nodes which can be
    reached using several IP addresses.
  • If the according IP networks are configured on
    physically different paths, associations become
    tolerant against physical network failures and
    other problems of that kind.

58
Address Management at Association Setup
  • If a client is multi-homed, it informs the server
    about all its IP addresses with the INIT chunk's
    address parameters.
  • The client is only required to know one IP
    address of the server although the server
    provides all its IP addresses to the client in
    the INIT-ACK chunk.
  • SCTP is able to handle IPv4 and IPv6 addresses.
  • An SCTP instance regards each IP address of its
    peer as one transmission path towards this
    endpoint.
  • If no explicit IP addresses are contained in the
    INIT or INIT-ACK chunk, the source IP address of
    the IP packet which carries the SCTP datagram is
    used.

59
Path Monitoring
  • An SCTP instance monitors all transmission paths
    to the peer instance of an association.
  • HEARTBEAT chunks are sent over all paths which
    are currently not used for the transmission of
    data chunks. Each HEARTBEAT chunk has to be
    acknowledged by a HEARTBEAT-ACK chunk.
  • Each path is assigned a state active or
    inactive.
  • The number of events in which heartbeats were not
    acknowledged within a certain time or the number
    of retransmission events exceeds a certain
    configurable limit, the peer endpoint is
    considered unreachable and the association will
    be terminated.

60
Path Selection
  • At the set-up of an SCTP association, one of the
    IP addresses from the returned list is selected
    as initial primary path. Data chunks are
    transmitted over the primary transmission path by
    default.
  • For retransmissions, however, another active path
    may be selected, if one is available.
  • The users of SCTP are informed about the status
    (state and measurements) of a transmission path
    on request or when a transmission path changes
    its state. They may then instruct the local SCTP
    instance to use a new primary path.

61
SCTP Streams
62
  • Multiple steams can be used to deliver multiple
    objects belonging to the same association
  • objects on a webpage, multimedia streams
    (audio/video/text), files in an FTP

63
Flexible Datagram Delivery
  • Streams are unidirectional logical data flows
    that the SCTP endpoints negotiate during
    association setup.
  • SCTP distinguishes different streams of messages
    within one SCTP association.
  • Datagrams can be assigned into different streams
    within an association.
  • Within each stream, SCTP assigns independent
    Stream Sequence Numbers (SSN) to the user
    datagrams. SSNs are used at the receiver to
    determine the sequence of delivery.

64
Flexible Datagram Delivery
  • SCTP performs in-sequence delivery per stream.
    However, while one stream may be blocked waiting
    for the next in-sequence user message, delivery
    from other streams may proceed.
  • The partial in-sequence delivery mechanism avoids
    head-of-line blocking between independent streams
    of datagrams within one association.
  • With TCP, this could only be achieved by
    setting-up several connections (one per stream)
    which would lead to additional cost and overhead.

65
SCTP Extensions
66
Partial Reliability SCTP (PR-SCTP)
  • PR-SCTP is defined in RFC 3758.
  • It allows an SCTP sender to signal to its peer
    that it should no longer expect to receive one or
    more DATA chunks.
  • PR-SCTP consists of two new elements
  • a single new parameter in the INIT/INIT-ACK
    exchange that indicates whether the endpoint
    supports the extension
  • a single new chunk type, FORWARD TSN, that
    indicates the receiver should move its cumulative
    ack point forward
  • PR-SCTP uses lifetime, which is an SCTP
    parameter, specifies the life time of the user
    data, to support "timed reliability" service.

67
  • In base SCTP
  • lifetime is used to avoid efforts to transmit the
    overdue user messages.
  • The user data will not be sent by SCTP after
    lifetime expires.
  • Attempted to transmit before lifetime expired,
    the user data will be (re)transmitted until the
    peer receives.
  • In PR-SCTP
  • The definition of lifetime is extended further.
  • The lifetime of user data is set to be
    SCTP_LIFETIME_RELIABLE (0xFFFFFF), it just likes
    what base SCTP does. The data are delivered as
    reliable transmission.
  • The lifetime of user data is set to be zero, it
    will be sent only once. The lost data will not be
    retransmitted. The data are delivered as
    unreliable transmission.
  • Otherwise, the data are abandoned no matter if
    the data have been (re)transmitted or not when
    their lifetime expires. The data are delivered as
    partial reliability transmission.
  • If the ack of user data has not been received
    after lifetime expired, a Forward TSN chunk is
    sent to receiver to upgrade and advance its
    cumulative TSN point.

68
Advantages of PR-SCTP
  • A single SCTP association can carry both reliable
    and unreliable content. That is, instead of
    sending different types of data using separate
    protocols, the number of datagrams can be reduced
    to save network overheads.
  • PR-data can enjoy the failure detection as the
    normal reliable SCTP data traffic dose.
  • PR-SCTP can provide ordered, unreliable data
    transfer service.
  • PR-SCTP employs the same congestion control for
    all data traffic, which enforces TCP-friendliness.

69
Streaming over PR-SCTP
  • MPEG-4 streaming over PR-SCTP
  • PR-SCTP allows to tune the retransmission per
    packet. The key point is that more I frames
    received, better video quality
  • give a long lifetime to I frame to guarantee the
    reliable transmission of them
  • set a shorter lifetime to the P, B frames to
    limit the retransmission of them
  • Using PR-SCTP for MPEG-4 video streaming improved
    video quality and consistency.

70
Mobile SCTP (mSCTP)
  • In base SCTP, the IP addresses used are
    pre-configured and cannot be changed.
  • However, this feature limits the use of SCTP for
    mobile hosts.
  • The SCTP extension described in ADDIP makes SCTP
    a mobility enabled transport protocol.
  • ADDIP provides SCTP with the ability to
  • reconfigure IP address information on an existing
    association
  • set the remote primary path
  • exchange adaptation layer information during
    association setup

71
Mobile SCTP (mSCTP)
  • ADDIP extension introduced two new chunk types
    that will be used to transfer the control
    information reliably.
  • Address Configuration Change Chunk (ASCONF)
  • Address Configuration Acknowledgment (ASCONF-ACK)
  • There are three major parameters introduced by
    ADDIP to achieve mobility
  • Add IP Address
  • Delete IP Address
  • Set Primary Address

72
get a new IP, send ASCONF with Add IP carrying
the new IP
add IP into the association, send ASCONF-ACK
send ASCONF with Set Primary to change remote
primary
send ASCONF-ACK and change primary path
send ASCONF with Delete IP carrying the old IP
Node B
Node A
delete IP from the association, send ASCONF-ACK
73
Other STCP Research Topics
74
Priority stream scheduling
  • Researchers are investigating the theoretical and
    practical implications of adding a priority
    stream scheduling scheme to SCTP.
  • Priorities allow the sending end point to give
    precedence to data specified as critical during
    periods of increased network delay or decreased
    throughput.
  • Priority schemes can help applications adapt to
    periods of heavy network congestion or poor
    quality of service.

75
Concurrent Multipath Transfer (CMT)
With current SCTP
With CMT
With TCP
Existing Paths
one for retransmission
all for transmission
Not used
76
Transparent SCTP Shim
  • Migrate existing TCP applications to SCTP
    transparently
  • Application gains fault tolerance, SACK support
  • http//www.cis.udel.edu/bickhart/research.html

77
References and Resources
78
Implementations
  • www.sctp.org -- a site hosted and maintained by
    Randy Stewart.
  • www.sctp.de contains links to all relevant
    standards, tools and our userland-implementation
  • SCTPLIB -- An SCTP Library maintained by Michael
    Tüxen. sctplib-1.0.3 is the current stable
    version. socketapi-1.3.2 is the Socket API
    Library supports sctplib-1.0.3. sctplib-1.3.1 is
    the developer's version supports ADDIP extension.
  • Hypertext Index of current SCTPLIB snapshot
  • Upcoming Linux Kernel Implementation developed by
    Jon Grimm (IBM), La Monte Yarroll (Motorola) and
    many others.
  • The implementation from Randy Stewart has been
    integrated into the KAME stack, and additional,
    more up-to-date patches can be got at
    www.sctp.org.
  • Sun was developing a kernel implementation for
    Solaris.

79
RFCs, Drafts and Standards
  • RFC 2960 Stream Control Transmission Protocol.
  • RFC 3257Stream Control Transmission Protocol
    Applicability Statement.
  • RFC 3286 An Introduction to the Stream Control
    Transmission Protocol (SCTP).
  • RFC 3309 Stream Control Transmission Protocol
    (SCTP) Checksum Change.
  • RFC 3758 Stream Control Transmission Protocol
    (SCTP) Partial Reliability Extension.
  • RFC 2719 -- Framework Architecture for Signaling
    Transport, L. Ong et al.
  • SCTP Extensions for Dynamic Reconfiguration of IP
    Addresses, R. R. Stewart, M. A. Ramalho, Q. Xie,
    M. Tuexen, I. Rytina, P. Conrad
  • The SCTP implementor's guide -- The "Don't
    Panic!"-Draft for RFC 2960, R.R. Stewart, L. Ong,
    et al.
  • Mobile SCTP -- describes how SCTP in combination
    with the addIP extension can be used for
    providing a mobility concept

80
Papers and Publications
  • T. Dreibholz, A. Jungmaier, M. Tüxen A New
    Scheme for IP-based Internet Mobility,from the
    Proceedings of the 28th IEEE Conference on Local
    Computer Networks (LCN 2003), Bonn/Königswinter,
    October 2003, pp. X-Z. See also the slides from
    the conference presentation !
  • A. Jungmaier A Gentle Introduction to SCTP,a
    presentation on SCTP given at the 19th Conference
    of the German CCC, Berlin, December 2002.
  • A. Jungmaier, E.P Rathgeb, M. Tüxen On the Use
    of SCTP in Failover-Scenarios,from the
    Proceedings of the SCI 2002, Volume X,
    Mobile/Wireless Computing and Communication
    Systems II Orlando, USA July 2002, pp. 363-368.
  • A. Jungmaier,M. Schopp, M. Tüxen Performance
    Evaluation of the Stream Control Transmission
    Protocol(English) - From the "Joint IEEE ATM
    Workshop 2000" (ATM 2000 Conference, Heidelberg,
    Germany), June 2000.

81
Papers and Publications
  • A. Jungmaier, E.P Rathgeb, M. Schopp,
    M. Tüxen SCTP - A multi-link end-to-end
    protocol for IP-based networks,AEÜ -
    International Journal of Electronics and
    Communications, 55 (2001) No.1, pp. 46-54. A.
    Jungmaier,M. Schopp, M. Tüxen Das Simple
    Control Transmission Protocol (German)Veröffentli
    chung in "Elektrotechnik und Informationstechnik",
    Heft 06/2000.
  • Ivan Arias Rodriguez Stream Control
    Transmission Protocol - The Design of a New
    Reliable Transport Protocol for IP Networks
  • Seok J. Koh, et al., mSCTP for Soft Handover in
    Transport Layer, IEEE Communications Letters,
    Vol. 8, No. 3, pp. 189 191, March 2004.
  • Hongtao Wang Yuehui Jin Wendong Wang, The
    performance comparison of PRSCTP, TCP and UDP for
    MPEG-4 multimedia traffic in mobile network
  • Janardhan R. Iyengar, Keyur C. Shah, Paul D.
    Amer, Concurrent Multipath Transfer Using SCTP
    Multihoming
  • G. Heinz P. Amer, Priorities in SCTP
    Multistreaming, SCI '04, Orlando, FL, 7/04

82
Software
  • Ethereal, the excellent packet tracer that was
    used throughout most of our debugging sessions,
    and has been modified to support SCTP by M.
    Tüxen.
  • Dummynet,the excellent network emulation module
    that comes with FreeBSD.
  • Tcpdump has become SCTP aware !! It can be
    downloaded from here. SCTP support was added by
    Jerry Heinz (Temple University), John Fiore (U of
    Pennsylvania), and Armando Caro (University of
    Delaware).
  • The network simulator (ns-2). An SCTP patch for
    ns-2 is available here, thanks to Armando Caro
    and Janardhan Iyengar.

83
SYN Flooding Attack
attackers
Flooded!!
victim
SYN
TCB
SYN-ACK
128.3.4.5
TCB
ACK
TCB
TCB
SYN
SYN-ACK
221.3.5.10
TCB
ACK
Unavailable, reserved resources
  • There is no ACK in response to the SYN-ACK,
    hence connection
  • remains half-open
  • Other genuine clients cannot open connections
    to the victim
  • The victim is unable to provide service

84
Head-of-Line Blocking in TCP
Sender
Receiver
Receivers App
1
2
ACK 1
1
3
ACK 2
2
4
5
ACK 2
ACK 2
Packet 3 is blocking the head of the line.
85
Head-of-line Blocking
  • TCP provides a single data stream.
  • When a segment is lost, subsequent segments must
    wait to be processed.
  • Problem for some applications (telephony)

86
Slow Start Congestion avoidance
87
Fast retransmit
Sender
Receiver
1
2
3
ACK 1
4
ACK 2
ACK 2
5
6
ACK 2
four consecutive SACKs
ACK 2
retransmit 3
ACK 6
Write a Comment
User Comments (0)
About PowerShow.com
