Title: Chapter 3a Static Timing Analysis


1

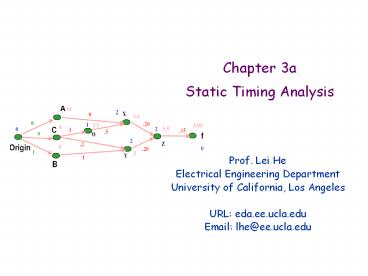

Chapter 3a Static Timing Analysis
  • Prof. Lei He
  • Electrical Engineering Department
  • University of California, Los Angeles
  • URL eda.ee.ucla.edu
  • Email lhe_at_ee.ucla.edu

2
Outline
  • Motivation
  • Modeling
  • Algorithm
  • Summary

3
Motivation
  • Given a gate-level netlist
  • Does the netlist meet the timing spec?
  • How fast can it be clocked?
  • Where is the critical path?
  • Can the design be optimized?
  • Its all about timing!
  • Performance
  • Timing analysis
  • Quite complicated in the real world
  • Well touch some of the basics

4
Dynamic v.s. Static Simulation
  • Dynamic timing analysis
  • Start time ? end time
  • Inputs are fully specified (input patterns)
  • SPICE!
  • Pro accurate
  • Con super slow for large circuits
  • Static timing analysis
  • Separate timing analysis and function
    verification
  • Characterize circuit timing independent of inputs
    and time periods
  • Worst case analysis
  • Work at the extremes ? guarantee work always

5
Outline
  • Motivation
  • Modeling
  • Algorithm
  • Summary

6
STA Assumptions
  • Design is synchronous
  • Signal can be arbitrary
  • Signal may take any value (0/1)
  • Signal can switch at any time within the cycle
  • Worst case assumption
  • Signal becomes stable at the latest possible time
  • Signal becomes unstable at the earliest possible
    time

7
STA Close Lookup
  • All storage elements are latch or FF
  • Cycles cut by clocked storage elements
  • STA characterizes timing of combinational parts
    between storage elements

8
Single Path Delay Computation
  • Path delay sum of 50 propagation delay

9
Device Delay Models
  • Unit delay model
  • Delay through ANY gate is 1 time unit
  • Const gate delay model
  • Different gates have different delays

10
Device Delay Models
  • Delay is a function of fanout/slew
  • Table based
  • Input pins are different

11
Interconnect Delay Model
  • Interconnect delay becomes a dominant portion of
    total delay
  • Lumped RC model
  • Distributed RC model
  • As frequency increases, RLC model may be
    necessary

12
Interconnect Delay Model
  • Delay for RC trees
  • Rubinstein-Penfield Theorem
  • For our purpose, we assume point-to-point wiring
    delays are pre-characterized as cell delays
  • Different interconnect have different delays

13
Putting things together
  • Interconnect delay in red
  • Gate delay in blue
  • Arrival time in green

14
Combinational Block Modeling Delay Graph
  • Labeled directed acyclic Graph (DAG)
  • Vertices gates, PI, PO
  • Edges Interconnect
  • Labels delays

15
Outline
  • Motivation
  • Modeling
  • Algorithm
  • Summary

16
Path-based STA
  • Path enumeration
  • List all paths, output path delays
  • Algorithms
  • It works, but whats the problem?

17
Path Enumeration
  • Problem is the number of paths
  • Can be exponential growth
  • Total paths 2n

18
Block Based STA
  • Arrival times (AT) at a node
  • Time when signal arrives at the node
  • Latest time signal can become stable
  • Determined by longest path from source

19
Block Based STA
  • Required arrival time (RAT) at a node
  • Time before which signal must arrive to avoid
    timing violation
  • Latest time signal is allowed to become stable
  • Determined by longest path to sink

20
AT Computation Kirkpatrick 1966
  • AT at node n
  • Longest path delay from source to node n
  • Longest path Forward-prop(source)
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W
  • Linear algorithm operates on DAG

21
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

22
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

23
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

24
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

25
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

26
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

27
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

28
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

29
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

30
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

31
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

32
AT Computation illustrated
  • Forward-prop(W)
  • For each vertex v in W
  • For each edge ltv,wgt from v
  • Final-delay(w)max(Final-delay(w),
    delay(v)delay(w)delay(ltv,wgt))
  • If all incoming edges of w have been traversed
  • Add w to W

33
How about RAT?
  • RAT required arrival time
  • Backtrack from sinks

34
Timing Slack
  • Each node AT RAT
  • Timing slack RAT-AT
  • Reflects criticality of a node
  • Negative timing violation, node is no critical
    path
  • Positive extra timing budget
  • Optimize for power/area/robustness
  • Slack distribution is KEY for timing
    optimization!!
  • An example assuming RAT(f)5.80

35
Logical v.s. Topological
  • So far we have ignored the logic details for
    each vertices
  • Topological timing analysis
  • We dont care the logic functionality
  • Major assumption for STA
  • Major flaw due to this false path
  • In contrast, for logical timing analysis
  • We care the logic functionality

36
False Path in STA
  • A major (critical) assumption hidden behind STA!
  • All paths are sensitizable
  • There always exists a set of inputs that will
    cause the logic propagating along any chosen path
  • But this is NOT true in general

37
False Path Example Carry Bypass Adder
  • Our previous algorithm will identify the red
    path as the longest path!
  • Is this path sensitizable?

38
False Path Example Carry Bypass Adder
  • To sensitize red path we need
  • ai XOR bi ai1 XOR bi1
  • But red path is false
  • When above condition is true, MUX selects 1
    input, i.e. directly from ci-1
  • Instead shorter green paths are sensitized
  • Hence, red path is not the critical path of the
    circuit!

39
False Path Aware STA
  • False path is universal for STA
  • Causes a lot of pain for STA
  • Determining sensitization path is very hard
  • As hard as Boolean Satisfiability (SAT) problem,
    which is proven NP-hard
  • Fortunately, there exist a lot of effective
    heuristics
  • Beyond the scope

40
Summary
  • STA is a very powerful tool for chip sign-off
  • Delay modeling (device interconnect)
  • DAG for timing analysis
  • AT/RAT/Slack computation algorithms
  • False path in STA

41
Reading Assignment
  • T. I. Kirkpatrick and N. R. Clark. 1966. PERT as
    an aid to logic design. IBM J. Res. Dev. 10, 2
    (March 1966), 135-141.
  • Chul Rim Soo-Hyun Kim Joo-Hyun Park Myung-Soo
    Jang Jin-Yong Lee Kyu-Myong Choi Jeong-Taek
    Kong , "Fast and practical false-path
    elimination method for large SoC designs," SOC
    Conference, 2003. Proceedings. IEEE International
    Systems-on-Chip , vol., no., pp. 397- 400,
    17-20 Sept. 2003
