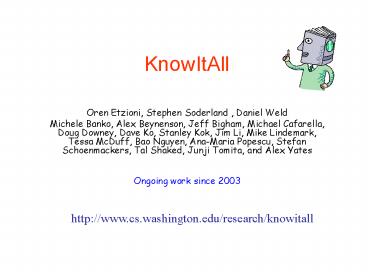

KnowItAll

1
KnowItAll

• Oren Etzioni, Stephen Soderland , Daniel Weld
• Michele Banko, Alex Beynenson, Jeff Bigham,
  Michael Cafarella, Doug Downey, Dave Ko, Stanley
  Kok, Jim Li, Mike Lindemark, Tessa McDuff, Bao
  Nguyen, Ana-Maria Popescu, Stefan Schoenmackers,
  Tal Shaked, Junji Tomita, and Alex Yates
• Ongoing work since 2003

http//www.cs.washington.edu/research/knowitall
2
Goals of KnowItAll

• Information extraction from the Web that is
• Domain-independent
• Genre-independent
• Unsupervised
• Massively scalable
• High precision
• Fuses information across documents

3
KnowItAll Projects

• KnowItAll (baseline system)
• Unsupervised information extraction
• Google queries for extraction and verification
• KnowItNow (massive speedup)
• BE novel search engine index
• Urns formal probability model for verification
• Opine (mining on-line reviews)
• Learn attributes of a product
• Find strength and orientation of opinions
• TextRunner
• Semantic graph of relationships from corpus
• Question-answering based on relation graph
• Ontology Learning
• Learn relations and attributes of arbitrary
  classes
• Continuously grow from a small knowledge base

4
Unsupervised Information Extraction

1. Create extraction rules from generic rule
   templates
2. Send queries to search engine based on extraction
   rules
3. Extract information from resulting pages
4. Verify extractions with mutual information from
   Web hitcounts (PMI-IR)
5. Enter extractions into a database

5
The KnowItAll System
Predicates Country(X)
Domain-independent Rule Templates ltclassgt such
as NP
Bootstrapping
Discriminators country X
Extraction Rules countries such as NP
Extractor
World Wide Web
Extractions Country(France)
Assessor
Validated Extractions Country(France),
prob0.999
6
Unary predicates instances of a class

• Unary predicates
• instanceOf(City), instanceOf(Film),
  instanceOf(Company),
• Good recall and precision from generic patterns
• ltclassgt such as X
• X and other ltclassgt
• Instantiated rules
• cities such as X X and other cities
• films such as X X and other films
• companies such as X X and other companies

7
Binary Predicates

• Domain-independent rule templates
• relation(arg1, arg2) ltarg1gt , ltrelationgt
  of ltarg2gt
• Instantiated rules before binding an argument
• CeoOf(Person, Company) ltpersongt , CEO of
  ltcompanygt
• StarsIn(Actor, Film) ltactorgt , star of
  ltfilmgt
• Population(Number, Country) ltnumbergt ,
  population of ltcountrygt
• After binding an argument to an entry in
  knowledge base
• CeoOf(Person, Company) NP , CEO of WalMart
• StarsIn(Actor, Film) Dustin Hoffman , star
  of NP
• Population(Number, Country) ltnumbergt ,
  population of France

8
Instantiating a Rule Template

• Rule Template (domain-independent)
• Predicate predName(Class1)
• Pattern NP1 such as NPList2
• Contraints head(NP1) plural(label(Class1)
• properNoun(head(each(NPList2)))
• Bindings instanceOf(Class1,
  head(each(NPList2)))
• Extraction Rule (substituting instanceOf and
  Country)
• Predicate instanceOf(Country)
• Pattern NP1 such as NPList2
• Contraints head(NP1) nations
• properNoun(head(each(NPList2)))
• Bindings instanceOf(Country,
  head(each(NPList2)))
• Keywords nations such as

9
Applying the Rule

• Extraction Rule
• Predicate instanceOf(Country)
• Pattern NP1 such as NPList2
• Contraints head(NP1) nations
• properNoun(head(each(NPList2)))
• Bindings instanceOf(Country,
  head(each(NPList2)))
• Keywords nations such as
• Sentence
• Other nations such as France, India and
  Pakistan, have conducted recent tests.
• Three extractions
• instanceOf(Country, France)
• instanceOf(Country, India)
• instanceOf(Country, Pakistan)

10
Recall Precision Tradeoff

• High precision rules apply to only a small
  percentage of sentences on Web
• hits for X cities such as X
  X and other cities
• Boston 365,000,000 15,600,000
  12,000
• Tukwila 1,300,000 73,000
  44
• Gjatsk 88 34 0
• Hadaslav 51 1
  0
• Redundancy-based extraction ignores all but
  the unambiguous references.

11
Limited Recall with Binary Rules

• Relatively high recall for unary rules
• companies such as X 2,800,000 Web hits
• X and other companies 500,000 Web hits
• Low recall for binary rules
• X is the CEO of Microsoft 160 Web
  hits
• X is the CEO of Wal-mart 19 Web
  hits
• X is the CEO of Continental Grain 0 Web
  hits
• X , CEO of Microsoft 6,700 Web hits
• X , CEO of Wal-mart 700 Web hits
• X , CEO of Continental Grain
  2 Web hits

12
Results for Unary Predicates
High precision and high recall for unary
(instance of) extraction. More errors for Country
(Latin America, Iriquois nation, etc).
13
Results for Binary Predicates
High precision for both CapitalOf and CeoOf. Able
to find capitals of all cities. Generic rules are
too specific to find Ceos for low-frequency
companies.
14
Generate and Test Paradigm

• 1. Find extractions from generic rules
• Validate each extraction
• Assign probability that extraction is correct
• Use search engine hit counts to compute PMI
• PMI (pointwise mutual information) between
• extraction
• discriminator phrases for target concept

PMI-IR P.D.Turney, Mining the Web for
synonyms PMI-IR versus LSA on
TOEFL. In Proceedings of ECML, 2001.
15
Examples of Extraction Errors

• Rule countries such as X gt
  instanceOf(Country, X)
• We have 31 offices in 15 countries such as
  London and France.
• gt instanceOf(Country, London)
• instanceOf(Country, France)
• Rule X and other cities gt
  instanceOf(City, X)
• A comparative breakdown of the cost of living
  in Klamath County and other cities follows.
• gt instanceOf(City, Klamath County)

16
Computing PMI Scores

• Measures mutual information between the
  extraction and target concept.
• D a discriminator phrase for the concept
• countries such as X
• I an instance of a target concept
• instanceOf(Country, France)
• DI insert the instance into discriminator
  phrase
• countries such as France

17
Example of PMI

• Discriminator countries such as X
• Instance France vs. London
• PMI for France gtgt PMI for London (2 orders of
  magnitude)
• Need features for probability update that
  distinguish
• high PMI from low PMI for a discriminator

countries such as London 71 hits London
12,600,000 hits
countries such as France 27,800
hits France 14,300,000 hits
18
PMI for Binary Predicates

• insert both arguments of extraction
• into the discriminator phrase
• each argument is a separate query term
• Extraction CeoOf(Jeff Bezos, Amazon)
• Discriminator ltarg1gt ceo of ltarg2gt
• PMI 0.017
• 670 hits for Jeff Bezos ceo of
  Amazon
• 39,000 hits for Jeff Bezos, Amazon

19
Bootstrap Training

• Only input is set of predicates with class
  labels.
• instanceOf(Country), class labels country,
  nation
• Combine predicates with domain-independent
  templates ltclassgt such as NP gt
  instanceOf(class, NP)
• to create extraction rules and discriminator
  phrases
• rule countries such as NP gt
  instanceOf(Country, NP)
• discrim country X
• 3. Use extraction rules to find set of candidate
  seeds
• 4. Select best seeds by average PMI score
• 5. Use seeds to train discriminators and select
  best discriminators
• 6. Use discriminators to rerank candidate seeds,
  select new seeds
• 7. Use new seeds to retrain discriminators, .

20
Bootstrap Parameters

• Select candidate seeds with minimum support
• Over 1,000 hit counts for the instance
• Otherwise unreliable PMI scores
• Parameter settings
• 100 candidate seeds
• Pick best 20 as seeds
• Iteration 1, rank candidate seeds by average PMI
• Iteration 2, use trained discriminators to rank
  candidate seeds
• Select best 5 discriminators after training
• Favor best ratio of
  to
• Slight preference for higher thresholds
• Produced seeds without errors in all classes
  tested

21
Discriminator Phrases from Class Labels

• From the class labels country and nation
• country X nation X
• countries X nations X
• X country X nation
• X countries X nations
• Equivalent to weak extraction rules
• - no syntactic analysis in search engine queries
• - ignores punctuation between terms in phrase
• PMI counts how often the weak rule fires on
  entire Web
• - low hit count for random errors
• - higher hit count for true positives

22
Discriminator Phrases from Rule Keywords

• From extraction rules for instanceOf(Country)
• countries such as X nations such as X
• such countries as X such nations as X
• countries including X nations including X
• countries especially X nations especially X
• X and other countries X and other nations
• X or other countries X or other nations
• X is a country X is a nation
• X is the country X is the nation
• Higher precision but lower coverage than
  discriminators
• from class labels

23
Using PMI to Compute Probability

• Standard formula for Naïve Bayes probability
  update
• useful as a ranking function
• probabilities skewed towards 0.0 and 1.0

Probability that fact f is a correct, given
features Need to turn PMI-scores into features
Need to estimate conditional probabilities
and
24
Features from PMI Method 1

• Thresholded PMI scores
• Learn a PMI threshold from training
• Learn conditional probabilities for PMI gt
  threshold,
• given that f is in the target class, or not
• P(PMI gt thresh class) P(PMI lt thresh
  class)
• P(PMI gt thresh not class) P(PMI lt thresh
  not class)
• Small training set.
• Train each discriminator separately.

25
One Threshold or Two?

• Wide gap between positive and negative training.
• Often two orders of magnitude.

-
-
-
-
-
-
-






-


-
-


PMI scores
0
threshB
threshA
(single thresh)
With two thresholds, learn conditional
probabilities P(PMI gt threshA
class) P(PMI gt threshA not class) P(PMI lt
threshB class) P(PMI lt threshB not class)
P(PMI between A,B class) P(PMI between A,B
not class)
26
Results for 1 or 2 thresholds

• One threshold is better at high-precision end of
  curve.
• Two thresholds are better at high-recall end of
  curve.

27
Features from PMI Method 2

• Continuous Probability Density Function (PDF)
• Gaussian probability model for positive PMI
  scores
• Gaussian model for negative training.
• Probability from Naïve Bayes is determined by
  ratio of P(PMI class) to P(PMI not class)

Where N is the number of positive training
examples, for discriminator
28
PDF vs. Single Threshold

• Continuous PDF not as good as thresholded PMI
• Poor performance at both ends of precision-recall
  curve
• Hard to smooth the small training size
• Overfit to a few high PMI negative, low PMI
  positive training
• Need to learn the ratio of to

29
Effect of Noisy Seeds

• Bootstrapping must produce correct seeds
• 10 noise some drop in performance
• 30 noise badly degraded performance

30
Source of Negative Seeds

• Use seeds from other classes as negative training
• Standard method for bootstrapping
• Better performance than negative training from
  hand-tagging extraction errors

31
Open Question 1

• Sparse data (even with entire Web)
• PMI thresholds are typically small (1/10,000)
• False negatives for instances with low hit count
• City of Duvall
• 312,000 Web hits
• Under threshold on 4 out of 5 discriminators
• City of Mossul
• 9,020 Web hits
• Under threshold on all 5 discriminators
• PMI 0.0 for 3 discriminators

32
Open Question 2

• Polysemy
• Low PMI if instance has multiple word senses
• False negative if target concept is not the
  dominant word sense.
• Amazon as an instance of River
• Most references are to the company, not the
  river
• Shaft as an instance of Film
• 2,000,000 Web hits for the term shaft
• Only a tiny fraction are about the movie

33
(Former) Open Question

• Time bottleneck
• Search engine courtesy wait limits queries per
  day
• Each instance requires several queries for PMI
• Hitcount caching helps with repeated experiments
• Solved with KnowItNow
• - BE enfolds extraction rules into search index
• - Urns computes probabilities without hitcounts
• - Speed up of 2 or 3 orders of magnitude

34
(Former) Open Question

• How to compute realistic probabilities
• Naïve Bayes formula gives skewed probabilities
• Close to 1.0 probability or close to 0.0
• Useful as ranking but not good probability
  estimates

Urns gives probabilities 15 times more accurate
than PMI
