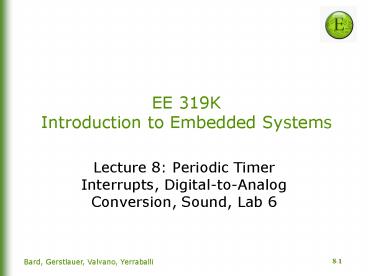

Title: EE 319K Introduction to Embedded Systems


1
EE 319KIntroduction to Embedded Systems
  • Lecture 8 Periodic Timer Interrupts,
    Digital-to-Analog Conversion, Sound, Lab 6

2
Agenda
  • Recap
  • PLL
  • Data structures
  • FSMs, linked structure
  • Interrupts
  • Agenda
  • Periodic Interrupts
  • Digital to Analog Conversion
  • Nyquist Theorem
  • Sound generation

SysTick ISR
Output one value to DAC
3
Lab 6 Lab 8 Lab 9
77 total
Lab 10
INTERRUPT VECTORS
4
Nested Vectored Interrupt Controller (NVIC)
  • Hardware unit that coordinates among interrupts
    from multiple sources
  • Define priority level of each interrupt source
    (NVIC_PRIx_R registers)
  • Separate enable flag for each interrupt source
    (NVIC_EN0_R and NVIC_EN1_R)
  • Interrupt does not set I bit
  • Higher priority interrupts can interrupt lower
    priority ones

5
NVIC Registers
  • High order three bits of each byte define
    priority

6
NVIC Interrupt Enable Registers
  • Two enable registers NVIC_EN0_R and NVIC_EN1_R
  • Each 32-bit register has a single enable bit for
    a particular device
  • NVIC_EN0_R control the IRQ numbers 0 to 31
    (interrupt numbers 16 47)
  • NVIC_EN1_R control the IRQ numbers 32 to 47
    (interrupt numbers 48 63)

7
Interrupt Rituals
  • Things you must do in every ritual
  • Initialize data structures (counters, pointers)
  • Arm (specify a flag may interrupt)
  • Configure NVIC
  • Enable interrupt (NVIC_EN0_R)
  • Set priority (e.g., NVIC_PRI1_R)
  • Enable Interrupts
  • Assembly code CPSIE I
  • C code EnableInterrupts()

8
Interrupt Service Routine (ISR)
  • Things you must do in every interrupt service
    routine
  • Acknowledge
  • clear flag that requested the interrupt
  • SysTick is exception automatic acknowledge
  • Maintain contents of R4-R11 (AAPCS)
  • Communicate via shared global variables

9
Interrupt Events
  • Respond to infrequent but important events
  • Alarm conditions like low battery power
  • Error conditions
  • I/O synchronization
  • Trigger interrupt when signal on a port changes
  • Periodic interrupts
  • Generated by the timer at a regular rate
  • Systick timer can generate interrupt when it hits
    zero
  • Reload value frequency determine interrupt rate

10
Synchronization
Use global variable to communicate
  • Semaphore
  • One thread sets the flag
  • The other thread waits for, and clears
  • Mailbox to be presented for Lab 8
  • FIFO queue to be presented for Lab 9

11
Periodic Interrupts
  • Data acquisition samples ADC
  • Lab 8 will sample at a fixed rate
  • Signal generation output to DAC
  • Audio player (we use the Systick interrupt to
    write samples out periodically in Lab 6)
  • Communications
  • Digital controller
  • FSM
  • Linear control system (EE362K)

Demo PeriodicSystickInts starter C code
12
Digital Representation of Analog Signals
  • Digitization Amplitude and time quantization

13
Conversion from Digital to Analog
  • Range
  • 0 to 3.3V
  • Resolution
  • 3.3V/15 0.22V
  • Precision
  • 4 bits
  • 16 alternative
  • Speed
  • Monotonic

http//users.ece.utexas.edu/valvano/Volume1/E-Boo
k/C13_Interactives.htm
14
Digital ? Analog Conversion
Sampled at a fixed time, Dt
15
Digital ? Analog Conversion
Digital in voltage and in time
fs 1/Dt Signal has frequencies 0 to ½ fs
16
Digital-to-Analog Converter (DAC)
  • Binary Weighted DAC
  • One resistor for each bit of output
  • Resistor values in powers of 2

17
3 bit DAC
R2 10 k?
R1 20 k?
R0 40 k?
n PB2 PB1 PB0 kohm equation Vout (V)
0 0 0 0 0.000
1 0 0 3.3 R2R1 6.67 3.3(R1R2)/(R0R1R2) 0.471
2 0 3.3 0 R2R0 8.00 3.3(R2R0)/(R1R2R0) 0.943
3 0 3.3 3.3 R1R0 13.33 3.3R2/(R2R1R0) 1.414
4 3.3 0 0 R1R0 13.33 3.3(R1R0)/(R2R1R0) 1.886
5 3.3 0 3.3 R2R0 8.00 3.3R1/(R1R2R0) 2.357
6 3.3 3.3 0 R2R1 6.67 3.3R0/(R0R2R1) 2.829
7 3.3 3.3 3.3 3.300
18
Other Types of DACs
  • R-2R Ladder DAC
  • Binary weighted cascading ladder
  • Improved precision owing to ability to select
    resistors of equal value

19
DAC Performance
  • Resolution, range, precision
  • Maximum sampling frequency
  • Monotonicity
  • Input increase causes output increase (always)

20
Resistor Network for 4-bit DAC
R3
R2
R1
R0
21
Dynamic testing
22
Sound
  • Loudness and pitch
  • Controlled by amplitude and frequency
  • Humans can hear from about 25 to 20,000 Hz.
  • Middle A is 440 Hz
  • Other notes on a keyboard are determined
  • 440 2N/12, where N is no. of notes from middle
    A.
  • Middle C is 261.6 Hz.
  • Music contains multiple harmonics


23
Tempo
Tempo defines note duration Quarter note 1
beat 120 beats/min gt ½ s duration
24
Chord
  • Two notes at the same time
  • Superimposed waveforms
  • 262 Hz (low C) and a 392 Hz (G)

25
Instrument Characteristics
Waveform shape of a trumpet sound
Plucked string signal with envelope
26
Synthesizing Digital Music
  • Nyquists Sampling Theorem
  • We can reproduce any bandlimited signal from its
    samples if we sample correctly and at a
    frequency, fs, that is at least twice the highest
    frequency component of the signal, fmax.
  • Where do we get the samples?
  • We could sample a series of musical tones
  • We can compute the samples

27
Synthesizing Digital Music (cont.)
  • What is a musical tone?
  • A sinusoid of a particular frequency
  • Notes vary by twelfth root of 2 1.059
  • What would the samples be?
  • Fixed point numbers
  • How do we generate a sinusoid?
  • Output appropriate digital values via a resistor
    network that effectively produces an
    pseudo-analog signal
  • What about frequency?
  • Employ a programmable timer to tell us when to
    output the next value

28
Synthesizing Digital Music (cont.)
  • 440 Hz sine wave generated by 6-bit DAC

Frequency spectrum
29
Music Generation Lab 6
  • Objectives
  • Employ LM4F/TM4C to generate appropriately scaled
    digital outputs at a specified frequency
  • Three frequencies are required
  • Frequencies are to be determined by switch
    settings
  • Four digital outputs are inputs to a resistor
    network that serves as a digital-to-analog
    converter (DAC)
  • Four output bits gt 16 levels

30
Music Generation (cont.)
  • DAC hardware
  • Employ least significant four bits of a GPIO port
  • Arrange resistor network in 1, 2, 4, 8 sequence
  • Each port bit can assume digital levels of 0 and
    3.3 V
  • Ports are current limited max 8 mA

R3
R2
R1
R0
31
Music Generation (cont.)
  • DAC software
  • Interactions via device drivers
  • Two device driver functions required
  • void DAC_Init(void) // initializes the
    device
  • void DAC_Out(unsigned char data) //
    transfers data to device
  • (Device driver provides the functions associated
    with the device but hides the detailed actions
    necessary to implement the functions.)

32
Music Generation (cont.)
  • Interpretation of data
  • Note has three parameters
  • Amplitude (loudness)
  • Frequency (pitch)
  • Duration
  • Amplitude is a digitally approximated sinusoid
  • Sinusoid varies between 0 and 3.3 volts
  • Frequency is selected by switches
  • Four states stop, note_1, note_2, and note_3
  • Duration is period switch(es) activated

33
4-bit Sinusoid Table
SinTab 8,9,11,12,13,14,14,15,15,15,14
14,13,12,11,9,8,7,5,4,3,2
2,1,1,1,2,2,3,4,5,7
32 value sinusoid
34
Musical Notes
35
Tone Generation
  • unsigned long I
  • // 4-bit 32-element sine wave
  • const uint8_t wave32
  • 8,9,11,12,13,14,14,15,15,15,14
  • 14,13,12,11,9,8,7,5,4,3,2
  • 2,1,1,1,2,2,3,4,5,7
  • For a 440Hz tone
  • Assume a bus clock frequency of 50 MHz
  • SysTick count every 20ns
  • Each cycle of the 440 Hz sinusoid requires
  • (50106 counts/s)/440 Hz 113636.36 SysTick
    counts
  • Each cycle consists of 32 values each of
    duration
  • 113636.36 interrupt counts/32 values 3551
    SysTick counts/value
  • DAC values change every 71.02 us

SysTick ISR
Output one value to DAC
36
Lab 6 ISR
  • Each Systick interrupt
  • Output one value from the array to DAC
  • Increment index to array (wrap back to zero)
  • In main program
  • If a switch is pressed set SysTick period (arm)
  • If no switches are pressed then disarm

SysTick ISR
Output one value to DAC
37
Other Instruments
// 6-bit 64-element bassoon wave const uint8_t
Bassoon64 33,37,37,36,35,34,34,33,31,30,2
9, 30,33,43,58,63,52,31,13,4,5,10,16,
23,32,40,46,48,44,38,30,23,17,12,11,
15,23,32,40,42,39,32,26,23,23,24,25,
25,26,29,30,31,32,34,37,39,37,35,34,
34,34,33,31,30 // 6-bit 64-element guitar
wave const uint8_t Guitar64
20,20,20,19,16,12,8,4,3,5,10,17,
26,33,38,41,42,40,36,29,21,13,9,
9,14,23,34,45,52,54,51,45,38,31,
26,23,21,20,20,20,22,25,27,29,
30,29,27,22,18,13,11,10,11,13,13,
13,13,13,14,16,18,20,20,20
