Title: Towards High Performance Network Defense


1

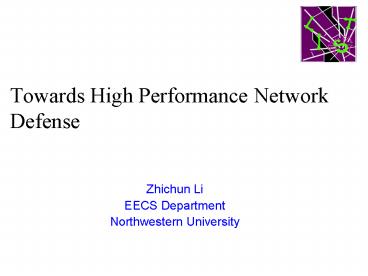

Towards High Performance Network Defense
  • Zhichun Li
  • EECS Department
  • Northwestern University

2
Motivation
Attackers
Botnets
Professional attackers exploit networks for
profit
Worms
3
Network Level Defense
  • Network gateways/routers are the vantage points
    for detecting large scale attacks
  • Only host based detection/prevention is not
    enough
  • Some users do not apply the host-based schemes
    due to the reliability, overhead, and conflicts
  • Many users do not update or patch their system on
    time
  • E.g., Conficker worm in the end of 2008 infected
    915 millions of hosts
  • Cannot only reply on end users for security
    protection

4
Challenges
  • Scalable to high speed networks with a large
    number of users
  • Highly accurate
  • Adapt fast to the emerging threats
  • Have good attack coverage

5
Network-based Intrusion Detection, Prevention,
and Forensics System
  • Framework

Scalability
(I) Sketch based monitoring detection
Accuracy Scalability Coverage
Accuracy adapt fast
(III) Signature matching engines
(II) Polymorphic worm signature generation
Packet streams
(IV) Network situational awareness
Accuracy adapt fast
6
High-speed Network Monitoring and Anomaly
Detection
  • Online traffic monitoring and recording
  • SIGCOMM IMC 2004, INFOCOM 2006, ToN 2007
    INFOCOM 2008
  • Reversible sketch for data streaming computation
  • Record millions of flows (GB traffic) in a few
    hundred KB
  • Small of memory access per packet
  • Scalable to large key space size (232 or 264)
  • Online sketch-based flow-level anomaly detection
  • IEEE ICDCS 2006 Journal of Computer Networks
    2010 IEEE CGA, Security Visualization 2006
  • Online stealthy botnet scan detection
  • IEEE IWQoS 2007

7
Network and Distributed System Diagnosis
  • Overlay network monitoring and diagnosis SIGCOMM
    IMC 2003, SIGCOMM 2004, ToN 2007 SIGCOMM 2006
  • End-user network diagnosis INFOCOM 2007 (2)
  • Internet-scale Virtual Private Network (VPN) and
    backbone monitoring and diagnosis INFOCOM 2009
  • Internet-scale Data Center and dist system
    profiling and diagnosis NSDI 2010

8
Polymorphic Worm Signature Generation
  • Exploit invariant signature generation IEEE
    Symposium on Security and Privacy 2006 (cited by
    100, code and test cases release to Columbia U.,
    UT Austin, Purdue, Georgia Tech, UC Davis, etc)
  • Vulnerability signature generation IEEE ICNP
    2007, ToN 2010
  • NSF CyberTrust 06 Award

Network gateway
Internet
Our network
8
9
Online Protocol Parsing and Signature Matching
  • NetShield vulnerability signature based NIDS/NIPS
    NSF CyberTrust 08 Award under submission
    patent filed
  • Interested by Cisco (IPS ruleset site visit)
  • Code release has been used by researchers in
    University of Toronto
  • Using failure information to detect enterprise
    zombies SecureCom09
  • Spamming botnet detection NSDI09

9
10
Network Situational Awareness
  • Large-scale botnet and P2P misconfiguration event
    situational-aware forensics
  • Botnet attack target/strategy inference
    ASIACCS09
  • Root cause analysis of the P2P misconfiguration/po
    isoning traffic INFOCOM10
  • Analysis of 2TB data across 4 years over 5 /8 IPs

10
11
Current Work
  • Data center management and configuration
  • Internet emergency response
  • AS topology study CoNEXT09
  • Recovery via IXP Infocom10
  • Network based web dynamic vulnerability defense
  • Social network security

12
NetShield Matching a Large Vulnerability
Signature Ruleset for High Performance Network
Defense
13
Outline
  • Motivation
  • High Speed Matching for Large Rulesets
  • High Speed Parsing
  • Evaluation
  • Research Contributions

13
13
14
NetShield Overview
  • NIDS/NIPS (Network Intrusion
    Detection/Prevention System) operation

NIDS/NIPS
Packets
  • Accuracy
  • Speed
  • Attack Coverage

Security alerts
15
State Of The Art
Regular expression (regex) based approaches
Used by Cisco IPS, Juniper IPS, open source Bro
Example .Abc.\x90de\r\n30
  • Pros
  • Can efficiently match multiple sigs
    simultaneously, through DFA
  • Can describe the syntactic context

16
Cons of Regex
Limited expressive power, cannot describe
semantic context, thus inaccurate
Theoretical prospective
Protocol grammar
Practical prospective
  • HTTP chunk encoding
  • DNS label pointers

17
State Of The Art
Vulnerability Signature Wang et al. 04
Blaster Worm (WINRPC) Example BIND rpc_vers5
rpc_vers_minor1 packed_drep\x10\x00\x00\
x00 context0.abstract_syntax.uuidUUID_Remote
Activation BIND-ACK rpc_vers5
rpc_vers_minor1 CALL rpc_vers5
rpc_vers_minors1 packed_drep\x10\x00\x00\x0
0 opnum0x00 stub.RemoteActivationBody.actu
al_lengthgt40 matchRE(stub.buffer,
/\x5c\x00\x5c\x00/)
  • Pros
  • Directly describe semantic context
  • Very expressive, can express the vulnerability
    condition exactly
  • Accurate
  • Cons
  • Slow!
  • Existing approaches all use sequential matching
  • Require protocol parsing

18
Motivation of NetShield
18
19
Motivation
  • Desired Features for Signature-based NIDS/NIPS
  • Accuracy (especially for IPS)
  • Speed
  • Coverage Large ruleset

Cannot capture vulnerability condition well!
Shield sigcomm04
Regular Expression Vulnerability
Accuracy Relative Poor Much Better
Speed Good ??
Memory OK ??
Coverage Good ??
19
20
Research Challenges and Solutions
  • Challenges
  • Matching thousands of vulnerability signatures
    simultaneously
  • Sequential matching ?match multiple sigs.
    simultaneously
  • High speed protocol parsing
  • Solutions
  • An efficient algorithm which matches multiple
    sigs simultaneously
  • A tailored parsing design for high-speed
    signature matching

20
21
Background
  • Vulnerability signature basic
  • Use protocol semantics to express vulnerabilities
  • Defined on a sequence of PDUs one predicate for
    each PDU
  • Example ver1 methodput len(buf)gt300
  • Data representations
  • For all the vulnerability signatures we studied,
    we only need numbers and strings
  • number operators , gt, lt, gt, lt
  • String operators , match_re(.,.), len(.).

Blaster Worm (WINRPC) Example BIND rpc_vers5
rpc_vers_minor1 packed_drep\x10\x00\x00\
x00 context0.abstract_syntax.uuidUUID_Remote
Activation BIND-ACK rpc_vers5
rpc_vers_minor1 CALL rpc_vers5
rpc_vers_minors1 packed_drep\x10\x00\x00\x0
0 opnum0x00 stub.RemoteActivationBody.actu
al_lengthgt40 matchRE(stub.buffer,
/\x5c\x00\x5c\x00/)
21
22
Outline
  • Motivation
  • High Speed Matching for Large Rulesets
  • High Speed Parsing
  • Evaluation
  • Research Contributions

22
23
Matching Problem Formulation
  • Suppose we have n signatures, defined on k
    matching dimensions (matchers)
  • A matcher is a two-tuple (field, operation) or a
    four-tuple for the associative array elements
  • Translate the n signatures to a n by k table
  • This translation unlocks the potential of
    matching multiple signatures simultaneously

Rule 4 URI.Filenamefp40reg.dll
len(Headershost)gt300
RuleID Method Filename Header LEN
1 DELETE
2 POST Header.php
3 awstats.pl
4 fp40reg.dll namehost len(value)gt300
5 nameUser-Agent len(value)gt544
24
Matching Problem Formulation
  • Challenges for Single PDU matching problem (SPM)
  • Large number of signatures n
  • Large number of matchers k
  • Large number of dont cares
  • Cannot reorder matchers arbitrarily -- buffering
    constraint
  • Field dependency
  • Arrays, associative arrays
  • Mutually exclusive fields.

24
25
Difficulty of the SPM
  • Bad News
  • A well-known computational geometric problem can
    be reduced to this problem.
  • And that problem has bad worst case bound O((log
    N)K-1) time or O(NK) space (worst case ruleset)
  • Good News
  • Measurement study on Snort and Cisco ruleset
  • The real-world rulesets are good the matchers
    are selective.
  • With our design O(K)

26
Matching Algorithms
  • Candidate Selection Algorithm
  • Pre-computation decides the rule order and
    matcher order
  • Decomposition. Match each matcher separately and
    iteratively combine the results efficiently
  • Integer range checking ? balanced binary search
    tree
  • String exact matching ? Trie
  • Regex ? DFA (XFA)




26
27
Step 1 Pre-Computation
  • Optimize the matcher order based on buffering
    constraint field arrival order
  • Rule reorder

1
Require Matcher 1
Require Matcher 1
Require Matcher 2
Dont care Matcher 1
Dont care Matcher 1 2
n
28
Step 2 Iterative Matching
PDUMethodPOST, Filenamefp40reg.dll, Header
namehost, len(value)450
S12 Candidates after match Column 1 (method)
S2
B2
2
444
RuleID Method Filename Header LEN
1 DELETE
2 POST Header.php
3 awstats.pl
4 fp40reg.dll namehost len(value)gt300
5 nameUser-Agent len(value)gt544
R1
R2
R3
28
29
Complexity Analysis
Three HTTP traces avg(Si)lt0.04 Two WINRPC
traces avg(Si)lt1.5
  • Merging complexity
  • Need k-1 merging iterations
  • For each iteration
  • Merge complexity O(n) the worst case, since Si
    can have O(n) candidates in the worst case
    rulesets
  • For real-world rulesets, of candidates is a
    small constant. Therefore, O(1)
  • For real-world rulesets O(k) which is the
    optimal we can get

30
Refinement and Extension
  • SPM improvement
  • Allow negative conditions
  • Handle array cases
  • Handle associative array cases
  • Handle mutual exclusive cases
  • Extend to Multiple PDU Matching (MPM)
  • Allow checkpoints.

30
31
Outline
  • Motivation
  • High Speed Matching for Large Rulesets.
  • High Speed Parsing
  • Evaluation
  • Research Contribution

31
32
High Speed Parsing
General V.S. Special Purpose
Keep the whole parse tree in memory
Parsing and matching on the fly
V.S.
Parse all the nodes in the tree
Only signature related fields (leaf nodes)
V.S.
  • Design a parsing state machine
  • Build an automated parsing state machine generator

33
Outline
  • Motivation
  • High Speed Matching for Large Rulesets.
  • High Speed Parsing
  • Evaluation
  • Research Contributions

33
34
Evaluation Methodology
  • Fully implemented prototype
  • 12,000 lines of C and 3,000 lines of Python
  • Release at
  • www.nshield.org
  • Deployed at a university DC
  • with up to 106Mbps
  • 26GB Traces from Tsinghua Univ. (TH),
    Northwestern (NU) and DARPA
  • Run on a P4 3.8Ghz single core PC w/ 4GB memory
  • After TCP reassembly and preload the PDUs in
    memory
  • For HTTP we have 794 vulnerability signatures
    which cover 973 Snort rules.
  • For WINRPC we have 45 vulnerability signatures
    which cover 3,519 Snort rules

34
35
Parsing Results
Trace TH DNS TH WINRPC NU WINRPC TH HTTP NU HTTP DARPA HTTP
Avg flow len (B) 77 879 596 6.6K 55K 2.1K
Throughput (Gbps) Binpac Our parser 0.31 3.43 1.41 16.2 1.11 12.9 2.10 7.46 14.2 44.4 1.69 6.67
Speed up ratio 11.2 11.5 11.6 3.6 3.1 3.9
Max. memory per connection (bytes) 15 15 15 14 14 14
35
36
Matching Results
11.0
8-core
Trace TH WINRPC NU WINRPC TH HTTP NU HTTP DARPA HTTP
Avg flow length (B) 879 596 6.6K 55K 2.1K
Throughput (Gbps) Sequential CS Matching 10.68 14.37 9.23 10.61 0.34 2.63 2.37 17.63 0.28 1.85
Matching only time speed up ratio 4 1.8 11.3 11.7 8.8
Avg of Candidates 1.16 1.48 0.033 0.038 0.0023
Max. memory per connection (bytes) 27 27 20 20 20
36
37
Scalability and Accuracy Results
Rule scaling results
Accuracy
  • Create two polymorphic WINRPC exploits which
    bypass the original Snort rules but detect
    accurately by our scheme.
  • For 10-minute clean HTTP trace, Snort reported
    42 alerts, NetShield reported 0 alerts. Manually
    verify the 42 alerts are false positives

Performance decrease gracefully
38
Research Contribution
Make vulnerability signature a practical
solution for NIDS/NIPS
Regular Expression Exists Vul. IDS NetShield
Accuracy Poor Good Good
Speed Good Poor Good
Memory Good ?? Good
Coverage Good ?? Good
  • Multiple sig. matching ? candidate selection
    algorithm
  • Parsing ? parsing state machine

Build a better Snort alternative!
38
39
Future work
Client
Server
Network Security
Data Center Security
  • Web/WebSecurity
  • WebPropehtNSDI10
  • WebShield
  • Social network security

40
  • Q A
  • Thanks!

41
Observations
  • PDU ? parse tree
  • Leaf nodes are numbers or strings

PDU
array
General V.S. Special Purpose
Keep the whole parse tree in memory
Parsing and matching on the fly
V.S.
Parse all the nodes in the tree
Only signature related fields (leaf nodes)
V.S.
41
42
Efficient Parsing with State Machines
  • Studied eight protocols HTTP, FTP, SMTP, eMule,
    BitTorrent, WINRPC, SNMP and DNS as well as their
    vulnerability signatures
  • Common relationships among leaf nodes
  • Pre-construct parsing state machines based on
    parse trees and vulnerability signatures

Automated parsing state machine generator
UltraPAC
42
43
Example for WINRPC
  • Rectangles are states
  • Parsing variables R0 .. R4
  • 0.61 instruction/byte for BIND PDU

43
44
Experiences
  • Working in process
  • In collaboration with MSR, apply the semantic
    rich analysis for cloud Web service profiling. To
    understand why slow and how to improve.
  • Interdisciplinary research
  • Student mentoring (three undergraduates, six
    junior graduates)

45
Future Work
  • Near term
  • Web security (browser security, web server
    security)
  • Data center security
  • High speed network intrusion prevention system
    with hardware support
  • Long term research interests
  • Combating professional profit-driven attackers
    will be a continuous arm race
  • Online applications (including Web 2.0
    applications) become more complex and vulnerable.
  • Network speed keeps increasing, which demands
    highly scalable approaches.

46
Research Contributions
  • Demonstrate vulnerability signatures can be
    applied to NIDS/NIPS, which can significantly
    improve the accuracy of current NIDS/NIPS
  • Propose the candidate selection algorithm for
    matching a large number of vulnerability
    signatures efficiently
  • Propose parsing state machine for fast protocol
    parsing
  • Implement the NetShield

46
47
Comparing With Regex
  • Memory for 973 Snort rules DFA 5.29GB (XFA 863
    rules1.08MB), NetShield 2.3MB
  • Per flow memory XFA 36 bytes, NetShield 20
    bytes.
  • Throughput XFA 756Mbps, NetShield 1.9Gbps
  • (XFA SIGCOMM08Oakland08)

48
Measure Snort Rules
  • Semi-manually classify the rules.
  • Group by CVE-ID
  • Manually look at each vulnerability
  • Results
  • 86.7 of rules can be improved by protocol
    semantic vulnerability signatures.
  • Most of remaining rules (9.9) are web DHTML and
    scripts related which are not suitable for
    signature based approach.
  • On average 4.5 Snort rules are reduced to one
    vulnerability signature.
  • For binary protocol the reduction ratio is much
    higher than that of text based ones.
  • For netbios.rules the ratio is 67.6.

48
49
Matcher order
Reduce Si1
Enlarge Si1
Merging Overhead Si (use hash table to
calculate in Ai1, O(1))
fixed, put the matcher later, reduce Bi1
50
Matcher order optimization
  • Worth buffering only if estmaxB(Mj)ltMaxB
  • For Mi in AllMatchers
  • Try to clear all the Mj in the buffer which
    estmaxB(Mj)ltMaxB
  • Buffer Mi if (estmaxB(Mi)gtMaxB)
  • When len(Buf)gtBuflen, remove the Mj with minimum
    estmaxB(Mj)

51
(No Transcript)
52
Backup Slides

53
Motivation
  • Network security has been recognized as the
    single most important attribute of their
    networks, according to survey to 395 senior
    executives conducted by ATT
  • Many new emerging threats make the situation even
    worse

54
Candidate merge operation
54
55
A Vulnerability Signature Example
  • Data representations
  • For all the vulnerability signatures we studied,
    we only need numbers and strings
  • number operators , gt, lt, gt, lt
  • String operators , match_re(.,.), len(.).
  • Example signature for Blaster worm

Example BIND rpc_vers5 rpc_vers_minor1
packed_drep\x10\x00\x00\x00
context0.abstract_syntax.uuidUUID_RemoteActivat
ion BIND-ACK rpc_vers5 rpc_vers_minor1 CAL
L rpc_vers5 rpc_vers_minors1
packed_drep\x10\x00\x00\x00
stub.RemoteActivationBody.actual_lengthgt40
matchRE( stub.buffer, /\x5c\x00\x5c\x00/)
55
56
System Framework
Scalability
Scalability
Scalability
Scalability
Accuracy Scalability Coverage
Accuracy Scalability Coverage
Accuracy Scalability Coverage
Accuracy Scalability Coverage
Accuracy adapt fast
Accuracy adapt fast
Accuracy adapt fast
Accuracy adapt fast
Accuracy adapt fast
57
Example of Vulnerability Signatures
  • At least 75 vulnerabilities are due to buffer
    overflow
  • Sample vulnerability signature
  • Field length corresponding to vulnerable buffer gt
    certain threshold
  • Intrinsic to buffer overflow vulnerability and
    hard to evade

Overflow!
Protocol message
Vulnerable buffer
58
Old Slides
59
Conclusions
  • A novel network-based vulnerability signature
    matching engine
  • Through measurement study on Snort ruleset, prove
    the vulnerability signature can improve most of
    the signatures in NIDS/IPS.
  • Proposed parsing state machine for fast parsing
  • Propose a candidate selection algorithm for
    matching a large number of vulnerability
    signature simultaneously

59
60
Outline
  • Motivation
  • Feasibility Study a measurement approach
  • Problem Statement
  • High Speed Parsing
  • High Speed Matching for massive vulnerability
    Signatures.
  • Evaluation
  • Conclusions

61
Outline
  • Motivation
  • Feasibility Study a measurement approach
  • Problem Statement
  • High Speed Parsing
  • High Speed Matching for massive vulnerability
    Signatures.
  • Evaluation
  • Conclusions

62
Outline
  • Motivation
  • Feasibility Study a measurement approach
  • Problem Statement
  • High Speed Parsing
  • High Speed Matching for massive vulnerability
    Signatures.
  • Evaluation
  • Conclusions

63
Outline
  • Motivation
  • Feasibility Study a measurement approach
  • Problem Statement
  • High Speed Parsing
  • High Speed Matching for a large number of
    vulnerability Signatures.
  • Evaluation
  • Conclusions

64
Outline
  • Motivation
  • Feasibility Study a measurement approach
  • Problem Statement
  • High Speed Parsing
  • High Speed Matching for massive vulnerability
    Signatures.
  • Evaluation
  • Conclusions

65
Limitations of Regular Expression Signatures
Signature 10.01
Traffic Filtering
Internet
Our network
X
X
Polymorphism!
Polymorphic attack (worm/botnet) might not have
exact regular expression based signature
66
What we do?
  • Build a NIDS/NIPS with much better accuracy and
    similar speed comparing with Regular Expression
    based approaches
  • Feasibility Snort ruleset (6,735 signatures)
    86.7 can be improved by vulnerability
    signatures.
  • High speed Parsing 2.712 Gbps
  • High speed Matching
  • Efficient Algorithm for matching massive
    vulnerability rules
  • HTTP, 791 vulnerability signatures at 1Gbps

67
Problem Formulation
  • Parsing problem formulation
  • Given a PDU and the protocol specification as
    input, output the set of fields which required by
    matching.

68
Publications
  • Zhichun Li, Lanjia Wang, Yan Chen and Zhi (Judy)
    Fu, Network-based and Attack-resilient Length
    Signature Generation for Zero-day Polymorohic
    Worms, in the Proc. of IEEE ICNP 2007.
  • Robert Schweller, Zhichun Li, Yan Chen, Yan Gao,
    Ashish Gupta, Elliot Parons, Yin Zhang, Peter
    Dinda, Ming-Yang Kao, and Gokhan Memik,
    Reversible sketches Enabling monitoring and
    analysis over high speed data streams, in the
    IEEE/ACM Transaction on Networking, Volume 15,
    Issue 5, Oct, 2007
  • Zhichun Li, Manan Sanghi, Brian Chavez, Yan Chen
    and Ming-Yang Kao, Hamsa Fast Signature
    Generation for Zero-day Polymorphic Worms with
    Provable Attack Resilience, in Proc. of IEEE
    Symposium on Security and Privacy, 2006
  • Zhichun Li, Yan Chen and Aaron Beach, Towards
    Scalable and Robust Distributed Intrusion Alert
    Fusion with Good Load Balacing, in Proc. of ACM
    SIGCOMM LSAD 2006
  • Yan Gao, Zhichun Li and Yan Chen, A DoS Resilient
    Flow-level Intrusion Detection Approach for
    High-speed Networks, In Proc. Of IEEE ICDCS 2006
  • Robert Schweller, Zhichun Li, Yan Chen, Yan Gao,
    Ashish Gupta, Elliot Parons, Yin Zhang, Peter
    Dinda, Ming-Yang Kao, and Gokhan Memik, Reverse
    Hashing for High-speed Network Monitoring
    Algorithms, Evaluations, and Applications, in the
    Proc. Of IEEE INFOCOM 2006

69
Current Status
  • Part I Sketch based monitoring detection
  • Robert Schweller, Zhichun Li, Yan Chen, Yan Gao,
    Ashish Gupta, Elliot Parons, Yin Zhang, Peter
    Dinda, Ming-Yang Kao, and Gokhan Memik,
    Reversible sketches Enabling monitoring and
    analysis over high speed data streams, in the
    IEEE/ACM Transaction on Networking, Volume 15,
    Issue 5, Oct, 2007
  • Robert Schweller, Zhichun Li, Yan Chen, Yan Gao,
    Ashish Gupta, Elliot Parons, Yin Zhang, Peter
    Dinda, Ming-Yang Kao, and Gokhan Memik, Reverse
    Hashing for High-speed Network Monitoring
    Algorithms, Evaluations, and Applications, in the
    Proc. Of IEEE INFOCOM 2006 (252/140018)
  • Yan Gao, Zhichun Li and Yan Chen, A DoS Resilient
    Flow-level Intrusion Detection Approach for
    High-speed Networks, In Proc. Of IEEE
    International Conference on Distributed Computing
    Systems (ICDCS) 2006 (75/53614) (Alphabetical
    order)
  • Part II Polymorphic worm signature generation
  • TOSG Zhichun Li, Manan Sanghi, Brian Chavez, Yan
    Chen and Ming-Yang Kao, Hamsa Fast Signature
    Generation for Zero-day Polymorphic Worms with
    Provable Attack Resilience, in Proc. of IEEE
    Symposium on Security and Privacy, 2006
    (23/2519)
  • LESG Zhichun Li, Lanjia Wang, Yan Chen and Zhi
    (Judy) Fu, Network-based and Attack-resilient
    Length Signature Generation for Zero-day
    Polymorohic Worms, in the Proc. of IEEE
    International Conference on Network Protocols
    (ICNP) 2007 (32/22014)

70
Current Status
  • Part III Signature matching engines
  • Work in progress, will be focus of this talk
  • Zhichun Li, Gao Xia, Yi Tang, Jian Chen, Ying He,
    Yan Chen and Bin Liu, NetShield Towards High
    Performance Network-based Semantic Signature
    Matching, in submission
  • Part IV Network Situational Awareness
  • Work in process
  • Zhichun Li, Anup Goyal, Yan Chen and Vern Paxson,
    Towards Situational Awareness of Large-Scale
    Botnet Events using Honeynets, in preparation
  • Zhichun Li, Anup Goyal, Yan Chen and Aleksandar
    Kuzmanovic, P2P Doctor Measurement and Diagnosis
    of Misconfigured Peer-to-Peer Traffic, in
    submission

71
Current Status
  • Part I Sketch based monitoring detection
  • Result in Infocom06,ToN,ICDCS06
  • Part II Polymorphic worm signature generation
  • Result in Oakland06,ICNP07
  • Part III Signature matching engines
  • Work in progress, will be focus of this talk
  • Part IV Network Situational Awareness
  • Work in process

72
Limitations of Exploit Based Signature
Signature 10.01
Traffic Filtering
Internet
Our network
X
X
Polymorphism!
Polymorphic worm might not have exact exploit
based signature
73
Vulnerability Signature
Vulnerability signature traffic filtering
Internet
X
X
Our network
X
X
Vulnerability
  • Work for polymorphic worms
  • Work for all the worms which target the
  • same vulnerability
About PowerShow.com
