Title: Overview


1

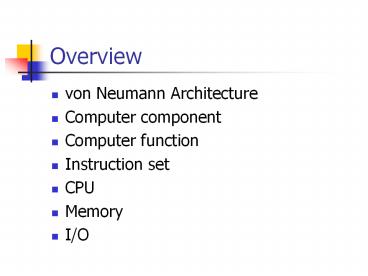

Overview
  • von Neumann Architecture
  • Computer component
  • Computer function
  • Instruction set
  • CPU
  • Memory
  • I/O

2
von Neumann architecture
  • All contemporary computer design are
  • base on three key concepts
  • Data and instructions are stored in a single
    read-write memory.
  • The contents of this memory are addressable by
    location
  • Execution occurs in a sequential fashion from one
    instruction to the next

3
Computer Component
  • Arithmetic and Logical Unit (ALU)
  • Control Unit (CU)
  • Memory Unit
  • I/O devices
  • Central Processing Unit (CPU)
  • Storage devices
  • System bus

4
Computer Function
  • The basic function is program execution.
  • The Program to be executed consists of a set of
    instruction stored in memory.
  • The CPU does actual work by executing
    instructions specified in the program.

5
Instruction Sets
  • Instruction An individual pattern which
    instructs the computer to do a task.
  • Consists of two part
  • OP-code
  • Operand or Address
  • Instruction set classifies CPU into model or
    family

6
Central Processing Unit (CPU)
Computer Component
  • Processor
  • Where the data are manipulated by executing
    instruction
  • Two basic parts are
  • Control Unit (CU)
  • Arithmetic and Logical Unit (ALU)

7
Executing Instruction
  • Instruction cycle
  • Fetch cycle CPU read (fetches) instructions
    from memory one at a time.
  • Execution cycle CPU executes each instruction

8
Instruction Cycle
Start
No
Are the Instruction awaiting execution?
Yes
Fetch the next instruction
Execute the instruction
halt
No
Are there interrupts require services?
Yes
Transfer control to interrupt handling program
9
Control Unit (CU)
CPU
  • Controls each part of components to perform
    instruction or program
  • procedure
  • load program into memory
  • fetch instruction one at a time
  • decode, create and send control signals

10
Control Unit Components
CPU
  • The CU has three components
  • Program Counter(PC) contains the address of the
    next instruction to be executed
  • Instruction Register (IR) holds the actual
    instruction that is being executed
  • Instruction Decoder determines the type of
    operation currently in the IR and sends control
    signal to implement that operation

11
Control Unit Function
  • Instruction sequencing selects instruction from
    memory to executed
  • Instruction Interpretation interprets and sends
    control signals to CPU through control lines

12
Instruction sequencing
  • PC PC K
  • PC next instruction address
  • PC previous instruction address
  • k instruction length

0 3 4
15
Op Code Address

(a) Instruction Format
0001 Load AC From Memory 0010 Store AC To
Memory 0101 Add to AC from Memory
(b) Partial List of Opcodes
13
Example of program execution
300 301 302
PC AC IR
300 301 302
PC AC IR
3 0 0
3 0 0
1 9 4 0
1 9 4 0
5 9 4 1
5 9 4 1
0 0 0 3
1 9 4 0
2 9 4 1
2 9 4 1
1 9 4 0
CPU Registers
. . .
. . .
. . .
. . .
940 941
940 941
0 0 0 3
0 0 0 3
1
2
0 0 0 2
0 0 0 2
300 301 302
300 301 302
PC AC IR
1 9 4 0
PC AC IR
3 0 1
1 9 4 0
3 0 1
5 9 4 1
5 9 4 1
0 0 0 5
0 0 0 3
2 9 4 1
5 9 4 1
2 9 4 1
5 9 4 1
. . .
. . .
. . .
. . .
316 216 516
940 941
940 941
0 0 0 3
0 0 0 3
3
4
0 0 0 2
0 0 0 2
300 301 302
300 301 302
PC AC IR
PC AC IR
1 9 4 0
1 9 4 0
3 0 2
3 0 2
5 9 4 1
5 9 4 1
0 0 0 5
0 0 0 5
2 9 4 1
2 9 4 1
2 9 4 1
2 9 4 1
. . .
. . .
. . .
. . .
940 941
940 941
0 0 0 3
0 0 0 3
5
6
0 0 0 2
0 0 0 5
14
Instruction Interpretation
Control Unit
C in
C out
C in
C out
ALU
Input data
Output data
  • Implementation Method
  • Hardwired Control Unit
  • Microprogram Control Unit

15
Arithmetic and Logical Unit (ALU)
CPU
  • The ALU has two part
  • Functional unit perform the operation
    (arithmetic operations and logical operations)
  • Register hold operands, results, errors and
    status information

16
Functional Unit
CPU
  • Arithmetic
  • integer adder
  • integer subtractor
  • integer multiplier
  • integer divider
  • arithmetic shift unit
  • incrementor decrementor
  • floating-point arithmetic unit
  • Logical
  • comparator
  • logic shift unit
  • NOT unit
  • AND unit
  • OR unit

17
Operation of functional unit
CPU
  • Arithmetic
  • add
  • - subtract
  • multiply
  • / divide
  • raise by a power
  • Logical
  • , equal, not equal
  • gt, gt greater than, not greater than
  • lt, lt less than, not less than
  • gt, gt greater than or equal, not ...
  • lt, lt less than or equal, not ...

18
Diagram of functional unit
CPU
Start/Stop signal from control unit
Timing signal
19
Register
CPU
  • high-speed memory location
  • contain data for functional unit
  • register size -gt word size
  • 16-bit processor
  • 32-bit processor
  • 64-bit processor

20
Register Type
CPU
  • Accumulator register operand, result
  • Index register address
  • Special-purpose register
  • Overflow register
  • Carry register
  • Shift register
  • Temporary register
  • General purpose register
  • Stack register
  • Floating-point register
  • Status information
  • register

21
Register Memory
CPU
  • reference by name instead of unsigned binary
    address A, R1
  • higher speed than memory
  • use for specific job, not general job
  • use specific path for transfer data

22
Processor families
  • Intel Pentium
  • AMD K6, K7
  • Cyrix Cyrix
  • Motorola 680X0

23
Memory
Computer Component
  • Stores and retrieves (fetch) information
  • It is divided into cells, and data are accessed
    by means of the unique address of the cell.
  • 2n words of m-bit memory with addresses
    0,1,2,,2n-1

24
Access data in memory
  • Store
  • ????????????????????? memory ? ??????????????
  • Fetch
  • ???????????? memory

25
Memory component
  • Memory Address Register(MAR) contains the
    address of the word we want to store or fetch
  • Memory Buffer Register (MBR) contains the
    contents of the location we want to do with
  • Decoder decodes address to be the location
  • Read/Write Control Lines provides the signal to
    control the memory perform a fetch or store
    operation.

26
Memory component
address 0000 0001 0002 0003 0004 2n-1
Decoder
MAR
size
Read control lines Write control lines
MBR
m-1 .. .. .. ... 2 1 0
Flow of information Control Signal
Memory width
27
Read procedure
  • Stores address of data in MAR.
  • Sends read signal through read control line.
  • Decodes data in MAR to be the location in memory
    bank.
  • Reads data from that location and stores in MBR.

28
Write procedure
  • Stores address of data in MAR.
  • Stores data we want to write in MBR.
  • Sends write signal throgh write control line.
  • Decodes data in MAR to be the location in memory
    bank.
  • Writes data in MBR into that location.

29
Memory Hierarchy
  • Register
  • Caches L1, L2, ..
  • Main Memory
  • Magnetic Disk
  • Magnetic Tape

30
Characteristics
  • Location
  • CPU
  • Internal
  • External
  • Capacity
  • Word size
  • Number of words
  • Unit of Transfer
  • Word
  • Block
  • Access Method
  • Sequential
  • Direct
  • Random
  • Associative

31
Characteristics (cont.)
  • Performance
  • Access time
  • Memory cycle time
  • Transfer rate
  • Physical type
  • Semiconductor
  • Magnetic surface
  • Physical characteristics
  • Volatile/Non-volatile
  • Erasable/Non-erasable

32
RAM
  • Random Access Memory
  • EDO RAM (Extended Data-Out RAM)
  • DRAM (Dynamic RAM)
  • SRAM (Static RAM)
  • SDRAM (Synchronous DRAM)
  • DDR SDRAM (Double Data Rate SDRAM)
  • VRAM (Video RAM)

33
ROM
  • Read only memory contain a permanent pattern of
    data for starting a computer to work
  • ROM Typed
  • PROM (Programmable ROM)
  • EPROM (Erasable ROM)
  • EEPROM (Electrical Erasable PROM)

34
Data in ROM
  • Important memory routines of system
  • Loader program
  • Compiler and interpreter
  • Important error-recovers procedures
  • some part of Operating System

35
Cache Memory
  • Disk cache
  • Memory cache
  • L1 cache internal cache
  • L2 cache external cache

Word transfer
Block transfer
CPU
Main Memory
L2 Cache
L1
36
Input/Output
  • I/O module
  • I/O function
  • I/O devices components
  • Data transfer Techniques

37
I/O Module
  • The entity with in a computer responsible for the
    control of one or more external devices and for
    the exchange of data between those devices and
    main memory and/or CPU register.
  • The major function for an I/O module
  • control and timing
  • CPU communication
  • Device communication
  • Data buffering
  • Error detection

38
I/O Function
  • The third key element of a computer is a set of
    I/O module.
  • Each module interface to the system bus or
    central switch and controls one or more
    peripheral devices.
  • I/O module contains logic for performing a
    communication function between the peripheral and
    the bus.

39
The Component of I/O devices
  • I/O Mechanism
  • The mechanical, electrical that make up
  • I/O devices
  • I/O Controller
  • The component that manages the flow of
  • information between the I/O device and the
  • computer

40
Data Transfer Techniques
  • Programmed I/O
  • Interrupt Driven I/O
  • DMA I/O Controller

41
Programmed I/O
  • Data are exchanged between the CPU and the I/O
    module.
  • The CPU executes a program that gives it direct
    control of the I/O operation.
  • When the CPU issues to the I/O modules, it must
    wait until the I/O operation is complete.
  • If the CPU is faster than the I/O module, this is
    wasteful of CPU time.

42
Issue read command to I/O module
CPU --gt I/O
Read status of I/O module
I/O --gt CPU
Not Ready
Check status
Error Condition
Ready
Read word from I/O module
I/O --gt CPU
Write word into memory
CPU --gt Memory
No
Done?
Programmed I/O
Yes
43
Interrupt-Driven I/O
  • The CPU send START signal to I/O controller for
    start working.
  • After send signal, the CPU can continue their
    jobs
  • When I/O controller finish work, it send
    interrupt signal to the CPU
  • The CPU suspend their works and load data into
    memory

44
CPU --gt I/O
Issue read command to I/O module
Do Something Else
Read status of I/O module
Interrupt
I/O --gt CPU
Check status
Error Condition
Ready
Read word from I/O module
I/O --gt CPU
Write word into memory
CPU --gt Memory
No
Done?
Interrupt-Driven I/O
Yes
45
DMA I/O Controller
  • Consist of 2 registers
  • DAR (DMA Address Register) stores address of
    data in memory
  • WC (Word Count Register) specifies data size to
    write in memory

46
DMA I/O Controller (cont.)
  • Store address of data in DAR
  • Store size of data in WC
  • Send START signal to I/O Controller
  • When finishing data transfer, it send interrupt
    signal to the CPU

47
CPU --gt DMA
Issue read block command to DMA module
Do Something Else
Read status of DMA module
Interrupt
DMA --gt CPU
Direct Memory Access
About PowerShow.com
