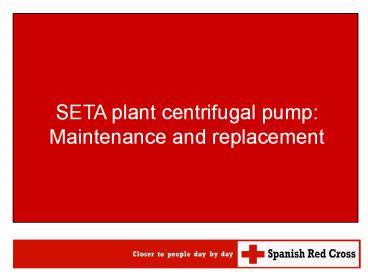

ERU WATSAN MOD. 15
SETA plant centrifugal pump Maintenance and
replacement
2
Contents
  • Grundfos MQ 3-45 centrifugal pump description
  • Functioning
  • Maintenance
  • Pump replacement

3
  1. MQ 3-45 centrifugal pump description

4
Grundfos MQ 3-45 centrifugal pump
5
Technical data
  • Maximum pressure 4.5 bares
  • Minimum ambient temperature 0 ºC
  • Maximum ambient temperature 45 ºC
  • Minimum liquid temperature 0 ºC
  • Maximum liquid temperature 35 ºC
  • Net weight 13 kg
  • Air pressure in tank 1,5 1,7 bares

6
2. Functioning
7
READ MANUFACTURER INSTRUCTIONS
8
Control panel
9
Starting up
  • Maximum water level in the sedimentation tank
  • The water level control starts the submergible
    pump
  • below the maximum water level.
  • The water level control stops the submergible
    pump above the maximum water level.
  • Minimum water level in the sedimentation tank
  • The water level control stops the centrifugal
    pump
  • and starts the submergible pump below the
  • minimum water level.
  • The water level control starts the centrifugal
    pump
  • and stops the submergible pump above the
  • minimum water level but the maximum water
    level
  • control keeps the submergible pump working.

10
Stopping
  • The pump includes an electronic protection
    function which will stop the pump in case of
  • lack of water
  • over temperature
  • overload engine
  • frequent starts/stops (the Alarm light blinks)
  • The pump automatically restarts after 30 minutes
    (over 24 hours) in case any kind of failure if
    the automatic restart function is activated.

11
3. Maintenance
12
Maintenance
The pump is maintenance free under normal
conditions. See instruction manual for possible
breakdowns.
13
4. Replacement of the pump
14
1
15
2
16
3
17
4
18
5
19
6
20
7
21
8
22
9
23
10
24
11
25
12
26
13
27
14
28
15
29
16
30
Thank you.
