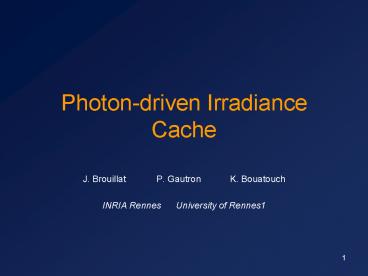

Title: Photon-driven Irradiance Cache


1
Photon-driven Irradiance Cache
  • J. Brouillat P. Gautron K. Bouatouch
  • INRIA Rennes University of Rennes1

2
Motivations
? Photon-Driven Irradiance Cache
  • Global Illumination in scenes with complex light
    interactions
  • Indirect diffuse component is very important for
    the overall aspect of final rendering
  • Multiples bounces, any lighting, large scenes
    (architectural design, walkthrough)
  • Interactive or view-independent
  • Fast preview of good quality

3
Previous work
? Photon-Driven Irradiance Cache
  • Mesh-based
  • Radiosity Lightmaps Goral et al. 84 compute
    a solution for the whole scene at once, can be
    interactively displayed, Discontinuity meshing
    Lischinski 92
  • Point-based
  • Irradiance Cache Ward et al. 88 Irradiance is
    sparsely sampled over surfaces
  • Radiance cache splatting Gautron et al. 05
    interactive display of an irradiance cache
  • Photon mapping Jensen 96 divides light flux
    into photons
  • Complex lighting, very large scenes Christensen
    et al. 04
  • Final gathering combined with irradiance cache

4
Previous work
? Photon-Driven Irradiance Cache
  • Point-based (continued)
  • Instant radiosity Keller 97 approximate
    indirect lighting using several virtual
    point-light sources (VPLs)
  • Many-light sources problem Lightcuts Walter et
    al. 05, Matrix Row-Column Sampling Hasan et al.
    07
  • Incremental Instant Radiosity Laine et al. 07
    interactive, limited to one bounce interactions
  • Metropolis Instant Radiosity Segovia et al. 07
    reduce the number of VPLs used, view dependent
  • Direct-to-indirect transfer Hasan et al. 06
    samples surface with points, precompute
    contribution of these points to final image
  • Dynamic lights, fixed scene/viewpoint
  • High-quality interactive relighting , large
    precomputation time (hours)
  • Meshless Hierarchical basis Lehtinen et al. 08
  • Dynamic lights and viewpoint, long precomputation
    time.

5
Our approach
? Photon-Driven Irradiance Cache ? Our algorithm
  • Point-based short precomputation time view
    independency
  • How combination of photon maps and irradiance
    cache
  • Photon map
  • Elegant method, widely used
  • Any kind of light sources, multiple bounces,
    highly dense environments, large scenes
  • Irradiance caching
  • Interactive display, compact representation, no
    surface parameterization
  • Compute a view-independent irradiance cache from
    a photon map
  • Advantages
  • Fast view-independent preview of photon map
    simulations
  • Uses GPUs (splatting)
  • Easy to implement

6
More precisely
? Photon-Driven Irradiance Cache ? Our algorithm
  • Photon Mapping
  • () View-independent lighting simulation
    (scattering photons)
  • (-) Rendering is either noisy or costly (final
    gathering), and view-dependent
  • Irradiance Cache
  • () Interactive rendering of the cache for static
    scene, high quality
  • (-) View dependent new records have to be
    created when walking through unexplored parts of
    the scene. Records cover the whole scene many
    viewpoints
  • Our approach
  • We first compute a coarse irradiance cache from a
    photon map
  • Covers the whole scene view independent
  • No additional rays to be cast
  • Interactive fast preview of the photon map
    solution
  • This coarse cache can be refined using final
    gathering
  • Reduce the number of rays cast, using visibility
    information from the photon paths

7
Irradiance cache data structure
? Photon-Driven Irradiance Cache ? Irradiance
cache
  • Irradiance cache set of records
  • A record
  • Position (vector)
  • Harmonic mean distance, DH, from record to other
    objects of the scene (scalar)
  • Irradiance value (vector)
  • Irradiance gradient (vector)
  • Deduce these values from a photon map

8
Algorithm overview
? Photon-Driven Irradiance Cache
  • 1st pass
  • Building a classical photon map
  • 2nd pass, from the photon map
  • Deduce position of irradiance records and
    harmonic mean distance
  • Compute coarse irradiance values for each record
  • Coarse irradiance cache can be used for
    interactive (pre-)vizualisation
  • 3rd pass
  • Refine irradiance values associated with each
    record using final gathering, compute gradients
  • Can be done in parallel with previzualisation
  • Refine first the visible records

9
First Pass Photon map
? Photon-Driven Irradiance Cache ? First pass
  • Scattering the photon across the scene
  • We fix a minimal number of bounces, then use
    Russian Roulette

direct lighting
photon map 250k photons
10
Second Pass Irradiance record positions
? Photon-Driven Irradiance Cache ? Second pass
  • We want the cache to cover most part of the scene
    (avoid cache misses)
  • Records need to be created at each point where
    incident irradiance is not null
  • Photon represents incident light
  • We use photon positions as candidates for
    records
  • As we process each photon position, we have to
    decide whether to create a new record or not.

11
Irradiance record positions
? Photon-Driven Irradiance Cache ? Second pass
  • We start with an empty cache
  • The record A is created at photon a position
  • This record have a zone of influence
  • Inside this zone, the irradiance stored in the
    record A will be used for interpolation.
  • Its data structure is augmented with a new field
    giving a list of all the photons within its zone
    of influence (kd-tree query)

1
12
Irradiance record positions
? Photon-Driven Irradiance Cache ? Second pass
  • Photon b lies inside the zone of influence of a
    previous created record
  • No need to create a new record at b position
  • How do we know it ?
  • In classical irradiance caching, the records are
    stored in an octree
  • Octree query provide the neighborhood of b
  • Millions of photons too costly
  • Our approach avoids any octree query
  • How new field in the photon data structure
  • wc cumulative contribution of neighbour records,
    updated at the creation of each record

2
13
Irradiance record positions
? Photon-Driven Irradiance Cache ? Second pass
  • Decision on creating a new record or not relies
    on wc
  • For photon c, wc is less than a given threshold
    not enough records around it
  • Then a new record C is created at photon position
  • wc field of all the photons lying in the zone of
    influence of C is updated

3
14
Harmonic mean distance estimation
? Photon-Driven Irradiance Cache ? Second pass
  • Irradiance records need to carry DH, the harmonic
    mean distance to objects of the scene
  • DH is used to determine the size of the zone of
    influence of the record
  • Bad estimation leads to artifacts during rendering

15
Harmonic mean distance estimation
? Photon-Driven Irradiance Cache ? Second pass
1
  • Usually done by casting rays towards the scene
  • We want to deduce DH from the photon maps without
    additional ray casting

16
Harmonic mean distance estimation
? Photon-Driven Irradiance Cache ? Second pass
2
  • Photons store information about the distance
    between subsequent hit points
  • Photons close to a record K give us information
    about visibility around K

17
Harmonic mean distance estimation
? Photon-Driven Irradiance Cache ? Second pass
  • By reprojection, we estimate visibility around K
    without casting rays
  • This may miss some occluders, and introduce
    errors
  • We use only photons close to K
  • inside the zone of influence
  • Neighbour clamping Krivanek et al. 06
  • Reduction of DH based on neighbour records
    (borders,)

3
18
Estimating irradiance from photon map
? Photon-Driven Irradiance Cache ? Second pass
  • We estimate incoming irradiance at record
    positions with density estimation
  • Usually, search for the n-nearest neighbours
    photons in a kd-tree
  • Automatic adaptation with actual density of
    photon at P
  • n can be seen as a trade off between noise and
    blur in the final image

n ?
P
Irradiance at P sum of flux carried by n
photons divided by area A
19
Estimating irradiance from photon map
? Photon-Driven Irradiance Cache ? Second pass
  • Records with large zone of influence may have
    high visual importance on the final rendered
    images
  • Blur is visually more pleasant than noise, for
    previews
  • We want n vary depending on the size of the zone
    of influence
  • To this end, we use a range-search approach
  • Search for the nearest photon lying in the zone
    of influence

r
P
r a.DH
20
Coarse irradiance cache
? Photon-Driven Irradiance Cache ? Second pass ?
Results
  • 250 k photons, 4 bounces
  • PM 0.8 sec
  • Cache Generation 1,20 sec
  • Irradiance values
  • Still some noise
  • no gradients
  • Interactive visualization
  • Fast preview of global illumination solution from
    a photon map

21
Third Pass Refining the cache
? Photon-Driven Irradiance Cache ? Third pass
  • We would like to refine the coarse cache
  • More accurate estimation of irradiance for each
    record
  • Compute irradiance gradients
  • We use gradients from Krivanek et al. 05
  • dividing the hemisphere into cells and by casting
    rays (final gathering)
  • We want to save rays thanks to information
    contained in the photon map

22
Refining the cache
? Photon-Driven Irradiance Cache ? Third pass
  • Like DH estimation, reuse visibility information
    from photons
  • Photons are linked along a path
  • Instantly retrieve the photon corresponding to
    last hit point
  • Assign each last-hit-point-photon to a cell of
    the hemisphere.

1
23
Refining the cache
? Photon-Driven Irradiance Cache ? Third pass
  • Photons have been assigned a cumulative
    irradiance value at the end of the 2nd pass
  • If a cell has been assigned a photon
  • Fast estimation of incident radiance
  • No ray cast

2
24
Refining the cache
? Photon-Driven Irradiance Cache ? Third pass
  • Cast rays through non already assigned cells
  • Incident radiance along the ray
  • search for the nearest photon at intersection
    point
  • Compute irradiance and gradients
  • Possible to refine DH
  • Consequence creation of new records

3
25
Results
? Photon-Driven Irradiance Cache ? Third pass ?
Results
  • Cornell Box (32 poly.)
  • 250 k photons, 4 bounces
  • Total time 6.7 sec
  • PM 0.8 sec
  • Cache Generation 1,20 sec
  • Refinement 4.6 sec
  • 39 saved rays (compared to brute force final
    gathering per record)
  • visualization 40 fps

Results gathered on a Pentium4 3.8 Ghz computer,
2GB RAM, NVidia GeForce 7800 GTX 512MB
26
Results
? Photon-Driven Irradiance Cache ? Third pass ?
Results
  • Sibenik Cathedral (80k poly.)
  • 4 M photons, 9 bounces
  • Total time 204 sec
  • PM 30 sec
  • Cache Generation 12 sec
  • Refinement 162 sec
  • 46 saved rays
  • Visualization 5 fps

Results gathered on a Pentium4 3.8 Ghz computer,
2GB RAM, NVidia GeForce 7800 GTX 512MB
27
Fast preview comparison
? Photon-Driven Irradiance Cache ? Comparisons
  • End of 2nd pass
  • View-independent 28.3 11.9 sec
  • View-dependent 28.3 1.5 sec
  • End of 3rd pass
  • View-independent 28.3 174 sec
  • View-dependent 28.3 26 sec

28
Refined cache comparison
? Photon-Driven Irradiance Cache ? Comparisons
  • Stochastic ray tracing
  • 900 rays / pixel 1300 sec
  • View dependent
  • Photon-driven Irradiance Cache
  • 7 sec, view independent
  • Interactive visualization

29
Refined cache comparison
? Photon-Driven Irradiance Cache ? Comparisons
  • Stochastic ray tracing
  • 900 rays / pixel 3hour
  • View dependent
  • Photon-driven Irradiance Cache
  • 204 sec, view independent
  • Interactive visualization

30
Conclusion
? Photon-Driven Irradiance Cache
  • Combination of photon maps and irradiance cache
  • Compute an irradiance cache from a photon map
  • Fast view-independent preview of photon map
    simulations
  • High-quality after refinement
  • Easy to implement
  • Future works
  • Parallelization of irradiance cache creation
  • Glossy surfaces, using a radiance cache Krivanek
    et al. 05
  • Out-of-core aspects (very large scenes)

31
Questions?
? Photon-Driven Irradiance Cache
Fin
32
Our approach
? Photon-Driven Irradiance Cache ? Our algorithm
  • Point-based short precomputation time view
    independency
  • How combination of photon maps and irradiance
    cache
  • Photon map
  • Elegant method, widely used
  • Any kind of light sources, multiple bounces,
    highly dense environments, large scenes
  • Irradiance caching
  • Interactive display, compact representation, no
    surface parameterization
  • Compute a view-independent irradiance cache from
    a photon map
  • Advantages
  • Fast view-independent preview of photon map
    simulations
  • Uses GPUs (splatting)
  • Easy to implement

33
More precisely
? Photon-Driven Irradiance Cache ? Our algorithm
  • Photon Mapping
  • () View-independent lighting simulation
    (scattering photons)
  • (-) Rendering is either noisy or costly (final
    gathering), and view-dependent
  • Irradiance Cache
  • () Interactive rendering of the cache for static
    scene, high quality
  • (-) View dependent new records have to be
    created when walking through unexplored parts of
    the scene. Records cover the whole scene many
    viewpoints
  • Our approach
  • We first compute a coarse irradiance cache from a
    photon map
  • Covers the whole scene view independent
  • No additional rays to be cast
  • Interactive fast preview of the photon map
    solution
  • This coarse cache can be refined using final
    gathering
  • Reduce the number of rays cast, using visibility
    information from the photon paths

34
Estimating irradiance from photon map
? Photon-Driven Irradiance Cache ? Second pass
  • Boundary bias error in estimation of area A
  • Over estimation around geometry boundaries
  • Under estimation on curved surfaces
  • Light leaks
  • Since were doing much less density estimations,
    we can use techniques to compute a more accurate
    approximation of A
  • Convex hull Jensen01, OctoBoxes, Geometry
    feelers Tobler et al. 06,
  • over-estimation of A

convex hull
35
Direct visualization of photon map
? Photon-Driven Irradiance Cache ? Second pass ?
Comparison
  • ? Our method
  • ? 250k photons
  • ? 2 sec
  • ? View independent
  • ? Interactive display
  • ? 12 DE / record
  • ? Photon Mapping
  • ? 250k photons
  • ? n 32
  • ? 4 sec
  • ? View dependent
  • ? 1 DE / pixel
  • ? Photon Mapping
  • ? 50k photons
  • ? n 128
  • ? 4 sec
  • ? View dependent
  • ? 1 DE / pixel
  • ? Christensen 99 caching
  • ? 50k photons
  • ? n 128
  • ? 1,25 2.5 sec
  • ? View dependent
  • ? 1 DE / photon
Write a Comment
User Comments (0)
About PowerShow.com
