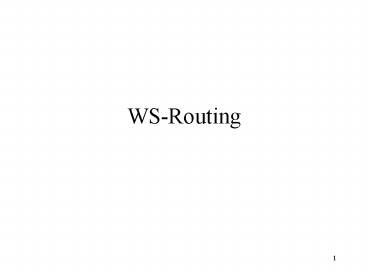

WS-Routing

1
WS-Routing
2
Why WS-Routing?

• SOAP (by itself) doesnt define a message path
• Header blocks describe functions to be performed
  by intermediaries that play specified roles, but
  there is no standard way to provide addresses of
  intermediaries or indicate the order in which
  intermediaries are to be visited
• Envelope doesnt contain address (target module,
  target node)
• Hence, SOAP message is embedded in another
  application layer protocol - generally HTTP -
  that contains the address
• receiving (HTTP) processor directs message to
  target (application) module
• Target module determines next node and addresses
  the HTTP message to it

3
Why WS-Routing?

• WS-Routing extends SOAP with an addressing
  structure to define a complete message path
• Extended SOAP message is self-contained
• does not have to be bound to another application
  layer protocol
• can be sent directly over a transport protocol
  (e.g., TCP)
• receiving SOAP processor directs message to
  target module
• target module interprets WS-Routing information
  and sends message to next intermediary using
  transport protocol

4
WS-Routing

• WS-Routing
• is stateless nodes along path do not maintain
  state
• defines a SOAP header for storing routing
  information
• supports
• Specification of a forward path
• Specification of a reverse path
• Specification of relationships (correlation)
  between messages

5
Intermediaries

• Support a distributed processing mechanism in
  which nodes along a message path supply
  value-added services
• SOAP header contains the part of a message to be
  processed by an intermediary that fulfills a
  particular role

6
Specifying the Message Path

• ltpathgt - WS-Routing (SOAP) header block
• ltfromgt - URI of initial sender
• lttogt - URI of final destination
• ltfwdgt - specifies forward message path using an
  ordered list of ltviagt elements
• ltviagt - URI of an intermediate
• ltrevgt - (optional) specifies reverse message path
  using an ordered list of ltviagt elements

7
WS-Routing Processing

• Final destination is the lttogt (if present) or the
  last ltviagt child of ltfwdgt element
• On receipt of message, a node deletes the first
  ltviagt child of ltfwdgt, processes appropriate
  header blocks, and relays message to new first
  ltviagt child of ltfwdgt, or to lttogt element if ltfwdgt
  has no children
• A node may insert new ltviagt children to
  dynamically build the forward path

8
Message Format
ltsEnvelope xmlnss ltsHeadergt
ltmpath xmlnsm WS-Routing namespace gt
ltmactiongt URI identifying processor at
destinationlt/mactiongt ltmtogt URI
identifying final destination lt/mtogt
ltmfwdgt ltmviagt URI
identifying first intermediary lt/mviagt
ltmviagt URI identifying second
intermediary lt/mviagt
additional intermediaries can be specified here
lt/mfwdgt ltmfromgt
URI identifying initial sender lt/mfromgt
ltmidgt unique message identifier
lt/midgt lt/mpathgt other
headers lt/sHeadergt ltsBodygt .
lt/sBodygt lt/sEnvelopegt
9
Reverse Path

• In some applications it may be appropriate to
  provide for a response message
• Communication follows request/response pattern
• Peer-to-peer communication is anticipated
• A fault message may be generated
• An acknowledgement will be sent
• Problem Dont want intermediate nodes to have to
  maintain state to remember the reverse path

10
Reverse Path

• Solution Sender includes a ltrevgt child of ltpathgt
  element in forward message
• Reverse path is built dynamically and stored in
  message as it progresses in forward direction
• Indicates a possible path to be used by receiver
  for a return message
• Intermediary may short-circuit forward path and
  reply to initial sender over the (partial)
  reverse path
• Appropriate if intermediary implements a cache

11
Building the Reverse Path

• When an intermediary receives a message
  containing a ltrevgt element it adds a new ltviagt
  element as the head of the ltrevgt list containing
  its own URI.

12
Constructing the Reverse Path
ltmpath gt . ltmfwdgt
ltmviagtCs URIlt/mviagt lt/mfwdgt
ltmrevgt ltmviagt Bs URIlt/mviagt
ltmviagt As URIlt/mviagt lt/mrevgt
. lt/mpathgt
ltmpath gt . ltmfwdgt
ltmviagtBs URIlt/mviagt ltmviagtCs
URIlt/mviagt lt/mfwdgt ltmrevgt
ltmviagtAs URIlt/mviagt lt/mrevgt
. lt/mpathgt
message arriving at B from A
message leaving B addressed to C
13
Message Correlation

• ltmrelatesTogt can be used to store the value of
  the ltmidgt field of a related message
• A reply message is related to a forward message
• A fault message is related to the message that
  caused the fault
