Title: Overview of Network Management


1

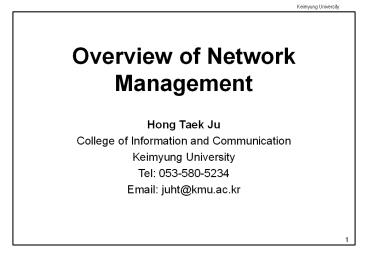

Overview of Network Management
  • Hong Taek Ju
  • College of Information and Communication
  • Keimyung University
  • Tel 053-580-5234
  • Email juht_at_kmu.ac.kr

2
Table of Contents
  • Todays Networks
  • Network Management Requirements
  • Network Management Systems
  • NMS Software Architecture
  • Distributed Network Management
  • Proxy Agent
  • Standard Management Frameworks

3
Todays Networks
SDH
FDDI
Access Networks
ATM
Token Ring
PCS
SS7
PSDN
WANs
Fast Ethernet
PSTN
Gigabit Ethernet
ISDN
B-ISDN
IN/AIN
Ethernet
Computer Networks
Telecom Networks
4
NM Users Requirements
  • Controlling corporate strategic assets
  • effective control of network computing
    resources
  • Controlling complexity
  • continued growth of devices, users, applications
    protocols
  • Improving service
  • users expect better service with increased
    resources
  • Balancing various needs
  • must assign and control resources to balance
    various needs
  • Reducing downtime
  • more users and applications depend on
    availability
  • Controlling costs
  • effective resource utilization in order to
    control costs

5
NM Functional Requirements
  • Fault Management
  • detection, isolation and correction of abnormal
    operations
  • Configuration Management
  • identify managed resources and their
    connectivity, discovery
  • Accounting Management
  • keep track of usage for charging
  • Performance Management
  • monitor and evaluate the behavior of managed
    resources
  • Security Management
  • allow only authorized access and control

FCAPS
6
Fault Management
  • concerned with
  • providing a reliable networking environment
  • ensuring that the systems as a whole, and each
    essential component individually, are in proper
    working order
  • redundant components and routes can be used to
    increase fault tolerance
  • when a fault occurs, the manager should be able
    to
  • determine exactly where the fault (i.e., abnormal
    condition) is
  • isolate the rest of the network from failure
  • reconfigure or modify the network for continued
    operation
  • repair or replace the failed components to
    restore the network

7
Configuration Management
  • concerned with
  • initializing a network shutting down part or
    all of the network
  • maintaining, adding and updating the
    relationships among components
  • monitoring the status of components during
    network operation
  • the network manager should be able to
  • startup and shutdown operations on a network
  • identify the components that comprise the network
    (discovery)
  • change the connectivity of the components
    (possibly as a result of network upgrade, fault
    recovery or security checks)
  • detect changes in the network configuration

8
Accounting Management
  • concerned with
  • keeping track of the usage of network resources
  • charging the use of network resources
  • monitoring the end-user activities for possible
    abuse, for suggesting better usage to users and
    for network planning
  • the manager should be able to
  • specify the kinds of accounting information to be
    recorded at various nodes
  • specify the algorithms to be used in calculating
    the charging
  • generate accounting reports

9
Performance Management
  • concerned with
  • providing an efficient communication environment
  • monitoring and analyzing the performance of the
    components
  • making proper adjustments to improve network
    performance
  • the manager should be able to
  • determine the capacity utilization, throughput,
    the average and worst-case response times
  • monitor and gather data on the activities of
    components
  • analyze the gathered data and assess performance
    levels
  • determine the sources of performance problems
    fix them
  • use the performance stats for future network
    planning

10
Security Management
  • concerned with
  • providing a secure networking environment
  • preventing hacking, illegal and unauthorized
    access
  • managing information protection and
    access-control facilities
  • the manager should be able to
  • generate, distribute and store encryption keys
  • maintain and distribute passwords and other
    authorization or access-control information
  • monitor and control access to networks
  • collect, store and examine audit records and
    security logs
  • enable disable the logging facilities

11
Network Management Systems
  • A network management system (NMS) is a collection
    of tools for network monitoring and control
  • based on the manager-agent paradigm
  • the manager sends mgmt requests to one or more
    agents
  • an agent performs the requested operation and
    returns results
  • when agents detect faults and they report to the
    manager
  • NMS typically provides a GUI through which most
    or all management tasks can be performed
  • Many commercial and freely available NMSs exist
  • HP OpenView, IBM NetView, Sun Net Manager, etc.
  • research prototypes from CMU, MIT, UC Davis, U.
    of Twente

12
(No Transcript)
13
Elements of an NMS
14
Network Management Entity (NME)
  • NME is a collection of software devoted to the
    network management tasks
  • is typically known as an management agent
  • Each NME performs the following tasks
  • collects statistics on communications and
    network-related activities
  • stores statistics locally
  • responds to commands from the network manager,
    including commands to
  • transmit collected stats to network manager
  • change an attribute value
  • provide status information
  • generate artificial traffic to perform a test
  • etc.

15
Network Mgmt Application (NMA)
  • NMA is a collection of software for performing
    network monitoring and control
  • is typically known as network manager
  • NMA provides an operator interface to allow an
    authorized user to manage the network
  • NMA responds to user commands by displaying
    information and/or issuing commands to NMEs
  • Standard protocols (e.g., SNMP, CMIP) are used to
    manage a multi-vendor network
  • there may be more than one NMA in a large network
    which can lead to the need of a hierarchy of
    managers (e.g., top level manager, middle level
    managers, etc.)

16
NM Software Architecture
  • User Presentation Software
  • interfaces between user and NM software
  • a unified user interface desirable
  • includes graphical tools to display summarized NM
    information
  • Network Management Software
  • a set of NM applications (configuration,
    performance, etc.)
  • a set of application elements (alarm handling,
    logging, etc.)
  • NM data transport service
  • Communication and Database Support Software
  • local Management Information Base (MIB) access
    module
  • communications protocol stack (e.g., TCP/IP, OSI)
    to interact with remote agents and managers

17
Architectural Model of NMS
Presentation of network management information to
users
Network management application
...
Network management application
...
application element
application element
application element
Network management data transport service
MIB access module
Communication protocol stack
Managed networks
Management Information Base
18
Distributed Network Management
  • Resources to be managed are widely distributed
  • widespread use of departmental LANs
  • need for local control optimization of
    distributed applications
  • Hierarchical NM architecture desirable
  • distributed NMSs are given limited access for
    network monitoring and control of departmental
    resources
  • top-level NMS has a global access rights and the
    ability to manage all network resources
  • Benefits of Distributed NM
  • NM traffic overhead is minimized - traffic is
    localized
  • Dist. mgmt offers greater scalability
  • use of multiple NMSs eliminates the single point
    of failure

19
Typical Dist. Mgmt System Architecture
20
Proxy Agents
  • Managed resources may have various mgmt
    interfaces
  • some with different mgmt protocols (e.g., OSI vs.
    SNMP, XML vs. SNMP)
  • some with proprietary mgmt interfaces (e.g.,
    older systems)
  • small systems not capable of possessing NME
    (e.g., modems)
  • Proxy agents are used to manage these devices
  • managers use standard protocols to communicate
    with proxies
  • proxy agents use proprietary protocols to
    communicate with proprietary devices
  • proxy agents perform translations between
    managers and proprietary devices
  • an agent to the manager and a manager to
    proprietary devices

21
Proxy Agent Architecture
Proprietary management interface
Proxy Agent
Management application
Client proxy stub
Server proxy stub
Client stub
Server stub
Protocol stack
Protocol stack
Protocol stack
Protocol stack
Proprietary operations and event reports
Standard operations and event reports
22
Standard Management Frameworks
  • Internet Network Management Framework (IETF)
  • SNMPv1 (Internet Full Standard)
  • SNMPv2 (Internet Full Standard)
  • SNMPv3 (Internet Proposed Standard)
  • OSI Network Management Framework (ISO/ITU-T)
  • CMIP (X.700 Series)
  • Telecommunication Management Network (ITU-T)
  • TMN (M.3000 Series)
  • Distributed Management Task Force (DMTF)
  • DMI, CIM, WBEM

23
Summary
  • Network Management Requirements
  • Users Requirements
  • Functional Requirements (FCAPS)
  • Network Management Systems
  • Network Management Entity (NME)
  • Network Management Application (NMA)
  • NMS Software Architecture
  • Distributed Network Management
  • Proxy Agent
  • Standard Management Frameworks
  • READ Chapter 1 of Stallings

24
Useful Internet Resources
  • USENET News Groups
  • comp.protocols.snmp
  • info.snmp
  • comp.dcom.net-management
  • Web Sites
  • http//netman.cit.buffalo.edu/
  • http//snmp.cs.utwente.nl/
  • http//www.tmforum.org/
  • http//www.ietf.org/html.charters/wg-dir.html
  • http//www.dmtf.org

25
Questions?
View by Category
About This Presentation
Title:

Overview of Network Management

Description:

Hong Taek Ju College of Information and Communication Keimyung University Tel: 053-580-5234 Email: juht_at_kmu.ac.kr Table of Contents Today s Networks Network ... – PowerPoint PPT presentation

Number of Views:75
Avg rating:3.0/5.0
Slides: 26
Provided by: 39985
Learn more at: http://comnet.kmu.ac.kr
Category:

less

Write a Comment
User Comments (0)
Transcript and Presenter's Notes

Title: Overview of Network Management


1
Overview of Network Management
  • Hong Taek Ju
  • College of Information and Communication
  • Keimyung University
  • Tel 053-580-5234
  • Email juht_at_kmu.ac.kr

2
Table of Contents
  • Todays Networks
  • Network Management Requirements
  • Network Management Systems
  • NMS Software Architecture
  • Distributed Network Management
  • Proxy Agent
  • Standard Management Frameworks

3
Todays Networks
SDH
FDDI
Access Networks
ATM
Token Ring
PCS
SS7
PSDN
WANs
Fast Ethernet
PSTN
Gigabit Ethernet
ISDN
B-ISDN
IN/AIN
Ethernet
Computer Networks
Telecom Networks
4
NM Users Requirements
  • Controlling corporate strategic assets
  • effective control of network computing
    resources
  • Controlling complexity
  • continued growth of devices, users, applications
    protocols
  • Improving service
  • users expect better service with increased
    resources
  • Balancing various needs
  • must assign and control resources to balance
    various needs
  • Reducing downtime
  • more users and applications depend on
    availability
  • Controlling costs
  • effective resource utilization in order to
    control costs

5
NM Functional Requirements
  • Fault Management
  • detection, isolation and correction of abnormal
    operations
  • Configuration Management
  • identify managed resources and their
    connectivity, discovery
  • Accounting Management
  • keep track of usage for charging
  • Performance Management
  • monitor and evaluate the behavior of managed
    resources
  • Security Management
  • allow only authorized access and control

FCAPS
6
Fault Management
  • concerned with
  • providing a reliable networking environment
  • ensuring that the systems as a whole, and each
    essential component individually, are in proper
    working order
  • redundant components and routes can be used to
    increase fault tolerance
  • when a fault occurs, the manager should be able
    to
  • determine exactly where the fault (i.e., abnormal
    condition) is
  • isolate the rest of the network from failure
  • reconfigure or modify the network for continued
    operation
  • repair or replace the failed components to
    restore the network

7
Configuration Management
  • concerned with
  • initializing a network shutting down part or
    all of the network
  • maintaining, adding and updating the
    relationships among components
  • monitoring the status of components during
    network operation
  • the network manager should be able to
  • startup and shutdown operations on a network
  • identify the components that comprise the network
    (discovery)
  • change the connectivity of the components
    (possibly as a result of network upgrade, fault
    recovery or security checks)
  • detect changes in the network configuration

8
Accounting Management
  • concerned with
  • keeping track of the usage of network resources
  • charging the use of network resources
  • monitoring the end-user activities for possible
    abuse, for suggesting better usage to users and
    for network planning
  • the manager should be able to
  • specify the kinds of accounting information to be
    recorded at various nodes
  • specify the algorithms to be used in calculating
    the charging
  • generate accounting reports

9
Performance Management
  • concerned with
  • providing an efficient communication environment
  • monitoring and analyzing the performance of the
    components
  • making proper adjustments to improve network
    performance
  • the manager should be able to
  • determine the capacity utilization, throughput,
    the average and worst-case response times
  • monitor and gather data on the activities of
    components
  • analyze the gathered data and assess performance
    levels
  • determine the sources of performance problems
    fix them
  • use the performance stats for future network
    planning

10
Security Management
  • concerned with
  • providing a secure networking environment
  • preventing hacking, illegal and unauthorized
    access
  • managing information protection and
    access-control facilities
  • the manager should be able to
  • generate, distribute and store encryption keys
  • maintain and distribute passwords and other
    authorization or access-control information
  • monitor and control access to networks
  • collect, store and examine audit records and
    security logs
  • enable disable the logging facilities

11
Network Management Systems
  • A network management system (NMS) is a collection
    of tools for network monitoring and control
  • based on the manager-agent paradigm
  • the manager sends mgmt requests to one or more
    agents
  • an agent performs the requested operation and
    returns results
  • when agents detect faults and they report to the
    manager
  • NMS typically provides a GUI through which most
    or all management tasks can be performed
  • Many commercial and freely available NMSs exist
  • HP OpenView, IBM NetView, Sun Net Manager, etc.
  • research prototypes from CMU, MIT, UC Davis, U.
    of Twente

12
(No Transcript)
13
Elements of an NMS
14
Network Management Entity (NME)
  • NME is a collection of software devoted to the
    network management tasks
  • is typically known as an management agent
  • Each NME performs the following tasks
  • collects statistics on communications and
    network-related activities
  • stores statistics locally
  • responds to commands from the network manager,
    including commands to
  • transmit collected stats to network manager
  • change an attribute value
  • provide status information
  • generate artificial traffic to perform a test
  • etc.

15
Network Mgmt Application (NMA)
  • NMA is a collection of software for performing
    network monitoring and control
  • is typically known as network manager
  • NMA provides an operator interface to allow an
    authorized user to manage the network
  • NMA responds to user commands by displaying
    information and/or issuing commands to NMEs
  • Standard protocols (e.g., SNMP, CMIP) are used to
    manage a multi-vendor network
  • there may be more than one NMA in a large network
    which can lead to the need of a hierarchy of
    managers (e.g., top level manager, middle level
    managers, etc.)

16
NM Software Architecture
  • User Presentation Software
  • interfaces between user and NM software
  • a unified user interface desirable
  • includes graphical tools to display summarized NM
    information
  • Network Management Software
  • a set of NM applications (configuration,
    performance, etc.)
  • a set of application elements (alarm handling,
    logging, etc.)
  • NM data transport service
  • Communication and Database Support Software
  • local Management Information Base (MIB) access
    module
  • communications protocol stack (e.g., TCP/IP, OSI)
    to interact with remote agents and managers

17
Architectural Model of NMS
Presentation of network management information to
users
Network management application
...
Network management application
...
application element
application element
application element
Network management data transport service
MIB access module
Communication protocol stack
Managed networks
Management Information Base
18
Distributed Network Management
  • Resources to be managed are widely distributed
  • widespread use of departmental LANs
  • need for local control optimization of
    distributed applications
  • Hierarchical NM architecture desirable
  • distributed NMSs are given limited access for
    network monitoring and control of departmental
    resources
  • top-level NMS has a global access rights and the
    ability to manage all network resources
  • Benefits of Distributed NM
  • NM traffic overhead is minimized - traffic is
    localized
  • Dist. mgmt offers greater scalability
  • use of multiple NMSs eliminates the single point
    of failure

19
Typical Dist. Mgmt System Architecture
20
Proxy Agents
  • Managed resources may have various mgmt
    interfaces
  • some with different mgmt protocols (e.g., OSI vs.
    SNMP, XML vs. SNMP)
  • some with proprietary mgmt interfaces (e.g.,
    older systems)
  • small systems not capable of possessing NME
    (e.g., modems)
  • Proxy agents are used to manage these devices
  • managers use standard protocols to communicate
    with proxies
  • proxy agents use proprietary protocols to
    communicate with proprietary devices
  • proxy agents perform translations between
    managers and proprietary devices
  • an agent to the manager and a manager to
    proprietary devices

21
Proxy Agent Architecture
Proprietary management interface
Proxy Agent
Management application
Client proxy stub
Server proxy stub
Client stub
Server stub
Protocol stack
Protocol stack
Protocol stack
Protocol stack
Proprietary operations and event reports
Standard operations and event reports
22
Standard Management Frameworks
  • Internet Network Management Framework (IETF)
  • SNMPv1 (Internet Full Standard)
  • SNMPv2 (Internet Full Standard)
  • SNMPv3 (Internet Proposed Standard)
  • OSI Network Management Framework (ISO/ITU-T)
  • CMIP (X.700 Series)
  • Telecommunication Management Network (ITU-T)
  • TMN (M.3000 Series)
  • Distributed Management Task Force (DMTF)
  • DMI, CIM, WBEM

23
Summary
  • Network Management Requirements
  • Users Requirements
  • Functional Requirements (FCAPS)
  • Network Management Systems
  • Network Management Entity (NME)
  • Network Management Application (NMA)
  • NMS Software Architecture
  • Distributed Network Management
  • Proxy Agent
  • Standard Management Frameworks
  • READ Chapter 1 of Stallings

24
Useful Internet Resources
  • USENET News Groups
  • comp.protocols.snmp
  • info.snmp
  • comp.dcom.net-management
  • Web Sites
  • http//netman.cit.buffalo.edu/
  • http//snmp.cs.utwente.nl/
  • http//www.tmforum.org/
  • http//www.ietf.org/html.charters/wg-dir.html
  • http//www.dmtf.org

25
Questions?
About PowerShow.com
