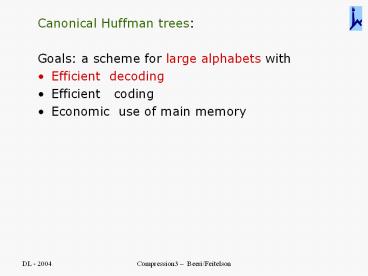

Canonical Huffman trees:

1

• Canonical Huffman trees
• Goals a scheme for large alphabets with
• Efficient decoding
• Efficient coding
• Economic use of main memory

2

• A non-Huffman same cost tree
• Code 1 lca(e,b) 0 code 2 lca(e,b)
• Code 2 successive integers
• (going down from longest codes)

decimal Code 2 Code1 (huffman) frequency symbol
0 000 000 10 a
1 001 001 11 b
2 010 100 12 c
3 011 101 13 d
4 10 01 22 e
5 11 11 23 f
3

• tree for code 2
• Lemma (nodes) in each level in Huffman is even
• Proof a parent with single child is impossible

e 4
f 5
b 1
c 2
d 3
a 0
4

• General approach

5

• Canonical Huffman Algorithm
• compute lengths of codes and numbers of symbols
  for each length (for regular Huffman)
• L max length
• first(L) 0
• for i L-1 downto 1
• assign to symbols of length i codes of this
  length, starting at first(i)
• Q What happens when there are no symbols of
  length i?
• Does first(L) 0lt first(L-1)ltltFirst(1) always
  hold?

6

• Decoding (assume we start now on new symbol)
• i1
• v nextbit() // we have read the first bit
• while vltfirst(i) // small codes start at large
  numbers!
• i
• v2v nextbit()
• / now, v is code of length i of a symbol s
• s is in position v first(i) in the block of
  symbols with code length i (positions from 0)
• /
• Decoding can be implemented by shift/compare
• (very efficient)

7

• Data structures for decoder
• The array first(i)
• Arrays S(i) of the symbols with code length i,
• ordered by their code
• (v-first(i) is the index value to get the
  symbol for code v)
• Thus, decoding uses efficient arithmetic
  operations array look-up more efficient then
  storing a tree and traversing pointers
• What about coding (for large alphabets, where
  symbols words or blocks)?
• The problem millions of symbols ? large Huffman
  tree,

8

• Construction of canonical Huffman (sketch)
• assumption we have the symbol frequencies
• Input a sequence of (symbol, freq)
• Output a sequence of (symbol, length)
• Idea use an array to represent a heap for
  creating the tree, and the resulting tree and
  lengths
• We illustrate by example

9

• Example frequencies 2, 8, 11, 12
• (each cell with a freq. also contains a symbol
  not shown)
• Now reps of 2, 8 (smallest) go out, rest
  percolate
• The sum 10 is put into cell4, and its rep into
  cell 3
• Cell4 is the parent (sum) of cells 5, 8.

8 11 12 2 6 7 8 5
8 11 12 2 6 7
4 11 12 4 10 3 6 7
10

• after one more step
• Finally, a representation of the Huffman tree
• Next, by i2 to 8, assign lengths (here shown
  after i4)

4 3 12 4 3 21 3 6
4 3 2 4 3 2 33 2
4 3 2 4 2 1 0 2
11

• Summary
• Insertion of (symbol,freq) into array O(n)
• Creation of heap
• Creating tree from heap each step is
  total is
• Computing lengths O(n)
• Storage requirements 2n (compare to tree!)


12

• Entropy H a lower bound on compression
• How can one still improve?
• Huffman works for given frequencies, e.g., for
  the English language static modeling
• Plus No need to store model in coder/decoder
• But, can construct frequency table for each file
• semi-static
  modeling
• Minus
• Need to store model in compressed file
  (negligible for large files)
• Takes more time to compress
• Plus may provide for better compression

13

• 3rd option start compressing with default freqs
• As coding proceeds, update frequencies
• After reading a symbol
• compress it
• update freq table
• Adaptive modeling
• Decoding must use precisely same algorithm for
  updating freqs ? can follow coding
• Plus
• Model need not be stored
• May provide compression that adapts to file,
  including local changes of freqs
• Minus less efficient then previous models
• May use a sliding window to better reflect
  local changes

14

• Adaptive Huffman
• Construction of Huffman after each symbol O(n)
• Incremental adaptation in O(logn) is possible
• Both too expensive for practical use (large
  alphabets)
• We illustrate adaptive by arithmetic coding (soon)

15

• Higher-order modeling use of context
• e.g. for each block of 2 letters, construct
  freq. table for the next letter (2-order
  compression)
• (uses conditional probabilities hence
  improvement)
• This also can be static/semi-static/adaptive

16

• Arithmetic coding
• Can be static, semi-static, adaptive
• Basic idea
• Coder start with the interval 0,1)
• 1st symbol selects a sub-interval, based on its
  probability
• ith symbol selects a sub-interval of (i-1)th
  interval, based on its probability
• When file ends, store a number in the final
  interval
• Decoder reads the number, reconstructs the
  sequence of intervals, i.e. symbols
• Important Length of file stored at beginning of
  compressed file
• (otherwise, decoder does not know when
  to stop)

17

• Example (static) a 3/4, b 1/4
• The file to be compressed aaaba
• The sequence of intervals ( symbols creating
  them)
• 0,1), a 0,3/4), a 0,9/16), a 0, 27/64),
• b 81/256, 108/256), a 324/1024, 405/1024)
• Assuming this is the end, we store
• 5 length of file
• Any number in final interval, say 0.011 (3
  digits)
• (after first 3 as, one digit suffices!)
• (for a large file, the length will be negligible)

18

• Why is it a good approach in general?
• For a symbol with large probability, of binary
  digits needed to represent an occurrence is
  smaller than 1 ? poor compression with Huffman
• But, arithmetic represents such a symbol with a
  small shrinkage of interval, hence the extra
  number of digits is smaller than 1!
• Consider the example above, after aaa

19

• Arithmetic coding adaptive an example
• The symbols a, b, c
• Initial frequencies 1,1,1 ( initial accumulated
  freqs)
• (0 is illegal, cannot code a symbol with
  probability 0!)
• b model passes to coder the triple (1, 2, 3)
• 1 the accumulated freqs up to, not including, b
• 2 the accumulated freqs up to, including, b
• 3 the sum of freqs
• Coder notes new interval 1/3, 2/3)
• Model updates freqs to 1, 2, 1
• c model passes (3,4,4) (upper quarter)
• Coder updates interval to 7/12,8/12)
• Model updates freqs to (1,2,2)
• And so on .

20

• Practical considerations
• Interval ends are held as binary numbers
• of bits in number to be stored proportional to
  size of file impractical to compute it all
  before storing
• solution as interval gets small, first bit of a
  number in it is determined. This bit is written
  by code into compressed file, and removed from
  interval ends ( mult by 2)
• Example in 1st example, when interval becomes
  0,27/64 000000,011011) (after 3 as) output
  0, and update to 00000,11011)
• Decoder sees 1st 0 knows the first three are
  as,
• Computes interval, throws the 0

21

• Practically, (de)coder maintain a word for each
  number, computations are approximate
• Some (very small) loss of compression
• Both sides must perform same approximations at
  same time
• Initial assignment of freq. 1 to
  low freq. symbols?
• Solution assign 1 to all symbols not seen so far
• If k were not seen yet, one now occurs, give it
  1/k
• Since coder does not know when to stop, file
  length must be stored in compressed file

22

• Frequencies data structure need to allow both
  update, and sums of the form
• (expensive for large alphabets)
• Solution a tree-like structure
• O(logn) accesses!

sum binary cell
f1 1 1
f1f2 10 2
f3 11 3
f1f2f3f4 100 4
f5 101 5
f5f6 110 6
f7 111 7
f1f8 1000 8
If k, the binary cell ends with i 0s, the
cell contains fkf_(k-1) f_(k-i1)
What is the algorithm to compute
23
Dictionary-based methods

• Huffman is a dictionary-based method
• Each symbol in dictionary has associated code
• But, adaptive Huffman is not practical
• Famous adaptive methods
• LZ77, LZ78 (Lempel-Ziv)
• We describe LZ77 (basis of gzip in Unix)

24

• Basic idea The dictionary -- the sequences of
  symbols in a window before current position
• (typical window size )
• When coder at position p, window is the symbols
  in positions p-w,p-1
• Coder searches for longest seq. that matches the
  one at position p
• If found, of length l, put (n,l) into file (n
  --offset, l length), and forward l positions,
• else output the current symbol

25

• Example
• input is a b a a b a bb (11 bs)
• Code is a b (2,1) (1,1) (3,2) (2,1) (1,10)
• Decoding a? a, b? b, (2,1) ? a, (1,1) ? a,
• current known string a b a a
• (3,2) ? b a, (2,1) ? b
• current known string a b a a b a b
• (1, 10) ? Go back one step to b
• do 10 times output scanned
  symbol,
  advance one
• (note run-length encoding hides here)
• Note decoding is extremely fast!

26

• Practical issues
• Maintenance of window use cyclic buffer
• searching for longest matching word
• ? expensive coding
• How to distinguish a pair (n,l) from a symbol?
• Can we save on the space for (n,l)?
• The gzip solution for 2-4
• 2 a hash table of 3-sequences, with lists of
  positions where a sequence starting with them
  exists (what about short matches?)
• An option limit the search in the list (save
  time)
• Does not always find the longest match, but loss
  is very small

27

• 3 one bit suffices (but see below)
• 4 offsets are integers in range 1,2k, often
  smaller values are more frequent
• Semi-static solution (gzip)
• Divide file into segments of 64k for each
• Find the offsets used and their frequencies
• Code using canonical Huffman
• Do same for lengths
• Actually, add symbols (issue 3) to set of
  lengths, code together using one code, and put in
  file this code before offset code (why?)

28

• One last issue (for all methods) synchronization
• Assume you want to start decoding in mid-file?
• E.g. a db of files, coded using one code
• Bit-based addresses for the files --- these
  addresses occur in many ILs, which are loaded to
  MM.
• 32/address is ok, 64/address may be costly
• Byte/word-based addresses allow for much larger
  dbs. It may pay to even use k-word blocks based
  addresses
• how does one synchronize?

29

• Solution fill last block with 011
• if code fills last block, add a
  block
• Since file addresses/lengths are known, filling
  can be removed
• Does this work for Huffman? Arithmetic? LZ77?
• What is the cost?

30

• Summary of file compression
• Large dbs ? compression helps reduce storage
• Fast query processing requires synchronization
• and fast decoding
• Db is often given, so statistics can be collected

• semi-static is a viable option
• (plus regular re-organization)
• Context-based methods give good compression, but
  expensive decoding
• word-based Huffman is recommended (semi-static)

• Construct two models one for words, another for
  no-words

31
Compression of inverted lists

• Introduction
• Global, non-parametric methods
• Global parametric methods
• Local parametric methods

32

• Introduction
• Important parameters
• N - of documents in db
• n - of (distinct) words
• F - of word occurrences
• f - of inverted list entries
• The index contains
• lexicon (MM, if possible), ILs (Disc)
• IL compression helps to reduce size of index,
  cost of i/o

(in TREC, 99) 741,856 535,346 333,338,738 134,99
4,414 Total size 2G
33

• The IL for a term t contains entries
• An entry
• d ( doc. id), in-doc freq. ,
  in-doc-position,
• For ranked answers, the entry is usually (d,
  )
• We consider each separately independent
  compressions, can be composed

34

• Compression of doc numbers
• A sequence of numbers in 1..N how can it be
  compressed?
• Most methods use gaps
• g1d1, g2d2-d1,
• We know that
• For long lists, most are small.
• These facts can be used for compression
• (Each method has an associated probability
  distribution on the gaps, defined by code
  lengths )

35

• Global, non-parametric methods
• Binary coding
• represent each gap by a fixed length binary
  number
• Code length for g
• Probability uniform distribution p(g)1/N

36

• Unary coding
• represent each ggt0 by d-1 digits 1, then 0
• 1 -gt 0, 2 -gt 10, 3 -gt 110, 4-gt 1110,
• Code length for g g
• ?
• Worst case for sum N (hence for all ILs nN)
• is this a nice bound?
• P(g)
• Exponential decay if does not hold in practice
• ? compression penalty

37

• Gamma ( ) code
• a number g is represented by
• Prefix ???? unary code for
• Suffix ???? binary code, with
  digits, for
• Examples
• (Why not ?)

38

• Delta ( ) code

39

• Interim summary
• We have codes with probability distributions
• Q can you prove that the (exact) formulas for
  probabilities for gamma, delta sum to 1?

40

• Golomb code
• Semi-static, uses db statistics
• global, parametric code
• Select a basis b (based on db statistics later)
• ggt0 ? we represent g-1
• Prefix let (integer
  division)
• represent, in unary, q1
• Suffix the remainder is (g-1)-qb (in 0..b-1)
• represent by a binary tree code
• - some leaves at distance
• - the others at distance

41

• The binary tree code
• cut 2j leaves from the full binary tree of depth
  k
• assign leaves, in order, to the values in
  0..b-1
• Example b6

0
1
2
3
4
5
42

• Summary of Golomb code
• Exponential decay like unary, slower rate,
  affected by b
• Q what is the underlying theory?
• Q how is b chosen?

43

• Infinite Huffman Trees
• Example Consider
• The code () 0, 10, 110, 1110,
• seems natural, but Huffman algorithm is not
  applicable! (why?)
• For each m, consider the (finite)
  m-approximation
• each has a Huffman tree code 0, 10, , 110
• the code for m1 refines that of m
• The sequence of codes converges to ()

44
0
approximation 1, code words 0, 1
1
approximation 2, code words 0, 10,11
1
1/2
1/2
1/4
0
approximation 1, code words 0, 10, 110,
1110,
1111
1
1/8
1/8
45

• A more general approximation scheme
• Given the sequence
• An m-approximation, with skip b is the finite
  sequence where
• for example b 3

approximated tail
46

• Fact refining the m-approx. by splitting
  to and gives the
  m1-approx.
• A sequence of m-approximations is good if
• () are the smallest in the
  sequence,

• so they are the 1st pair merged by Huffman
  (why is this important?)
• () Depends on the and on b

47

• Let -- the Bernoulli
  distribution
• A decreasing sequence
• ?
• to prove (), need to show
• For which b do they hold?

48
(No Transcript)
49

• We select lt on the right (useful later)
• has a unique solution
• To solve, from the left side, we obtain
• Hence the solution is (b is an integer)

50

• Next how do these Huffman trees look like?
• Start with 0-approx.
• Facts
• A decreasing sequence (so last two are smallest)
• (when bgt3)
• follows from
• and ()
• 3. Previous two properties are preserved when
  last two are replaced by their sum
• 4. The Huffman tree for the sequence assigns to
  codes of lengths
  of same cost as the Golomb code for remainders
• Proof induction on b

51

• Now, expand the approximations, to obtain
  infinite tree
• This is the Golomb code, (with places of
  prefix/suffix exchanged)!!

0
1
0
1
0
1
52

• Last question
• where do we get p, and why Bernoulli?
• Assume equal probability p for t to be in d
• For a given t, probability of the gap g from
  one doc to next is then
• For p there are f pairs (t, d), estimate p by
• Since N is large, a reasonable estimate

53

• For TREC
• To estimate for a
  small p
• log(2-p) log 2, log(1-p) -p
• b (log 2)/p 0.69 nN/f 1917
• end of (blobal) Golomb

54

• Global observed frequency (a global method)
• Construct all ILs collect statictics on
  frequencies of gaps
• Construct canonical Huffman tree for gaps
• The model/tree needs to be stored
• (gaps are in 1..N for TREC this is 3/4M gap
  values ? storage overhead may not be so large)
• Practically, not far from gamma, delta,
• But local methods are better

55

• Local (parametric) methods
• Coding of IL(t) based on statistics of IL(t)
• Local observed frequency
• Construct canonical Huffman for IL(t) based on
  its gap frequencies
• Problem in small ILs of distinct gaps is
  close to of gaps
• Size of model close to size of compressed data
• Example 25 entries, 15 gap values
• Model 15 gaps, 15 lengths (or freqs)
• Way out construct model for groups of ILs
• (see book for details)

56

• Local Bernoulli/Golomb
• Assumption - of entries of IL(t) is known
• (to coder decoder)
• , estimate b construct
  Golomb
• Note
• Large f_t ? larger p ? smaller b ? code gets
  close to unary (reasonable, many small gaps)
• Small f_t ? large b ? most coding log b
• For example f_t 2 (one gap) ? b 0.69N
• for a gap lt 0.69/N, code in log(0.69N)
• for a larger gap, one more bit

57

• Interpolative coding
• Uses original ds , not gs
• Let f f_t, assume ds are stored in L0,,f
• (each entry is at most N)
• Standard binary for middle d, with of bits
  determined by its range
• Continue as in binary search each d in binary,
  with of bits determined by modified range

58

• Example L3,8,9,11,12,13,18 (f7) N20
• H ? 7 div 2 3 L3 11 (4th d)
• smallest d is 1, and there are 3 to left of
  L3
• largest d is 20, there are 3 to right of L3
• size of interval is (20-3)-(13)17-413
• ? code 11 in 4 bits
• For sub-list left of 11 3, 8, 9
• h ? 3 div 2 1 L1 8
• bounds lower 11 2 upper 10-19
• code using 3 bits
• For L2 9, range is 9..10, use 2 bits
• For sub-list right of 11 do on board
• (note the element that is coded in 0 bits!)

59

• Advantages
• Relatively easy to code, decode
• Very efficient for clusters (a word that occurs
  in many documents close to each other)
• Disadvantage more complex to implement,
  requires a stack
• And cost of decoding is a bit more than Golomb
• ------ ---------- -------- ----------- -------
  --------
• Summary of methods Show table 3.8

60

• An entry in IL(t) also contains - freq. of t
  in d
• compression of f_d,t
• In TREC, F/f 2.7 ? these are small numbers
• Unary total overhead is
• Cost per entry is F/f (for TREC 2.7)
• Gamma shorter than unary, except for 2, 4
• (For TREC 2.13)
• Does not pay the complexity to choose another
• Total cost of compression of IL 8-9 bits/entry
