COMPILER CONSTRUCTION

1

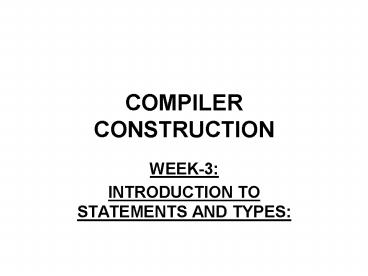

COMPILER CONSTRUCTION

• WEEK-3
• INTRODUCTION TO STATEMENTS AND TYPES

2
An Overview

• The facilities provided by Pascal and C are
  developed enough that latter languages have
  simply borrowed them, and built on them.
• In imperative programming
• The values of variables can change as a program
  runs, and
• Programs what we write are not the same as
  computations the actions that occur when a
  program runs.
• These motivate the two key concepts Structure
  Statements and invariants (relate programs and
  computations).

3
The need for structured programming

• The basic unit of imperative programming are
  actions, which can change the values of
  variables.
• A typical action is an assignment.
• The following assignment changes the value of
  variable a
• a 23 or a 23
• The assignment symbol or appears between the
  variable a and the expression 23.
• This assignment computes the value 5 of the
  expression 23 and associates it with a the old
  value of a is forgotten (in whatever the case
  even if a not assign any value garbage)
• An Array supports random access to a sequence of
  elements of the same type.
• Random access means that elements can be selected
  by their position in the sequence.
• Static programs, Dynamic Computations A program
  is a concise representation of the computation
  that occurs when the program can be executed over
  and over again, possibly leading to a long
  computation.

4
The need for structured programming

• Language designers have achieved efficiency by
  staying true to the machine, using the following
  design principle
• Efficiency A language must allow an underlying
  assignment-oriented machine to be used directly
  and efficiently.
• Efficiency is likely to remain a driving
  influence.
• For example, consider the following problem
• Remove adjacent duplicated from a list of
  elements.
• For removal of adjacent duplicates from
• 1 1 2 2 2 3 1 4 4
• yields the list
• 1 2 3 1 4
• The remaining occurrences of 1 are not adjacent.
• This problem can be solved by treating the input
  not as a list of elements, but as a list of runs,
  where run consists of one or more copies of the
  same element.
• The approach is to repeatedly
• Read element x
• Write x
• Skip past the duplicates of x

5
Invariants Program Design

• Programming language design must deal at some
  level with program design.
• The purpose of programming languages is to make
  programming easier.
• Invariants are a key concept for designing
  imperative programs.
• An invariant at some point in a program is an
  assertion that holds whenever that point is
  reached at run time that is, whenever control
  reaches that point.
• An assertion is a true/false condition about the
  state of a computation.
• Some of the difficulty in writing correct code is
  that correctness is a property not of the static
  source text we write but of its dynamic
  computations when the program is run it must do
  such and such.
• Technically we work with assertions, yet we talk
  about invariants, since the intent is to work
  with properties that hold every time control
  reaches a program point.

6
Types Data Representation

• The emphasis in imperative languages is on data
  structures with assign-able components that is,
  components that can hold individual values.
• The size and layout of data structures tends to
  be fixed at compile time in imperative languages,
  before a program is run.
• Data structures that grow and shrink are
  typically implemented using fixed-sized cells and
  pointers.
• Storage in imperative languages must typically be
  allocated and de-allocated explicitly.
• By contrast, in functional languages, the
  emphasis is on values, independent of how they
  are stored operations of values implicitly grow
  and shrink the underlying data structure and,
  storage is recycled automatically, using garbage
  collection.

7
Types Data Representation

• Role of Types
• The term object or data object refers to
  something meaningful to an application the term
  representation or data representation refers to
  the organization of values in a program.
• Thus, objects in an application have
  corresponding representations in a program.
• For example, the objects in this example are days
  like May 6 and their representations are integers
  like 126.
• A parking-lot company counts the number of cars
  that enter the lot each day.
• A day of the year is a data object in this
  parking-lot application.
• In a program, a day can be represented by an
  integer between 1 to 366.
• January 1 is represented by 1, January 31 by 31,
  February 1 by 32, and so on.
• The correspondence between application and
  program is as follows

8
Types Data Representation
Application Program
Data January 31 31
Data May 6 126
Variable d n
Operation tomorrow(d) n1
Once days are represented as integers, the
integers can be manipulated using arithmetic
operation like and on integers. For example,
if d is a day and n is its integer
representation, then the next day, tomorrow(d),
is represented by n1. Confusion between objects
and their representations can lead to errors.
9
Types Data Representation

• It makes sense to multiply two integers, but it
  does not make sense to multiply two days.
• Furthermore, the representation may not be
  unique the day May 6 is represented by the
  integer 126 or is it 127?
• The answer depends on whether the month of
  February has 28 or 29 days that year.
• Data representations in imperative language are
  built up from values that can be manipulated
  directly by the underlying machine.
• Values held in machine locations can be
  classified into basic types, such as integers,
  characters, reals, and booleans.
• A type expression describes how a data
  representation is built up.
• The term type expression will be abbreviated to
  type to avoid confusion between a type expression
  like
• int abc10 or array 0..99 of char
• and an arithmetic expression like
• abc

10
Basic Types

• Values associated with basic types can be used
  freely and efficiently in imperative languages.
• They can be compared for equality, they can
  appear on the right sides of assignments, and
  they can be passed as parameters.
• Operations on basic values often correspond to
  single machine instructions or short sequences of
  machine instructions, so the operations are
  implemented efficiently.
• Enumerations
• An enumeration is a finite sequence of names
  written between parentheses.
• The declaration makes day an enumeration with
  seven elements as
• type day (Mon, Tue, Wed, Thu, Fri, Sat, Sun)
• Names like Mon are treated as constants.
• Enumerated names are constants.
• The basic type boolean is treated as the
  pre-declared enumeration
• type boolean (true, false)

11
Basic Types

• Pointers Efficiency and Dynamic Allocation
• A pointer type is a value that provides indirect
  access to elements of a known type.
• Pointer are motivated by indirect addresses in
  machine language, the main difference being that
  a pointer p points only to objects of a specific
  type T.
• Pointers are used as follows
• Efficiency Rather than move or copy a large data
  structure in memory, it is more efficient to move
  or copy a pointer to the data structure.
• Dynamic data Data Structures that grow and
  shrink during execution can be implemented using
  records and pointers.
• Pointers serve as links between cells.
• String
• String in C.
