Title: JLab Physics Overview


1

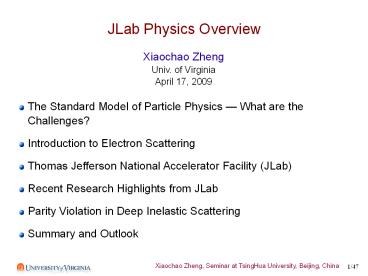

JLab Physics Overview
Xiaochao Zheng Univ. of Virginia April 17, 2009
  • The Standard Model of Particle Physics What are
    the Challenges?
  • Introduction to Electron Scattering
  • Thomas Jefferson National Accelerator Facility
    (JLab)
  • Recent Research Highlights from JLab
  • Parity Violation in Deep Inelastic Scattering
  • Summary and Outlook

2
What is the Visible World Made of?
3
And How Do They Interact with Each Other?
SU(3)C
SU(2)L X U(1)Y
4
Standard Model of Particle Physics
  • Success of the Standard Model
  • Electro-weak theory tested to very good precision
  • QCD tested in the high energy (perturbative,
    weak) region
  • Major Challenges within the Standard Model
  • Understand and test QCD in extreme conditions
    (RHIC, LHC)
  • Understand and test QCD in strong interaction
    region (non-perturbative)
  • Understand the nucleon structure, how quarks and
    gluons form the nucleon's mass, momentum, and spin

aS
energy (GeV) (1/distance)
5
Standard Model of Particle Physics
  • Success of the Standard Model
  • Electro-weak theory tested to very good precision
  • QCD tested in the high energy (perturbative,
    weak) region
  • Major Challenges within the Standard Model
  • Understand and test QCD in extreme conditions
    (RHIC, LHC)
  • Understand and test QCD in strong interaction
    region (non-perturbative)
  • Understand the nucleon structure how quarks and
    gluons form the nucleon's mass, momentum, and spin

typically studied by lepton scattering on the
nucleon/nucleus
6
Studying Nucleon Structure Using Electron
Scattering
  • Success of the Standard Model
  • Electro-weak theory tested to very good
    precisions
  • QCD tested in the high energy (perturbative,
    weak) region
  • Major Challenges within the Standard Model
  • Understand and test QCD in extreme conditions
    (RHIC, LHC)
  • Understand and test QCD in strong interaction
    region (non-perturbative)
  • Understand the nucleon structure how quarks and
    gluons form the nucleon's mass, momentum, and spin

typically studied by lepton scattering on the
nucleon/nucleus
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
Current Knowledge of Nucleon Unpolarized
Structure
3.5 3 2.5 2 1.5 1 0.5 0
10 9 8 7 6 5 4 3 2 1 0
F2(x,Q2)c(x)
F2(x,Q2)c(x)
Phys. Rev. D 66, 010001 (2002)
0.1 1.0 10 102 103 104 105
106
0.1 1.0 10
102
Q2(GeV2)
Q2(GeV2)
12
Structure Functions in the Quark-Parton Model
in the infinite momentum frame (IMF) x fraction
of nucleon's momentum carried by a particular
quark
(P 8)
  • After 35 years of DIS experiments, the
    unpolarized structure of the nucleon is
    reasonably well understood (for moderate xBj
    region).

13
(No Transcript)
14
Scientific Mission
  • How are hadrons constructed from quarks and
    gluons of QCD?
  • What is the QCD basis for the nucleon-nucleon
    force?
  • Where are the limits of our understanding of
    nuclear structure?
  • To what precision can we describe nuclei?
  • To what distance scale can we describe nuclei?
  • Where does the transition from nucleon-meson to
    QCD quark-gluon description occur?
  • To make progress toward these research goals we
    must address critical issues in strong QCD
  • What is the mechanism of confinement?
  • Where does the dynamics of the q-q interation
    make a transition from the strong (confinement)
    to the perturbative QCD regime?
  • How does Chiral symmetry breaking occur?
  • Symmetry Tests in Nuclear Physics

15
Scientific Mission
  • How are hadrons constructed from quarks and
    gluons of QCD?
  • What is the QCD basis for the nucleon-nucleon
    force?
  • Where are the limits of our understanding of
    nuclear structure?
  • To what precision can we describe nuclei?
  • To what distance scale can we describe nuclei?
  • Where does the transition from nucleon-meson to
    QCD quark-gluon description occur?
  • To make progress toward these research goals we
    must address critical issues in strong QCD
  • What is the mechanism of confinement?
  • Where does the dynamics of the q-q interation
    make a transition from the strong (confinement)
    to the perturbative QCD regime?
  • How does Chiral symmetry breaking occur?
  • Symmetry Tests in Nuclear Physics

16
CEBAF _at_ JLab Today
  • Main Physics Programs
  • nucleon electromagnetic form factors (including
    strange f.f.)
  • N -gtN electromagnetic transition form factors
  • spin structure of the nucleon
  • form factor and structure of light nuclei
  • nuclear medium effects (EMC effects)
  • Standard Model test (parity violation in electron
    scattering)
  • ... ...

17
(No Transcript)
18
JLab Accelerator
Recirculation arcs
Helium Refrigerator
20 cryomodules
45 MeV Injector
0.4-GeV linac
20 cryomodules
End Stations
19
The Accelerator (CEBAF)
NORTH LINAC
SOUTH LINAC
INJECTOR
RECIRCULATION ARCs (Magnets)
C
A
B
EXPERIMENTAL HALLS
20
Three Experimental Halls
  • Hall A
  • pair of high resolution spectrometers (HRS), E'
    up to 4 GeV/c, 7 msr
  • luminosity up to 1039 cm-2 s-1
  • Hall B
  • CEBAF Large Acceptance Spectrometer (CLAS)
  • luminosity up to 1034 cm-2 s-1
  • Hall C
  • High Momentum (HMS and Short-Orbit Spectrometers
    (SOS)
  • luminosity up to 1039 cm-2 s-1

21
Recent Highlights of JLab Research (a very limit
number of)
22
Nucleon Form Factors
  • e-nucleon elastic cross section determined by the
    EM form factors
  • In the Breit (centre-of-mass) frame the Sachs FF
    can be written as the Fourier transforms of the
    charge and magnetization radial density
    distributions.
  • Two different methods have been carried out so
    far
  • Rosenbluth separation
  • Polarization transfer

23
JLab Data on the EM Form Factors Provide a
Testing Ground for Theories Constructing Nucleons
from Quarks and Glue
Neutron
Proton
Electric
Magnetic
24
JLab Polarization-Transfer Data
  • Polarization transfer data from JLab Hall A
  • E93-027 PRL 84, 1398 (2000)
  • E99-007 PRL 88, 092301 (2002)
  • Investigate possible experimental sources for
    discrepancy
  • optimized Rosenbluth experiment confirmed SLAC
    results
  • Investigate possible theoretical sources for
    discrepancy
  • ? two-photon contributions

25
Nucleon Spin Structure Experiments
  • Inclusive
  • Sum Rules GDH, Bjorken .. ...
  • Nucleon structure functions and asymmetries
  • spin asymmetry A1 at high x (valence quark
    structure)
  • structure function g2 at low Q2
  • test of the spin duality.

Longitudinal
  • Semi-inclusive.
  • Exclusive DVCS ... ...

26
(No Transcript)
27
What Makes the Large x Region Interesting?
28
Pre-JLab Data on A1n
  1. Bag Model
  2. LSS(BBS)
  3. BBS
  4. Duality
  5. CQM
  6. LSS 2001
  7. Statistical Model
  8. SU(6)
  9. Chiral Soliton 1
  10. Chiral Soliton 2

29
A1n Results
  • First time A1n turns positive
  • Indicate the importance of quark orbital angular
    momentum to the nucleon spin

X. Zheng et al., Phys. Rev. Lett. 92, 012004
(2004) Phys. Rev. C 70, 065207 (2004)
30
Data for Dq/q
  • Before JLab
  • With JLab Data

31
Parity Violation Deep Inelastic Scattering (PVDIS)
32
Electroweak Interaction The Standard Model
  • Weak charged currents given by a SU(2)L group
    with weak isospin T
  • But the observed neutral current couples to
    right-handed fermions, while neutral current from
    SU(2)L does not.

33
Electroweak Interaction The Standard Model
  • Weak charged currents given by a SU(2)L group
    with weak isospin T
  • Combine neutral current from SU(2)L and QED
    UEM(1)g to construct

completes SU(2)L
U(1)Y, Y weak hyper charge
observable
theory
photon
Z0
34
(No Transcript)
35
Challenges of the Standard Model
  • Standard Model works well at present energy
    range
  • But, there are many conceptual reasons for new
    physics

(250 GeV
5 x 1014 GeV 2.4 x 1018 GeV)?
  • Data exist cannot be explained by the SM ( mn,
    NuTeV anomaly...)

36
Challenges of the Standard Model
  • Standard Model works well at present energy
    range
  • But, there are many conceptual reasons for new
    physics

High energy direct searches LEP, LHC
indirect searches E158, NuTeV, Qweak, PVDIS
(250 GeV
5 x 1014 GeV 2.4 x 1018 GeV)?
  • Data exist cannot be explained by the SM ( mn,
    NuTeV anomaly...)

37
Test of The Standard Model
  • Direct searches (LHC)
  • Indirect searches
  • Search for forbidden processes (bb-decay, EDM ...
    ...)
  • New physics modify
    at low energies

(expected)
38
(No Transcript)
39
Neutral Weak Couplings from Charged Lepton
Scattering
  • Asymmetries (ratios) in charged lepton-N
    scattering can be used to measure products

lepton charge conjugate-violating eL, eR cross
sections
parity-violating eL, eR cross sections
40
(No Transcript)
41
(No Transcript)
42
PV DIS and Other SM Test Experiments
  • E158/Moller (SLAC)
  • NuTeV (FNAL)
  • Atomic PV
  • Weak CC and NC difference
  • Nuclear structure?
  • Other hadronic effects?
  • Purely leptonic
  • Coherent Quarks in the Nucleus
  • - 376C1u - 422C1d
  • Nuclear structure?
  • Qweak (JLab)
  • PVDIS (JLab)

Different Experiments Probe Different Parts of
Lagrangian, PVDIS is the only one accessing C2q
  • 2 (2C1uC1d)
  • Coherent quarks in the proton
  • (2C1u-C1d)Y(2C2u-C2d)
  • Isoscalar quark scattering

Cartoons borrowed from R. Arnold (UMass)
43
PVDIS Experiment Past, Present and Future
  • 1970's, result from SLAC E122 consistent with
    sin2qW1/4, established the Electroweak Standard
    Model

C.Y. Prescott, et al., Phys. Lett. B77, 347 (1978)
  • PVDIS asymmetry has the potential to explore New
    Electroweak Physics etc ...... However, hasn't
    been done since 1978.
  • (Re)start PVDIS at JLab 6 12 GeV

44
JLab 6 GeV Experiment 08-011
Co-spokesperson contact X.
Zheng Co-spokesperson P.E. Reimer, R.
Michaels Grad. students Xiaoyan Deng, Diancheng
Wang, Huaibo Ding. (Hall-A Collaboration
Experiment, approved by PAC27, re-approved by
PAC33 for 32 days, rated A-)
  • Use 85mA, 6 GeV, 80 polarized beam on a 25-cm
    LD2 target
  • Two Hall A High Resolution Spectrometers detect
    scattered electrons
  • Measure PV asymmetry Ad at Q21.10 and 1.90 GeV2
    to 2.7 (stat.)
  • Ad at Q21.10 will investigate the possible
    higher twist effects
  • If HT is small, can extract 2C2u-C2d from Ad at
    Q21.90 to 0.04 (or with reduced precision if
    higher twists are un-expectedly large)
  • Schedule to run Nov-Dec. 2009.

45
(No Transcript)
46
Outlook Research Opportunities at JLab 2010-
  • 6 GeV (2010-2014)
  • Hall A
  • Nuclear physics short-range correlations,
  • Deeply Virtual Compton Scattering (DVCS),
    measurements of Generalized Parton Distributions
    (GPD).
  • Hall B Analysis of nucleon resonance data
  • Hall C
  • Qweak test of the Standard Model

Compton polarimeter (laser, detectors)
  • 12 GeV (2015 - )
  • Hall A PVDIS program using a large solenoid
    device

47
Outlook Research Opportunities at JLab 2010-
  • 6 GeV
  • Hall A
  • Nuclear physics short-range correlations,
  • Deeply Virtual Compton Scattering (DVCS),
    measurements of Generalized Parton Distributions
    (GPD).
  • Hall B Analysis of nucleon resonance data
  • Hall C
  • Qweak test of the Standard Model

Joint-training students can participate in all
these experiments
Compton polarimeter (laser, detectors)
  • 12 GeV
  • Hall A PVDIS program using a large solenoid
    device

As a group, can pursue detector development
48
Existing Chinese Collaborations
  • Hall A
  • Neutron spin structure experiments
  • University of Science and Technology of China,
    Prof. Yunxiu Ye, Dr. Hai-jiang Lu, Ph.D. student
    Yi Zhang (with Dr. Jian-ping Chen, JLab)
  • China Atomic Energy Institute, Prof. Shuhua Zhou,
    Prof. Xiaomei Li (with Dr. Jian-ping Chen, JLab)
  • Neutron transversity experiments
  • Beijing University, Prof. Bo-qiang Ma, Prof.
    Yajun Mao (with Prof. Haiyan Gao, Duke Univ.)
  • Hall B (with Prof. Liping Gan, Univ. of North
    Carolina-Wilmington)
  • PrimEx (Primakoff Experiment to measure ?0
    lifetime)
  • CIAE, Prof. Xiaomei Li,
  • Hall C (with Dr. Li-guang Tang, Hampton Univ.)
  • Hyper-nuclear experiments
  • Lanzhou University, Prof. Bitao Hu

49
(No Transcript)
50
PVDIS Experiment Past, Present and Future
  • 1970's, result from SLAC E122 consistent with
    sin2qW1/4, established the Electroweak Standard
    Model

C.Y. Prescott, et al., Phys. Lett. B77, 347 (1978)
  • PVDIS asymmetry has the potential to explore New
    Physics, study hadronic effects/CSV ......
    However, hasn't been done since 1978.
  • Do a first measurement at JLab 6 GeV
  • If observe a significant deviation from the SM
    value, it will definitely indicate something
    exciting
  • Indicate either electroweak new physics, or
    current understanding of strong interaction is
    worse than we thought.
  • New electroweak Physics
  • Non-perturbative QCD (higher-twist) effects
  • Charge symmetry violation

At the 6 GeV precision
Likely to be small, but need exp confirmation
Small from MRST fit (90 CL 1)
51
PVDIS Experiment Past, Present and Future
  • 1970's, result from SLAC E122 consistent with
    sin2qW1/4, established the Electroweak Standard
    Model

C.Y. Prescott, et al., Phys. Lett. B77, 347 (1978)
  • PVDIS asymmetry has the potential to explore New
    Physics, study hadronic effects/CSV ......
    However, hasn't been done since 1978.
  • Do a first measurement at JLab 6 GeV
  • If observe a significant deviation from the SM
    value, it will definitely indicate something
    exciting
  • Indicate either electroweak new physics, or
    current understanding of strong interaction is
    worse than we thought.
  • At 12 GeV, a larger, well-planned PVDIS program
    could separate all three New Physics, HT, CSV,
    important information for both EW and Strong
    interaction study.

52
(No Transcript)
53
Apparatus Needed for PVDIS
Large Acceptance and High Luminosity
54
(No Transcript)
55
Plan View of the Spectrometer
BaBar Solenoid?
56
Shashlyk (Shashlik) Calorimeter
  • pi/e rejection 10(-2-3) at E0.44 GeV/c based
    on energy resolution
  • dE/E 1.46.7/sqrtE(GeV)
  • time resolution 1ns
  • radiation hard
  • can work in mag fields

can cut/isolate detector here to form a
double-layer struct. for improved PID
NIM A320, 144 (1992)
57
Shashlyk (Shashlik) Calorimeter
58
Scaling Violation in QCD
  • Bjorken limit , xBj fixed, (strict) one
    photon exchange

no scale (Q2 )dependence, scaling
  • High , soft gluon emission,

logQ2 dependence
  • Low , hard gluon emission

1/(Q2)(t-2) dependence higher-twist effects
59
(No Transcript)
60
(No Transcript)
61
JLab Hall A

62
Hall B CLAS

63
Hall C View

64
Medium and High Energy Physics Facilities in
Europe and U.S.
65
(No Transcript)
66
(No Transcript)
About PowerShow.com
