Title: Intro to Linux


1

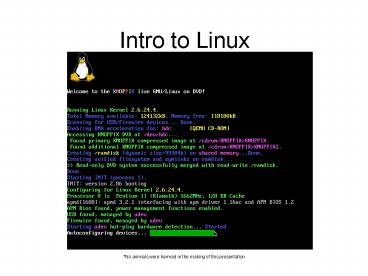

Intro to Linux
  • No animals were harmed in the making of this
    presentation

2
A brief History of Computing
  • 1960 Notions of Operating Systems brewed
  • 1970 First Unix Grown
  • Not the first but one of the first
  • Born at ATT
  • 1980 Desktop PC Proliferate
  • MS-DOS becomes popular
  • The Second OS wars begin
  • 1991 Linus dumps linux onto USENET

3
Licenses (who owns the bits)
  • What does it mean to own software?
  • How much is a bit really worth?
  • When I sell you an operating system, what is the
    actual product?
  • What is the business model for selling software?

4
GPLs vs BSD
  • Free isnt really free.
  • GPL requires back attribution and redistribution
    of changes
  • BSD is Free for All (very few clauses).
  • There are othersMozilla Public license, Creative
    Commons, Apache License, MIT License
  • http//en.wikipedia.org/wiki/Open_source_license
    has way more information than you care about.

5
Free
  • As in freedom
  • Just because its open, doesnt mean it is free
  • Most of the cost starts right here with the
    explanation of how things work
  • Not having licenses that restrict distribution
    makes distribution easier.

6
OSHuh?
  • What is an operating system?
  • What you interact with is not the OS.
  • Hardware abstraction
  • Shells and GUIs

7
Differences in OSs
  • The kernel is the defining element of an OS,
    hence the name.
  • The shell is your interface to the machine
  • Not all shells are text (but that depends on what
    you mean by shell)
  • Distributions (The stuff that makes your linux
    different from every one else's)
  • Kernel makes it linux, distribution makes it
    special

8
Non-Advocacy
  • QWhat is the correct way to use chopsticks?
  • AWhich ever way works.
  • Buyer beware, you get what you pay for.
  • The second best word after free is community.
  • Well known Google returns an answer in the first
    page.

9
Dont be afraid to break it
  • Its very rare that miss-configured software will
    break the hardware (unless youre name is Kahn).
  • As long as your data is intact (and its your
    fault if your data is not backed up to a separate
    media) you can always reinstall.
  • Since most Linux software is configured by text
    files, copying the text files stores the
    settings.

10
Fixing things
  • You can do many tricks with the live CD
  • Recover files from busted windows machines
  • And move them across the network
  • Recover files from panicked kernels
  • Ditto
  • Rewrite your master boot record
  • Use it as a diskless operating system
  • Chain load other partitions
  • ???
  • Profit?

11
Booting The hardest part
  • BIOS Basics Input Output System
  • Initialize the ram, disks, video, etc..
  • Find the boot sector of the disk, read, and
    hand over control
  • Grub Grand Unified Boot loader
  • Loaded in stages
  • Stage 1 Finds the next stage (1.5 or 2)
  • Stage 1.5 can read alternate file systems and
    find stage 2
  • Stage 2 Presents the user with a choice of
    Operating systems
  • Can the chain load from here, launching the boot
    loader of a different OS (e.g. Windows)

12
Booting -Grub
  • GRUB is configured by /boot/grub/menu.lst
  • In this file are directives that populate the
    stage2 menu
  • Parameters for the kernel are specified here
  • And optional initrd files can also be specified
  • The initrd is a file system compressed into a
    file
  • It stores specialty drivers for things that the
    kernel doesnt know about yet.
  • It solves the chicken and egg disk problem

13
Booting-Grub Config
  • title Ubuntu 8.04.1, kernel
    2.6.24-22-generic
  • root (hd0,0)
  • kernel /boot/vmlinuz-2.6.24-22-generic
    root/dev/md0 ro quiet splash
  • initrd /boot/initrd.img-2.6.24-22-generic
  • This is a menu item in the menu.lst
  • Specifies the title (name seen in the boot menu)
    associated with the kernel
  • Specifies the partition associated with the
    kernel
  • Specifies kernel file name and parameters
  • Specifies the initial ram disk location (optional)

14
Booting - Kernel
  • Grub copies the kernel to memory and passes
    execution control to it
  • The Kernel continues the setup of the system
    state
  • Reads file system
  • Locates and Loads Modules (drivers)
  • Finally Starts init
  • Grub, and Init are configured by files
  • But the kernel is configured when you compile it

15
Booting-Init
  • Init is the mother of all processes.
  • Init Spawns all the running daemons that do the
    stuff you want your machine to do
  • The init routine
  • Read /etc/inittab learn runlevel (deprecated but
    still meaningful, the answer is 2)
  • Goto /etc/init.d/rc2 (deprecated but still
    meaningful)
  • Work through the S scripts to spawn all services
  • In /etc/init.d/rc2 are files of the form
    Sscriptname
  • S stands for start
  • The number indicates order (larger numbers come
    later)
  • Pass control terminal or GUI
  • ????
  • Profit!

16
The boot flow
Grub Stage1
Bios
Grub Stage1.5
SHELL
Kernel Initrd
Grub Stage2
rcscripts
INIT
Chain Loader
GDM
BusyBox- Failed to open rootfs
Other OS
17
Grub2 Key differences
  • The latest and greatest
  • Comes with all Ubuntus after 9.10
  • Requires holding shift to get to the menu
  • Menu.lst -gt grub.cfg (not really)
  • User settings go in /etc/grub.d/40_custom
  • Partition numbering has changed. The first
    partition is now 1 rather than 0.
  • Automated alternative OF searches from update
    grub

18
Configuring Grub2
  • /etc/grub.d contains config scripts that handled
    probing for Various OS flavors
  • Any in appended into 40_custom gets appended into
    the main config file (/boot/grub/grub.cfg)
  • Menu Behavior is configured in /etc/default/grub
  • There is a graphical tool to configure some of
    the basics - StartUpManager

19
Sample /etc/default/grub
  • If you change this file, run 'update-grub'
    afterwards to update
  • /boot/grub/grub.cfg.
  • GRUB_DEFAULT0 - Sets the default menu entry by
    menu position
  • GRUB_HIDDEN_TIMEOUT0 -determines how long a
    screen without the GRUB 2 menu will be displayed.
  • GRUB_HIDDEN_TIMEOUT_QUIETtrue -No countdown is
    displayed. The screen will be blank
  • GRUB_TIMEOUT"10"
  • GRUB_DISTRIBUTORlsb_release -i -s 2gt /dev/null
    echo Debian
  • GRUB_CMDLINE_LINUX_DEFAULT"quiet splash -This
    line imports any entries to the end of the
    'linux' line (GRUB legacy's "kernel" line).
  • GRUB_CMDLINE_LINUX"
  • GRUB_GFXMODE640x480 - The entry sets the
    resolution of the graphical menu (note the
    comment)

20
SSH The Swiss army knife of networking
  • Secure Shell Defacto Standard in remote shell
    connectivity
  • Capable of tunneling traffic
  • can move large files across networks (even across
    the internet)
  • Can actually be used to mount files systems
    remotely via SSHFS

21
SSH-Keys
  • Using keys is more secure because passwords are
    never transmitted
  • Configured correctly (using the agent), you can
    move between machines seamlessly
  • Tools for SSH KEYS
  • ssh-keygen
  • ssh-copy-id

22
Manual Key Installation
  • generate key with ssh-keygen
  • use scp to copy the id_rsa.pub key to the remote
    host
  • login to remote host with usual methods
  • add the contents of pub key file to the
    authorized_keys file in you .ssh directory -
    username_at_gw1/.ssh cat /id_rsa.pub gtgt
    ./authorized_keys
  • Logout and login again, you should not be
    prompted for a password.

23
Tunneling
  • Assuming the server on the remote side is
    configure to do so, it is possible to run x11
    programs on the remote machine and have them
    display on the locale machine
  • ssh Y user_at_HostName achieves this piece of magic

24
X11 Digression
  • X11 is the graphical system for most Unicies, W
    came before it, but no one uses that now
  • X11 is a service, there is an X11 server that
    knows how to steer video, and X11 clients that
    connect to it.
  • There is no rule that says the clients and
    servers have to live on the same machine
  • There is no rule that says there can be only one
    X11 server

25
X11 Tunneling
  • On the remote machine a virtual X11 server is
    set up, the remote shell display variable is set
    to point to it.
  • Typically a value of locahost10.0
  • The X11 traffic for that server is encapsulated
    and shipped back to the local machine
  • That traffic is unpacked and given to the local
    x11 server
  • Typically a value of localhost0.0
  • There is a non-trivial delay associated with the
    tunneling
  • Its due to the encryption overhead
  • and network latency (much slower than the local
    loop back interface)

26
Vi-Tips and tricks
  • The v is for Victory ?
  • Press escape often (returns you to the command
    state)
  • a appends, i inserts
  • puts you at the beginning of a line, put you
    at the end
  • o begins a new line
  • shift-y yanks lines, shift-p pastes them above, p
    paste below
  • shift-j joins lines
  • q! quits with out saving
  • wq quits and saves
  • ltline-numbergtgg goes to the specified line number
  • set number turns on line numbering

27
Cute Shell Tricks
  • pipes, grep, more
  • command grep SearchWord more
  • will search for your word, and display contents 1
    screen at a time
  • find name foo print
  • very versatile command that can do many
    manipulations
  • Redirectors
  • ps ef gt ./foo.txt
  • captures the output of commands

28
File Systems
  • A file system is a special-purpose database for
    the storage, organization, manipulation, and
    retrieval of data.
  • FHS File System Hierarchy is a standard for how
    directories and files are laid out, It is a
    standard across most Linux distributions

29
Where do file systems come from?
  • Parted is the standard partition editor
  • The gui frontend is named gparted
  • Things you need to specify
  • Fs-type
  • Mount-point
  • Starting block
  • Ending block
  • Bootable flag

30
File System Hierrachy
  • Places worth noting in the file system hierarchy
  • /bin home to all the executables
  • /boot home to the kernel
  • /dev where all the device files live
  • In Unix, every thing is a file
  • /etc where all the config files live
  • /proc /sys virtual files systems that list
    info about the running system

31
File System-Types
  • Fat32 Classical dumb file system
  • used by windows and Linux systems
  • (Readable and writeable by Windows, Linux, and
    Mac)
  • NTFS Microsoft proprietary stuff
  • ext2 - second extended file system
  • (Readable by stage2)
  • ext3 -  third extended file system
  • a journaled file system
  • ext4- New and shiny
  • Also journaled
  • procfs and sysfs see previous slide

32
FSTAB and MTAB
Actual device name
  • /dev/sdb2
  • UUID /ext3 relatime,errorsremount-ro 0 1
  • This is a usual line from the /etc/fstab
  • It configures all the file systems that will be
    mounted during boot
  • Files systems not on the tab, can be mounted
    manually
  • /etc/mtab lists the currently mounted file
    systems in the same format as /etc/fstab

Mounting Options
File system type
Universally Unique Identifier
33
Mount
  • Running mount with out any parameters list the
    currently mounted file systems
  • Mount can be used to manually mount devices to
    the file system
  • mount a will mount all the file systems listed
    in fstab
  • mount -t nfs nfs-server-host/directory/path
    /mount-point

Optional Parameters
Source
Target
34
Permission and Ownership
Group
  • -rwxr--r-- 1 ssugrim staff 2648064 2008-07-03
    1026 winlab-ghost-netboot.sys
  • File have an owner and a permissions set
  • The permissions can be modified with chmod
  • The owner (and group) can be modified with chown
  • The permission are read uuugggwww where u
    user, g group, w world
  • r read, w write, x execute privileges
  • permissions can be assigned numerically if you
    assume that each position is a 3 bit number, and
    then write the decimal equivalent
  • e.g. rxwrwxrwx is equivalent to 777

Name
Date
Owner
Permission
Size
35
Packages
  • Many distributions have gone to packages for
    distributing software, the old tar.gz system
    wasnt robust/useable enough
  • Debian (from which Ubuntu is based) uses the
    dpackage system
  • files ending in deb are Debian packages, in
    contrast to rpm, ebuild
  • Packages make your life simpler

36
Package tools
  • There are two tool suites to manage packages
    (actually more, but two main ones)
  • apt- is a set of tools for installing software
    from Ubuntus (Canonicals) repositories
  • (really any ones repositories, assuming you
    configured it correctly
  • dpkg- is the manual installation tool suite,
    it knows nothing about repositories

37
Dependencies
  • Packages are arranged in hierarchies
  • Since there is much code reuse many packages
    depend on other packages being installed
  • This is one of the Big Wins / Major Hallmarks of
    the open model
  • both tools are aware of dependencies, but they
    differ in how they handle them

38
Apt vs Dpkg
  • This biggest difference between apt and dpkg is
    how dependencies are handled
  • when apt is asked to install a package, it checks
    dependencies and asks if its ok to add all of
    the dependant packages as well
  • dpkg just complains that dependencies are not
    met, and then refuses to install
  • this can be overridden, a forced installation has
    many dangers

39
Why would you use dpkg then?
  • dpkg can force installation
  • some times packages you need are not in the
    repository
  • dpkg operates independent of the package
    hierarchy
  • dpkg can forcibly remove things as well
  • dpkg l is the only non gui way to see a list of
    installed packages

40
Apt
  • apt-get update collects updated repository
    information
  • new or moved packages, upgrades to old packages
  • Its the nervous twitch before Installing
    something
  • apt-get install PackageName installs a package if
    not installed, and upgrades it if installed
  • apt-get remove PackageName ---
  • Different from apt-get purge (gets rid of pack
    and associated config files)
  • there are also gui tools, synaptic, aptitude

41
Other ways to get software
  • Alien a package converter
  • It raises lots of issues with dependencies
  • Old fashion source distribution
  • Some times referred to as tgz, or tarball
  • Alien can attempt to convert tgz as well, but
    probably not with high success
  • If youre doing a build from sources you will
    need a few additional packages that are not
    installed by default
  • build-essentials
  • automake

42
Networking
  • The 7 layer model
  • A system of black boxes
  • Each layer Impendent
  • Each layer hands-off to the next
  • As a piece of data travels from source to
    destination, it travels down the stack, and back
    up again

43
TCP/IP
  • Not strictly compliant with the 7 layer model
  • Link Layer
  • all things physical
  • (MAC Media Access Control)
  • Internet (IP) Layer
  • best effort delivery
  • does mapping onto self addressing physical
    systems
  • E.g. maps IP addresses to MAC addresses
  • Transport Layer
  • builds reliability (TCP)
  • or not (UDP)
  • Application Layer
  • Http, ftp, ssh, ntp, etc

44
Necessary numbers
  • Numbers you need to know to get your data out of
    your machine
  • Your IP address
  • self explanatory
  • Subnet Mask
  • Needed for determining what is local
  • Gateway
  • where to go for non-local hosts
  • DNS
  • Turns names into ip addresses (optional, but not
    really)
  • This is by no means a complete list, just a bare
    minimum.

45
ifconfig setting your IP
  • Manually configures interfaces
  • Shows hardware address
  • Specify static IP
  • And other stuff like netmask
  • Link Status and Statistics

46
Subnetting What the subnet mask means
  • IP address are normally given in dot quad
    notation
  • The subnet mask is a bit mask
  • Separates the address into network (local) and
    host bits
  • CIDR notation is a short hand for subnets
  • The short hand for this address is
    192.168.5.10/24
  • counts the bits


Dot-decimal Address Binary
IP address 192.168.5.10 11000000.10101000.00000101.00001010
Subnet Mask 255.255.255.0 11111111.11111111.11111111.00000000
Network Portion 192.168.5.0 11000000.10101000.00000101.00000000
Host Portion 0.0.0.10 00000000.00000000.00000000.00001010
47
Routing and Route Configuring the gateway
  • To get outside your local network, a gateway
    will have to forward (route) your data
  • The route command can tune this setting
  • Normally you dont need to set this up, dhcp will
    do it for you
  • Running route with out parameters will tell you
    which way is out

48
(No Transcript)
49
DNS
  • Technically you dont need DNS
  • But if you plan on using the internets, you do
  • DNS is configured in the /etc/resolv.conf
  • Note the name servers are specified by IP
  • They will be queried in descending order
  • The search line is the line appended to a host if
    the host name is given with out a domain
  • E.g. home becomes home.winlab.rutgers.edu

50
Wireless
  • Two Primary tools
  • iwconfig
  • iwconfig can set ESSID, encryption key, channel,
    etc
  • iwlist
  • iwlist can scan for ESSID

51
DHCP and dhclient
  • Keeping track of machines is annoying
  • Large scale networks (offices, university) nearly
    impossible to configure manually
  • DHCP addresses the need of auto configuration
    (client, server model)
  • Maps MAC addresses to IP-addresses
  • dhclient will broadcast a request to the local
    network and retrieve the necessary config
  • IP broadcast (to 255.255.255.255)

52
Tools you might need
  • MII-tool checks for link status
  • Ethernet carrier
  • Ping send out echo request
  • proof of connectivity (doesnt mean youre
    specific protocol will make it
  • host (formerly nslookup) queries dns
  • does that name mean what you think it does?
  • tracert Traces route to host
  • Almost always fails due to icmp echo request
    being denied (try with udp)
  • netstat list connection
  • netstat p (netstat b on windows) tells you what
    process is associated with what port
  • nmap scans open ports
  • Some what antisocial, admin dont like having
    their ports probed

53
Processes
  • Instance of program (Running)
  • each one has a process id (pid), even multiple
    instances of the same program
  • Init has PID 0
  • Process are scheduled by the kernel (well the
    scheduler any way)
  • Each process is owned and has an associated
    privilege
  • Directly related to file privileges
  • the owner ship of the process dictates what files
    it can operate on
  • Kernel is not a process in the nominal sense
  • User space vs Kernel Space
  • PS is the tool that lists process
  • ps ef will list all processes (regardless of
    owner)
  • Kill will terminate a process (usually if its
    gone rogue)
  • killing process requires privileges for that
    process
  • this can be acquired by owing the process, or
    being a privileged user
  • Killing essentially passes a signal to the
    process telling it to go away
  • -9 is the rudest of them
  • Other signals for process exist, not all are
    lethal
  • Pipes can be made between processes

54
Types of Kernels
  • Monolithic One big file
  • Microkernel Very small Hardware interface
    layer
  • Rest of the work of the kernel happens in
    userspace
  • Modular Middle ground
  • Microkernel stub, but with the ability to load
    modules into kernel space

55
Modules
  • Provide functionality Steer hardware, read
    file systems,
  • lsmod list currently running modules
  • rmod ModuleName unloads a module
  • modprobe ModuleName will load a module, and its
    dependant modules

56
Changing the kernel
  • Why would you want to change your kernel?
  • Performance
  • Support of hardware
  • fix something you broke
  • security updates
  • bugs
  • ????
  • Profit?

57
Changing the kernel
  • Ways to change the kernel in order of difficulty
  • install a package from the Ubuntu repository
  • Building from a source package from the Ubuntu
    repository
  • Building from a source package from the
    kernel.org git (version control system)
  • There might be some other methods

58
Apt-get kernel
  • By far the easiest method of updating the kernel
  • Depending on the version of Ubuntu youre running
    different kernels will be available to you
  • LTS vs Non-LTS
  • apt-get install linux-generic will update your
    current kernel to the newest
  • This is a feature of apt, not the kernel
  • apt-get install AlreadyInstalledPackage will
    upgrade said package
  • will modify grub to boot new kernel
  • Retains old kernel as a option in grub, incase
    something goes wrong

59
Sources from the Ubuntu Repository
  • Apt-get install Linux-source will get the source
    of the current running kernel
  • uname r tells you the name of the current
    running kernel
  • Ubuntu kernels are modified versions of the
    kernel.org kernels (the official Linux kernel)
  • Dependencies and tools required to build the
    kernel may not be exactly the same
  • There may be differences in opinions of where
    stuff should go, and what it should be named

60
Sources form Kernel.org
  • The official Kernel made by Linus ( co) him
    self
  • Stable versions can be downloaded from kernel.org
  • Bleeding edge can literally be downloaded at the
    end of the business day
  • Youll probably need git (the version control
    system used by kernel.org) for that
  • Will have to be uncompressed from a tarball
  • Something like cd /usr/src sudo tar xjvf
    linux-source-2.6.24.tar.bz2

61
Patches
  • System of modifying source, requires patch file
  • increment version numbers by 1 (but thats not a
    solid rule)
  • if you already have the kernel source tree,
    patches are much smaller
  • Small is a relative term (the full source for my
    test kernel was 8.2M)
  • Patches are rarely used any more because were no
    longer so bandwidth constrained
  • Was a much bigger deal when we were using dial-up

62
Other things you will need.
  • When building the kernel on my prototype (I used
    repository sources), I needed the following
    packages
  • linux-source The stuff
  • kernel-package Tools for building the kernel
  • build-essential Tools for building
  • Part of kernel package
  • fakeroot needed to get around the suid (set
    user id) issue
  • there is no root user by default on Ubuntu
  • ccache common routines cache, speed up
    compiling
  • qt3-dev-tools (huge dependencies)
  • Needed for X11 config
  • libqt3-mt-dev (comes along for the ride with
    qt3-dev-tools)

63
Making
  • Make (automake) is standard tool for building
    executables
  • make was made in 1977
  • reads makefiles and builds executables according
    to their directives
  • used to build any software from source (not just
    the kernel)
  • sometimes accompanied by a configure script that
    will configure the makefiles

64
Make config
  • Once you have your source code, you need to set
    the parameters of how this new kernel will
    behave
  • make config Never do this
  • will ask you 100s of questions, get one wrong
    and you get to start over
  • make menuconfig ncurses menu
  • better, but still not fancy
  • make xconfig
  • the new hotness
  • Its assumed that youre privileged enough to do
    this on your system and youre in the right
    directory
  • it requires root privileges because of some of
    the places it will have to go, and things it
    will have to do
  • the usual home is /usr/src/KernelName

65
Parameters
66
Parameters II
  • Some of the parameters youll encounter
  • General setup Boot styles, message ques
  • Module support You always need this
  • Bus Options Needed for addon card support
  • Device Drivers The magic sauce
  • Networking Big and important
  • File Systems What kinds the kernel can read

67
make-kpkg
  • A HUGE improvement over the old way of doing
    things
  • Builds the kernel and the init-rd, and then
    packages them into a deb
  • install the deb with dpkg
  • Will copy vmlinuz, init-rd, system.map, and
    modules
  • will also update grub for you, and save your old
    kernel
  • Doing this manually involves many steps and is
    very prone to error
  • Modules can be built as debs too

68
Useful Links
  • http//rute.2038bug.com/rute.html.gz
  • Big ole book o stuff
  • http//en.wikipedia.org/wiki/TCP/IP_model
  • Layered fanciness
  • http//www.kernel.org/
  • Identify your male parent
  • https//help.ubuntu.com/community/Repositories/Ubu
    ntu
  • Dude wheres my stuff (coming from)
  • http//en.wikipedia.org/wiki/Comparison_of_file_sy
    stems
  • Bet you didnt know there were that many
  • http//fuse.sourceforge.net/sshfs.html
  • SSH hotness

69
References
  • The internets

70
Linus
  • The man, the myth, the legend

71
Installations
  • What went Wrong
  • Part of the live boot scenario is autodection of
    hardware.
  • When the X11 system gets configured, it probes
    the monitor to figure out what the resolution
    modes are
  • Because I used a via splitter, the backtalk
    that tells the X system what it can do was broken
  • The system couldnt discover the modes to display
    in
  • So why did the splash screen work?
About PowerShow.com
