Title: 16. Automation

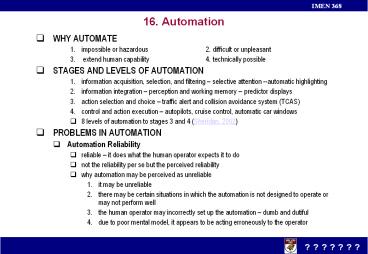

1
16. Automation
  • WHY AUTOMATE
  • impossible or hazardous 2. difficult or
    unpleasant
  • extend human capability 4. technically possible
  • STAGES AND LEVELS OF AUTOMATION
  • information acquisition, selection, and filtering
    selective attention --automatic highlighting
  • information integration perception and working
    memory -- predictor displays
  • action selection and choice traffic alert and
    collision avoidance system (TCAS)
  • control and action execution autopilots, cruise
    control, automatic car windows
  • 8 levels of automation to stages 3 and 4
    (Sheridan, 2002)
  • PROBLEMS IN AUTOMATION
  • Automation Reliability
  • reliable it does what the human operator
    expects it to do
  • not the reliability per se but the perceived
    reliability
  • why automation may be perceived as unreliable
  • it may be unreliable
  • there may be certain situations in which the
    automation is not designed to operate or may not
    perform well
  • the human operator may incorrectly set up the
    automation dumb and dutiful
  • due to poor mental model, it appears to be acting
    erroneously to the operator

2
  • Trust Calibration and Mistrust
  • trust should be well calibrated trust should be
    in direct proportion to its reliability
    (mistrust)
  • Human trust in automation is not entirely well
    calibrated (distrust/overtust)
  • distrust is a type of mistrust where the person
    fails to trust the automation as much as is
    appropriate are not necessarily severe, but may
    lead to inefficiency
  • Overtrust and Complacency
  • overtrust occurs when people trust the automation
    more than is warranted severe negative
    consequences if the automation is less than fully
    reliable
  • The cause of complacency human tendency to let
    experience guide our expectancies perceived
    perfect reliability ? cease monitoring or far
    less frequently
  • Automation has three distinct implications for
    human intervention
  • detection the complacent operator will likely be
    slower to detect a real failure the more
    reliable, the rarer the signal events, and the
    poorer their detection
  • situation awareness better aware with active
    participation (generation effect) out of the
    loop, poor feedback of the automated process
  • skill loss (deskilling) the gradual loss of
    skills
  • less self-confident in performance ? more likely
    to continue to use automation
  • degrade the operators ability to intervene
    approximately (fig 16.1)
  • Workload and Situation Awareness
  • as automation level moves up the scale, both
    workload and SA tend to go down
  • clumsy automation automation makes easy tasks
    easier and hard tasks harder
  • Training and Certification

3
  • Loss of Human Cooperation
  • Job Satisfaction
  • FUNCTION ALLOCATION BETWEEN THE PERSON AND
    AUTOMATION
  • Fittss List (Table 16.2)
  • HUMAN-CENTERED AUTOMATION
  • keeping the human informed
  • keeping the human trained
  • keeping the operator in the loop
  • selecting appropriate stages and levels when
    automation is imperfect (fig 16.2)
  • making the automation flexible and adaptive
  • maintaining a positive management philosophy
  • SUPERVISORY CONTROL AND AUTOMATION-BASED COMPLEX
    SYSTEM
  • automation is not optional, but necessity --
    production of continuous quantities (chemical
    process control), production of discrete
    quantities (manufacturing control), robotics
    control
  • how to support the supervisor in times of
    failures and fault management ? knowledge-based
    behavior, predictor displays, ecological
    interface
  • robotics control in manufacturing and in
    navigating UAV
  • hortatory control the systems being controlled
    retains a high degree of autonomy

4
17. Transportation Human Factors
  • AUTOMOTIVE HUMAN FACTORS
  • Task Analysis of the Vehicle Roadway System
  • Strategic, Tactical, and Control Aspects of
    Driving
  • strategic tasks deciding where to go, when to
    go and how to get there
  • tactical tasks choice of maneuvers and
    immediate goals in getting to a destination such
    as speed selection, the decision to pass another
    vehicle, and the choice of lanes
  • control tasks moment-to-moment operation of the
    vehicle such as maintaining a desired speed,
    keeping the desired distance from the car ahead,
    keeping the car in the lane
  • Control Task
  • two-dimensional tracking task of vehicle control
  • the lateral task of maintaining lane position
    2nd-order control task with preview and a
    predictor ? the best measure is the time to lane
    crossing (TLC)
  • longitudinal task as a first-order tracking task
    of speed keeping
  • three channels of visual information to be
    tracked along the two axes
  • lateral tracking by the roadway curvature
  • longitudinal tracking by the flow of motion along
    the roadway and the location or distance of
    hazards and traffic control devices

5
  • Multitask Demands
  • primary control task -- lane keeping and roadway
    hazard monitoring dependent upon primary vision
    attention lobe (PVAL) of information (fig 17.1
    and 17.2)
  • inattention, competing visual tasks
  • secondary motor activity conflict with
    monitoring and processing and visual information
    in the PVAL
  • Cabin Environment
  • create the simplest, most user-friendly design of
    the internal displays and controls
  • Visibility
  • Anthropometry
  • anthropometric factors of seating reachability
    of different controls
  • design for the mean is not appropriate --
    controls accessible and interpretable
  • Illumination
  • adequate highway lightning, adequate reflectors
  • Signage
  • minimize visual clutter from unnecessary signs
  • locate signs consistently
  • identify sign classes distinctly color, shape
  • allow signs to be read efficiently

6
  • Resource Competition
  • serious distraction of in-cab viewing the
    number and duration of glances feel safe less
    than 0.8 sec/glance, 3 sec between glances
  • auditory display, speech recognition, HUD
  • Hazards and Collisions
  • Control Loss
  • slick or icy road conditions, narrow lanes and
    momentarily lapses in attention, rapid
    over-correction (minor lane departure) roadway
    departure because of fatigue
  • directly related to the bandwidth of correction
    vehicle speed
  • Hazard Response
  • poor visibility and inattention can cause a
    failure to detect hazards
  • the time to react to unexpected objects (the
    perception-reaction time or brake reaction time)
    1 to 2 sec, mean of 1.5 sec
  • Speeding
  • quadruple threat to driver safety (1) increases
    the likelihood of control loss (2) decreases the
    probability of detecting hazard in time (3)
    increases the distance traveled before a
    successful avoidance maneuver (4) increases the
    damage at impact (fig 17.3)
  • why do people speed?
  • perceptual biases (underestimating true speed)
    size biased distance judgments bias to overspeed
    (quieter engines, higher seating position above
    the ground, less visible ground texture),
    adaptation
  • cognitive biases (overestimating the ability to
    stop in time)

7
  • Risky Behavior
  • cognitive biases to overspeeding overconfidence
    (underestimation of risk), expectancy (no
    experience of a collision little effect on the
    behavior of survivors)
  • The Impaired Driver
  • Fatigue
  • over 50 of the accidents leading to the death of
    a truck driver and over 10 of all fatal car
    accidents
  • Alcohol
  • the most effective interventions may be social
    norming
  • Age
  • Impairment Interactions
  • Driving Safety Improvements
  • Driver Characteristics Training and Selection
  • higher accident rates were related with limited
    skills (for the very young driver) and limited
    information processing abilities (for the
    elderly)
  • graduated licensing for younger drivers, more
    frequent driving test
  • the standard visual acuity test very little
    relevance for driving ? dynamic visual acuity
  • Driver Characteristics Driver Adaptation and
    Risk Calibration
  • risk homeostasis model partially consistent ?
    motive for driving faster and force of habit
  • any safety intervention must consider the
    tendency for people to adapt to the new situation

8
  • Driver Characteristics Regulatory Compliance
  • effective enforcement of speed limits can make a
    difference automatic speed management system,
    automated systems for issuing tickets
  • Driver and Vehicle Characteristics Fitness to
    Drive
  • driver monitoring system -- monitoring the
    vehicle (e.g., steering behavior) and the driver
    (e.g., blinking rate, EEG)
  • Vehicle Characteristics Sensing and Warnings
  • high mounted brake lights, trilight system
  • Roadway Characteristics Expectancy
  • positive guidance, light cycle
  • expectancy and standardization on sign location
    and interaction design
  • reduce the consequence of an accident
  • Driver and Vehicle Characteristics Use of
    Protective Devices
  • AUTOMATIVE AUTOMATION
  • Intelligent Transportation System (ITS)
    collision warning systems, automated navigation
    systems, driver monitors GPS system, traffic
    sensing devices, digital map database, wireless
    connection
  • user trust and complacency
  • attention may be drawn more into the vehicle
  • introduce a new type of productivity and safety
    tradeoff in driving

9
  • PUBLIC GROUND TRANSPORTATION
  • Maritime Human Factors
  • fatigue and crew reductions
  • extremely sluggish in their handling qualities,
    benefiting from predictive displays
  • Aviation Human Factors
  • The Tasks
  • primary multiaxis tracking task -- aviating
  • maintaining situation awareness, navigating to
    three-dimensional points, following procedures,
    communicating with controllers and other pilots,
    monitoring system status
  • competition -- visual, perceptual, cognitive, and
    response-related resources
  • Tracking and Flight Control
  • 6 degrees of freedom of motion
  • rotational axes -- pitch, roll (or bank), and yaw
  • translational axes lateral, vertical, and
    longitudinal
  • two primary goals
  • aviating -- keeping the plane from stalling by
    maintaining adequate air flow over the wings,
    which produces lift ? control of the airspeed and
    attitude (pitch and roll)
  • navigate the aircraft to points in the 3-D
    airspace (4-D navigation with time)
  • yoke controls the elevators and ailerons pitch
    and bank (first-order dynamics)
  • throttle controls airspeed
  • rudder pedals help coordinate turning and heading
    changes

10
  • three facets make the multielements tracking task
    much more difficult
  • displays do not show a good, integrated,
    pictorial representation of the aircraft
  • the dynamics of several aspects of flight control
    are higher order
  • the axes often have cross-couplings
  • Maintaining Situation Awareness
  • achieving SA through display design -- HUD
  • Following Procedures
  • to assist the pilots prospective memory
    knowledge in the world in the checklist
  • two kinds of errors in following checklists
  • top-down processing (coupled with time pressure)
    may lead to see the item in its appropriate
    state, even if it is not
  • distractions can lead the pilot to skip a step in
    the checklist
  • redundant participation, automation
  • The Social Context
  • breakdowns in pilot team performance ? junior vs.
    senior ? CRM (cockpit/crew resource management)
  • Supporting the Pilot
  • maintenance technicians and their inspection and
    trouble shooting skills
  • aircraft automation human-centered automation
  • air traffic control

11
18. Selection and Training
  • PERSONNEL SELECTION
  • predicting future job performance categorize
    accepted applicants into the job type
  • interviews, work histories, background checks,
    tests, references, work samples
  • signal detection theory ? hit, miss, false alarm,
    correct rejection
  • Basics of Selection
  • job analysis selection, training, performance
    appraisal, setting salary levels ? tasks,
    environments, related knowledge, skills,
    abilities
  • already have the task-specific knowledge and
    skills required or show evidence of basic
    knowledge and abilities
  • criterion-related validity Fig. 18.1
  • Selection Tests and Procedures
  • Measures of Cognitive Ability
  • standardized tests ? more valid than any others
  • complex jobs (general intelligence working
    memory capacity) high complexity (verbal and
    numerical ability) low complexity (motor
    coordination and manual dexterity)
  • Measures of Physical Ability and Psychomotor
    Skills
  • physical strength, physical endurance, manual
    dexterity, and/or psychomotor skills
  • Personality Assessment
  • clinical measures mental illness or behavioral
    disorders not appropriate
  • personality dimensions five basic personality
    factors/clusters

12
  • Work Samples and Job Knowledge
  • work sampling expensive to assess
  • video assessment see a short scenario and
    respond in the situation
  • job knowledge test high transferable knowledge
    to the job, motivation factor
  • Structured Interviews
  • questions based on and related to knowledge and
    skills identified in the job analysis
  • describe previous work behavior ? critical
    behavior interview discuss recent occasions
    when they felt they were performing at their best
  • PERFORMANCE SUPPORT AND JOB AIDS
  • performance-support approach ? as needed basis,
    shifting a learn-and-apply to
    learning-while-applying cycle
  • performance support the process of providing a
    set of information and learning activities in a
    context-specific fashion during task performance
    ? efficient because of less taxing on memory
    Fig. 18.2
  • Job Aids and Instructions
  • job aids - daily to-do list, recipe, note cards,
    computer templates, instructions for assembling a
    product, procedural lists
  • traditional instruction manual ? Wrights
    quidelines -- caution against using prose,
    effective use of pictures (redundancy gain),
    proximity-compatibility principle
  • voice coupled with pictures when presenting
    instructions
  • Embedded Computer Support
  • on-line help system adaptive automation ?
    interrupting the ongoing task
  • when to use performance support, training, or
    both table 18.1

13
  • TRAINING
  • Learning and Expertise
  • three different stages in the development of
    expertise (fig. 18.4, 18.5)
  • knowledge about a job or a task characterized by
    declarative knowledge not well organized,
    fragile
  • with familiarity and practice, procedural
    knowledge by rules and if-then statements
  • automaticity
  • Methods for Enhancing Training
  • the best training in the shortest time, to the
    longest retention, the least expensive
  • Practice and Overlearning
  • overlearning beyond error-free performance
  • improving in the speed of performance involving
    cognitive or motor aspects ? automaticity ?
    important in skills with high multitasking
    requirements
  • decrease the rate of forgetting and increase the
    ease of a task
  • Encouraging Deep, Active, and Meaningful
    Processing
  • deep processing -- chunking in the formation of
    meaningful associations with material already in
    WM to learn the new material
  • generation effect
  • active problem solving and group participation
  • better retained when understanding why rather
    than what embedded in the context of the
    procedural task to be learned

14
  • Offering Feedback
  • corrective feedback, motivational feedback
  • immediately after the skill is performed
  • Consider Individual Differences
  • redundancy of graphics and words is most helpful
  • Pay Attention to Attention
  • learning is information processing, and
    information processing is generally resources
    limited
  • cognitive load theory
  • Training in Parts
  • part-task training is not always superior to
    whole-task training ? how the task is broken down
  • segmentation several components occurring in
    sequence without overlapping
  • fractionation component tasks performed
    simultaneously or concurrently
  • Simplifying, Guiding and Adaptive Training
  • simplification reducing load and errors of
    performance
  • guiding training wheels approach disabling
    or freezing keys
  • simplified version of a skill will not transfer
    to the complex version
  • learners can become overly dependent on the
    guidance or scaffolding
  • Media Matters?
  • modest benefits of computer-based instruction
    these gains are not large ? the particular aspect
    of the computer media not the computer itself

15
  • Transfer of Training and Simulation
  • how well the learning in one environment enhance
    performance in a new environment
  • positive/negative transfer
  • transfer (control time transfer
    time)/(control time)100 savings/(control
    time)100
  • transfer effectiveness ratio savings/(training
    time)
  • realism or fidelity of the simulator more
    realism does not necessarily produce more
    positive transfer
  • On the Job Training and Embedded training
  • much less effective than other training methods
    very effective if using Instructional System
    Design with strong guidance to the trainer
  • embedded training is most appropriate for jobs
    that rely at least partially on computers
  • TRAINING PROGRAM DESIGN
  • A Training Program Design Model
  • ISD (Instructional System Design) models
    similar to human factors design models
  • front-end analysis phase ? design and development
    phase ? implementation ? final system evaluation
    phase
  • developing job aids, instructional manuals,
    performance-support systems in addition to more
    traditional training programs

16
  • Phase 1 Front-End Analysis
  • organizational analysis
  • information-collection activity to identify any
    factors regarding the need for and success for a
    training program future company change such as
    job redesign or acquisition or new technology,
    management attitude toward job duties
  • document analysis, interviews, questionnaires,
    job tests, observation
  • task analysis
  • identify the knowledge, skills, and behavior for
    successful task performance
  • trainee analysis identifies
  • prerequisite knowledge and skills to begin the
    training program
  • demographics such as age, physical capabilities,
    primary language, and background
  • attitudes toward training methods
  • training needs analysis -- to determine the most
    appropriate performance improvement approach
    among task redesign, performance support, develop
    a training program
  • Phase 2 Design and Development
  • design concepts (cost/benefit analysis) ? project
    plan ? prototype for formative evaluation and
    usability testing ? full-scale development ?
    final usability test
  • Phase 3 Program Evaluation
  • what criteria to measure, when to measure the
    criteria, who (which trainee) to use in measuring
    the criteria, what context to use
  • pretest-posttest experimental design, control
    group design

17
19. Social Factors
  • GROUPS AND TEAMS
  • trend in organizational design
  • flattening structures, decentralized decision
    making, use of groups and teams
  • Characteristics of Groups and Teams
  • organize every function into ten- to
    thirty-person, largely self-managing teams
  • team characteristics
  • the key to group performance communication
  • crew a group of persons or team that manages
    some of technology usually in transportation
  • Group Performance
  • better at tasks than the average but not better
    than the best
  • work productivity less than the sum of the
    individuals
  • Team Performance
  • selection of an appropriate combination of
    members
  • four categories
  • problems interfering with team performance
  • taskwork skills
  • teamwork skills cooperation, coordination,
    communication, adaptibility, giving/accepting
    suggestions or criticism, showing team spirit

18
  • factors to team performance
  • no common mental model
  • no time and cognitive resources to communicate
    plans and strategies
  • no cognitive resources available to ask others
    for information
  • Team Training
  • acquisition of team work skills
  • development and use of shared mental models
  • strategies for effective communication,
    adaptation to stress, maintenance of situational
    awareness, group decision making, coordinated
    task performance
  • job cross-training
  • Team Instructional Prescriptions (TIP)
  • COMPUTER-SUPPORTED COOPERATIVE WORK
  • Decision Making Using Groupware
  • group communication support system
    teleconferencing, e-mail
  • group decision support system
  • Effects of Decision Support Systems
  • increase group members depth of analysis, group
    communication and efforts to achieve
    clarification, member participation, the
    consensus building of group
  • decrease the domination by a few people

19
  • Effects of Communication Support System
  • increase the level of participation and effort
    expended by group members
  • increase the depth of analysis
  • decrease domination of the group by a few members
  • increase decision times
  • decrease overall cooperation and consensus
    building
  • Computer-Supported Team Performance
  • group-view displays
  • provide a status overview
  • direct personnel to additional information
  • support collaboration among crew members
  • support coordination of crew activities
  • Difficulties in Remote Collaboration
  • increased difficulty in collaboration knowing
    who is doing what
  • increased difficulty in communication
  • increased difficulty in maintaining situation
    awareness because of a decrease in communication

20
  • MACROERGONOMICS AND INDUSTRIAL INTERVENTION
  • traditional ergonomics intervention in industry
    micoergonomics
  • macroergonomics
  • top-down sociotechnical systems approach to the
    design of organizations, work systems, jobs, and
    related human-machine, user-system, and
    human-environment interfaces
  • participatory ergonomics
  • employees know a great deal about their job and
    job environment
  • employee and management ownership enhances
    program implementation
  • end-user participation causes flexible problem
    solving
  • ergonomic interventions -- organizational
    barriers
  • promoting employee self-protective behavior
  • use of individual or group incentives
  • use of disciplinary actions
  • fear messages
  • behavior modeling of others
  • employee surveys

21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
About PowerShow.com
