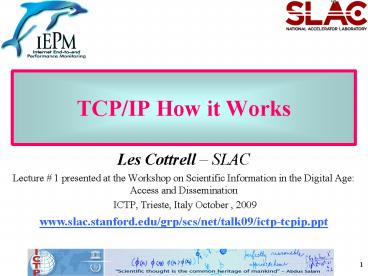

TCP/IP How it Works
Les Cottrell SLAC Lecture 1 presented at the
Workshop on Scientific Information in the Digital
Age Access and Dissemination ICTP, Trieste,
Italy October , 2009 www.slac.stanford.edu/grp/scs
/net/talk09/ictp-tcpip.ppt
1
2
Overview

• This is not a lecture on how to program TCP/IP,
  rather an introduction to how major portions
  works, it also does not cover IPv6.
• IP
• Addressing IP addresses, ARP, routing
• ICMP
• UDP
• TCP flow control, error recovery, establishment,
  diconnect
• References
• Internetworking with TCP/IP, volume I,
  principles, protocols Architecture, by Douglas
  Comer
• TCP/IP Illustrated the protocols, by W.
  Richard Stevens
• Most information also available free via Web
  searches

3
Internet Protocol (IP RFC-791)
TCP/IP Internet provides 3 layers of service
Application services

• Transport Services

Connectionless packet delivery service

• Layering allows one to replace one service
  without affecting others
• IP layer (basic unit of transfer in TCP/IP)
  provides
• Best-effort (does not discard capriciously),
  unreliable (no guarantees)
• Packet may be lost, duplicated, out-of-order with
  no notification
• Connectionless (each packet treated
  independently)
• IP software provides routing

4
Internet datagram (packet)

• Basic transfer unit
• Format of Internet datagram

Datagram header
Datagram data area
0
8
16
31
24
4
19
Vers
Type of serv.
Total length
Hlen

Identification
Flags
Fragment offset

TTL
Protocol
Header Checksum
Source IP address
Destination IP address
IP Options (if any)
Padding
Data

5
IP Datagram format (cont.)

• Source destination IP address (32 bits each)
  contain IP address of sender and intended
  recipient
• Options (variable length) Mainly used to record
  a route, or timestamps, or specify routing

6
IP Fragmentation

• How do we send a datagram of say 1400 bytes
  through a link that has a Maximum Transfer Unit
  (MTU) of say 620 bytes?
• Answer the datagram is broken into fragments
• Router fragments 1400 byte datagrams
• Into 600 bytes, 600 bytes, 200bytes (note 20
  bytes for IP header)
• Routers do NOT reassemble, up to end host

Net 1 MTU1500
Net 3 MTU1500
Net 2 MTU620
7
Fragmentation Control

• Identification copied into fragment, allows
  destination to know which fragments belong to
  which datagram
• Fragment Offset (12 bits) specifies the offset
  in the original datagram of the data being
  carried in the fragment
• Measured in units of 8 bytes starting at 0
• Flags (3 bits) control fragmentation
• Reserved (0-th bit)
• Dont Fragment DF (1st bit)
• useful for simple (computer bootstrap)
  application that cant handle
• also used for MTU discovery (see later)
• if need to fragment and cant router discards
  sends error to source
• More Fragments (least sig bit) tells receiver it
  has got last fragment
• TCP traffic is hardly ever fragmented (due to use
  of MTU discovery). About 0.5 - 0.1 of TCP
  packets are fragmented .

8
Fragment series composition
Offset0 More frags
Offset1480 More frags
Offset2960 More frags
Offset3440 Last frag
NB. If data segment contains its own header that
is not replicated
9
Internet Addressing

• IP address is a 32 bit integer
• Refers to interface rather than host
• Consists of network and host portions
• Enables routers to keep 1 entry/network instead
  of 1/host
• Class A, B, C for unicast
• Class D for multicast
• Class E reserved
• Classless addresses
• Written as 4 octets/bytes in decimal format
• E.g. 134.79.16.1, 127.0.0.1

10
Internet Class-based addresses

• Class A large number of hosts, few networks
• 0nnnnnnn hhhhhhhh hhhhhhhh hhhhhhhh
• 7 network bits (0 and 127 reserved, so 126
  networks), 24 host bits (gt 16M hosts/net)
• Initial byte 1-127 (decimal)
• Class B medium number of hosts and networks
• 10nnnnnn nnnnnnnn hhhhhhhh hhhhhhhh
• 16,384 class B networks, 65,534 hosts/network
• Initial byte 128-191 (decimal)
• Class C large number of small networks
• 110nnnnn nnnnnnnn nnnnnnnn hhhhhhhh
• 2,097,152 networks, 254 hosts/network
• Initial byte 192-223 (decimal)
• Class D 224-239 (decimal) Multicast RFC1112
• Class E 240-255 (decimal) Reserved

11
Subnets

• A subnet mask is applied to the host bits to
  determine how the network is subnetted, e.g. if
  the host is 137.138.28.228, and the subnet mask
  is 255.255.255.0 then the right hand 8 bits are
  for the host (255 is decimal for all bits set in
  an octet)
• Host addresses of all bits set or no bits set,
  indicate a broadcast, i.e. the packet is sent to
  all hosts.

12
Subnet Mask Conversions
Prefix Length
Prefix Length
Subnet Mask
Subnet Mask
/1 128.0.0.0 /2 192.0.0.0 /3 224.0.0.0 /4 240.
0.0.0 /5 248.0.0.0 /6 252.0.0.0 /7 254.0.0.0 /8
255.0.0.0 /9 255.128.0.0 /10 255.192.0.0 /11
255.224.0.0 /12 255.240.0.0 /13 255.248.0.0 /14
255.252.0.0 /15 255.254.0.0 /16 255.255.0.0
/17 255.255.128.0 /18 255.255.192.0 /19 255.255
.224.0 /20 255.255.240.0 /21 255.255.248.0 /22
255.255.252.0 /23 255.255.254.0 /24 255.255.255
.0 /25 255.255.255.128 /26 255.255.255.192 /27
255.255.255.224 /28 255.255.255.240 /29 255.255.
255.248 /30 255.255.255.252 /31 255.255.255.254
/32 255.255.255.255
Decimal Octet
Binary Number
128 1000 0000 192 1100 0000
224 1110 0000 240 1111 0000 248 1111
1000 252 1111 1100 254 1111 1110
255 1111 1111
13
Address depletion

• In 1991 IAB identified 3 dangers
• Running out of class B addresses
• Increase in nets has resulted in routing table
  explosion
• Increase in net/hosts exhausting 32 bit address
  space
• Four strategies to address
• Creative address space allocation RFC 2050
• Private addresses RFC 1918, Network Address
  Translation (NAT) RFC 1631
• Classless InterDomain Routing (CIDR) RFC 1519
• IP version 6 (IPv6) RFC 1883

14
Creative IP address allocation

• Class A addresses 64 127 reserved
• Handle on individual basis, got some back (eg
  Stanford)
• Class B only assigned given a demonstrated need
• Class C
• divided up into 8 blocks allocated to regional
  authorities
• 208-223 remains unassigned and unallocated
• Four main registries handle assignments
• APNIC Asia Pacific www.apnic.net
• ARIN N. S. America, Caribbean sub-Saharan
  Africa www.arin.net
• RIPE Europe and surrounding areas www.ripe.net
• AFRINIC

15
Private IP Addresses

• IP addresses that are not globally unique, but
  used exclusively in an organization
• Three ranges
• 10.0.0.0 - 10.255.255.255 a single class A net
• 172.16.0.0 - 172.31.255.255 16 contiguous class
  Bs
• 192.168.0.0 192.168.255.255 256 contiguous
  class Cs
• Connectivity provided by Network Address
  Translator (NAT)
• translates outgoing private IP address to
  Internet IP address, and a return Internet IP
  address to a private address
• Only for TCP/UDP packets

16
Class InterDomain Routing (CIDR)

• Many organization have gt 256 computers but few
  have more than several thousand
• Instead of giving class B (16384 nets) give
  sufficient contiguous class C addresses to
  satisfy needs
• lt 256 addresses assign 1 class C
• lt 8192 addresses assign 32 contiguous Class C
  nets

17
CIDR Supernetting

• Since assigned contiguously, class C CIDR has
  same most significant bits so only needs one
  routing table entry
• CIDR block represented by a prefix and prefix
  length
• Prefix single address representing block of
  nets, e.g
• 192.32.136.0 11000000 00100000 10001000
  00000000 while
• 192.32.143.0 11000000 00100000 10001111
  00000000
• Prefix length indicates number of routing bits,
  e.g.
• 192.32.136.0/21 means 21 bits used for routing
• Mask 255.255.248.0
• CIDR collects all nets in range 192.32.136.0
  through 143.0 into a single router entry
  reduces router table entries
• Removes address classes A, B C boundaries
• For more details see RFC 1519

21 bit prefix (2048 host addresses)
18
Address Recognition Protocol (ARP)

• IP address is at network layer, need to map it to
  the MAC (Ethernet address) link layer address
• Use ARP to map 48 bit Ethernet address to 32 bit
  IP
• IP requests MAC address for IP address from local
  ARP table
• If not there, then an ARP request packet for IP
  address is sent using physical broadcast address
  (all FFFs)
• Host with requested IP address responds with its
  MAC address as a unicast packet
• On return, host updates ARP table and returns MAC
  address
• ARP cache times out
• ARP packets are on top of Ethernet

19
ARP cont.

• ARP requests are local only, do not cross routers
• Compare local IP and subnet mask gt local subnet
• Compare local subnet to destination IP
• if local, ARP for MAC address
• else remote so
• if ROUTE entry, ARP for router to subnet
• if default route, ARP for default gateway
• otherwise, drop packet return error

Subnet 1
Subnet 2
134.79.10.17
134.79.15.3
134.79.15.1
134.79.10.1
User A
User B
20
Routing

• Routers must select next hop for packet
• Get route information from other routers via a
  routing protocol (RIP, OSPF, EIGRP, BGP etc.)
• Note the following are non-routable
• private networks 10.0.0.0/8, 172.16.0.0/12,
  192.168.0.0/16
• Loopback 127.0.0.0/24

21
ICMP Purpose (RFC 792)

• Communicates control error information
• Between routers and hosts
• Only reports to original source, suggests
  corrections
• Error messages about error messages are not
  generated
• Never generated due to multicasts
• Packet format

0
8
16
31
24
Type
Code
Checksum


ICMP data (depends on type/code)
22
Main ICMP request types
Type ICMP
0 Echo reply, ping
3 Destination unreachable (code 1 host, code 3 port) DF and must fragment (code 4)
4 Source quench
5 Redirect (change a route)
8 Echo request
11 Time exceeded (code 0 ttl0, code 1 reassembly)
12 Parameter problems
23
ICMP Echo/Ping

• Very commonly used diagnostic tool
• Implementations vary between OS
• Build echo request
• Identifier used to match request to replies (e.g.
  pid)
• Sequence number, starts at 0 increments by 1 for
  each ping packet
• Used to detect loss, reorder, duplicates
• Optional data, sent by requester, returned by
  replier
• Usually contains a timestamp when the request was
  sent plus pad data

0
8
16
31
24
Type8
Code0
Checksum



Identifier
Sequence number
Optional data
24
What do we learn from Ping

• Host reachable
• Host may respond to ping but not be running
  services
• Round trip timing
• Lost packets
• Packet reordering duplicate packets
• Example

13cottrell_at_noric05gtping -c 4 lhr.comsats.net.pk
PING lhr.comsats.net.pk (210.56.16.10) from
134.79.125.205 56(84) bytes of data. 64 bytes
from lhr.comsats.net.pk (210.56.16.10)
icmp_seq0 ttl242 time716.962 msec 64 bytes
from lhr.comsats.net.pk (210.56.16.10)
icmp_seq1 ttl242 time720.375 msec 64 bytes
from lhr.comsats.net.pk (210.56.16.10)
icmp_seq2 ttl242 time725.907 msec 64 bytes
from lhr.comsats.net.pk (210.56.16.10)
icmp_seq3 ttl242 time710.734 msec ---
lhr.comsats.net.pk ping statistics --- 4 packets
transmitted, 4 packets received, 0 packet
loss round-trip min/avg/max/mdev
710.734/718.494/725.907/5.566 ms
25
Time Exceeded

• Time-to-live has expired at a router (code0)
• ttl sets bound on number routers datagram can
  transit
• Prevents infinite routine loops
• Initialized by sender, decremented by 1 each time
  passes router
• When ttl 0 datagram thrown away sender
  notified by ICMP message
• Fragment reassembly timer (code1)

0
8
16
31
24
Type 11
Code
Checksum



Unused
Internet header 8 bytes of data
26
MTU Discovery

• Path MTUs vary
• Fragmentation is bad
• Small transmission units are bad
• SO need to discover optimum MTU (largest without
  fragmentation)
• Host sends a packet with the Dont Fragment bit
  set
• Length is lesser of local MTU and MSS announced
  by remote system
• If MTU between hosts requires fragmentation (e.g.
  at an intermediate router), then
• if an ICMP DF bit set must fragment then an
  ICMP message is sent back to source, saying I
  cant fragment
• try again with smaller size.

27
User Datagram Protocol - UDP

• RFC 768, Protocol 17
• Provides unreliable, connectionless on top of IP
• Minimal overhead, high performance
• No setup/teardown, 1 datagram at a time
• Application responsible for reliability
• Includes datagram loss, duplication, delay,
  out-of-sequence, multiplexing, loss of
  connectivity

Demux on Port number
Port 1
Port 2
Port 1
Port 2
App.
Transport
UDP
TCP
Demux on IP protocol
IP
Network
28
UDP Datagram format

• Source/destination port port numbers identify
  sending receiving processes
• Port number IP address allow any application in
  any computer on Internet to be uniquely
  identified
• Used to demultiplex datagrams to processes
• Ports can be static or dynamic
• Static (lt 1024) assigned centrally, known as well
  known ports
• Dynamic
• Message length in bytes includes the UDP header
  and data

29
UDP applications

• Message oriented, e.g. SNMP, DNS, time, some Real
  Time data (e.g. VoIP data, but not setup)
• Some File systems, e.g. NFS, AFS
• Lightweight file transfer, e.g. tftp, bootp

30
Transmission Control Protocol -TCP

• RFC 768 host requirements RFC 1122
• Reliable stream transport
• Connection oriented (full duplex virtual circuit)
• Conceptually place call, two ends communicate to
  agree on details
• After agreeing application notified of connection
• During transfer, ends communicate continuously to
  verify data received correctly
• When done, ends tear down the connection
• If UDP is like regular mail, TCP is like phone
  call
• Provides buffering and flow control
• Takes care of lost packets, out of order,
  duplicates, long delays
• Isolates application program from network details
• Jargon
• Segment TCP packet
• Socket source (address port) destination
  (address port)

31
TCP layering

• To ID connection need
• Source (address, port) AND Destination
  (address, port)
• Only need one port on host to allow multiple
  connections, since each connection will have
  different (host, port) at other end
• E.g. single host can serve multiple telnet
  connections
• Passive open application contacts OS
  indicates will accept incoming connection, OS
  assigns port and listens
• Active open application requests OS to connect
  to an (host, port)

Port 1
Port 2
Port 1
Port 2
App.
Demux on Port number
Transport
UDP
TCP
Demux on IP protocol
IP port 6
IP
Network
32
TCP providing reliability

• Positive acknowledgement (ACK) with
  retransmission
• Sender keeps record of each packet sent
• Sender awaits an ACK
• Sender starts timer when sends packet

Receiver site
Sender site
Send pkt 1
Rcv pkt 1
Send ACK 1
Time
Rcv ACK 1
Send pkt 2
Rcv pkt 2
Send ACK 2
Rcv ACK 2
Network messages
33
TCP simple lost packet recovery
Sender site
Receiver site
Loss
Send pkt 1 Start timer
Pkt should arrive
ACK should be sent
ACK normally arrives
Timer expires
Retransmit pkt 1 start timer
Rcv pkt 1
Send ACK 1
Rcv ACK 1
Network messages
34
TCP improving performance

• BUT simple ACK protocol wastes bandwidth since it
  must delay sending next packet until it gets ACK
• Use sliding window
• Sender can send 4 packets of data without ACK
• When sender gets ACK then can send another packet
• Window unacknowledged packets/bytes
• Keeps timer for each packet

Window slides
Initial window of 4 packets

1. 2 3 4 5 6 7 8

1. 2 3 4 5 6 7 8

Packets to be sent
Packets successfully sent
Packets sent, awaiting ACK
35
Tuning to fill pipe

• Optimal window size depends on
• Bandwidth end to end, i.e. min(BWlinks) AKA
  bottleneck bandwidth
• Round Trip Time (RTT)
• For TCP keep pipe full
• Window (sometime called pipe) RTTBW
• Can increase bandwidth by
• orders of magnitude
• Windows also used for flow control

Src
Rcv
36
Implementation

• Sliding window operates at byte level, NOT packet
• Receiver keeps similar window to put stream back
  together
• Since full duplex, altogether 4 windows pointer
  sets

Current window

1. 2 3 4 5 6 7 8

Highest byte that can be sent
3 pointers
Highest byte sent
Bytes sent and acknowledged
37
TCP flow control

• Windows vary over time
• Receiver advertises (in ACKs) how many it can
  receive
• Based on buffers etc. available
• Sender adjusts its window to match advertisement
• If receiver buffers fill, it sends smaller
  adverts
• Used to match buffer requirements of receiver
• Also used to address congestion control (e.g. in
  intermediate routers)

38
TCP Segment format
8
16
24

• Source/Dest port TCP port numbers to ID
  applications at both ends of connection
• Sequence number ID position in senders byte
  stream

0
31
4
10

Source port

Destination port
Sequence number
Acknowledgement number
Hlen
Resv
Code
Window
Urgent ptr
Checksum
Options (if any)
Padding
Data if any

39
TCP segment format cont.

• Acknowledgement identifies the number of the
  byte the sender of this segment expects to
  receive next
• Hlen specifies the length of the segment header
  in 32 bit multiples. If there are no options, the
  Hlen 5 (20 bytes)
• Reserved for future use, set to 0
• Code used to determine segment purpose, e.g.
  SYN, ACK, FIN, URG

40
TCP Segment format- cont

• Window Advertises how much data this station is
  willing to accept. Can depend on buffer space
  remaining.
• Checksum Verifies the integrity of the TCP
  header and data. It is mandatory.
• Urgent pointer used with the URG flag to
  indicate where the urgent data starts in the data
  stream. Typically used with a file transfer abort
  during FTP or when pressing an interrupt key in
  telnet.
• Options used for window scaling, SACK,
  timestamps, maximum segment size etc.

41
TCP timeout

• Need a timeout estimate that will work for LANs
  (RTT lt msec.) to satellite WANs (hundreds of
  msec. to secs). RTT can vary a lot with time of
  day, day of week, or one second to next.
• TCP records time segment sent
• and time ACK received
• Then calculates RTT sample
• Smooth use to estimate timeout, e.g.
• Timeoutbeta RTTs
• Timeout RTTs eta4f(dev(RTTs))
• Needs to take account of losses, e.g.
• New_timeoutgamma2 timeout

May 12th
RTT ms.
Time of day
42
TCP connection establishment

• 3 way handshake
• Initial sequence numbers (x, y) are chosen
  randomly
• Guarantees both sides ready know it, and sets
  initial sequence numbers, also sets window mss
• Once connection established, data can flow in
  both directions, equally well, there is no master
  or slave

Site 2
Site 1
Active Win 4096, mss 1024
Send SYN seq x
Rcv SYN segment
Passive Win 4096, mss 1024
Send SYN seqy, ACK x1
Rcv SYN/ACK
Send ACK y1
Rcv ACK segment
43
TCP close connection

• Modified 3 way handshake (or 4 way termination)
• App tells TCP to close, TCP sends remaining data
  waits for ACK, then sends FIN
• Site 2 TCP ACKs FIN, tells its application end
  of data
• Site 2 sends FIN when its app closes connection
  (may be long delay (e.g. require human
  interaction).

Site 1
Site 2
(App closes) Send FIN seqx, ACKy
Rcv FIN segment
FIN Wait1
Send seqy, ACK x1 (inform app)
Rcv ACK segment
Close Wait
FIN Wait2
(app closes connection) Send FIN seqy, ACK x1
Rcv FIN ACK seg Send ACK y1
Last ACK
TimeWait
Receive ACK segment
Closed
44
More Information

• Lectures, tutorials etc
• www.nv.cc.va.us/home/joney/tcp_ip.htm
• www.cs.pdx.edu/jrb/tcpip.lectures.html
• www.raleigh.ibm.com/cgi-bin/bookmgr/BOOKS/EZ306200
  /CCONTENTS
• www.cisco.com/univercd/cc/td/doc/product/iaabu/cen
  tri4/user/scf4ap1.htm
• www.cis.ohio-state.edu/htbin/rfc/rfc1180.html
• www.jbmelectronics.com/tcp.htm
• Encylopaedia
• http//www.freesoft.org/CIE/index.htm
• TCP/IP Resources
• www.private.org.il/tcpip_rl.html
• Understanding IP addresses
• http//www.3com.com/solutions/en_US/ncs/501302.htm
  l
• Configuring TCP (RFC 1122)
• ftp//nic.merit.edu/internet/documents/rfc/rfc1122
  .txt
• Assigned protocols, ports etc (RFC 1010)
• http//www.es.net/pub/rfcs/rfc1010.txt
  /etc/protocols

45
Example 3 way handshake

• atlasgt telnet sunstats.cern.ch
• atlas is a WNT PC, sunstats is a Sun Solaris 5.6
  host
• MSS is set in TCP option in a SYN segment,
  communicates the MSS the sender wants to receive
• lenip_hlen/tcp_hlenip_total_len
• Initial Sequence Numbers are randomly selected
• Telnet port 23
• WReceive window size advertises how much data
  this host will accept

46
Example 3 way handshake - cont.

• TCP from atlas1174 to sunstats23 seq180839,
  A0, W8192, SYN len5/644, opt020405B4
  ltopt2, len4, mss0x5B41460gt
• TCP from sunstats23 to atlas1174
  seq1383568304, A180840, W64240, SYN/ACK
  len5/644, opt020405B4
• TCP from atlas1174 to sunstats23 seq 180840,
  A1383568305, W8760 len5/540, optnul
• Notice window size can vary from segment to
  segment depending on buffer space available
• Notice smaller PC window advertisement
• Notice ephemeral port selected by telnet client
• Notice acknowledge next expected byte (seq1)
• 0x020405B4 02 option type, 04len, 0x5B41460

47
Session start
SLACgtCERN 256kbyte window,1 stream, full speed
gt 30msec, 13MBytes in 20s, 5.1MBytes/s
Congestion window
Rcvr Advertised window
Segments sent
Acks returned by Rcvr
48
Unreachable
76cottrell_at_flora06gtping islamabad-server2.comsat
s.net.pk ICMP 13 Unreachable from gateway
207.45.205.18 for icmp from FLORA06.SLAC.Stanford
.EDU (134.79.16.101) to islamabad-server2.comsats.
net.pk (210.56.8.8) What does this mean, see
exercise?
