Title: Known Probability Distributions


1

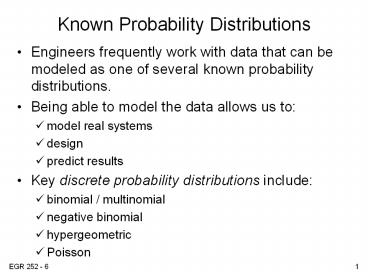

Known Probability Distributions
  • Engineers frequently work with data that can be
    modeled as one of several known probability
    distributions.
  • Being able to model the data allows us to
  • model real systems
  • design
  • predict results
  • Key discrete probability distributions include
  • binomial / multinomial
  • negative binomial
  • hypergeometric
  • Poisson

2
Discrete Uniform Distribution
  • Simplest of all discrete distributions
  • All possible values of the random variable have
    the same probability, i.e.,
  • f(x k) 1/ k, x x1 , x2 , x3 , , xk
  • Expectations of the discrete uniform distribution

3
Binomial Multinomial Distributions
  • Bernoulli Trials
  • Inspect tires coming off the production line.
    Classify each as defective or not defective.
    Define success as defective. If historical data
    shows that 95 of all tires are defect-free, then
    P(success) 0.05.
  • Signals picked up at a communications site are
    either incoming speech signals or noise. Define
    success as the presence of speech. P(success)
    P(speech)
  • Administer a test drug to a group of patients
    with a specific condition. P(success)
    ___________
  • Bernoulli Process
  • n repeated trials
  • the outcome may be classified as success or
    failure
  • the probability of success (p) is constant from
    trial to trial
  • repeated trials are independent.

4
Binomial Distribution
  • Example
  • Historical data indicates that 10 of all bits
    transmitted through a digital transmission
    channel are received in error. Let X the number
    of bits in error in the next 4 bits transmitted.
    Assume that the transmission trials are
    independent. What is the probability that
  • Exactly 2 of the bits are in error?
  • At most 2 of the 4 bits are in error?
  • more than 2 of the 4 bits are in error?
  • The number of successes, X, in n Bernoulli trials
    is called a binomial random variable.

5
Binomial Distribution
  • The probability distribution is called the
    binomial distribution.
  • b(x n, p) , x 0, 1, 2, , n
  • where p _________________
  • q _________________
  • For our example,
  • b(x n, p) _________________

6
For Our Example
  • What is the probability that exactly 2 of the
    bits are in error?
  • At most 2 of the 4 bits are in error?

7
Your turn
  • What is the probability that more than 2 of the 4
    bits are in error?

8
Expectations of the Binomial Distribution
  • The mean and variance of the binomial
    distribution are given by
  • µ np
  • s2 npq
  • Suppose, in our example, we check the next 20
    bits. What are the expected number of bits in
    error? What is the standard deviation?
  • µ ___________
  • s2 __________ , s __________

9
Another example
  • A worn machine tool produces 1 defective parts.
    If we assume that parts produced are independent,
    what is the mean number of defective parts that
    would be expected if we inspect 25 parts?
  • What is the expected variance of the 25 parts?

10
Helpful Hints
  • Sometimes it helps to draw a picture.
  • Suppose we inspect the next 5 parts
  • P(at least 3) ?
  • P(2 X 4) ?
  • P(less than 4) ?
  • Appendix Table A.1 (pp. 742-747) lists Binomial
    Probability Sums, ?rx0b(x n, p)

11
Your turn
  • Use Table A.1 to determine
  • 1. b(x 15, 0.4) , P(X 8) ______________
  • 2. b(x 15, 0.4) , P(X lt 8) ______________
  • 3. b(x 12, 0.2) , P(2 X 5) ___________
  • 4. b(x 4, 0.1) , P(X gt 2) ______________

12
Multinomial Experiments
  • What if there are more than 2 possible outcomes?
    (e.g., acceptable, scrap, rework)
  • That is, suppose we have
  • n independent trials
  • k outcomes that are
  • mutually exclusive (e.g., ?, ?, ?, ?)
  • exhaustive (i.e., ?all k pi 1)
  • Then
  • f(x1, x2, , xk p1, p2, , pk, n)

13
Example
  • Look at problem 5.22, pg. 152
  • f( __, __, __ ___, ___, ___, __)
    _________________
  • __________________________________

x1 _______ p1 _______
x2 _______ p2 _______ n _____
x3 _______ p3 _______
14
Hypergeometric Distribution
  • Example
  • Automobiles arrive in a dealership in lots of
    10. Five out of each 10 are inspected. For one
    lot, it is know that 2 out of 10 do not meet
    prescribed safety standards.
  • What is probability that at least 1 out of the 5
    tested from that lot will be found not meeting
    safety standards?
  • from Complete Business Statistics, 4th ed
    (McGraw-Hill)

15
  • This example follows a hypergeometric
    distribution
  • A random sample of size n is selected without
    replacement from N items.
  • k of the N items may be classified as successes
    and N-k are failures.
  • The probability associated with getting x
    successes in the sample (given k successes in the
    lot.)
  • Where,
  • k number of successes 2 n number in
    sample 5
  • N the lot size 10 x number found
  • 1 or 2

16
Hypergeometric Distribution
  • In our example,
  • _____________________________

17
Expectations of the Hypergeometric Distribution
  • The mean and variance of the hypergeometric
    distribution are given by
  • What are the expected number of cars that fail
    inspection in our example? What is the standard
    deviation?
  • µ ___________
  • s2 __________ , s __________

18
Your turn
  • A worn machine tool produced defective parts for
    a period of time before the problem was
    discovered. Normal sampling of each lot of 20
    parts involves testing 6 parts and rejecting the
    lot if 2 or more are defective. If a lot from the
    worn tool contains 3 defective parts
  • What is the expected number of defective parts in
    a sample of six from the lot?
  • What is the expected variance?
  • What is the probability that the lot will be
    rejected?

19
Binomial Approximation
  • Note, if N gtgt n, then we can approximate this
    with the binomial distribution. For example
  • Automobiles arrive in a dealership in lots of
    100. 5 out of each 100 are inspected. 2 /10
    (p0.2) are indeed below safety standards.
  • What is probability that at least 1 out of 5
    will be found not meeting safety standards?
  • Recall P(X 1) 1 P(X lt 1) 1 P(X 0)

Hypergeometric distribution Binomial distribution

(Compare to example 5.15, pg. 155)
20
Negative Binomial Distribution
  • Example
  • Historical data indicates that 30 of all bits
    transmitted through a digital transmission
    channel are received in error. An engineer is
    running an experiment to try to classify these
    errors, and will start by gathering data on the
    first 10 errors encountered.
  • What is the probability that the 10th error will
    occur on the 25th trial?

21
  • This example follows a negative binomial
    distribution
  • Repeated independent trials.
  • Probability of success p and probability of
    failure q 1-p.
  • Random variable, X, is the number of the trial on
    which the kth success occurs.
  • The probability associated with the kth success
    occurring on trial x is given by,
  • Where,
  • k success number 10
  • x trial number on which k occurs 25
  • p probability of success (error) 0.3
  • q 1 p 0.7

22
Negative Binomial Distribution
  • In our example,
  • _____________________________

23
Geometric Distribution
  • Example
  • In our example, what is the probability that the
    1st bit received in error will occur on the 5th
    trial?
  • This is an example of the geometric distribution,
    which is a special case of the negative binomial
    in which k 1.
  • The probability associated with the 1st success
    occurring on trial x is given by
  • __________________________________

24
Your turn
  • A worn machine tool produces 1 defective parts.
    If we assume that parts produced are independent
  • What is the probability that the 2nd defective
    part will be the 6th one produced?
  • What is the probability that the 1st defective
    part will be seen before 3 are produced?
  • How many parts can we expect to produce before we
    see the 1st defective part? (Hint see Theorem
    5.4, pg. 161)

25
Poisson Process
  • The number of occurrences in a given interval or
    region with the following properties
  • memoryless
  • P(occurrence) during a very short interval or
    small region is proportional to the size of the
    interval and doesnt depend on number occurring
    outside the region or interval.
  • P(Xgt1) in a very short interval is negligible

26
Poisson Process
  • Examples
  • Number of bits transmitted per minute.
  • Number of calls to customer service in an hour.
  • Number of bacteria in a given sample.
  • Number of hurricanes per year in a given region.

27
Poisson Process
  • Example
  • An average of 2.7 service calls per minute are
    received at a particular maintenance center. The
    calls correspond to a Poisson process. To
    determine personnel and equipment needs to
    maintain a desired level of service, the plant
    manager needs to be able to determine the
    probabilities associated with numbers of service
    calls.
  • What is the probability that fewer than 2 calls
    will be received in any given minute?

28
Poisson Distribution
  • The probability associated with the number of
    occurrences in a given period of time is given
    by,
  • Where,
  • ? average number of outcomes per unit time or
    region 2.7
  • t time interval or region 1 minute

29
Our Example
  • The probability that fewer than 2 calls will be
    received in any given minute is
  • P(X lt 2) P(X 0) P(X 1)
  • __________________________
  • The mean and variance are both ?t, so
  • µ _____________________
  • Note Table A.2, pp. 748-750, gives St p(xµ)

30
Poisson Distribution
  • If more than 6 calls are received in a 3-minute
    period, an extra service technician will be
    needed to maintain the desired level of service.
    What is the probability of that happening?
  • µ ?t _____________________
  • P(X gt 6) 1 P(X lt 6)
  • _____________________

31
Poisson Distribution
32
Poisson Distribution
  • The effect of ? on the Poisson distribution

33
Continuous Probability Distributions
  • Many continuous probability distributions,
    including
  • Uniform
  • Normal
  • Gamma
  • Exponential
  • Chi-Squared
  • Lognormal
  • Weibull

34
Uniform Distribution
  • Simplest characterized by the interval
    endpoints, A and B.
  • A x B
  • 0 elsewhere
  • Mean and variance
  • and

35
Example
  • A circuit board failure causes a shutdown of a
    computing system until a new board is delivered.
    The delivery time X is uniformly distributed
    between 1 and 5 days.
  • What is the probability that it will take 2 or
    more days for the circuit board to be delivered?

36
Normal Distribution
  • The bell-shaped curve
  • Also called the Gaussian distribution
  • The most widely used distribution in statistical
    analysis
  • forms the basis for most of the parametric tests
    well perform later in this course.
  • describes or approximates most phenomena in
    nature, industry, or research
  • Random variables (X) following this distribution
    are called normal random variables.
  • the parameters of the normal distribution are µ
    and s (sometimes µ and s2.)

37
Normal Distribution
  • The density function of the normal random
    variable X, with mean µ and variance s2, is
  • all x.

38
Standard Normal RV
  • Note the probability of X taking on any value
    between x1 and x2 is given by
  • To ease calculations, we define a normal random
    variable
  • where Z is normally distributed with µ 0 and
    s2 1

39
Standard Normal Distribution
  • Table A.3 Areas Under the Normal Curve

40
Examples
  • P(Z 1)
  • P(Z -1)
  • P(-0.45 Z 0.36)

41
Your turn
  • Use Table A.3 to determine (draw the picture!)
  • 1. P(Z 0.8)
  • 2. P(Z 1.96)
  • 3. P(-0.25 Z 0.15)
  • 4. P(Z -2.0 or Z 2.0)

42
The Normal Distribution In Reverse
  • Example
  • Given a normal distribution with µ 40 and s
    6, find the value of X for which 45 of the area
    under the normal curve is to the left of X.
  • If P(Z lt k) 0.45,
  • k ___________
  • Z _______
  • X _________

43
Normal Approximation to the Binomial
  • If n is large and p is not close to 0 or 1,
  • or
  • if n is smaller but p is close to 0.5, then
  • the binomial distribution can be approximated by
    the normal distribution using the transformation
  • NOTE add or subtract 0.5 from X to be sure the
    value of interest is included (draw a picture to
    know which)
  • Look at example 6.15, pg. 191

44
Look at example 6.15, pg. 191
  • p 0.4 n 100
  • µ ____________ s ______________
  • if x 30, then z _____________________
  • and, P(X lt 30) P (Z lt _________) _________

45
Your Turn
DRAW THE PICTURE!!
  • Refer to the previous example,
  • What is the probability that more than 50
    survive?
  • What is the probability that exactly 45 survive?

46
Gamma Exponential Distributions
  • Recall the Poisson Process
  • Number of occurrences in a given interval or
    region
  • Memoryless process
  • Sometimes were interested in the time or area
    until a certain number of events occur.
  • For example
  • An average of 2.7 service calls per minute are
    received at a particular maintenance center. The
    calls correspond to a Poisson process.
  • What is the probability that up to a minute will
    elapse before 2 calls arrive?
  • How long before the next call?

47
Gamma Distribution
  • The density function of the random variable X
    with gamma distribution having parameters a
    (number of occurrences) and ß (time or region).
  • x gt 0.
  • µ aß
  • s2 aß2

48
Exponential Distribution
  • Special case of the gamma distribution with a
    1.
  • x gt 0.
  • Describes the time until or time between Poisson
    events.
  • µ ß
  • s2 ß2

49
Example
  • An average of 2.7 service calls per minute are
    received at a particular maintenance center. The
    calls correspond to a Poisson process.
  • What is the probability that up to a minute will
    elapse before 2 calls arrive?
  • ß ________ a ________
  • P(X 1) _________________________________

50
Example (cont.)
  • What is the expected time before the next call
    arrives?
  • ß ________ a ________
  • µ _________________________________

51
Your turn
  • Look at problem 6.40, page 205.

52
Chi-Squared Distribution
  • Special case of the gamma distribution with a
    ?/2 and ß 2.
  • x gt 0.
  • where ? is a positive integer.
  • single parameter,? is called the degrees of
    freedom.
  • µ ?
  • s2 2?

EGR 252 Ch. 6
52
53
Lognormal Distribution
  • When the random variable Y ln(X) is normally
    distributed with mean µ and standard deviation s,
    then X has a lognormal distribution with the
    density function,

EGR 252 Ch. 6
53
54
Example
  • Look at problem 6.72, pg. 207
  • Since ln(X) has normal distribution with µ 5
    and s 2, the probability that X gt 50,000 is,
  • P(X gt 50,000) __________________________

EGR 252 Ch. 6
54
55
Wiebull Distribution
  • Used for many of the same applications as the
    gamma and exponential distributions, but
  • does not require memoryless property of the
    exponential

EGR 252 Ch. 6
55
56
Example
  • Designers of wind turbines for power generation
    are interested in accurately describing
    variations in wind speed, which in a certain
    location can be described using the Weibull
    distribution with a 0.02 and ß 2. A
    designer is interested in determining the
    probability that the wind speed in that location
    is between 3 and 7 mph.
  • P(3 lt X lt 7) ___________________________

EGR 252 Ch. 6
56
57
Populations and Samples
  • Population a group of individual persons,
    objects, or items from which samples are taken
    for statistical measurement
  • Sample a finite part of a statistical
    population whose properties are studied to gain
    information about the whole

(Merriam-Webster Online Dictionary,
http//www.m-w.com/, October 5, 2004)
58
Examples
  • Population
  • Students pursuing undergraduate engineering
    degrees
  • Cars capable of speeds in excess of 160 mph.
  • Potato chips produced at the Frito-Lay plant in
    Kathleen
  • Freshwater lakes and rivers
  • Samples

59
Basic Statistics (review)
  • 1. Sample Mean
  • Example
  • At the end of a team project, team members were
    asked to give themselves and each other a grade
    on their contribution to the group. The results
    for two team members were as follows
  • ___________________
  • ___________________

Q S
92 85
95 88
85 75
78 92
60
Basic Statistics (review)
  • 1. Sample Variance
  • For our example
  • SQ2 ___________________
  • SS2 ___________________

Q S
92 85
95 88
85 75
78 92
61
Your Turn
  • Work in groups of 4 or 5. Find the mean,
    variance, and standard deviation for your group
    of the (approximate) number of hours spent
    working on homework each week.

62
Sampling Distributions
  • If we conduct the same experiment several times
    with the same sample size, the probability
    distribution of the resulting statistic is called
    a sampling distribution
  • Sampling distribution of the mean if n
    observations are taken from a normal population
    with mean µ and variance s2, then

63
Central Limit Theorem
  • Given
  • X the mean of a random sample of size n taken
    from a population with mean µ and finite variance
    s2,
  • Then,
  • the limiting form of the distribution of
  • is _________________________

64
Central Limit Theorem
  • If the population is known to be normal, the
    sampling distribution of X will follow a normal
    distribution.
  • Even when the distribution of the population is
    not normal, the sampling distribution of X is
    normal when n is large.
  • NOTE when n is not large, we cannot assume the
    distribution of X is normal.

65
Example
  • The time to respond to a request for information
    from a customer help line is uniformly
    distributed between 0 and 2 minutes. In one month
    48 requests are randomly sampled and the response
    time is recorded.
  • What is the probability that the average
    response time is between 0.9 and 1.1 minutes?
  • µ ______________ s2 ________________
  • µX __________ sX2 ________________
  • Z1 _____________ Z2 _______________
  • P(0.9 lt X lt 1.1) _____________________________

66
Sampling Distribution of the Difference Between
two Averages
  • Given
  • Two samples of size n1 and n2 are taken from two
    populations with means µ1 and µ2 and variances
    s12 and s22
  • Then,

67
Sampling Distribution of S2
  • Given
  • S2 is the variance of of a random sample of size
    n taken from a population with mean µ and finite
    variance s2,
  • Then,
  • has a ?2 distribution with ? n - 1

68
?2 Distribution
  • ?a2 represents the ?2 value above which we find
    an area of a, that is, for which P(?2 gt ?a2 ) a.

69
Example
  • Look at example 8.10, pg. 256
  • µ 3 s 1 n 5
  • s2 ________________
  • ?2 __________________
  • If the ?2 value fits within an interval that
    covers 95 of the ?2 values with 4 degrees of
    freedom, then the estimate for s is reasonable.
  • (See Table A.5, pp. 755-756)

70
Your turn
  • If a sample of size 7 is taken from a normal
    population (i.e., n 7), what value of ?2
    corresponds to P(?2 lt ?a2) 0.95? (Hint first
    determine a.)

71
t- Distribution
  • Recall, by CLT
  • is n(z 0,1)
  • Assumption _____________________
  • (Generally, if an engineer is concerned with a
    familiar process or system, this is reasonable,
    but )

72
What if we dont know s?
  • New statistic
  • Where,
  • and
  • follows a t-distribution with ? n 1 degrees
    of freedom.

73
Characteristics of the t-Distribution
  • Look at fig. 8.13, pg. 259
  • Note
  • Shape _________________________
  • Effect of ? __________________________
  • See table A.4, pp. 753-754

74
Using the t-Distribution
  • Testing assumptions about the value of µ
  • Example problem 8.52, pg. 265
  • What value of t corresponds to P(t lt ta) 0.95?

75
Comparing Variances of 2 Samples
  • Given two samples of size n1 and n2, with sample
    means X1 and X2, and variances, s12 and s22
  • Are the differences we see in the means due to
    the means or due to the variances (that is, are
    the differences due to real differences between
    the samples or variability within each samples)?
  • See figure 8.16, pg. 262

76
F-Distribution
  • Given
  • S12 and S22, the variances of independent random
    samples of size n1 and n2 taken from normal
    populations with variances s12 and s22,
    respectively,
  • Then,
  • has an F-distribution with ?1 n1 - 1 and ?2
    n2 1 degrees of freedom.
  • (See table A.6, pp. 757-760)

77
Example
  • Problem 8.55, pg. 266
  • S12 ___________________
  • S22 ___________________
  • F _____________ f0.05 (4, 5) _________
  • NOTE
Write a Comment
User Comments (0)
About PowerShow.com
