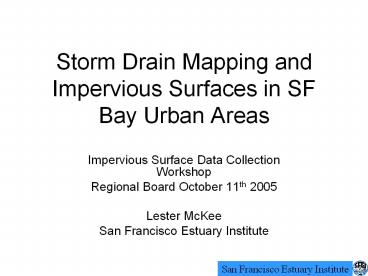

Storm Drain Mapping and Impervious Surfaces in SF Bay Urban Areas

1
Storm Drain Mapping and Impervious Surfaces in SF
Bay Urban Areas

• Impervious Surface Data Collection Workshop
• Regional Board October 11th 2005
• Lester McKee
• San Francisco Estuary Institute

2
Regional Storm Drain Mapping

• Objective
• Map gt24 inch diameter stormwater conveyance
  systems of the Bay Area
• Team
• Christopher Richard - Oakland Museum of
  California
• Janet Sowers - William Lettis and Associates Inc.
• Robin Grossinger - San Francisco Estuary
  Institute
• Trish Mulvey Clean South Bay / SFEI Board
• Period of Performance
• 1993 - present

3
Progress
4
Linkages Between Storm Drain Mapping and
Impervious data

• Planning at the Bay scale
• Modeling runoff of water, sediment and
  contaminant loads for improved problem definition
  during TMDL adaptive implementation
• Planning at the watershed scale
• Modeling for drainage design
• Modeling for understanding channel maintenance
  needs
• Modeling to understand the processes of
  contaminant sources, release, and transport

5
Other Uses(in the context of permits and TMDLs)

• Planning at the site scale
• Performance standards in new development and
  redevelopment (e.g. zero new EIA)
• Education tool for increasing awareness of
  compacted soils as TIA
• Planning at the community, regional or watershed
  scale
• No net increase towards agreed upon thresholds
• Alternative futures analysis (modeling to
  determine how best to get to agreed upon
  thresholds)
• Decision support for reaching hydro-modification
  or TMDL goals (e.g. area of EIA disconnected
  annually)

6
Definition of an Impervious Surface (Arnold and
Gibbons, 1996)

• Any material that prevents the infiltration of
  water into soil
• Roads, rooftops, parking lots
• Sidewalks, patios, bedrock outcrops, and
  compacted soils

7
Total Impervious Area (TIA)versusEffective
Impervious Area (EIA)

• TIA includes all impervious surfaces
• A portion of rain will infiltrate when it runs
  onto lawns, swales, or driveways
• EIA includes only impervious surfaces that drain
  to stormwater conveyances or receiving waters
• 100 of rain runs off EIA

8
Methods

• Direct
• Digitization of aerial photography
• Classification of remotely sensed (satellite)
  images
• Collation of development / redevelopment plans
• Indirect (mathematical relationships)
• Conversion of land use data
• Conversion of population density data

9
TIA/EIA as an Indicator of Urban Impact to
Surface Waters

• About 30-40 papers written prior to 2002
• See recent review articles
• Paul and Meyer, 2001. Streams in the urban
  landscape.
• Gergel et al., 2002. Landscape indicators of
  human impacts to riverine systems.
• Brabec et al., 2002. Impervious surfaces and
  water quality A review of current literature and
  its implications for watershed planning.

10
Linkage to Flow Hydrology? YES

1. Peak flow
2. Bankfull flow
3. Total volume

Impervious surfaces
11
Location of TIA / EIA

• Lower watershed
• Upper watershed

12
Linkage to Physical Impacts? YES

1. Channel widening/ enlarging
2. Sediment loads
3. Stream temperature

Impervious surfaces
13
Linkage to Contaminants? YES

1. Transmission of contaminants from sources
2. Contaminant loads
3. Eutrophication

Impervious surfaces
14
Linkage to Biological Impacts? YES

1. Habitat quality and diversity
2. Insect/ invertebrate diversity
3. Fish numbers and diversity

Impervious surfaces
15
Noticeable Impacts and Thresholds

• Noticeable Impacts (see reviews Brabec et al.,
  2002 Gergel et al., 2002)
• Physical
• Flow 5-50
• Channel form 2-30
• Chemical 8-50
• Biological
• Fish 4-15
• Macro-inverts 8-15
• Thresholds (Schueler, 1995 Arnold and Gibbons,
  1996)
• Protected lt10
• Impacted 10-30
• Degraded gt30

16
Summary (TIA / EIA)

• Very good (if not best) indicator of urban
  impacts to surface waters
• Need agreed upon regional definitions and methods
• Data can be used for planning at virtually every
  scale
• Data can be combined with storm drain mapping to
  develop watershed and regional hydrological models

17
Literature

• Schueler, 1994. The importance of imperviousness.
  Watershed Protection Techniques 1, 100-111.
• Schueler, 1995. The peculiarities of
  imperviousness. Watershed Protection Techniques
  2, 233-238.
• Arnold and Gibbons, 1996. Impervious surface
  coverage The emergence of a key environmental
  indicator. Journal of the American Planning
  Association 62, 243-258.
• Paul and Meyer, 2001. Streams in the urban
  landscape. Annual review of Ecology and
  Systematics 32, 333-365.
• Brabec et al., 2002. Impervious surfaces and
  water quality A review of current literature and
  its implications for watershed planning. Journal
  of Planning Literature 16, 499-514.
• Gergel et al., 2002. Landscape indicators of
  human impacts to riverine systems. Aquatic
  Sciences 64, 118-128.
