Land-Use Planning and Engineering Geology

1
Land-Use Planning and Engineering Geology

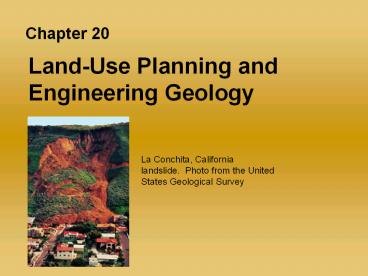

• Chapter 20

La Conchita, California landslide. Photo from
the United States Geological Survey
2
Land Use Planning Why?

• Safety?
• Is it the best use of a tract of land?
• Will the intended use be a misuse of the land?
• Are the resources required (water for example)
  for the intended use available?
• Is there a potential for pollution from this
  intended use of a tract of land?

3
Conversion of Rural Land

• Between 1997 to 2001 2.2 million acres of rural
  land were converted to developed uses
• The rate of development is accelerating and the
  amount of available land has not increased
• Some lands will not support any or all forms of
  uses

4
Land use in the United States
5
Land converted to developed land
6
Considerations in Planning

• What is the optimum use of a tract of land?
• We must consider
• Biological factors
• Ecological factors
• Geological factors
• Economic factors
• Political factors
• Aesthetic factors

7
Land-Use Options

• Multiple Use using the same land for two or
  more purposes
• Parks or green areas used for recreation and to
  catch fresh water during a storm to allow it to
  infiltrate into the ground water
• Sequential use utilize the land for two or more
  different purposes, one after another
• Mines are used to provide the commodities found
  in the subsurface, then they are re-used for
  sanitary waste dumps, storage, or in-filled for
  parks

8
Multiple land use
9
Sequential Land Use
10
Federal Government and Land-Use Planning

• Historically, federal lands are not equally
  distributed throughout the states
• Originally, federal emphasis was on resource
  development rather than preservation
• Federal lands fall into two categories
• Lands intended for preservation (national parks
  and wilderness areas)
• Lands intended for multiple use and compatible
  use such as grazing, logging, mining, exploration
  and drilling for petroleum (national forest)

11
Land ownership by state, 1997
12
Maps as a Planning Tool

• Land use planning requires abundant information,
  maps often provide much of the information
• Topography, bedrock geology, surface materials
  and geology, soils, depth to ground water,
  vegetation, population information, location of
  fault zones and flood plains, and more
• Maps can assist planners in long term planning,
  establishing restrictive zoning for earthquake or
  flood hazards, avoidance of other hazards as well

13
Map representation of geologic considerations
14
U.S. land-use classifications
15
Maps as a Planning Tool

• Computers have aided planners
• Information required by planners is voluminous
• Computers have played an increasing role for
  planners to manipulate large volumes of
  quantitative information
• Geographic Information Systems (GIS) allow
  planners to manipulate the data to see and use
  what data is useful to a planning task while
  minimize, or obscuring, unimportant data
• GIS can allow a planner to see distinct layers
  of information that are important to the decision
  making process

16
Digitized maps can represent data
17
Composite map for land-use planning
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
Engineering Geology

• Geologic factors and considerations vary
  depending on the site and the project
• A few considerations for a major project may
  include
• Rock types present in project area, are they
  uniform or variable
• Are they fractured or faulted?
• If they are, are the faults active?
• Is there a landslide risk?
• What types of soil or soils are present? Are
  they suitable for the project?
• What are the hydrologic factors? Surface and
  subsurface
• The list is nearly endless

22
Failure of structure on unstable soil
23
Relative magnitudes of loss of life and property
damage from various geologic hazards
24
Engineering Geology

• Major projects often encounter major obstacles
• Alaskan Oil Pipeline Project (1300 km long)
• Spans a variety of geologic settings (rock types,
  structures, faults, slopes, soils, mountains,
  streams)
• Active earthquakes, seasonal flooding, animal
  migration routes all required solutions
• Climate factors North Slope is very cold with
  permafrost and a variable permafrost table

25
(No Transcript)
26
(No Transcript)
27
Permafrost and permafrost table
28
Differential subsidence of railroad tracks due to
partial thawing of permafrost
29
Role of Testing and Scale Modeling

• Models are physically constructed (at a reduced
  scale)
• Models may be tested in a computer
• Failures of a variety of structures can be tested
  dams, bridges, or earthquake resistant buildings

30
Scale modeling
31
Case Histories

• Leaning Tower of Pisa the flow of the unstable
  soft clay layers
• Panama Canal Dipping layers of young volcanic
  rocks, lava flows, and pyroclastic deposits and
  dipping beds of shale and sandstone
• Bostons Big Dig Glacial sediments and weakly
  metamorphosed mudstone

32
Geologic factors complicated construction of the
Panama Canal
33
Bostons Big Dig Slurry walls keep excavations
from collapsing and nearby building foundations
from failing
34
Dams - Failures and Consequences

• A catastrophic dam failure can impact many
  cities, thousands of lives, and cause millions of
  dollars worth of property damage
• St. Francis Dam coarse sandstones schists and
  mica-rich metamorphic rocks a fault
• Baldwin Hills reservoir an active fault zone
• Three Gorges Dam control the flooding, enhance
  navigation, and produce energy

35
(No Transcript)
36
A regional overview of Hoover Dam
37
Failure of the St. Francis Dam in California
38
Benefits and issues in dam construction
