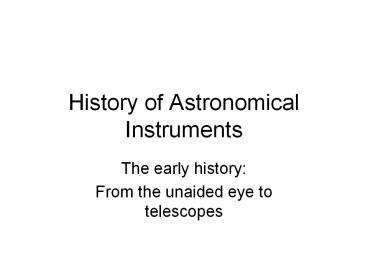

History of Astronomical Instruments

1
History of Astronomical Instruments

• The early history
• From the unaided eye to telescopes

2
The Human Eye

• Anatomy and
• Detection Characteristics

3
Anatomy of the Human Eye
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
Visual Observations

• Navigation
• Calendars
• Unusual Objects (comets etc.)

15
(No Transcript)
16
Hawaiian Navigation From Tahiti to Hawaii Using
the North direction, Knowledge of the
lattitude, And the predominant direction of the
Trade Winds
17
Tycho Quadrant
18
(No Transcript)
19
Pre-Telescopic Observations

• Navigation
• Calendar
• Astrology
• Planetary Motion
• Copernican System
• Keplers Laws

20
(No Transcript)
21
Why build telescopes?

• Larger aperture means more light gathering power
• sensitivity goes like D2, where D is diameter of
  main light collecting element (e.g., primary
  mirror)
• Larger aperture means better angular resolution
• resolution goes like lambda/D, where lambda is
  wavelength and D is diameter of mirror

22
Collection Telescopes

• Refractor telescopes
• exclusively use lenses to collect light
• have big disadvantages aberrations sheer
  weight of lenses
• Reflector telescopes
• use mirrors to collect light
• relatively free of aberrations
• mirror fabrication techniques steadily improving

23
(No Transcript)
24
(No Transcript)
25
William Herschel
Caroline Herschel
26
Herschel 40 ft Telescope
27
Optical Reflecting Telescopes

• Basic optical designs
• Prime focus light is brought to focus by primary
  mirror, without further deflection
• Newtonian use flat, diagonal secondary mirror to
  deflect light out side of tube
• Cassegrain use convex secondary mirror to
  reflect light back through hole in primary
• Nasmyth focus use tertiary mirror to redirect
  light to external instruments

28
Mirror Grinding Tool
29
Mirror Polishing Machine
30
Fine Ground Mirror
31
Mirror Polishing
32
Figuring the Asphere
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Crossley 36 Reflector
39
Yerkes 40-inch Refractor
40
Drawing of the Moon (1865)
41
First Photograph of the Moon (1865)
42
The Limitations of Ground-based Observations

• Diffraction
• Seeing
• Sky Backgrounds

43
Diffraction
44
Wavefront Description of Optical System
45
Wavefronts of Two Well Separated Stars
46
When are Two Wavefront Distinguishable ?
47
Atmospheric Turbulence
48
Characteristics of Good Sites

• Geographic latitude 15 - 35
• Near the coast or isolated mountain
• Away from large cities
• High mountain
• Reasonable logistics

49
Modern Observatories
The ESO-VLT Observatory at Paranal, Chile
50
(No Transcript)
51
Puu Poliahu
UH 0.6-m
UH 2.2-m
UH 0.6-m
The first telescopes on Mauna Kea (1964-1970)
52
Local SeeingFlow Pattern Around a Building

• Incoming neutral flow should enter the building
  to contribute to flushing, the height of the
  turbulent ground layer determines the minimum
  height of the apertures.
• Thermal exchanges with the ground by
  re-circulation inside the cavity zone is the main
  source of thermal turbulence in the wake.

53
Mirror Seeing

• When a mirror is warmer that the air in an
  undisturbed enclosure, a convective equilibrium
  (full cascade) is reached after 10-15mn. The
  limit on the convective cell size is set by the
  mirror diameter

54
LOCAL TURBULENCEMirror Seeing
The contribution to seeing due to turbulence over
the mirror is given by

• The warm mirror seeing varies slowly with the
  thickness of the convective layer reduce height
  by 3 orders of magnitude to divide mirror seeing
  by 4, from 0.5 to 0.12 arcsec/K

55
Mirror Seeing
The thickness of the boundary layer over a flat
plate increases with the distance to the edge in
the and with the flow velocity.

• When a mirror is warmer that the air in a flushed
  enclosure, the convective cells cannot reach
  equilibrium. The flushing velocity must be large
  enough so as to decrease significantly (down to
  10-30cm) the thickness turbulence over the whole
  diameter of the mirror.

56
Thermal Emission AnalysisVLT Unit Telescope

• UT3 Enclosure
• 19 Feb. 1999
• 0h34 Local Time
• Wind summit ENE, 4m/s
• Air Temp summit 13.8C

57
(No Transcript)
58
Gemini South Dome
59
(No Transcript)
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
(No Transcript)
66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
(No Transcript)
72
(No Transcript)
73
Night Sky Emission Lines at Optical Wavelengths
74
Sky Background in J, H, and K Bands
75
Sky Background in L and M Band
76
V-band sky brightness variations
77
H-band OH Emission Lines
78
(No Transcript)
79
(No Transcript)
80
Camera Construction Techniques 1.
The photo below shows a scientific CCD camera in
use at the Isaac Newton Group. It is
approximately 50cm long, weighs about 10Kg and
contains a single cryogenically cooled CCD. The
camera is general purpose detector with a
universal face-plate for attachment to
various telescope ports.
Pre-amplifier
Vacuum pump port
Pressure Vessel
Mounting clamp
Camera mounting Face-plate.
Liquid Nitrogen fill port
81
Camera Construction Techniques 4.
A cutaway diagram of the same camera is shown
below.
Thermally Electrical feed-through Vacuum
Space Pressure vessel Pump
Port Insulating Pillars
Face-plate
.
.
Telescope beam
Boil-off
.
Optical window CCD CCD Mounting
Block Thermal coupling Nitrogen can
Activated charcoal Getter
Focal Plane of Telescope
82
Camera Construction Techniques 5.
The camera with the face-plate removed is shown
below
Retaining clamp
Temperature servo circuit board
CCD
Aluminised Mylar sheet
Gold plated copper mounting block
Top of LN2 can
Platinum resistance thermometer
Pressure Vessel
Spider. The CCD mounting block is stood off
from the spider using insulating pillars.
Location points (x3) for insulating pillars that
reference the CCD to the camera face-plate
Signal wires to CCD
83
Camera Construction Techniques 6.
A Radiation Shield is then screwed down onto
the spider , covering the cold components but not
obstructing the CCD view. This shield is highly
polished and cooled to an intermediate
temperature by a copper braid that connects it to
the LN2 can.
Radiation Shield
84
Camera Construction Techniques 7.
Some CCDs cameras are embedded into optical
instruments as dedicated detectors. The CCD shown
below is mounted in a spider assembly and placed
at the focus of a Schmidt camera.
CCD Signal connector (x3)
Copper rod or cold finger used to cool the CCD.
It is connected to an LN2 can.
Spider Vane
CCD Clamp plate
Gold plated copper CCD mounting block.
FOS 1 Spectrograph
CCD Package
