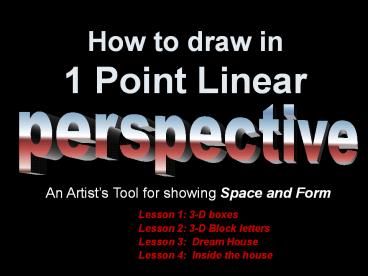

How to draw in 1 Point Linear

1
How to draw in 1 Point Linear
perspective

• An Artists Tool for showing Space and Form
• Lesson 1 3-D boxes
• Lesson 2 3-D Block letters
• Lesson 3 Dream House
• Lesson 4 Inside the house

2
How to draw in 1 point perspective

• You will need a
• Ruler
• 2 Pencil
• Eraser
• 8x11 paper
• computer

3
Where is the vanishing point? The horizon line?
Orthogonal?
4
To draw a solid object in 3-D

• You must know the
• Vanishing point
• Horizon line
• Orthogonal (diagonal lines to the VP)

5
Draw the horizon line with a ruler near the
middle of your paper.
6
Put the vanishing point (a small dot) on the
horizon line.
7
Draw a box below the horizon line using your
ruler.
8
Using your ruler, draw lines connecting the
corners of the box to the vanishing point.
9
Using your ruler, draw a line between the
orthogonal lines that is parallel to the front of
the box.
10
Erase the orthogonal lines that are between the
back of the box and the vanishing point.
11
This is a box sitting on the ground in front of
you. You can see over the top of it.
12
Draw another box that is taller and crosses the
horizon line.
13
Using your ruler, draw lines connecting the
corners of the box to the vanishing point.
14
Using your ruler, draw a line between the
orthogonal lines that is parallel to the side of
the box.
15
Erase the orthogonal lines that are between the
back of the box and the vanishing point.
16
This box is sitting on the ground but you cannot
see the top of it.
17
Draw a box above the horizon line in the right
corner of your paper.
18
Using your ruler, draw lines connecting the
corners of the box to the vanishing point.
19
Using your ruler, draw a line between the
orthogonal lines that are parallel to the side
and front of the box.
20
Erase the orthogonal lines that are between the
back of the box and the vanishing point.
21
This box is floating in the sky. If you like,
add legs to hold it up.
22
Assignment 1 Using your ruler, draw 6 boxes in 1
point perspective around the vanishing point and
horizon line.
This is an example. Your paper will look
different.
23
Assignment 2 Draw your initials in 6 inch block
style letters and then use the steps to turn them
into a 1 point perspective drawing.ABCDEFGHIJKLMN
OPQRSTUVWXYZ
24
Assignment 2 3-D lettersUsing a ruler1. Draw
the horizon line and vanishing point2. Draw the
6 inch block letters.
25
3. Using a ruler, draw the orthogonal lines to
the vanishing point.4. Draw the parallel lines
in between the orthogonal lines5. Erase the
extra lines
26
Assignment 3 Draw a 1 point perspective Dream
house on paper or in Paint on the computer.
27
You must have windows and doors drawn in
perspective. Most lines are horizontal, vertical
or to the VP.

• Windows and doors on the side of the house have
  lines to the vanishing point.

28
You must have windows and doors drawn in
perspective. Most lines are horizontal, vertical
or to the VP.

• Windows and doors on the FRONT of the
  house have Parallel Lines

29
Finish the drawing by adding details. What kind
of house is it? A mansion, a ranch, a 2 story,
in the country or city? In the mountains or near
a river? Does it have a garage? A swimming pool?
A balcony?
30
Assignment 4 Draw a 1 point perspective room on
paper or in Paint on the computer.
31
Assignment 4 The blue box is the back wall. The
green lines create the other walls, floor and
ceiling.
32
Assignment 4 Everything on the walls, floor and
ceiling will have lines to the vanishing point.
33
Assignment 4 This is the beginning of a great
room! Add details and furniture!
