Mineral Identification Lab

1

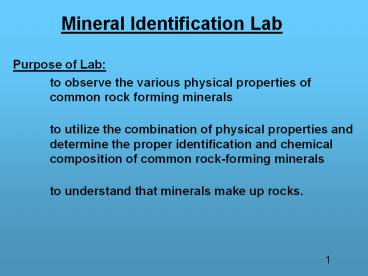

Mineral Identification Lab

• Purpose of Lab
• to observe the various physical properties of
  common rock forming minerals
• to utilize the combination of physical
  properties and determine the proper
  identification and chemical composition of
  common rock-forming minerals
• to understand that minerals make up rocks.

1
2
Mineral Identification Lab

• What is a mineral???????
• Mineral Definition (5 parts)
• Naturally occurs
• Homogeneous solid
• Inorganic (non-living)
• Definite chemical composition
• Definite crystalline internal structure

2
3
Mineral Identification Lab
3

• Mineraloids (amorphous solid)
• Mineraloids are minerals that lack an internal
  atomic structure.
• Mineraloids do not have melting points.
• Examples
• What happens when one melts glass?
• Try melting plastic

4
Physical properties of Minerals
4

• Minerals are identified using physical
• properties. Mineral physical properties reflect
• the chemical composition and crystalline
• structure.
• Mineral Physical Properties
• crystal form
• color
• color of powdered residue
• reflection of light
• shape of the mineral
• hardness
• special mineral properties

5
Physical Properties Mineral ID

• Crystal Form
• Crystal form represents flat well-defined
  smooth crystal faces that reflect the minerals
  internal atomic structure.
• Observation
• A mineral will show smooth flat surfaces
• or crystal faces that reflect a consistent
• angle between the faces for a particular
  mineral species.

5
6
Various Crystal Forms
All quartz crystals, big, fat, skinny, will show
consistent angles between crystal faces.
6
7
Physical Properties Mineral ID

• Color
• Color is the most noticeable physical property
  but the least accurate.
• The same mineral can occur in many different
  colors. Do not trust color.
• Observation
• A mineral can be red, green, blue, white,
  clear, smokey and many other colors.

7
8
Different color fluorite minerals
Don't trust color
8
9
Physical Properties Mineral ID

• Streak
• Streak is the Color of the powdered residue left
  on the porcelain streak plate.
• The mineral is scratched across the streak plate
  and the color of the powdered residue is
  observed.
• Some minerals show different color powder than
  the actual color of the mineral.
• Observation
• Observe the color of the powdered residue left
  on the porcelain streak plate.

9
10
10
11

• Luster
• How does the mineral reflect light. Is the
  mineral metallic or non-metallic?
• Metallic Non-metallic
• resembles polished metal glossy
• vitreous (glassy)
• waxy, greasy
• earthy (concrete)
• resinous
• greasy
• pearly
• Observation
• Allow the light to reflect off the fresh mineral
  surface and determine if the mineral is metallic
  or non-metallic

11
12
Incoming light waves
Very Very smooth surface
Very shiny
mineral surface
Incoming light waves
Smooth surface
shiny
mineral surface
Incoming light waves
Irregular surface
dull luster
mineral surface
12
13

• Cleavage Planes
• Cleavage represents the tendency of a mineral to

• break in preferred directions along bright,
• reflective plane surfaces.
• A mineral will break along atomic planes of
• weakness, repeating the flat surfaces on
  smaller
• broken pieces.

Observation Look for the cleavage planes by
rotating the mineral and observing
flashing of light like turning on/off a
flashlight.
13
14
Brakes along planes of weakness
Flashes of light (Checking for cleavage)
Cleavage surfaces
14
15
15
16

• Fracture surfaces represent
• non-planer, non-parallel surfaces that reflect
  light in an uneven undulated fashion. When
  broken, smaller pieces will not repeat
  themselves.
• Example Once the crystal face is broken, the
  smooth flat surface will never again be
  observed.
• Observation
• Observe cracks, fractures, destruction on the
  flat surface as well as non-repeating flat
  surfaces. Notice the random or undulating
  reflective light as the mineral is rotated.

16
17
Conchoidal fracture (dished shaped features)
17
18

• Hardness
• How hard is the mineral or how the mineral
  resists scratching.
• German mineralogist Friedrich Moh (1773-1839)
  establishes mohs scale of hardness.
• Observation
• Does the mineral scratch glass?
• Yes the mineral is hard gt 7
• No mineral is lt 7

18
19
Diamond
Softest
Scale of hardness not evenly distributed
Talc
Hardest
19
20
Mohs Scale of Hardness
20
21

• Special mineral properties
• Reaction to Acid Mineral will fizz when
  subjected to acid.
• Tenacity Mineral will bend (elastic).
• Striations Minerals display hairline grooves
  on crystal faces.
• Magnetism Magnets are attracted to the
  mineral.
• Double refraction An image beneath the
  mineral is repeated
• or doubled.
• Specific gravity How heavy is the mineral.
• Taste Does the mineral have taste??

21
22
Acid reaction (fizzing)
Striations
Double Refraction
22
23

• Mineral ID procedure
• Use the process of elimination or narrowing
  down the mineral name.
• Luster determine if the mineral is metallic or
  non-metallic
• Hardness Does the mineral scratch glass or not
  scratch glass?
• Cleavage planes does the mineral show cleavage
  or fracture?
• Use charts Use the mineral charts and narrow
  your field of choices to a select few.
  Carefully read the streak characteristics,
  color and any special physical properties
  select the proper name and indicate the
  chemical composition.

23
