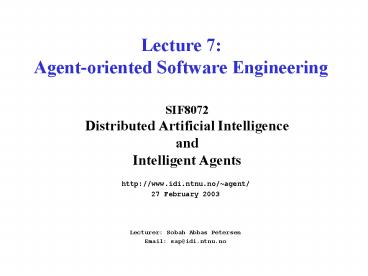

SIF8072 Distributed Artificial
Intelligence and Intelligent Agents
Lecture 7 Agent-oriented Software Engineering
  • http//www.idi.ntnu.no/agent/
  • 27 February 2003

Lecturer Sobah Abbas Petersen Email
sap_at_idi.ntnu.no
2
Lecture Outline
  1. When is an agent-based solution appropriate?
  2. AOSE Methodologies
  3. AAII (Kinny)
  4. Gaia (Wooldridge et. al.)
  5. Agent UML (Bauer et. al.)
  6. Layered Agent Pattern Language (Kendall)
  7. Formal Methods for AOSE
  8. Pitfalls in agent development

3
References - Curriculum
  • Wooldridge Introduction to MAS,
  • Chapter 10
  • Not in curriculum
  • M. Wooldridge, N. R. Jennings, and D. Kinny. The
    Gaia Methodology for Agent-Oriented Analysis and
    Design. In Journal of Autonomous Agents and
    Multi-Agent Systems. 3(3)285-312. 2000.
  • Bauer, B., Muller, J. P. and Odell, J., Agent
    UML A Formalism for Specifying Multi-agent
    Interaction, in Proceedings of Agent-oriented
    Software Engineering, P. Ciancarni and M.
    Wooldridge (eds.), Springer Verlag, Berlin, 2001,
    pp. 91-103.

4
Terminology of Agent-Oriented Software Engineering
5
Agent-oriented Software Engineering (AOSE)
  • Concerns methodologies to support the development
    of agent systems.
  • Such methodologies have been successful in the
    development of OO systems
  • e.g. OMT, UML

6
When is an agent-based solution appropriate?
  • The environment is open, or atleast highly
    dynamic, uncertain or complex
  • Agents are a natural metaphor
  • Distribution of data, control and expertise
  • Legacy systems

7
Criticisms of Existing Approaches
  • Approaches such as object-oriented design fail to
    capture
  • An agents flexible, autonomous problem-solving
    behaviour
  • The richness of an agents interactions
  • The complexity of an agents organisational
    structures

8
Agent-oriented Analysis Design Techniques
  • An analysis and design methodology is intended to
    assist in
  • Gaining an understanding of a particular system
  • Designing the system.

9
Agent-oriented Models
  • Agent-oriented models are intended to formalise
    understanding of a system under consideration.

10
Methodologies
  • Methodologies for the analysis and design can be
    divided into 2 groups.

11
AAII Methodology 1 (Kinny et. al.)
  • Aim to construct a set of models, which when
    fully elaborated, define an agent system
    specification.

12
AAII Methodology 2
13
AAII Methodology 3
Methodology
Example
  • Identify relevant roles in domain
  • Develop an agent class hierarchy
  • Role weather monitor
  • Identify responsibilities for each roles
  • Services required
  • Services provided
  • Determine goals associated with each service
  • Goals
  • Find out current weather
  • Make agentj aware of it
  • Plan
  • Send message to agentj
  • For each goal, determine plan
  • Determine belief strucure of system
  • How to represent agentis and agentjs beliefs

14
Gaia Methodology 1 (Wooldridge et. al.)
  • Motivation Existing methodologies dont support
    agents, in particular, interactions and agent
    organisations.
  • Borrows terminology from object-oriented analysis
    and design.
  • Encourages the analyst to think of building
    agent-based systems as a process of
    organisational design.
  • Societal view of agents.

15
Gaia Methodology 2
  • Gaia is
  • General applicable to a range of multi-agent
    systems
  • Comprehensive macro-level (societal) and
    micro-level (agent) aspects of systems.
  • Allows an analyst to go systematically from a
    statement of requirements to a design that is
    sufficient for implementation.

16
Gaia Methodology 3 Concepts
Abstract Concepts (used during analysis to conceptualise the system) Concrete Concepts (used within the design process)
Roles Permissions Responsibilities Protocols Activities Liveliness Properties Safety properties Agent types Services Acquaintances
17
Gaia Methodology 4 Relationships between Gaia
Models
Requirements statements
Roles Model
Interactions Model
Analysis
Agent Model
Services Model
Acquaintance Model
Design
18
Gaia Methodology 5 Roles Model
Role
Attributes of roles
Permissions
Activities
Responsibilities
Protocols
Liveliness properties
Safety properties
19
Gaia Methodology 6 Role Schema
  • A roles model is comprised of a set of role
    schema

Role Schema Name of Role
Description Protocols and activities Permissions Responsibilities Liveliness safety short description of the role protocols and activities in which the role plays a part rights associated with the role liveliness responsibilities Safety responsibilities
20
Gaia Methodology 7 Interaction Model
  • The links between the roles are represented in
    the interaction model.
  • It contains a set of protocol definitions
  • an institutionalised pattern of interaction, e.g.
    a Dutch auction.

21
Gaia Methodology 8 Analysis Process
  • Objective to develop an understanding of the
    system and its structure.

Steps Output
1. Identify roles Roles model
2. For each role, identify associated protocols Interaction model
3. Using the protocol/interaction model as basis, elaborate role model Fully elaborated roles model (with permissions, responsibilities, etc.)
4. Iterate 1-3
22
Gaia Methodology 9 Design Process
  • Objective to transfer the abstract models from
    analysis stage into models of sufficiently low
    abstraction that can easily be implemented.

Step Output
1. Create agent model Agent model (identifies agent types)
2. Develop service model Service model (identifies main services required to realise agents role)
3. Develop acquaintance model from interaction model and agent model. Acquaintance model (documents the lines of communication between the agents )
23
Gaia Methodology 10 Example
  • To provide customers with a quote for installing
    a network to deliver a particular type of
    telecommunications service.
  • Several departments are involved
  • Customer Service Dept. (CSD)
  • Design Dept. (DD)
  • Legal Dept. (LD)
  • Customer Vetting (CV)

Reference Wooldridge et. al. 2000.
24
Gaia Methodology 11 Example
25
Gaia Methodology 12 Example
  • Analysis stage Identify roles and interaction
    models

26
Gaia Methodology 13 Example
  • Interaction Model For role Quote Manager (QM)

Cust
Get requirements
Is service legal?
QM
LA
Offer service to customer
Is customer satisfactory?
CH
CV
27
Gaia Methodology 14 Shortcomings of Gaia
  • Organisation structure is static cannot be
    changed at run-time.
  • Abilities of agents and services they provide are
    also static.
  • Suitable for a small number of agent types.

28
Lets take a minute
  • Discuss with your neighbour the agent model
    (agent types), the service model and the
    acquaintance model for this example.

29
Agent UML 1 Rationale
  • Agent UML is an extension of UML.
  • It is not a methodology, rather a language for
    documenting models of systems.
  • Rationale for agent UML UML is insufficient for
    modelling agents for the following reasons
  • Compared to objects, agents are active.
  • Agents do not only act in isolation, but in
    cooperation and coordination with other agents.

30
Agent UML 2 Limitations of UML
  • The definition of agent interaction protocols is
    a part of defining the dynamic part of an agent
    system.
  • Some limitations of UML

UML Description Limitations
Interaction Diagrams Defines behaviour of groups of objects Not suitable for describing the types of complex interactions between agents
State Diagrams Define all possible states of an object Suitable for a single object, but not for a group of cooperating objects
Activity Diagrams Course of events or actions for several agents OK
31
Agent UML 3 Proposed Modifications
  • Support for expressing concurrent threads of
    interaction, enabling UML to model agent
    protocols such as the CNET.
  • A notion of role that extends that provided in
    UML, in particular to allow an agent playing
    several roles.

32
Agent UML 4 Agent Interaction Protocols
  • An agent interaction protocol describes
  • A communication pattern with
  • An allowed sequences of messages between agents
    having different roles
  • Constraints on the contents of messages
  • A semantic that is consistent with the
    communicative act within a communication pattern
  • Thus, the proposed modifications are aimed at
    supporting this.

33
Agent UML 5 Contract Net Protocol
34
Design Patterns
  • Design patterns are recurring patterns of
    programming code or components of the software
    architecture.
  • The purpose of using design patterns is to
    increase re-use and quality of code in the
    development of the system.

35
The Layered Agent Pattern Language 1
  • How can agent behaviour be best organised and
    structured into software?
  • What software architecture best supports the
    behaviour of agents?
  • Kendall proposed a layered agent pattern

36
The Layered Agent Pattern Language 2
  • Agents should be decomposed into layers because
  • Higher level, or more sophisticated behaviour,
    depends on lower level capabilities.
  • Layers only depend on their neighbours.
  • There is 2-way information flow between the
    neighbouring layers.
  • 7 layers were identified based on the agents
    real world.

37
The Layered Agent Pattern Language 3
When collaborating agents are in different
locations, this layer is required for message
transmission and reception.
Mobility
Agent formulates a message for another agent,
translating it into other semantics.
Translation
Collaboration
Agent determines how to collaborate with another
agent.
Actions
Actions are carried out. Pending actions are
queued here.
Reasoning
Agent determines what to do.
Beliefs
Agents models of itself and its environment.
Sensory
Agent gathers sensory input from its environment.
38
The Layered Agent Pattern Language 4
Problem Solution Pattern(s)
How can agents collaborate without direct knowledge of each other? Encapsulate agent interaction in a Facilitator that coordinates agents within a given society Facilitator
How can an agent adapt to the needs of a human user? Provide the agent with parametric user models and sensors to to monitor the users actions Interface agent
39
Formal Methods in AOSE 1
  • What role is played by logic in the development
    of agent systems? It can be used for
  • Specification of a system
  • Directly (automatically) programming a system
  • Once specified, the system must be implemented. 3
    Possibilities
  • Manual refinement of the specifications.
  • Direct execution of the specification.
  • Compilation, transform specifications into code
    using some automatic synthesis process.
  • Verification of a system

40
Formal Methods in AOSE 2
  • Verification of a system
  • Once the system is developed, we need to show
    that the system is correct with respect to the
    specification.

Verification Approaches
  • Axiomatic
  • Deductive verification
  • Take the concrete program and derive a logical
    theory that represents the behaviour of the
    program.
  • Semantic
  • Model checking
  • Reverse engineer a program to create a logical
    model, then check if the (formal) specification
    is valid in this model.

41
Pitfalls of Agent Development 1
  • While agent-based systems are becoming
    increasingly well understood, multi-agent system
    development is not. (Wooldridge Jennings,
    1999)
  • Little effort has been devoted to understanding
    the pragmatics of multi-agent systems development.

42
Pitfalls of Agent Development 2
Political You can oversell agents or fail to see where agents may usefully be applied.
Management You dont know why you want agents or what your agents are good for. E.g. Starting an agent project without any clear goals.
Conceptual You believe that agents are a silver bullet.
Analysis and design While developing an agent system, the of the system that is agent-specific (e.g. Negotiation or coordination) is very small.
Micro (agent) level You decide you want your own architecture , you use too much or too little AI. (Useful first strategy)
Macro (society) level You see agents everywhere, too many or too few agents.
Implementation You ignore de facto standards (e.g. KQML in agent communication)
43
Summary
  • AOSE methodologies are close to existing Software
    Engineering methodologies (e.g. OO)
    methodologies.
  • AOSE methodologies are inspired by either OO
    techniques or knowledge engineering techniques.
  • Main difference is focus on interaction and
    behavior

44
Next Lecture Mobile Agents
  • Wooldridge Introduction to MAS,
  • Chapter 10
About PowerShow.com
