Title: FAILURE OF BARRING GEAR CLUTCH ASSLY COUPLING


1

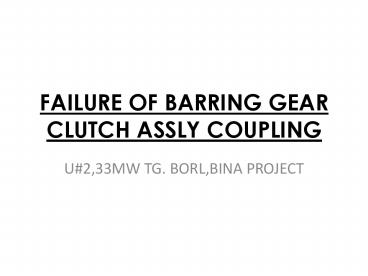

FAILURE OF BARRING GEAR CLUTCH ASSLY COUPLING
  • U2,33MW TG. BORL,BINA PROJECT

2
DESCRIPTION
  • Unit-2 TG is provided with a motorised barring
    gear unit which drives the turbine at 150 rpm
    barring speed.
  • The barring gear unit comprises mainly of one
    electric motor(37KW), worm reducer, SSS clutch
    assly ,worm gear and a soft starter.
  • Drive is transmitted from motor through worm
    gear, clutch assly to Gear box pinion shaft and
    then to main turbine.
  • The clutch assly is connected to the pinion shaft
    of the gear box with a coupling consisting 8nos
    studs.

3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
  • When Barring gear is switched on, the worm shaft
    rotates the input assly. As input assly start
    rotating , the helical sliding assly moves
    axially towards drive end. This results in
    engagement of gear teeth of sliding assly and
    output assly. Thus barring gear gets engaged.
  • The m/c was first put on Barring Gear operation
    on 03.07.10 and was running on BG for about an
    hour.

7
  • Before steam rolling while m/c was being put on
    Barring Gear on 12.08.10 suddenly all the 8nos
    coupling bolts of output assly got sheared off
    and motor got disengaged.
  • Before starting the motor, JOP header pr and
    lift of rotor was checked and found in order.
    Rotor was also free in hand rotation.

8
ACTION TAKEN
  • The failure occurred just before steam rolling
    program of the unit. The barring gear operation
    was possible only after replacement of the
    sheared studs of output assly.
  • A complete barring gear unit was available for
    U3. It was dismantled and studs were removed
    from the coupling and fitted in the affected
    clutch assly.
  • Barring gear could be restored in 15 hrs which
    otherwise could have taken 5-7 days for
    procurement of coupling bolts.

9
ANALYSIS
  • As per opinion of M/s Triveni Engg , the
    supplier of the Barring Gear unit, the studs have
    sheared-off due to excessive loading of the
    turbine rotor probably caused due to drop in JO
    pressure at the time of switching on the motor.
  • M/s Triveni also suggested the signal of min JOP
    which is a start permissive for BG motor, should
    be taken from individual brg instead of JOP
    header as per existing scheme.

10
REMARKS
  • With soft starter and overload relay in service,
    Barring gear motor is well protected against any
    overloading.
  • Failure of coupling bolts of M/s Triveni
    supplied Barring gear unit was reported from few
    other sites.
  • In view of the above BHEL site feels that bolts
    are to be designed for higher capacity.
