www.concordproducts.com

1

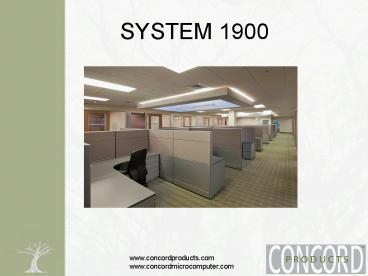

SYSTEM 1900
2
Warranty

• Warrants to the original user.
• defect free standard, non-custom products
• 12 year 5 sentence warranty.
• Limited to repair or replacement.
• F.O.B Concord Plant
• Pursuant to normal usage per Concords written
  instructions

3
System 1900 features

• Adjustable Panel Frame Horizontal Bar
• Wood Options

• Frame and Tile System
• All steel constructed tile assuring better STC
  sound control
• Off module component mounting capability
• Multiple vertical horizontal cableway
  raceways
• Floor to ceiling/stacker capability
• Supports Technology Driven Business
• Tiles Ship on Frame Option
• Segmented or Monolithic Panel Faces
• Weight Bearing Stackers
• Flipper Tile

4
Standard tiles

• Fabric Covered Steel
• Fabric Tackable Acoustic
• Painted Steel
• Full glass
• Open frame
• Flipper Fabric Covered Steel
• Cable Access-Painted Steel

• Pass-Thru
• Veneer
• Markerboard
• Perforated Steel
• Utility
• Embossed Steel
• Vinyl
• Cable Access-Fabric Covered Steel
• Composite Veneer
• Architectural Resin
• High pressure laminate

5
Panel Sizing

• Based on a consistent, precise 6 module and made
  in six (6) inch increments.
• Interior dimensions are the sum of the work
  surface or surrounding panel widths.
• At right-angle intersections, panels are
  connected with panel adapters.
• Same thickness as the panel (3 1/4)
• Exterior dimensions of the workstations are the
  sum of panel widths plus panel adapters or each
  right-angel intersection.

6
Panel Connection

• Concord Products unique internal panel connection
  system
• provides the highest level of structural
  integrity
• resists flex over the life of the system
• Positive metal to metal connection (prevents
  tolerance variance)
• Each panel is furnished with a panel locking bolt
  option or bolt/nut.
• Panel Connection System is delivered fully
  assembled (wedge option)
• prevents vertical panel movement

7
(No Transcript)
8
Raceway Panels

• Powered raceway available
• 4 circuit (8 wire)
• 5 circuit (10 wire)
• rated at 20 amp 125 volt
• grounded both as a full system and individual
  panel
• receptacles are rated at 15 amps
• All raceway panels are furnished with factory
  provided cutouts
• allowing multiple receptacles per panel
• 2 per side
• back to back positioning
• each cutout is finished with a self storing cover

9
Raceway Panels

• Electrical components are approved by U.L. 1286
  safety standards.
• meets NEC requirements
• Power distribution
• can be retrofitted in the field
• wire management space for up to (50)
  communication cables to be provided per bottom
  raceway
• Flexibility in raceway specification.

10
(No Transcript)
11
Power

• Electrical distribution block
• mounted within the panel
• block mounting clips
• Festoons
• are used to make panel to panel power
  connections.
• In-Feeds
• connects building power supply to base unit
• right, left straight line available
• NYC handed connection from building power into
  unit
• installs in place of electrical distributor box

12
(No Transcript)
13
Finished Ends

• Panel top cap and end trim finish
• Snap-on top cap
• Aluminum extrusion trim
• available in all trim colors
• fabric wrapped, wood veneer, composite veneer
• Transitional finished end
• panels of different heights connect

14
(No Transcript)
15
Wall Connectors

• Wall Starter
• secures first panel against existing wall
• connecting system included
• Wall Channel
• first panel has no work surface or hanging
  accessories
• Wall Brackets
• used if full length channel is not practical

• L Brackets
• wall fasten panels
• Wall Mount Standard
• steel slotted channel to attach work surfaces or
  accessories
• Wall Mount Frame
• fits behind the accessory
• Panel Mount Assembly
• designed to secure a panel to mid-length of
  another same height panel

16
Surfaces

• Standard
• high pressure laminate finishes
• Curved
• 24 inside radius
• Inside corner
• maximum work area in a 90 panel connection
• Conference D or P shaped

• Pass-thru
• fits pass-thru panel
• Curved extended
• fits in a radius panel
• Cluster
• various angles to fit workstation layouts
• Angled corner
• 120 and 135 degree angles

17
(No Transcript)
18
Open Shelves

• Metal bottom shelf with matching end panels
• 8 to 15 high profile
• available in all trim colors
• Display shelf
• High shelf
• Low shelf
• Garment shelf

19
Pedestals

• All pedestals provided with locks
• can be keyed alike
• Letter size pedestals are 15 wide
• Closed tops, cushion tops, custom laminate
  fronts, veneer fronts and casters are available
  options
• Glides are on pedestals (4)
• Any combination of box and file drawers are
  available
• Ability to match any other colors

20
(No Transcript)
21
Flipper Doors

• Door recedes inside cabinet or over top-
  hydraulic options.
• Steel, laminate, fabric, and veneer covered
• Locks are optional

22
(No Transcript)
23
Accessories

• Tasklights
• Monitor Arm
• Paper Management Accessories
• Sound Control
• Coat hook

• Shelf divider
• Keyboards
• Stabilizer base
• Lighting

24
(No Transcript)
25
(No Transcript)
26
Value Proposition

• Quality
• Competitive price point
• Predictable cost model
• Ease of system
• Time to market
• Flexibility and scalability
• Comprehensive field services
• Client service model

27
The Better WaySYSTEM 1900
