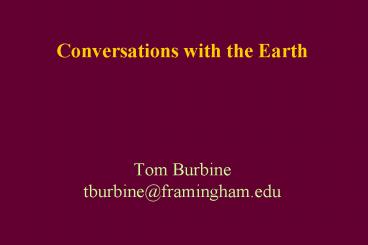

Conversations with the Earth Tom Burbine [e-mail]

1
Conversations with the EarthTom
Burbinetburbine_at_framingham.edu
2
Figure 15.4
3
Density
Temperature
4
Parts of SunCore

• Core 15 million Kelvin where fusion occurs

5
Figure 15.4
6
Radiation zone

• Radiation zone region where energy is
  transported primarily by radiative diffusion
• Radiative diffusion is the slow, outward
  migration of photons

7
Figure 15.13
8
Photons emitted from Fusion reactions

• Photons are originally gamma rays
• Tend to lose energy as they bounce around
• Photons emitted by surface tend to be visible
  photons
• Takes about a million years for the energy
  produced by fusion to reach the surface

9
Figure 15.4
10
Convection Zone

• Temperature is about 2 million Kelvin
• Photons tend to be absorbed by the solar plasma
• Plasma is a gas of ions and electrons
• Hotter plasma tends to rise
• Cooler plasma tends to sink

11
Figure 15.14
12
Granulation bubbling pattern due to
convection bright hot gas, dark cool gas
Figure 15.14
13
(No Transcript)
14
Figure 15.10
15
Figure 15.4
16
Photosphere

• Photosphere is the solar surface
• Where photons escape into space

17
Sunspots

• Sunspots are on the photosphere
• Have temperatures of 4,000 K
• Photosphere is 5,800 K

18
(No Transcript)
19
(No Transcript)
20
Sunspots

• Sunspots are regions of intense magnetic activity
• Charged particles tend to follow magnetic field
  lines
• A magnetic field exerts a magnetic force on
  moving electric charges

21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
Sunspot Cycle
Figure 15.21
The cycle has a period of approximately 11 years,
but the interval between maxima can be as short
as 7 years and as long as 15 years.
25
Maunder Minimum

• Between 1645 and 1715, the sunspot activity
  virtually stopped
• Identified by E. W. Maunder from historical
  sunspot records

http//science.nasa.gov/headlines/y2003/17jan_solc
on.htm
26

• Since sunspots are darker than the surrounding
  photosphere it might be expected that more
  sunspots would lead to less solar radiation.
• However, the surrounding margins of sunspots are
  hotter than the average, and so are brighter
• More sunspots increase the sun's brightness.

http//upload.wikimedia.org/wikipedia/commons/0/0d
/Solar-cycle-data.png
27
Figure 15.4
28
Atmosphere of the Sun

• Chromosphere above the photosphere and below
  the corona
• Temperature is about 10,000 Kelvin
• Most of the Suns ultraviolet light is emitted
  from this region

29
See Corona during eclipse
30
Atmosphere of the Sun

• Corona tenuous uppermost layer of the Suns
  atmosphere
• Temperature is about 1 million Kelvin
• Most of the Suns X-rays are emitted from this
  region

31
Corona

• Extends millions of kilometers into space
• Sun's corona is constantly being lost as solar
  wind.

32
Solar Wind

• Stream of charged particles continually blown
  outward from the Sun

33
STEREO

• STEREO (Solar TErrestrial RElations Observatory)
  is a solar observation mission which was launched
  in October 2006.
• Two identical spacecraft were launched into
  orbits that cause them to (respectively) pull
  further ahead of and fall gradually behind the
  Earth.
• The spacecraft will do stereoscopic imaging of
  the Sun and processes such as Coronal Mass
  Ejections.

34

• Coronal Mass Ejections are large clouds of
  magnetized gas ejected into space by the sun

35
http//en.wikipedia.org/wiki/STEREO
36

• http//www.nasa.gov/mission_pages/stereo/main/inde
  x.html

37

• http//www.hulu.com/watch/63320/cosmos-the-lives-o
  f-the-starss-p1-so-i0

38
Any Questions?
