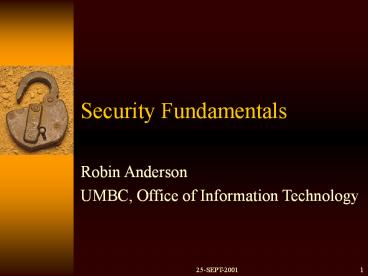

Security Fundamentals

1
Security Fundamentals

• Robin Anderson
• UMBC, Office of Information Technology

2
A Little About Me

• Unix SysAdmin, Specialist with the Office of
  Information Technology at UMBC
• Taught Unix Administration and SANS Level One
  Security courses at UMBC
• Certified by the SANS Institute GIAC program in
  UNIX Security and Incident Handling

3
Topics Outline

• Post-Mortems in the News
• Identifying Threats
• Countering Threats
• The (Vulnerable) Network
• Questions You Need to Ask
• Recommendations You Want to Make
• Resources Online

4
What Happened to Amazon?

• Website defacing
• Hackers broke in put up phony web pages
• (And now, newer worms/viruses are doing the
  same!)
• September 2000 OPEC 1
• February 2000 Amazon , eBay 2
• November 1999 NASA/Goddard 3
• October 31,1999 Associated Press 4
• August 1999 ABC 5
• June 1999 U.S. Army

5
What Happened to Yahoo?

• Denial of Service (DoS)
• February 2000 Yahoo and CNN 1
• Multiple Hits
• September 2000 Slashdot defaced
• May 2000 Slashdot suffered DoS
• ? The irony is that slashdot.org is a popular
  "news for nerds" website

6
If Theyre Vulnerable

• then you are, too.

7
The Fundamental Theorem

• You have computers because they perform some
  function that furthers your organizations goals
• If you lose the use of those computers, their
  function is compromised
• So - anything that interferes with your
  organizations effort to achieve its goals is a
  security concern

8
What Are You Protecting?

• Information
• Availability of the Systems
• Reputation Goodwill

9
Your Information

• Crown Jewels
• Trade secrets, patent ideas, research
• Financial information
• Personnel records
• Organizational structure

10
Your Availability

• Internal use
• When employees cant use the network, servers, or
  other necessary systems, they cant work
• Website / online transactions
• Often when systems are unavailable, the
  organization is losing money

11
Your Reputation

• Public trust
• If your organization is hacked, how reliable will
  people think you are you in other areas?
• Who wants to do business with companies that leak
  credit card information?
• Being a good neighbor
• Your organization may be hacked so it can be used
  as a springboard to attack others

12
A Simple Network
Firewall
Router
Router
Internet
13
Attacked!
Firewall
Router
Router
3
4
1
2
Internet
5
6
9
7
8
10
14
What Are These Threats?

• DoS coming from the Internet
• Severed Physical link
• Masquerader / Spoofer
• They look like theyre already inside
• Password sniffer

15
What Are These Threats? (2)

1. Alan brought a floppy from home that has a virus
   on it
2. Beatrice is about to be fired and shes going
   to be angry about it
3. Carter is careless with his passwords he writes
   them down and loses the paper

16
What Are These Threats? (3)

1. David has unprotected shares on his NT box
2. Evan installed a modem on his PC (PCAnywhere)
3. Severed Power / HVAC

17
What Are Threat Vectors?

• Vectors are the pathways by which threats enter
  your network

18
Threat Vectors - Internal

• Careless employees
• Floyd the clumsy janitor
• Contraband hardware / software
• Oops, did I just type that?
• Random twits (somewhere between careless
  malicious)
• Malicious employees
• Current or former employees with axes to grind
• Anyone who can get physical access

19
Threat Vectors - External

• Competitors / spies / saboteurs
• Casual incidental hackers
• Some hackers dont want your systems except to
  use them to get at their real target
• Malicious hackers
• Accidental tourists
• Natural disasters
• Be ready to face down the hurricane

20
What Are Threat Categories?

• Categories are the different kinds of threat you
  may encounter

21
Threat Categories

• Opportunistic
• Basic ankle biters and script kiddies
• More advanced hackers, hacker groups out trolling
• Targeted
• These attackers know what they want anything
  from data to disruption to springboards
• Omnipotent
• Government-sponsored professional hackers

22
Threat Consequences

• Bad press
• Breach of confidentiality
• Medical data
• Credit card information
• Attack platform (youve been subverted!)
• Loss of income
• How much does it cost you in sales to have your
  databases, website, etc, down for any given
  length of time?
• Loss of trade secrets (crown jewels)

23
The 3 Goals of Security

• Ensure Availability
• Ensure Integrity
• Ensure Authorization Authentication

24
Threats to Availability

• Denial of Service (DoS)
• Connection flooding
• Destroying data
• Hardware failure
• Manual deletion
• Software agents virus, trojans

25
Threats to Integrity

• Hardware failure
• Software corruption
• Buggy software
• Improperly terminated programs
• Attacker altering data

26
Threats to Authorization

• Attacker stealing data
• Lost / Stolen passwords
• Information Reconnaissance
• Organization information

27
Countering These Threats

• is what security is all about.

28
Defining Security

• Security is a process
• Training is ongoing
• Threats change, admins need to keep up
• Security is inconvenient, all staff needs
  training
• Security is also about policies
• There is no silver bullet to fix it all
• For example, a firewall wont save you
• Remember the Maginot Line

29
Notes

• The underlying assumption in the next section is
  that you, as the auditor, admin, or manager, are
  in a position to make security recommendations
• The following list of questions should not be
  considered in any way to be exhaustive, but a
  starting point to build your own list

30
Questions You Need to Ask

• What is the physical access policy to systems,
  routers, and backup media?
• Are the servers and main routers in a
  controlled-access environment?
• Who monitors access?
• Are desktop systems / workstations physically
  secured?

31
Questions You Need to Ask

• Is there a documented security policy?
• Where is it located?
• Who is responsible for maintaining it?
• Is the policy being consistently enforced?
• Who is the enforcer for the organization?
• Is there a firewall?
• Who maintains it and its rule-sets?
• Do its rules match the policy?

32
Questions You Need to Ask

• What is the backup policy schedule?
• What kind of backup media software is used?
• Where is the backup media stored? Is there an
  off-site safe/storage rotation?
• If the systems were utterly destroyed today, how
  up to date could you bring their replacements?
• Have the backups ever been tested (via a restore)
  for completeness and integrity?

33
Questions You Need to Ask

• Does the organization know what is on its
  network?
• If so, how does it know?
• Where are the records kept?
• Who has access to them?

34
Questions You Need to Ask

• Are routine network vulnerability scans run?
• If so, what tools are used?
• Where are the reports stored?
• Who has access to the tool and the reports?
• Is any routine network monitoring done?
• If so, what tools are used?
• Where are the reports stored?
• Who has access to the tool and the reports?

35
Questions You Need to Ask

• What kind of power management contingencies are
  available?
• Uninterruptible Power Supplies (UPS)?
• Power regulation?
• Backup generators?
• Mean time to recovery from outage?

36
Questions You Need to Ask

• What kind of authentication does your
  organization use?
• Passwords
• Multi-use, one-time?
• Expiration?
• Biometric authentication?
• Smart-cards

37
Questions You Need to Ask

• If you use passwords, how does your organization
  replace lost ones?
• Any policy on verifying users identity, etc?

38
Questions You Need to Ask

• What kind of network connections does your
  organization allow?
• Are they clear-text protocols (like telnet,
  rlogin, rsh, ftp)?
• Can your organization migrate to using encrypted
  protocols (like ssh, stunnel, etc)?

39
Recommendations You Really Want to Make

• No matter what, recommend a dedicated security
  officer
• One individual responsible for security
• NOT the sys admin, network admin
• Qualifications
• Training
• Certification (CISSP, SANS)
• Demonstrated proficiency

40
Recommendations You Really Want to Make

• Routine Vulnerability Scanning
• Tools like Saint, Nessus, Legion, Nmap, SARA
• Principle of Least Privilege
• Documented Procedures for Incident Handling

41
So, What Is a Security Officer?

• Protector
• Internal, external
• Assessor
• Monitor
• Contact point
• Law enforcement
• Internal
• External

42
What Does It All Mean?

• Its a dangerous world, but were not necessarily
  doomed!
• Security is an ongoing process (its worth
  repeating!)
• Ask the questions youve seen here
• Ask any others you think of
• Ask them all again tomorrow new challenges are
  arising every day!

43
Acknowledgements

• Andy Johnston, manager and co-conspirator
• Jon Lasser, author of Think UNIX
• Stephen Northcutt, SANS instructor and author of
  Network Intrusion Detection

44
Resources Online

• Training and Certifications
• SANS Institute
• http//www.sans.org/
• CISSP Certification for Information System
  Security Professional
• http//www.cissps.com

45
Resources Online (2)

• News Alerts
• Security Focus
• http//www.securityfocus.com/
• CERT was Computer Emergency Response Team
• http//www.cert.org/
• CIAC Computer Incident Advisory Capability
• http//ciac.llnl.gov/

46
Resources Online (3)

• Federal Information Sharing Organizations
• NIPC National Infrastructure Protection Center
• http//www.nipc.gov
• Infragard Guarding the Nations Infrastructure
• http//www.infragard.net
• Infragard Maryland Chapter
• http//www.mdinfragard.org

47
Resources Online (4)

• SSH
• http//www.ssh.fi
• http//www.openssh.org
• SSH tunnel
• http//linuxdoc.org/HOWTO/mini/VPN.html
• http//www.ccs.neu.edu/groups/systems/howto/howto
  -sshtunnel.html
• Stunnel
• http//mike.daewoo.com.pl/computer/stunnel/
• http//www.stanton.dtcc.edu/stanton/cs/admin/note
  s/ssl/

48
Resources Online (5)

• Network Monitoring Software
• Snort
• http//www.snort.org
• Network Vulnerability Scanners
• Saint
• http//wdsilx.wwdsi.com/saint
• Nessus
• http//www.nessus.org

49
Resources Online (6)

• Kerberos
• http//web.mit.edu/kerberos/www
• This Presentation
• http//www.gl.umbc.edu/robin/security.html
