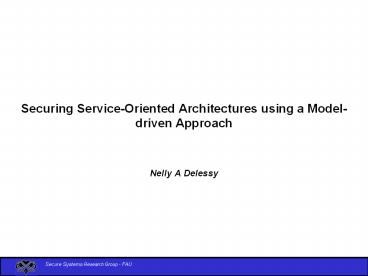

Securing Service-Oriented Architectures using a
Model-driven Approach
  • Nelly A Delessy

  • Introduction
  • Background
  • Problem statement
  • The methodology
  • Overview
  • Detailed Steps and Running Example
  • Related work
  • Anticipated contributions
  • Conclusions
  • Questions

  • Service-Oriented Architecture (SOA)
  • considered to be the new phase in the evolution
    of distributed enterprise applications
  • In our more and more competitive business world,
    in which business needs and partnerships are
    changing constantly, the rapid evolution of
    business applications is a key factor in the
    success of an organization.

  • Service-Oriented Architecture (SOA)
  • SOA has promised to provide enterprises with
    flexible and extensible architectures that would
    enable them to adapt their applications easily so
    that they remain competitive and compliant.
  • Most of the major software vendors sell SOA
    products such as Enterprise Service Buses (ESBs).
  • Even though there is a common acceptance of this
    concept, a real problem hinders the widespread
    use of SOA A methodology to design and build
    secure SOA-based applications is still needed

Background SOA
  • There is no official definition for SOA. The Open
    Group, the Object Management Group (which
    proposed MDA), and OASIS proposed their
    definition, and many books concerning SOA are
  • We summarized the principal characteristic of
  • Service-Oriented Architecture (SOA) is an
    architectural style in which a system is composed
    from a series of loosely coupled services that
    interact with each other by sending messages. In
    order to be independent from each other, each
    service publishes its description, which defines
    its interface and expresses constraints and
    policies that must be respected in order to
    interact with it. A service is thus a building
    block for SOA applications.

Background SOA
  • This architectural style implements some
    principles Erl05
  • Loose coupling between services
  • Service contract
  • Autonomy
  • Abstraction
  • Reusability
  • Composability
  • Statelessness
  • Discoverability
  • An implementation platform for SOA is the Web
    Services technology.

Background MDA
  • Model-Driven Architecture (MDA) is a model-driven
    approach defined by the OMG.
  • It specifies three views in order to describe a
    systems architecture
  • It proposes a process for software development.
  • MDA is based on a set of specifications (MOF,
    XMI, etc) in order to achieve interoperability
    and portability.

Background MDA
  • MDA proposes three views (or viewpoints) to
    describe the architecture of a system
  • The computation independent viewpoint focuses on
    the environment of the system and the
    requirements for the system. The details of the
    structure and processing of the system are
  • The platform independent viewpoint focuses on the
    structure and the operation of the system while
    hiding the details necessary for a particular
  • The platform specific viewpoint combines the
    platform independent viewpoint with an additional
    focus on the detail of the use of a specific
    platform by a system.

Background MDA
  • The MDA process
  • consists in a series of model transformations
    prior to obtaining the final implementation of a
  • First, a model of the system viewed from the
    computation independent viewpoint is created from
    the requirements for the system. This is the
    Computational Independent Model (CIM), also
    called the domain model or business model. A CIM
    shows the system in the environment in which it
    will operate and thus presents what the system is
    expected to do.

Background MDA
  • The MDA process
  • Then a Platform Independent Model (PIM) is
    produced, it is a model of the system from the
    platform independent viewpoint. The requirements
    described by the CIM should be traceable to the
  • Then, a specific platform is chosen that enables
    implementation of the system with the desired
    architectural qualities. A model for that
    platform should also be available. Finally, the
    Platform Specific Model (PSM) is produced it is
    a model of the system from the platform specific

Background MDA
  • The MDA process
  • Transforming a PIM to a PSM is referred to as the
    MDA pattern or MDA mapping.

Background MDA
  • Meta-models
  • A meta-model (also referred to as a language) is
    the definition of a model.
  • The Four-layer metamodel Hierarchy
  • Each layer contains elements that are instances
    of the underlying layer

MetaLevel Description Example 1 Example 2
M0 Run-time instances Objects Nelly Delessys record in Employee table
M1 Model User model (with concrete classes, etc) Employee table with name, address columns, etc
M2 Meta-model UML Relational model Relations, rows, columns, etc
M3 Meta-metamodel MOF MOF
Background MDA
  • MDA transformations
  • Meta-model mapping
  • gives rules and/or algorithms expressed in terms
    of all instances of types in the meta-model
    specifying the PIM language resulting in the
    generation of instances of types in the
    meta-model specifying the PSM language.
  • it requires models to be instances of MOF

Background MDA
  • MDA transformations
  • Model marking
  • An architect identifies model elements in the
    PIM which should be transformed in a particular
    way, given the choice of a specific platform for
    the PSM by marking those elements.
  • Marks represent a concept in the PSM, and are not
    intrusive to the PIM.

Problem Statement
  • The trust issue is more complex in
    inter-organizational context than it is in
    traditional fields of computing
  • For example, the hardware or some trusted
    computing base is blindly trusted when designing
    an operating system. In the same way, one can
    easily establish a trust relationship with the
    enterprise directory in the case of a single
    organizations system. Comparatively, it is much
    more complicated to establish trust dynamically
    across principals from different organizations.

Problem Statement
  • Furthermore the channels of communication between
    the participating entities in a SOA application
    are much more vulnerable
  • Compared to operating systems or within the
    boundaries of an organizations computer network

Problem Statement
  • Many efforts have been made to alleviate the
    security vulnerabilities that were introduced in
    the complex context of SOA applications.
  • They principally consisted in the production of
    numerous, often overlapping security standards by
    the industry actors.
  • But there is still no clear view of how to use
    them in order to produce secure SOA applications.
  • In this dissertation, we investigate the
    production of secure SOA applications. In
    particular, we provide an approach to build
    secure SOA applications that takes into account
    the new security issues introduced by the
    complexity of SOA-based applications.

The methodology Overview
  • We build upon two different approaches to secure
    SOA applications
  • model-driven development
  • The use of security patterns.
  • Since the basic security mechanisms are not new,
    we use security patterns to describe their
    structure and behavior.
  • Then we can derive more complex security
    solutions that are adapted to the SOA context.
    The result is a map of layered security patterns.

The methodology Overview
  • Finally, since we use a particular format for our
    patterns that includes semi-formal UML models, we
    leverage on the model-driven architecture
    approach, which allows us to semi-automatically
    produce a secure design for a particular SOA

The methodology Overview
  • The main benefit of this approach
  • it decouples the application domain expertise
    from the security expertise that are both needed
    to build a secure application
  • It is usually difficult for non-security
    specialists to design a secure application.
  • On the other hand, a security expert would have
    to become an expert in an applications domain
    model in order to understand where to apply
    security mechanisms and what security mechanisms
    are adequate.

The methodology Overview
  • With our approach, the security expertise is
    embodied in the security patterns, and the
    model-driven engineering approach facilitates the
    integration of those patterns solution into the
    application design and implementation.
  • Thus, the application designers/developers can
    add security to their applications easily.

The methodology Detailed Steps and Running
  • A key idea in our dissertation is to describe the
    SOA architectural style from the MDA viewpoints.
  • We propose the following framework to secure SOA

The methodology Detailed Steps and Running
The methodology Detailed Steps and Running
  • A SOA metamodel has been defined using the
    standardized MOF language (, or a UML Profile?
    work in progress)
  • An application architect can then use any UML
    tool that has charged the SOA metamodel as a
    library to design its application. The result is
    a SOA application platform independent model,
    which can be easily understood by our tool. At
    this point, it is not yet secure.

  • The SOA metamodel (work in progress)

  • Use Case diagram the travel agency (work in

  • Conceptual model (CIM) for the travel agency
    (work in progress)

  • Activity Diagram for the travel agency, for the
    use case Reserve Hotel (work in progress)

  • Detailed Class Diagram (PIM) for the travel
    agency (work in progress)

The methodology Detailed Steps and Running
  • A security-aware application architect (who is
    not necessarily a security expert) uses the map
    of abstract patterns to select which security
    pattern to apply. He uses the human-only
    understandable part of the patterns
    (consequences, context, etc) to make relevant

  • Map of abstract security patterns for SOA

The methodology Detailed Steps and Running
  1. The abstract security patterns solutions are
    automatically incorporated into the SOA
    application platform independent model, according
    to our rules for incorporating security patterns
    solutions to models.

The methodology Detailed Steps and Running
  • We need
  • The SOA security pattern metamodel
  • The OMG proposed a metamodel for business
    pattern we want to add to that
  • The notion of pattern realization (they do have
    pattern inheritance and pattern composition)
  • The transformation specification from unsecure
    SOA PIM to secure SOA PIM, using the security

  • SOA security pattern metamodel (in progress)

The methodology Detailed Steps and Running
  • Before the transformation, the architect marks
    its unsecure SOA PIM. This is done through a
    dialog from the tool to the architect
  • For each selected pattern
  • For each SOAElement in the pattern
  • Ask to which specific instance(s) of a SOAElement
    the pattern should be applied to
  • Mark those specific instances selected by the
  • End For
  • End For

The methodology Detailed Steps and Running
  • We need
  • The transformation specification from unsecure
    SOA PIM to secure SOA PIM, using the security
    patterns (work in progress)
  • Source model unsecure SOA PIM
  • For each selected security pattern
  • Insert all SOASecurityElements to the SOA PIM
  • Insert all Associations from the pattern for
    which all ends are SOASecurityElements
  • Insert those Associations from the pattern for
    which one end is an SOAElement between the
    corresponding SOAsecurityElement(s) and each
    marked SOAElement from the SOA PIM
  • End For
  • This transformation could be described using the
    QVT standard?

  • example of the security pattern selected by the

  • resulting model (secure SOA PIM)
  • Work in progress

The methodology Detailed Steps and Running
  • A MDA mapping is then automatically realized,
    according to two sets of rules
  • 1) a MDA mapping between the SOA metamodel and
    the web-services metamodel,
  • 2) the set of relationships between patterns of
    our map that are of the implements type.
  • Since platform security solutions evolve
    constantly, our approach provides flexibility to
    add/remove patterns from our tool. Also, since
    the patterns solutions are written in the UML
    language and using our SOA metamodel, they can be
    easily exportable/distributable (using XMI) by
    different entities and still remain
    interoperable. The result of this step is a
    secure model for a particular web service

  • The web services metamodel
  • (work in progress)

The methodology Detailed Steps and Running
  • sets of rules
  • 1) a MDA mapping between the SOA metamodel and
    the web-services metamodel
  • Service ? Web Service
  • Message ? InputMessage, OutputMessage, depending
    on the role of the service (consumer or provider)
  • The result is the insertion of a corresponding
    security pattern for web services (Liberty
    Alliance Identity Federation) to the model
  • A final transformation could have generated more
    concrete artifacts WSDL, BPEL, WS-policies,
    XACML rules, but this is not in the scope of our

Related Work
  • Securing SOA applications or web services
  • Based on a formal model (10)
  • Based on AOP (11) They propose to extend BPEL
    to insert pointcuts.
  • A whole process using patterns 13, but not
    detailed, and does not take advantage of the MDA
  • Addressing non-functional aspects in SOA using a
    metamodel, (15) but it does not address
    high-level security issues

Related Work
  • Using MDA to secure SOA
  • In 1, a model driven approach to secure web
    services is proposed, but it focuses on access
    control, and by extending OCL (Object Constraint
    Language) to define access control policies that
    are later transformed into XACML policies. In our
    approach, we use a standardized MOF language to
    achieve interoperability.
  • 2 uses an MDA approach to include security
    during the whole design process. They define UML
    security intentions that are later transformed
    into platform specific security mechanisms. But
    they do not take advantage of the SOA nature of
    the application to be secured, their approach
    could be applied to any type of application.

Related Work
  • Using patterns and MDA to secure SOA
  • In 9, they present low-levels patterns that can
    be used at the message exchange level, but do not
    secure higher levels (at the business process
    levels,..), so that they do not address such
    security issues such as trust establishment
    between partners, propagation of identities. They
    use concepts from Model-driven development to
    propose refined views for SOA applications but do
    not take advantage of the MDA standards to detail
    how to do the model transformations.

Anticipated Contributions
  • Our approach to secure SOA applications builds
    upon two independent approaches, so the
    contributions of this research have value of
    their own and could be used in other
    methodologies or for different purposes. Those
    contributions include
  • A MOF metamodel for SOA applications (SOA PIM)
    work in progress
  • A MOF metamodel for web services-based
    applications (WS PSM) work in progress
  • A map of security patterns for SOA and web
    services-based applications, and a corresponding
    catalog of security patterns done

Anticipated Contributions
  • A marking strategy for including security
    patterns into SOA applications work in progress
  • A MDA mapping from the SOA PIM to the WS PSM
    work in progress
  • The methodology itself it can be abstracted and
    be applied to different architectural styles

  • In this presentation, we presented a novel
    approach to secure SOA applications.
  • Since security must not be considered as an
    isolated aspect, but as an aspect present in all
    stages of a system development, we rely on the
    MDA approach.
  • At the same time, we address the non-functional
    requirements separately from the functional
    requirements by embodying the security knowledge
    from security experts in the domain, in the form
    of security patterns.
Write a Comment
User Comments (0)
