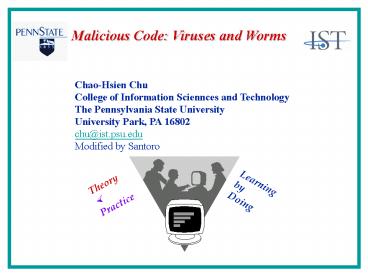

Malicious Code Viruses and Worms
Chao-Hsien Chu College of Information Sciennces
and Technology The Pennsylvania State
University University Park, PA 16802 chu_at_ist.psu.e
du Modified by Santoro
Learning by Doing
Theory ? Practice
2
Malicious Code Taxonomy

• Viruses replicating malicious code
• Worms self-replicating malicious code
• Mailing worms
• Random scanning worms
• Logic Bombs programmed malfunctions (similar to
  easter eggs)
• Trojan Horses malicious program that
  masquerades as legitimate
• Backdoors
• Password stealers
• Exploit code
• Autorooters
• White hat penetration tools
• Downloaders loads other malicious code on a
  machine

3
Malicious Code Taxonomy

• Dialers generate money for attackers by having
  users unknowingly dial premium rate numbers
• Code generator kits (e.g. Virus Creation Lab)
• Spammer programs
• Flooders DDOS tools, BotNets
• Keyloggers
• Rootkits special tool set installed after an
  attacker has gained control of a system modifies
  logs, installs backdoors, etc.
• Other
• Hoax messages
• Adware
• Spyware
• Phishing attacks

4
Malicious Code Example

• Most people I think dont even know what a
  rootkit is so why should they care about it?
• Thomas Hesse, Sony BMG
• In 2005, Sony BMG released music CDs containing
  extended copy protection (XCP) software.
• This software was functionally a rootkit that
  installed hidden files with no notification to
  the user a special uninstaller was required to
  remove the software
• Simply playing the music CD in a windows machine
  resulted in infection
• NPR story http//www.npr.org/templates/story/sto
  ry.php?storyId4989260

5
Virus Definition

• A computer virus is a program that recursively
  and explicitly copies a possibly evolved version
  of itself.
• Peter Szor, 2005
• Key aspects of this definition
• Recursively operate on their own output
• Explicitly the copy is specifically intended as
  opposed to resulting from a side-effect of some
  other action
• Possibly evolved the virus may alter itself
  over time (metamorphism)

6
Virus Environments

• For a sequence of symbols to execute
  successfully, it must match the execution
  environment
• Many execution environments exist, e.g.
• MS Office macro invoking a Java method on a
  windows XP machine running on an x86 processor
• Any given virus can only be successful if its
  code matches all of the various dependencies
• Homogeneous environments, such as Java and MS
  Office provide execution environments across many
  lower level environments
• For exploit-based dependencies, it may be
  difficult for a virus to spread far
• Dependencies
• CPU differences between families, within a
  family (backward compatibility, extensions such
  as MMX, prefetch queue, etc.)
• Operating System different OSs and different
  versions of an OS
• File system virus may modify file system
  metadata (e.g. FAT), NTFS stream-based hiding
• File format COM, EXE, dll, ELF, etc
• Interpreter Office Macros, Shell languages,
  VBScript, Jscript, etc

7
Virus Infection Techniques (1)

• DOS boot process
• BIOS loads the master boot record into memory and
  jumps to the first address of the bootstrap
  loader
• The bootstrap loader examines the MBR partition
  tables (PT) and locates an active, bootable
  partition
• The bootstrap loader then boots the rest of the
  operating system

MBR Infection
MBR
Virus

• MBR infection strategies
• Replace and save bootstrap code relocate MBR
  and transfer control
• Replace but do not save bootstrap code keep PT
  and perform bootstrap functions (find active
  partition and transfer control)
• Infect MBR by altering the PT to load a different
  boot sector where the virus is stored

Saved MBR
Exebug virus modified the BIOS to make it appear
that no floppy drive was present PC always boots
to infected MBR virus checks for presence of
floppy disk and transfers control if one is
present
DBR
DBR
8
Boot Sector Virus Relocating Code
Boot Sector
Other Sectors
Bootstrap Loader
System Initialization
Chain
(a) Before Infection
Boot Sector
Other Sectors
Bootstrap Loader
System Initialization
Virus Code
Chain
Chain
(b) After Infection
9
Virus Infection Techniques (2)

• File Infection
• Overwriting viruses
• Simply overwrite a file on disk with virus code
  starting at first file byte
• Do not change file size
• Cannot be disinfected
• Random overwriting viruses
• Seek to random location before overwriting file
  contents entry point obscuring
• A challenge for scanners that look in expected
  locations for virus code
• Execution cannot be guaranteed
• Appending viruses
• Virus body is appended to the end of the host
  file
• A jump instruction is inserted in the front of
  the host to point to the virus
• Over-written host bytes at the beginning are
  stored in the virus body
• Once executed, the virus can clean the program
  by replacing the over-written bytes and
  transferring execution to the program
• Pre-pending viruses
• Virus code is appended before the first host
  instruction, guaranteeing that all virus
  instructions are executed before any host
  instructions.

10
How Virus Attach
Original Program
Virus Code
Virus Code
Virus Code (a)
Modified Program


Original Program
Original Program
Virus Code (b)
Appended to a Program
Surrounding a Program
Integrated in a Program
11
Virus In-Memory Strategies (1)

• Direct Action
• Do not actively manifest themselves in memory
• Load with host program into memory
• Once running, they start looking for new objects
  to infect
• Simple to create
• Memory-Resident
• Remain in memory after virus initialization
• More efficient than direct action
• Typical pattern
• Virus gains control of system and allocates
  memory
• Virus relocates itself to an allocated memory
  block
• Virus hooks execution of code flow to itself
• Virus infects new objects

12
Virus In-Memory Strategies (2)

• Interrupt handling and hooking
• DOS Example, INT 13 Disk operations
• Virus hooks INT by setting new interrupt handler
  addr in IVT after establishing itself in memory
• When the virus runs, it examines the appropriate
  registers to see what kind of disk action is
  being performed
• Under certain actions, the virus can covertly
  propagate itself (e.g. if the disk action is a
  write to a floppy disk, the virus can infect the
  floppy boot sector)

INT 00h ltAddr00gt INT 01h ltAddr01gt INT13h ltAddr13
gt
INT 00h ltAddr00gt INT 01h ltAddr01gt INT13h ltAddrXX
gt
program
program
IVT (Interrupt vector table)
Virus
BIOS
BIOS
Uninfected case
Infected case
13
Virus In-Memory Strategies (3)

• Stealth advantages of hooking
• INT 13
• Boot virus can return the original version of an
  infected sector during a disk read (read stealth)
• Appending virus can save overwritten
  beginning-of-file bytes in last cluster slack
  space (leaving file size unmodified) and use
  hooked code to return saved bytes if they are
  ever accessed.

14
Advanced Virus Techniques

• Encryption
• Constant decryptor followed by virus body
• Often simple XOR based encryption is used
• Decryption key can be stored in the decryptor,
  host or nowhere
• Oligomorphism
• Detection of an encrypted virus is simple if the
  decryptor is long and unique enough
• Oligomorphic viruses change the decryptor in new
  generations
• Can be accomplished using a set of decryptors
  for a large set, detection based on the decryptor
  is impractical, must dynamically decrypt and
  detect based on decrypted body code
• Polymorphism
• Mutates the decryptor into potentially millions
  of forms (e.g. via reordering, junk instruction
  insertion)
• Metamorphism
• body-polymorphism change the entire virus,
  rather than just the decryptor
• Source code based example modify virus source
  and recompile
• Binary-based example (simple) use different
  registers in the same code

15
Virus Example Love Letter (1)

• Behavioral Description (from F-Secure)
• Found in the wild May 4, 2000
• Copies itself to the windows system directory as
• - MSKernel32.vbs - LOVE-LETTER-FOR-YOU.TXT.vbs
• and to the Windows directory as
• - Win32DLL.vbs
• Adds keys to the registry, so that it will be
  executed when the system is restarted
• HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\Curr
  entVersion\Run\MSKernel32
• KEY_LOCAL_MACHINE\Software\Microsoft\Windows\Curre
  ntVersion\RunServices\Win32DLL
• Replaces the Internet Explorer home page with a
  link that points to an executable program,
  "WIN-BUGSFIX.exe
• Creates an HTML file called "LOVE-LETTER-FOR-YOU.H
  TM" in the Windows System directory. This file
  contains the worm and it will be sent using mIRC
  whenever another person joins an IRC channel
  where the infected user currently is. To
  accomplish this the worm replaces the
  "script.ini" file from the mIRC installation
  directory.
• Mass mails itself to everyone in each Outlook
  address book. Registry is marked to prevent
  repeat mailings
• Subject ILOVEYOU Body kindly check the attached
  LOVELETTER coming from me.
• Attachment LOVE-LETTER-FOR-YOU.TXT.vbs
• Overwrites various files with itself

Source http//www.f-secure.com/v-descs/love.shtml
16
Virus Example Love Letter (2)

• Behavioral Description (from F-Secure) continued
• Downloaded executable is a password stealing
  trojan
• On startup, looks for a hidden window named
  BAROK
• If the hidden window is present, the trojan
  exits, otherwise execution continues
• Checks for the WinFAT32 subkey in the following
  Registry key
• HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\Cur
  rentVersion\Run
• If the WinFAT32 subkey key is not found, the
  trojan creates it, copies itself to the
  \Windows\System\ directory as WINFAT32.EXE and
  then it runs the file from that location.
• Sets the IE startup page to 'aboutblank'.
• Deletes the following keys
• Software\Microsoft\Windows\CurrentVersion\Policie
  s\Network\HideSharePwds
• Software\Microsoft\Windows\CurrentVersion\Policie
  s\Network\DisablePwdCaching
• .DEFAULT\Software\Microsoft\Windows\CurrentVersio
  n\Policies\Network\HideSharePwds
• .DEFAULT\Software\Microsoft\Windows\CurrentVersio
  n\Policies\Network\DisablePwdCaching
• Registers a new window class and creates a hidden
  window titled 'BAROK...' and remains resident in
  the Windows memory as a hidden application.
• Immediately after startup and when timer counters
  reach certain values, the trojan sends stolen RAS
  passwords and all cached Windows passwords to
  e-mail address 'mailme_at_super.net.ph

Source http//www.f-secure.com/v-descs/love.shtml
17
VBS Example Love Letter Virus (1)
Language Reference MSDN Home gt  MSDN Library gt
Web Development gt  Scripting gt  Microsoft Windows
Script Technologies gt  Script Runtime gt
FileSystemObject gt  Scripting Run-Time
Reference gt
18
VBS Example Love Letter Virus (2)
19
VBS Example Love Letter Virus (3)
20
Worm Definition

• A worm is a program that can run by itself and
  can propagate a fully working version of itself
  to other machines. It is derived from the word
  tapeworm, a parasitic organism that lives inside
  a host and saps its resources to maintain
  itself.
• Spafford, 1988

21
Worm Taxonomy

• Target discovery
• Active scanning, hitlist, passive monitoring
• Propagation method
• Self-propagation, embedded, secondary channel
• Activation
• Self-activation, scheduled, human-mediated
• Payload
• no payload, payloads which open back doors on
  victim machines, and payloads for denial of
  service, spam relays, reconnaissance, and damage
  to victim machines.

Weaver, N., V. Paxson, et al. (2003). 'A Taxonomy
of Computer Worms'. Workshop on Rapid Malcode
(WORM'03)
22
The Worm Threat

• In November, 1988 the Morris Worm infected an
  unknown proportion of Unix systems on the
  Internet with repair costs estimated at
  100,000,000. (National Institute of Justice,
  2001). Targets sendmail, finger, rsh
• On July 19th, 2001 more than 359,000 computers
  were infected with Code Red worm in less than 14
  hours. Target MS IIS web server
• On January 25th, 2003, the SQL Slammer worm
  infected 90 of vulnerable hosts within 10
  minutes, causing network outages and disruptions
  to airline flights, and ATM machines. Target MS
  SQL Server 2000

23
Code Red I Timeline

• June 18, 2001 eEye Security issued an advisory
  regarding a buffer overflow vulnerability in the
  MS IIS web server
• June 26 Microsoft releases a patch for the
  vulnerability
• July 12 Code Red I is released
• Memory-resident, random scanning
• Time-dependent behavior
• Before 20th day of the month infection
• 20th 28th day of the month DoS attack against
  www1.whitehouse.gov
• After 28th day of the month dormant
• Slow spread due to static random seed
• July 19 random variant worm, Code Red I ver 2 is
  released
• 359,000 machines infected in less than 14 hours

24
CRv2 Growth Curve
Source D. Moore, C. Shannon, and J. Brown,
"Code-Red a Case Study on the Spread and Victims
of an Internet Worm," in Internet Measurement
Workshop, 2002.
25
Worm Target Discovery
Without a priori target knowledge
With a priori target knowledge
Random Scan Uniform Local preference Sequential
Topological Scan
Hitlist Scan (limiting case is Flash Scan)
Optimizations Routable Scan Permutation Scan
26
Bot and BotNet

• Bot is a zombie computer
• Bot software downloaded and installed, often as
  rootkit
• Bots connect through TCP/IP to controller
  (mother ship)
• Bots can be reprogrammed from controller
• Botnets used to launch spam, DDOS

27
Bot and BotNet

• Case study Storm Botnet
• By Sep 2007 running on between 1 and 50 million
  computers worldwide (at one point 8 of all
  Windows malware)
• Vector was XSS used phishing to get users to
  activate Web link
• Used in varietyu of criminal activities,
  including DDOS and spam
• Has displayed defensive behaviors
• Developers not caught yet believed to have
  originated in Russia
• Believed that code has been sold to other hacker
  groups

28
Network Telescopes
A commonly used monitor for worm activity is the
network telescope Network telescopes monitor
large segments of dark, or unused, address space
containing few, if any, production hosts No or
very little legitimate traffic is expected to be
observed targeting telescope address space
29
Case Study Stuxnet

• Computer worm first analyzed in July, 2010
• First known case of targeted worm that attacks
  industrial control systems
• spreads indiscriminately, contains payload that
  targets Siemens control systems
• believed to have been targeted against Iran
  nuclear fuel enrichment program
• analysts believe it was created by nation-state,
  possibly US/Israel

30
Case Study Stuxnet

• First appeared June 2009 improved variants in
  March and April 2010
• Primarily found in 8 countries, but over 60 of
  infections in Iran
• Makes itself inert if it does not detect Siemens
  control software
• 3-layered attack
• Windows zero-day vulnerabilities
• Step 7 industrial application
• Siemens PLC

31
Case Study Stuxnet

• Two vectors
• USB storage
• P2P RPC
• contains man-in-middle attack to fake
  industrial process control sensor signals
• so damage is not detected until too late
• believed to have specifically targeted fuel
  enrichment centrifuges

32
Case Study Stuxnet

• Contains both user-mode and kernel-mode rootkits
• Valid digital certificates stolen from Veri-Sign
  used to avoid driver detection
• Web sites in Denmark and Malasia served as
  command-and-control centers
• Utilized 4 zero-day Windows vulnerabilities
• Infects project files for Siemens WinCC/PCS 7
  SCADA controlers
• subverts key communications dll to avoid
  detection

33
Case Study Stuxnet

• Stuxnet is VERY sophisticated
• indicates multi-level, evolving attack strategy
• believed to have been developed as a targeted
  cyber-warfare weapon
• has raised awareness among cyber-security
  commands
• similar attacks could target power grids,
  communications, oil refineries, shipyards, etc.
• (see movie Eagle Eye for hypothetical
  potential)
