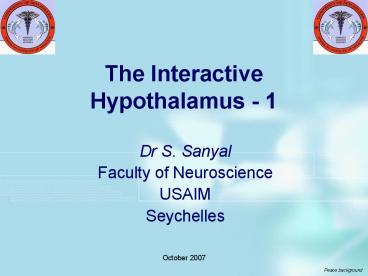

The Interactive Hypothalamus - 1

1
The Interactive Hypothalamus - 1

• Dr S. Sanyal
• Faculty of Neuroscience
• USAIM
• Seychelles

Peace background
2
Click on any nucleus to see its location

• Preoptic nucleus
• Suprachiasmatic nucleus
• Paraventricular nucleus
• Anterior nucleus
• Supraoptic nucleus

• Dorsomedial nucleus
• Ventromedial nucleus
• Arcuate nucleus
• Posterior nucleus
• Mammillary nucleus
• All nuclei

For each nucleus, two diagrams are given from two
different sources. The gross location of nuclei
and their relationships are same in both
diagrams there are minor variations in shape of
some nuclei. Lateral nucleus is shown in only one
diagram.
3
All hypothalamic nuclei and surrounding structures
Choroid plexus 3rd ventricle
Corpus callosum
Body
Monroe foramen
Fornix
Genu
Septum pellucidum
Interthalamic adhesion
Rostrum
Ant.comm.
Hypothalamic sulcus
PVN
Thalamus
Pulvinar
Lamina terminalis
PON
PN
SCN
DMN
AN
SON
Midbrain
VMN
ArN
MN
Sylvius aqueduct
Pituitary
Pons
Optic chiasma
Infundibulum
4
All hypothalamic nuclei and surrounding structures
Fornix
Thalamus
?
Hypothalamic sulcus
Lamina terminalis
?
Anterior commissure
?
Lateral nucleus
?
?
?
Midbrain
?
?
?
?
Occulomotor nerve
Chiasmatic recess of 3rd ventricle
Infundibular recess of 3rd ventricle
A
P
Pons
Pituitary
Optic chiasma
Infundibulum (pituitary stalk)
5
Preoptic nucleus
Back to slide 3
Back to slide 4
6
Suprachiasmatic nucleus
Back to slide 3
Back to slide 4
7
Paraventricular nucleus
Back to slide 3
Back to slide 4
8
Anterior nucleus
Back to slide 3
Back to slide 4
9
Supraoptic nucleus
Back to slide 3
Back to slide 4
10
Dorsomedial nucleus
Back to slide 3
Back to slide 4
11
Ventromedial nucleus
Back to slide 3
Back to slide 4
12
Arcuate nucleus
Back to slide 3
Back to slide 4
13
Posterior nucleus
Back to slide 3
Back to slide 4
14
Mammillary nucleus
Back to slide 3
Back to slide 4
