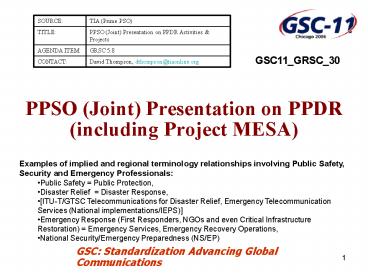

PPSO (Joint) Presentation on PPDR (including Project MESA)

1
PPSO (Joint) Presentation on PPDR(including
Project MESA)
SOURCE TIA (Prime PSO)
TITLE PPSO (Joint) Presentation on PPDR Activities Projects
AGENDA ITEM GRSC 5.8
CONTACT David Thompson, dthompson_at_tiaonline.org
GSC11_GRSC_30

• Examples of implied and regional terminology
  relationships involving Public Safety, Security
  and Emergency Professionals
• Public Safety Public Protection,
• Disaster Relief Disaster Response,
• ITU-T/GTSC Telecommunications for Disaster
  Relief, Emergency Telecommunication Services
  (National implementations/IEPS)
• Emergency Response (First Responders, NGOs and
  even Critical Infrastructure Restoration)
  Emergency Services, Emergency Recovery
  Operations,
• National Security/Emergency Preparedness (NS/EP)

2
TIA and PPDR

• TIA has a proven track record of supporting
  emergency responders, and has long been a
  catalyst for the wireless industry to develop and
  maintain public safety standards (analog and
  digital) for equipment and systems
• TIA standards activities began in the 1920s
• One Committee, TR-8, Broadband Data Systems has
  met continuously since 1944 and has been involved
  in producing standards for land mobile systems
  and products that serve the public safety
  community and other private radio users
• TIAs Engineering Committee TR-8 develops
  narrowband, and wideband and now broadband
  standards, involving both users and suppliers in
  its standards deliberation activities

3
TIA and Project MESA

• Recent TR-8 activities have included Project 25
  (102-series) for voice plus narrowband and
  wideband (902-series) data
• Natural evolution to look at broadband mobile for
  Public Safety
• Project 34 and TR-8.8
• Through broadband data emerges a paradigm shift
  potential for commercial technology to facilitate
  data needs
• Enhance Public Safety capabilities
• Involvement of TIA TR-45, Mobile and Personal
  Communications Systems and its members
• Issues for Public Safety Spectrum and systems
  (private/commercial ownership, operation and
  management), comprehensive SLAs, robustness and
  reliability of technology, other

4
MESA Partnership for Broadband PPDR

• Recognized that ETSI and TIA were independently
  working on similar projects
• Challenges faced by Public Protection and
  Disaster Relief (PPDR) professionals are similar
  throughout the world
• Partnership program between ETSI and TIA
• Formed in May 2000 using the Partnership
  Project model that was used in 3GPPs
• This Public Safety Partnership Project (PSPP)
  named Project MESA in honor of the signatory city

• Acronym fits well tooMobility for Emergency and
  Safety Applications

5
Project MESABroadband Mobility for Emergency
and Safety Applications
6
Objectives

• MESA aims to coordinate and articulate globally
  applicable requirements and technical
  specifications for digital mobile broadband
  technology, aimed initially at the sectors of
  public safety and disaster response in support of
  local, regional and international responses to
  emergencies, disasters and day-by-day services
• Based on continued professional user input and
  contribution

7
Project MESA Organizational Structure
8
MESA Partnership for Broadband PPDR

• Project MESA
• Broadband communication capabilities for Public
  Safety and Emergency Services (i.e., NGN for
  PPDR, TDR, ETS, national security)
• MESA 12 Press Release
• http//www.tiaonline.org/business/media/press_rele
  ases/2006/JointPR06-02.cfm
• MESA 11 Press Release
• http//www.tiaonline.org/media/press_releases/inde
  x.cfm?parelease05-81
• Project MESA recognized by ITU-T and ITU-R
• Project MESA broadband standardization activity
  documented in ITU-R Report M.2033
• Project MESA, and its OPs, were specifically
  mentioned in ITU-R WRC-2003 Resolution for
  ongoing Broadband PPDR standardization activities

9
MESA Partnership for Broadband PPDR

• Organizational Partners (OPs)
• TIA, ETSI
• Others are invited (ISACC, TTA, currently
  observers)
• Individual Members
• Affiliation with an OP registered to participate
  in MESA
• Public Safety Members
• Governmental or private entity providing public
  safety services (does not have to be OP
  affiliated)
• List of participants
• http//www.projectmesa.org/info/MESApeople.htm
• Industry, Governmental, Universities/research,
  others
• N. America, Europe, Korea, Australia, Japan,
  India, China, .

10
Specializations Capable of Utilizing MESA
Process/Output

• Criminal Justice
• Emergency management
• Special operations
• Health Services
• Fire services
• Coast Guard
• Search and Rescue
• Airport security
• Critical Infrastructure Responders
• Humanitarian assistance

• Hazardous materials
• Correctional Institutions
• Emergency Planning
• Central Government
• Land and natural resources
• Transportation
• Intelligent transport systems
• Highways Agency
• Others

11
MESA Partnership for Broadband PPDR

• Meet twice a year
• Completed our twelfth meeting
• Alternating between Europe and North America
• Electronic working methods at meetings
• Electronic methods for discussions between
  meetings
• Consensus Process with balanced leadership
• Project MESA is unique in that requirements are
  derived from actual PPDR professionals
• MESA SoR (being harmonized w/ national efforts)
• Any national process can appropriately utilize
  and benefit from SoR (openly available to view)

12
MESA Partnership for Broadband PPDR

• Goals are to (1) internationally coordinate
  requirements/capabilities/scenarios, and (2)
  develop technology specifications for
  (inter)operable mobile broadband data for PPDR
• Coordinated international collection of user
  requirements and technical derivations
• OPs transpose MESA specs into regional and
  national standards
• Facilitate economies of scale, identified
  commonalities
• Leverage existing and emerging technology
• Facilitate enhanced capabilities for Emergency
  Responders and other professionals with similar
  needs

13

• Coordinated requirements and standards drive
  growth
• May help establish a common infrastructure for
  competing products to interoperate
• Simplifies development by defining a minimum set
  of common requirements
• Enables new business opportunities and
  potentially even new markets
• Consistency in marketplace
• Critical for PPDR sector
• Not a market draw like commercial services

Patents
Trade Secrets
Innovation
Standards and Industry Specifications
14
MESA Partnership for Broadband PPDR

• MESA Service Specification Group - Services and
  Applications (Users)
• Statement of Requirements (SoR)
• MESA 11 approved a revised user-defined MESA SoR

• Available as TS 70.001 V3.2.1
• http//www.projectmesa.org/ftp/Specifications/
• Currently being transposed by TIA and U.S. PS
  groups
• ETSI Technical Specification
• MESA SoR identifies
• Mission descriptions and capability needs
• General functional requirements
• Operational requirements
• Technology and applications
• Compatibility requirements
• Scenarios

15
MESA Scenarios

• Typical scenarios were developed to stimulate
  thought about possible applications

16
MESA Scenario Classes

• MESA scenarios are broken into classes
• Environment
• Situation
• Coverage

17
Goal is to utilize common specs that are
applicable to multiple combinations

• Identified services can be sorted into 12
  different categories or combinations
• Indoor/Day-by-Day/Single Spot
• Indoor/Emergency/Single Spot
• Urban/Day-by-Day/Single Spot
• Urban/Day-by-Day/Wide Area
• Urban/Emergency/Single Spot
• Urban/Emergency/Wide Area
• Urban/Disaster/Wide Area
• Rural/Day-by-Day/Single Spot
• Rural/Day-by-Day/Wide Area
• Rural/Emergency/Single Spot
• Rural/Emergency/Wide Area
• Rural/Disaster/Wide Area

18
Example of Network Architecture
(1)Indoor/EmergencyDay-by-Day/Single Spot

• Peer-to-peer connection
• AP-to-MESA nodes connection
• AP-to-MESA router connection
• Interoperability with external access networks
  both wired and wireless
• Interconnection through MESA backhaul to the RCC

19
Example of Network Architecture
(2)RuralUrban/Emergency/Single Spot

• Peer-to-peer connection
• AP-to-MESA nodes connection
• Interoperability with external access networks
  (TETRA, P25, TETRAPOL, 2.5/3G/ADV,802.xx, )
• Interconnection through the backhaul to the
  Remote Control Centre (Command)

Satellite backhaul
Remote Control Centre (RCC)
MESA APRouter
MESA Node
20
Example of Network Architecture (3)
RuralUrban/EmergencyDisaster/Wide Area

• Peer-to-peer connection including AP-to-MESA
  nodes connection and AP-to-AP connection and
  AP-to-MESA router connection
• Interoperability with external access networks
• Interconnection through the backhaul to the RCC

Satellite backhaul
Remote Control Centre
MESA AP router
HAP backhaul
MESA Node
MESA AProuter
MESA GW
MESA AP router
MESA Node
MESA Node
21
Example of Network Architecture
(4)RuralUrban/Day-by-Day/Single spotWide Area

• Interoperability with external access networks
• Interconnection through the satellite link to the
  Remote Control Centre

Satellite backhaul
Remote Control Centre (RCC)
22
MESA Technical Specification Group - Systems

• MESA Technical Specification Group (TSG) now
  active in deriving technical specs from the MESA
  SoR user requirements
• MESA 11 also approved a System Overview document
  (shows relationships between network)
• This Technical Report is available as TR 70.012
  V3.1.1
• http//www.projectmesa.org/ftp/Specifications/

23
MESA Technical System Features

• Examples of high-level MESA-defined user
  requirements, to be translated into technical
  parameters for broadband data system needs for
  safety and emergency services
• Reliable (day-to-day, critical conditions,
  special events, ad-hoc)
• Able to ensure multiple levels of security and
  encryption
• Easy and fast to deploy, as applicable
• Able to guarantee the requested Quality of
  Service (QoS)
• Flexible (terminals, network and spectrum, as
  applicable)
• Adaptable, reconfigurable, scalable, cognitive
• Self-organizing
• Able to locate nodes, sensors, robots
• Interoperable w/ existing ad-hoc private and
  public infrastructures
• Can be complementary to and interwork with
  wireline/other infrastructure components
• Broadband
• Mobile
• Low-power consumable

24
MESA Technical System Features

• Main themes
• Auto-establishing, self-healing, robust
• Plug and play Resilient
• Ad-hoc and Mesh networking
• Bit rates approaching 2 Mbits/sec above (i.e.,
  ITU-R definition for Broadband)
• Independent (agnostic) of radio spectrum
• Cognitive capabilities
• A reasonable tuning capability included in the
  key technology to accommodate regional
  requirements (cognitive or multi-band chip)
• Dedicated or non-dedicated spectrum depending on
  needs
• Secure end-to-end transparent encryption (as
  required)
• Seamless switching to global broadband
  infrastructure
• Enhanced access and terminal capabilities
• Potentially independent of public infrastructures
  and public supply of electrical power

25
MESA Technical System Features

• A realized system could be installed as either a
  private system owned by the government or a
  governmental/commercial partnership that provides
  applicable service to PPDR-related agencies
• Need for aeronautical and/or terrestrial digital
  broadband data over mobile wireless communication
  links (voice is secondary)
• Dedicated and/or non-dedicated spectrum
  depending on deployment options (could also
  utilize commercial capacity (for data/voice) to
  enhance existing voice systems or provide
  redundancy)
• Process also supports ongoing migration path
  efforts from today's analog systems to the next
  generations of PPDR digital systems

26
System Reference Model Architecture
USERS
Industry
Other
New Technology
Ad-hoc
New Technology
Project MESA
MESA Solution Space
New Technology
Cellular (2, 2, 3G)
RFID
UWB
B3G, 4G
New Technology
Mobile Broadband
Via OPs
New Technology
Trunked
New Technology

• Standardizationbodies
• Technical Fora

Broadband
MESA Search Space
MESA as a System of Systems
27
Common Technical Specifications
Common Service Specifications
Intl SDOs other uses
MESA Documents
Via OPs
ETSI Standards
TIA Standards
Other Partners Standards
28
MESA Technology Potential

• Mobile Ad-hoc networks
• Moving hot spot (Managed)
• Auto establishing network
• self-healing
• Ultra-fast deployment

29
Camera is Calling
Other MESA Applications
Automatic Recognition Detection
Capabilities - Sound - Image - Movement -
Material - Radiation
30
Broadband out there
Other MESA Applications

• Rural terrestrial SATCOM support
• Up/Down voice and data links
• Mobile Broadband Repeater
• Remote Disasters
• Evidence gathering
• Real-time ID
• Surveillance
• Remote sensing

31
Other MESA Applications
Other MESA Applications

• Mobile robotics
• Remote hazardous material inspection and removal
• Anti-terrorist action
• Rescue in hazardous locations
• Incident response (tactical and non-tactical)

32
Other MESA Applications

• Remote patient assistance monitoring
• (Emergency and Medical Services--EMS)
• Video on-line
• Blood pressure
• Cardiac activity
• Encephalographic data
• Body temperature

Bit-rates can help save lives
33
Other MESA Applications

• The MESA Firefighter
• Biometric monitoring
• Full Command Control and Communication (C3)
• Infra-red/visible light video monitoring
• Positioning (to 3D)
• Environment monitoring

34
Other MESA Applications
Example of full on-site Command Control and
Communication
35
Airborne Control

• Fast, deployable, compatible
• Auto-establishes network
• Recognize terminals

Mobile Ad-Hoc Network The Moving Hot-Spot
Backhaul Satcom Link
The MESA Firefighter
Telemedical Assistance
36
MESA Technology Potential
Network terminal components automatically
establish a functioning network based on wireless
nodes. Underlying BB capability.
MESA City
Fixed/Wireless Ad-Hoc Network
37
Moving Forward

• Progress existing Work Items
• MESA TSG SYS articulating MESA SoR into technical
  capabilities and specifications
• MESA deliverables will be developed and
  transposed, as necessary, into national/regional
  standards involving next-generation mobile
  broadband technology for PS, security and
  emergency response professionals
• Approved Specs recently transmitted to OPs for
  transposition
• User-defined SoR is Living Document and so open
  to revision as needed (contribution-based)

38
Moving Forward

• MESA participants will utilize System of
  Systems capabilities and specifications approach
• Leverage existing or near-term technologies/servic
  es that are capable of providing needed bandwidth
  and convergence services for Next-Generation PS
  communications and access options (high
  security/varied connectivity)
• Identify PS requirement gaps in existing
  standards
• Develop specifications for new or adapted
  technologies/services where none currently exists
  that support PS needs

39
Moving Forward

• MESA 12 (Boston, April 2006) saw the
  introduction of five technology proposals by
  manufacturers and providers
• Important step forward
• Enhanced capability Proposals currently include
  cdma2000 EV-DO, OFDMA, W-CDMA-HSDPA,
  802.11x/ma/PHY, 802.16e and satellite
• Next 6 months Air Interface Incident Area
  Networking Technologies and Specifications
  analysis from Industry Responses received
• Other proposals welcome next meeting (must follow
  format set at this meeting)
• Broadband Data is primary concern (voice
  secondary)
• Location Based Services also identified for
  short-term
• MayDay XML Data Tags work too (fire, EMS, etc.)
• Longer term Focus Jurisdiction Networking
  Broadband Specifications and Interworking
  Specifications

40
Moving Forward

• MESA OPs, including ETSI and TIA, continue to
  facilitate government and industry awareness and
  coordination
• Encourage participation in, or communication
  with, Project MESA (via OPs TIA and ETSI) by
  affected agencies and administrations, standards
  bodies, equipment providers, service providers,
  research organizations, etc.
• TIA and ETSI working to raise awareness/outreach
  levels (regionally/globally), coordinating
  existing and identifying future RD efforts for
  critical Next-Generation needs of Public safety,
  security and emergency users

41
Moving Forward

• The MESA approach represents a continuing
  challenge to the industry, as public safety
  organizations may require communications (1) to
  operate on a variety of networks and systems,
  from dedicated radio to personal area, incident
  area and jurisdictional networks, to 3G networks
  and beyond and (2) include very stringent form
  factors, network integrity, QoS, and other
  requirements not normally found in most
  commercial deployments
• Such capabilities will extend the tools available
  for emergency communications users
• Including video and high-speed data in
  ubiquitous, wide-area, multiple agency or
  stand-alone (ad-hoc) networks and voice

42
Project MESA Contacts

• Main Web site
• www.projectmesa.org
• Information also available at
• http//www.tiaonline.org/standards/technology/mesa
  /
• MESA Secretariat
• mesasupport_at_etsi.org
• Other presentations
• http//www.projectmesa.org/ftp/Information/Present
  ations/
• Incl. Chinese version of older MESA presentations
  (basic info)
• Spectrum Assessment Example (Train Crash
  Scenario)
• TIA Pulse Article http//pulse.tiaonline.org/arti
  cle.cfm?id2331

43
PPSO Summaries and Discussion Points

• GRSC_08 Public Protection Disaster Relief
  spectrum usage in Europe -- ETSI
• ETSI TC TETRA, Spectrum and Regulatory Matters
  and ETSI TC ERM task group TG40 (Broadband
  Disaster Relief)
• Discussed current European PPDR spectrum
  deployments (country-wide, regional projects,
  for TETRA/PAMR/other deployments and applicable
  ERC/DEC Decisions and ETSI Deliverables
• ETSI TR 102 491 (06/2005) on TETRA TEDS
• ETSI TR 102 485 (03/2006) on Broadband Disaster
  Relief
• Specified future proposed Wideband Broadband
  Spectrum Usage for PPDR in Europe
• ETSI Work Items for the creation of Harmonized
  European Standards for WB BB PPDR are in
  progress
• User Requirements, Terms Definitions
• Report ITU-R M.2033
• ETSI TS 170 001 (JPP MESA), ETSI TS 102 181(ETSI
  EMTEL)
• Clarification of PP and DR
• Consideration of incorporating SDR/ cognitive
  Functions in PPDR radio equipment
• Including consequences on SDR for PPDR equipment
• Spectrum for PPDR -- TIA Regulatory Update

44
PPSO Summaries and Discussion Points

• GRSC_43 Spectrum for PPDR (Public Safety) TIA
  US Regulatory Update
• Transition to digital TV, scheduled to be
  completed by 2-2009
• Will free 24 MHz of spectrum allocated for Public
  Safety uses
• FCC Notice of Proposed Rulemaking released 3-2006
  and is currently seeking comment
• US Congressional activities include 1Billion
  allocated to PPDR agencies to purchase
  interoperable public safety communications
  systems
• Funds will come from auctions proceeds for
  commercial spectrum freed by the digital
  television transition and may be available as
  early as October 2006
• EU and US commonalities
• Broadband -- U.S. currently has 4.9 Ghz Band
  range for PPDR and a preliminary EU CEPT/ECC
  proposal involves 4.9 to 5.9 GHz range
• Potential common allocation around 4.9 GHz

45
QUESTIONS?Thank you for your time!

• Other Material
• Published ETSI and TIA MESA Brochures
