Title: DCC FIR 204 Fire Protection Systems


1

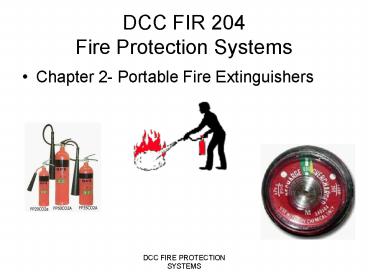

DCC FIR 204Fire Protection Systems
  • Chapter 2- Portable Fire Extinguishers

2
BLOOD DRIVE
  • Today, Tuesday, 9/5
  • 130-630
  • Arlington HQ, 11 Burnett Blvd.

3
Name Date
Hazard class
100
25
20 20
10
50
17 16
30
10
25
33
34 33
4
HOMEWORK EXAMPLE FORMAT
LOC TYPE CLASS RATING HYDRO
E1 PW A 2A 2003
E1 DRY CHEM ABC 2A10BC 2002
E1 CO2 BC 20BC 2004
E2 FOAMPW AB 2A10B 2005
5
Why Must Firefighters be Knowledgeable in Fire
Extinguishers?????
  • They use them
  • They inspect them
  • They may service them
  • Pub Ed- they are viewed as the experts

6
The purpose of a fire extinguisher
  • is to enable a person with minimal training and
    orientation to extinguish an incipient fire

7
General Rules of Fire Extinguishers for the Public
  • Only attempt to extinguish a fire that can be
    controlled in 10-15 seconds.
  • Always notify 911 BEFORE you use an
    extinguisher.
  • Use the proper type extinguisher ABC is the best
    type to get
  • Always have an escape route planned
  • Never turn your back on a fire, even if you think
    its out.

8
WHERE SHOULD THEY INSTALL THEM?
  • Locate near exits, so after they grab it, they
    still have the option to bail out.
  • In plain view
  • High enough kids cant get the but low enough
    that those who would grab them can do so quickly.
  • At least 1 per floor
  • Check it at least monthly
  • Ensure the entire family knows about them and
    when/when not to use them.

9
(No Transcript)
10
  • The first version of the modern fire extinguisher
    was invented in the United Kingdom by Captain
    George Manby in 1816, consisting of a copper
    vessel of 3 gallons (13.6 liters) of pearl ash
    (potassium carbonate)solution under compressed
    air pressure.

11
SODA ACID EXTINGUISHER
  • The late 19th century saw the invention of the
    Soda-Acid extinguisher
  • A cylinder contained 1 or 2 gallons of water that
    had sodium bicarbonate mixed in it.
  • Suspended in the cylinder was a phial containing
    concentrated sulphuric acid.
  • Activating the extinguisher by striking a plunger
    to break the phial, or inverting the extinguisher
    to release a lead bung from the phial (depending
    on type), released the acid which mixed with the
    bicarbonate solution to generate carbon dioxide
    gas that expelled the water under pressure
    through a nozzle or short length of hose.

12
(No Transcript)
13
DRY CHEMCIALS
  • Effective due to their coating ability
  • But this can be a detriment in some electronic
    equipment

14
3 types of dry chemical extinguishers (overview)
REGULAR DRY CHEMCIAL AGENTS
  • Sodium bicarbonate based
  • Potassium based
  • Multi purpose dry chemical

15
SODIUM BICARBONATE BASED
  • Similar to baking soda
  • Class B C

16
POTASSIUM BASED
  • Class BC
  • More effective than sodium bicarbonate based

17
MULTI PURPOSE DRY CHEMICAL
  • Class A,B,C
  • Monoammonium phosphate

18
Inexpensive kitchen fire extinguisher (B-C)
  • Take old 1 lb coffee can
  • Perforate edge of bottom with can opener.
  • Place plastic top on bottom turn over
  • Fill with baking soda
  • Put another plastic top on can
  • Label the can

19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
http//www.armhammer.com/basics/magic/9
  • Download their can label

Thanks to Arm Hammer
23
In event of fire
  • Call 911
  • If practical, use coffee can fire extinguisher
  • Turn can over so bottom is now on top
  • Remove plastic top, shake can over fire until
    extinguished.

24
(No Transcript)
25
HALON
  • Introduced in 70s
  • Stops chemical chain reaction
  • Originally thought to be totally safe
  • Then discovered it turns into phosgene gas when
    heated to 750f
  • Then discovered to harm the ozone layer
  • Montreal protocol
  • Signed 1987
  • Fully effective 2000

26
HALONTRONSAFE REPLACEMENT FOR HALON
  • 11 lb Halotron I Fire Extinguisher1-A10-BC
    rating
  • Halotron I is an ozone-friendly replacement for
    Halon 1211

27
Carbon Tetrachloride Extinguishers
28
REALITY CHECK
  • Fire Extinguishers can explode when heated!!!!!!
  • Fire Extinguishers can fail when not properly
    secured

29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Reality Check
  • Using the wrong extinguisher or using the right
    one the wrong way can be worse than not using
    one at all!!!!!

39
FIRE EXTINGUISHERS
  • Are part of a total system
  • Prevention
  • Incipient stage fire
  • 911
  • Fire Department Response
  • Small fire
  • Remote fire
  • Overhaul
  • FDNY-Truck Company

40
EXTINGUISHERS INSPECTION
  • Overall well being
  • Is it full?
  • Any damage
  • Tank
  • Hose
  • Gage
  • Within hydrostatic test date?
  • Pin and tie in place
  • Inspection sticker present and up to date
  • Bracket- workable?
  • Bottom Line Is it ready to be used?

41
EXTINGUISHER PLACEMENT
  • 1-5.1 Light (low) Hazard minor amount of Class A
    combustibles
  • Offices
  • Classrooms
  • Hotel/motel rooms
  • This classification anticipates that the majority
    of contents are either non combustible or
    arranged so that a fire is not likely to spread

42
EXTINGUISHER PLACEMENT
  • 1-5.2Ordinary (moderate) Hazard Total amounts of
    Class AB combustibles/flammables is present in
    greater amounts that a Light Hazard Area
  • Dining areas
  • Mercantile shops
  • Allied storage
  • Light manufacturing
  • Auto showrooms

43
EXTINGUISHER PLACEMENT
  • 1-5.3 Extra (High) Hazard where total amounts of
    Class A B combustibles/flammables is greater
    than that of a Moderate Hazard.
  • Woodworking shop
  • Vehicle repair
  • Aircraft and boat servicing
  • Cooking areas
  • Manufacturing processes such as painting

44
EXTINGUISHER PLACEMENT
  • The number of and placement is determined by
  • Area of the occupancy
  • Maximum travel distance to an extinguisher

45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
Why are they mounted near each other?
CO2 (BC)
PW Class A
49
Two 20 lb ABCs
50
RATINGS
  • 1A- 1X1X1 wood crib (1.25 gallons of water)
  • 1B1 square foot of pentane
  • C has no ratings just indicates it can
    extinguish electrical fires.

51
ratings
  • The following ratings are capable of
    extinguishing what size fire?
  • 2A10BC
  • 4A20BC

52
QUESTIONS???
