Title: General Tree Concepts Binary Trees


1

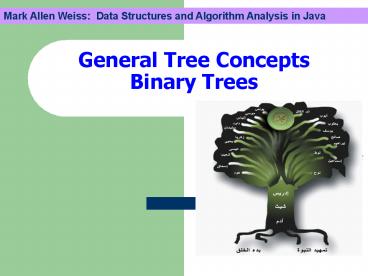

General Tree ConceptsBinary Trees
Mark Allen Weiss Data Structures and Algorithm
Analysis in Java
  • Data Structures and Algorithms

2
Outline
  • Tree Data Structure
  • Examples
  • Definition
  • Terminology
  • Binary Tree
  • Definitions
  • Examples
  • Tree Traversal
  • Binary Search Trees
  • Definition

3
Linear Lists and Trees
  • Linear lists (arrays, linked list)are useful for
    serially ordered data
  • (e1,e2,e3,,en)
  • Days of week
  • Months in a year
  • Students in a class
  • Trees are useful for hierarchically ordered data
  • Khalids descendants
  • Corporate structure
  • Government Subdivisions
  • Software structure

4
Examples of trees
  • directory structure
  • family trees
  • all descendants of a particular person
  • all ancestors born after year 1800 of a
    particular person
  • evolutionary tress (also called phylogenetic
    trees)
  • albegraic expressions

5
Khalids Descendants
What are other examples of hierarchically ordered
data?
6
Property of a Tree
  • A tree t is a finite nonempty set of nodes
  • One of these elements is called the root
  • Each node is connected by an edge to some other
    node
  • A tree is a connected graph
  • There is a path to every node in the tree
  • There are no cycles in the tree.
  • It can be proved that a tree has one less edge
    than the number of nodes.
  • Usually depicted with the root at the top

7
Is it a Tree?
NO! All the nodes are not connected
yes! (but not a binary tree)
yes!
NO! There is a cycle and an extra edge (5 nodes
and 5 edges)
yes! (its actually the same graph as the blue
one) but usually we draw tree by its levels
8
Subtrees
9
Tree Terminology
  • The element at the top of the hierarchy is the
    root.
  • Elements next in the hierarchy are the children
    of the root.
  • Elements next in the hierarchy are the
    grandchildren of the root, and so on.
  • Elements at the lowest level of the hierarchy are
    the leaves.

10
Other Definitions
  • Leaves, Parent, Grandparent, Siblings,Ancestors,
    Descendents

Leaves Hassan,Gafar,Sami,Mohmmed
Parent(Musa) Khalid
Grandparent(Sami) Musa
Siblings(Musa) Ahmed,Omer
Ancestors(Hassan) Amed,Khalid
Descendents(Musa)Fahad,Sami
11
Levels and Height
  • Root is at level 0 and its children are at level
    1.

12
Degree of a node
  • Node degree is the number of children it has

13
Tree Degree
  • Tree degree is the maximum of node degrees

tree degree 3
14
Measuring Trees
  • The height of a node v is the number of nodes on
    the longest path from v to a leaf
  • The height of the tree is the height of the root,
    which is the number of nodes on the longest path
    from the root to a leaf
  • The depth of a node v is the number of nodes on
    the path from the root to v
  • This is also referred to as the level of a node
  • Note that there are slightly different
    formulations of the height of a tree
  • Where the height of a tree is said to be the
    length (the number of edge) on the longest path
    from node to a leaf

15
Trees - Example
Level
0
1
2
3
16
Tree Terminology Example
  • A is the root node
  • B is the parent of D and E
  • C is the sibling of B
  • D and E are the children of B
  • D, E, F, G, I are external nodes, or leaves
  • A, B, C, H are internal nodes
  • The depth, level, or path length of E is 2
  • The height of the tree is 3
  • The degree of node B is 2

17
Tree Terminology Example
A
path from A to D to G
B
D
subtree rooted at B
leaves C,E,F,G
G
E
F
18
Tree Representation
Class TreeNode Object element
TreeNode firstChild TreeNode
nextSibling
19
Binary Trees
  • A finite (possibly empty) collection of elements
  • A nonempty binary tree has a root element and the
    remaining elements (if any) are partitioned into
    two binary trees
  • They are called the left and right subtrees of
    the binary tree

A
B
C
right child of A
left subtree of A
F
G
D
E
right subtree of C
H
I
J
20
Difference Between a Tree a Binary Tree
  • A binary tree may be empty a tree cannot be
    empty.
  • No node in a binary tree may have a degree more
    than 2, whereas there is no limit on the degree
    of a node in a tree.
  • The subtrees of a binary tree are ordered those
    of a tree are not ordered.

21
Binary Tree for Expressions
22
Height of a Complete Binary Tree
At each level the number of the nodes is doubled.
total number of nodes
1 2 22 23 24 - 1 15
23
Nodes and Levels in a Complete Binary Tree
Number of the nodes in a tree with M levels 1
2 22 . 2M 2 (M1) - 1 22M - 1 Let
N be the number of the nodes. N 22M - 1,
22M N 1 2M (N1)/2 M log( (N1)/2
) N nodes log( (N1)/2 ) O(log(N))
levels M levels 2 (M1) - 1 O(2M )
nodes
24
Binary Tree Properties
  1. The drawing of every binary tree with n elements,
    n gt 0, has exactly n-1 edges.
  2. A binary tree of height h, h gt 0, has at least h
    and at most 2h-1 elements in it.

25
Binary Tree Properties
  • 3. The height of a binary tree that contains n
    elements, n gt 0, is at least ?(log2(n1))? and
    at most n.

26
Full Binary Tree
  • A full binary tree of height h has exactly 2h-1
    nodes.
  • Numbering the nodes in a full binary tree
  • Number the nodes 1 through 2h-1
  • Number by levels from top to bottom
  • Within a level, number from left to right

27
Node Number Property of Full Binary Tree
  • Parent of node i is node ?(i/2)?, unless i 1
  • Node 1 is the root and has no parent

28
Node Number Property of Full Binary Tree
  • Left child of node i is node 2i, unless 2i gt
    n,where n is the total number of nodes.
  • If 2i gt n, node i has no left child.

29
Node Number Property of Full Binary Tree
  • Right child of node i is node 2i1, unless 2i1 gt
    n,where n is the total number of nodes.
  • If 2i1 gt n, node i has no right child.

30
Complete Binary Tree with N Nodes
  • Start with a full binary tree that has at least n
    nodes
  • Number the nodes as described earlier.
  • The binary tree defined by the nodes numbered 1
    through n is the n-node complete binary tree.
  • A full binary tree is a special case of a
    complete binary tree

31
Example of Complete Binary Tree
  • Complete binary tree with 10 nodes.
  • Same node number properties (as in full binary
    tree) also hold here.

32
Binary Tree Representation
  • Array representation
  • Linked representation

33
Array Representation of Binary Tree
  • The binary tree is represented in an array by
    storing each element at the array position
    corresponding to the number assigned to it.

34
Incomplete Binary Trees
  • Complete binary tree with some missing elements

35
Example Binary Tree
To find a nodes parent use this
formula  Parents Index (Childs Index 1) /
2
Array index from 0 Ex. To find nodes 2 left and
right child Left Childs Index 2 Parents
Index 1 Right Childs Index 2 Parents
Index 2
36
Linked Representation of Binary Tree
  • The most popular way to present a binary tree
  • Each element is represented by a node that has
    two link fields (leftChild and rightChild) plus
    an element field
  • Each binary tree node is represented as an object
    whose data type is binaryTreeNode
  • The space required by an n node binary tree isn
    sizeof(binaryTreeNode)

37
Linked Representation of Binary Tree
38
Node Class For Linked Binary Tree
  • TreeNode class
  • private class TreeNode
  • private String data
  • private TreeNode left
  • private TreeNode right
  •
  • public TreeNode(String element)
  • data element
  • left null
  • right null

39
Common Binary Tree Operations
  • Determine the height
  • Determine the number of nodes
  • Make a copy
  • Determine if two binary trees are identical
  • Display the binary tree
  • Delete a tree
  • If it is an expression tree, evaluate the
    expression
  • If it is an expression tree, obtain the
    parenthesized form of the expression

40
Binary Tree Traversal
  • A traversal of a tree is a systematic way of
    accessing or "visiting" all the nodes in the
    tree.
  • There are three basic traversal schemes
    preorder, postorder, inorder
  • .In any of these traversals we always visit the
    left subtree before the right

41
Binary Tree Traversal Methods
  • Preorder
  • The root of the subtree is processed first before
    going into the left then right subtree (root,
    left, right).
  • Inorder
  • After the complete processing of the left subtree
    the root is processed followed by the processing
    of the complete right subtree (left, root,
    right).
  • Postorder
  • The root is processed only after the complete
    processing of the left and right subtree (left,
    right, root).
  • Level order
  • The tree is processed by levels. So first all
    nodes on level i are processed from left to right
    before the first node of level i1 is visited

42
Preorder Traversal
  • public void preOrderPrint()
  • preOrderPrint(root)
  •   private void preOrderPrint(TreeNode tree)
  • if (tree ! null)
  • System.out.print(tree.data " ") //
    Visit the root
  • preOrderPrint(tree.left)// Traverse
    the left subtree
  • preOrderPrint(tree.right) // Traverse
    the right subtree
  •

43
Preorder Example (visit print)
N-L-R
O M N K I J L G E F C A B D H
44
Preorder of Expression Tree
  • / a b - c d e f
  • Gives prefix form of expression.

45
Inorder Traversal
public void inOrderPrint()
inOrderPrint(root)   public void
inOrderPrint(TreeNode t) if (t ! null)
inOrderPrint(t.left)
System.out.print(t.data " ")
inOrderPrint(t.right)
46
Inorder Example (visit print)
O N M L K J I H G F E D C B A
L-N-R
47
Inorder by Projection
48
Inorder of Expression Tree
  • Gives infix form of expression, which is how we
    normally write math expressions. What about
    parentheses?

49
Postorder Traversal
public void ostOrderPrint()
postOrderPrint(root)   public void
postOrderPrint(TreeNode t) if (t ! null)
postOrderPrint(t.left)
postOrderPrint(t.right) System.out.print(t.
data " ")
50
Postorder Example (visit print)
L-R-N
H L N O M J K I D F G E B C A
51
Postorder of Expression Tree
  • a b c d - e f /
  • Gives postfix form of expression.

52
Level Order Example (visit print)
  • Add and delete nodes from a queue
  • Output a b c d e f g h i j

53
Space and Time Complexity
  • The space complexity of each of the four
    traversal algorithm is O(n)
  • The time complexity of each of the four traversal
    algorithm is O(n)

54
Summary
  • Tree, Binary Tree
  • In order to process the elements of a tree, we
    consider accessing the elements in certain order
  • Tree traversal is a tree operation that involves
    "visiting (or" processing") all the nodes in a
    tree.
  • Types of traversing
  • Pre-order Visit node first, pre-order all its
    subtrees from leftmost to rightmost.
  • Inorder Inorder the node in left subtree and
    then visit the root following by inorder
    traversal of all its right subtrees.
  • Post-order Post-order the node in left subtree
    and then post-order the right subtrees followed
    by visit to the node.
About PowerShow.com
