Title: Oblique Aerial Imagery of Bayfield County


1

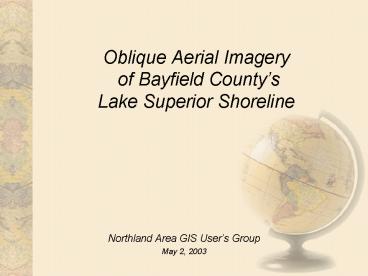

Oblique Aerial Imagery of Bayfield Countys Lake
Superior Shoreline
  • Northland Area GIS Users Group
  • May 2, 2003

2
Objectives
  • Build on previous Bayfield County WI Coastal
    Management projects by developing mechanisms to
    share information
  • In addition to planned educational outreach
    meetings, develop an Internet-based means of
    information delivery
  • Use the power of imagery, as well as ancillary
    information, as a tool to convey the importance
    of our Lake Superior coastal resource.

3
Objectives
  • Our goal is to provide objective scientific
    information to our community so that, together,
    we may chart the best future for this valued
    resource.
  • Create a set of photographs to provide a baseline
    for observing changes over time, whether from
    natural forces such as erosion, or from
    development
  • Create archive to provide a ready source of
    imagery that can useful for land use planning
    efforts, public meetings, educational displays,
    and a multitude of other shoreline-related issues
    and events.

4
Why is this important?
  • Our shoreline is a valued natural heritage and a
    treasured resource
  • Parcels adjacent to Lake Superior may only
    represent 1 of Bayfield Countys land area, but
    contains 10 of private land values
  • Loss of property and improvements diminishes the
    overall tax base and may increase public
    expenditures
  • There have been few attempts to quantify
    shoreline hazards since the 1970s---The very
    time period the coastline has experienced some of
    its greatest development activity !

5
Project Goals
  • Capture overlapping oblique photos of entire
    Bayfield County Lake Superior shoreline.
  • Leaf-off Photography
  • Obtain High Resolution images
  • Record camera position for each image captured
  • Minimize costs---Use local expertise
  • Integrate photos into online web application to
    allow site visitors to click view shoreline
    images
  • Include recent shoreline research provide
    educational information on factors of shoreline
    erosion

6
Project Accomplishments
  • 513 photos taken---(Fish Creek to Brule River)
  • Photos taken in November, 2002
  • High Resolution images---2240 x 1488 (/- 1.5 MB)
  • GPS used to record camera position
    (GPS-PhotoLink)
  • Employed the expertise of Bad River Natural
    Resources personnel---(Tom Doolittle Matt
    Eitrem)
  • Created ShoreViewer on Land Records website
    http//www.bayfieldcounty.org/LandRecords/
    shoreviewer_start.htm
  • Created Lake Superior Shore Profile Analysis on
    Land Records website http//www.bayfieldcounty.or
    g/LandRecords/ shore_2002/info_uwprofiles.htm

7
Flight Line
8
Inspirations
  • Two examples we found to emulate
  • http//apps.ecy.wa.gov/shorephotos/index.html
  • Washington State, Department of Ecology,
    Shoreline Aerial Photos
  • http//www.californiacoastline.org/
  • California Coastal Records Project

9
Capturing the Oblique Images
  • Matt Eitrem and Tom Doolittle,
    Bad River Natural Resources

10
Land Records Home Page
ShoreViewer
11
ShoreViewer
Click to view ShoreViewer Maps Photos
12
ShoreViewer Locator Map
13
Example Oblique Photograph
14
Example Profile
15
Acknowledgements
  • Funding provided in part by
    WI Coastal Management Program
  • Web site and ShoreViewer design
    by Mark Miller, Benchmark GIS
  • Matt Eitrem and Tom Doolittle,
    Natural Resources Department,Bad
    River Band of Lake Superior Chippewa Indians
  • Lindsay Anderson and
    University of Wisconsin-Madison

16
Demonstration
  • Go to Bayfield Countys Website
  • http//www.bayfieldcounty.org/
  • Select Departments Land Records
  • Select ShoreViewer

17
Questions ?
  • Any questions, NAGUG?
