Title: BRAKES HOT INDICATION

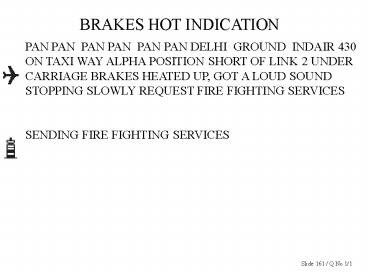

1
BRAKES HOT INDICATION
PAN PAN PAN PAN PAN PAN DELHI GROUND INDAIR
430 ON TAXI WAY ALPHA POSITION SHORT OF LINK 2
UNDER CARRIAGE BRAKES HEATED UP, GOT A LOUD SOUND
STOPPING SLOWLY REQUEST FIRE FIGHTING
SERVICES SENDING FIRE FIGHTING SERVICES
Slide 161 / Q No 1/1
2
MUMBAI CONTROL IS CALLING YOU REPLAN YOUR FLIGHT
MUMBAI CONTROL INDAIR 430 GO AHEAD INDAIR 430
MUMBAI CONTROL WEATHER WARNING FOR HEAVY CB
ACTIVITY ENROUTE AHMADABAD. REPORT YOUR
INTENTION. WILL PROCEED VIA SONAGARH ,
PRATAPGARH, REQUEST PERMISSION CLEARED TO PROCEED
VIS SONAGARH, PRATAPGARH MUMBAI CONTROL CLEARED
TO DELHI VIA SONAGARH SETTING COURSE ESTIMATING
SONAGARH 0430 BODAR 0500 PASSING FL 280 TO FL 330
INDAIR 430
Slide 111 / Q No 1/2
3
SOMEONE IS CALLING AHMADABAD RELAY
AHMADABAD CONTROL INDAIR 430 RELAYING FOR INDAIR
160 POSITION INDORE 0500 FL 220 ESTIMATING
CONTROL BOUNDRY NAGPUR AHMADABAD 0515 ETA
AHMADABAD 0530 AT FL 220 TRUE AIR SPEED 250
REQUESTING PERMISSION TO CROSS THIS ROUTE
Slide 191 / Q No 1/3
4
DESCENDING FROM FL 70 TO FL 50 LOOSE CONTACT
WITH APPROACH
DELHI TOWER INDAIR 430 HEAVY NEGATIVE CONTACT
WITH DELHI APPROACH PASSING FL 70 FOR FL
50 INDAIR 430 HEAVY DELHI TOWER MAINTAIN THIS
FREQUENCY CLEARED TO DPN FOR ILS APPROACH DESCEND
TO 3500 REPORT REACHING VOR MAINTAIN THIS
FREQUENCY CLEARED TO DPN FOR ILS APPROACH DESCEND
TO 3500 REPORT REACHING VOR INDAIR 430
Slide 205 / Q No 1/4
5
PLAN INSTRUMENT APPROACH AND SHOW COMPLIANCE
DELHI TOWER INDAIR 430 HEAVY MAINTAINING 3500
LEAVING DPN FOR ILS ROGER DELHI TOWER DELHI TOWER
INDAIR 430 CROSSING OUTER MARKER OUTBOUND ROGER
DELHI TOWER DELHI TOWER INDAIR 430 COMMENCING
PROCEDURE TURN ROGER DELHI TOWER DELHI TOWER
INDAIR 430 PROCEDURE TURN COMPLETED ROGER DELHI
TOWER DELHI TOWER INDAIR 430 ESTABLISHED ON
ILS ROGER DELHI TOWER
Slide 133 / Q No 1/5
6
(No Transcript)
7
OBTAIN TAXI INSTRUCTION/YOU ARE READY TO TAXI
DELHI GROUND INDAIR 430, HEAVY STAND TWO,
REQUEST TAXI, INFORMATION BRAVO INDAIR 430 HEAVY
CLEARED TO HOLDING POINT RUNWAY 28, TAXI VIA GOLF
TO HOLDING RUNWAY 27 CLEARED TO HOLDING POINT
RUNWAY 28, TAXI VIA GOLF TO HOLDING RUNWAY 27
INDAIR 430 DELHI GROUND INDAIR 430, APPROACHING
HOLDING POINT, REQUEST ENTER RUNWAY 27 INDAIR
430 HOLD SHORT RUNWAY 27 BA AIRBUS ON
FINAL HOLDING SHORT RUNWAY 27 INDAIR 430 DELHI
GROUND INDAIR 430, CLEAR OF BRITISH AIRWAYS
AIRBUS, REQUEST ENTER RUNWAY 27 FOR FURTHER
TAXING INDAIR 430 DELHI GROUND CLEARED ENTER
RUNWAY 27 VIA LINK BRAVO AND CLEARED TO HOLDING
POINT RUNWAY 28 ENTERING RUNWAY 27, TAXI VIA
BRAVO CLEARED TO HOLDING POINT RUNWAY 28
Slide 18 / Q No 2/1, Q No 5/1
8
COMMUNICATION FAILURE VHF
DELHI CONTROL INDAIR 430 TRANSMITTING BLIND
CROSSED ALPHA 1410 FL 180 ESTIMATING JAIPUR 1425
KABAR 1500 CONTINUING FLIGHT TO MUMBAI WILL LEAVE
FLIGHT LEVEL 180 FOR FL 320 AT 1430 WILL TRANSMIT
AGAIN 1425 I SAY AGAIN DELHI CONTROL INDAIR 430
TRANSMITTING BLIND CROSSED ALPHA 1410 FL 180
ESTIMATING JAIPUR 1425 KABAR 1500 CONTINUING
FLIGHT TO MUMBAI WILL LEAVE FLIGHT LEVEL 180 FOR
FL 320 AT 1430 WILL TRANSMIT AGAIN 1425
Slide 196 / Q No 2/2
9
YOU ARE INFORMED MUMBAI IS CLOSED (DIVERSION
WITH IN SAME CONTROL)
AHMADABAD CONTROL INDAIR 430 GO AHEAD INDAIR
430 MUMBAI AIRFIELD CLOSE TO MAJOR FIRE, DELAY
NOT DETERMINED REQUEST YOUR INTENTIONS. WOULD
LIKE TO LAND AT AHMADABAD CLEARED TO AAE REPORT
POSITION CLEARED TO AAE POSITION PRATAPGARH 0600
FL 320 SETTING COURSE FOR AAE ESTIMATING AAE 0700
Slide 106 / Q No 2/3
10
CO PILOT FAINTED
MAY DAY MAY DAY MAY DAY AHMADABAD CONTROL INDAIR
430 AIRBUS CO PILOT FAINTED UNABLE TO REVIVE HIM
LANDING AT AHMADABAD POSITION 90 DME AAE RADIAL
045 FL 320 ETA AHMMADABAD 0500 ENDURENCE 0400
PERSONS ON BOARD 70 INDAIR 430 AHMADABAD CONTROL
ROGER YOUR MAYDAY DESCEND TO FL 50 WHEN RUNWAY IN
SIGHT LEAVING FL 320 FOR FL 50 WILL REPORT WHEN
RUNWAY IN SIGHT INDAIR 430
Slide 137 / Q No 2/4
11
OBTAIN ATC CLEARENCE
DELHI TOWER INDAIR 430 HEAVY REQUEST ATC
CLEARENCE INDAIR 430 IS CLEARED TO MUMBAI AT FL
300 AFTER DEPARTURE CLIMB RUWAY HEADING 2500 TURN
RIGHT INTERCEPT RADIAL 350 AT 15 DME OR LESS ,
CLIMB TO FL 70 , THEREAFTER RESUME NORMAL
NAVIGATION CLIMBING FL 300 CLEARED TO MUMBAI AT
FL 300 AFTER DEPARTURE CLIMB RUWAY HEADING 2500
TURN RIGHT INTERCEPT RADIAL 350 AT 15 DME OR LESS
, CLIMB TO FL 70 , THEREAFTER RESUME NORMAL
NAVIGATION CLIMBING FL 300 INDAIR 430 (GO TO THE
NEXT QUESTION)
Slide 28 / Q No 3/1a , Q No 6/2a
12
SHOW COMPLIANCE WITH ATC CLEARENCE
DELHI TOWR INDAIR 430 PASSING 2500 TURNING
RIGHT CONTACT DELHI APPROACH 127.9 CHANGING TO
DELHI APPROACH 127.9 INDAIR 430 DELHI APPROACH
INDAIR 430 PASSING 2500 TURNING RIGHT ROGER DELHI
APPROACH INDAIR 430 RADIAL 350 DME 15 ROGER DELHI
APPROACH INDAIR 430 RADIAL 350 PASSING FL 70
TURNING LEFT TO RESUME NORMAL NAVIGATION ROGER (G
O TO THE NEXT QUESTION)
Slide 29 / Q No 3/1b, Q No 6/2b
13
FLAPS STUCK OVER WEIGHT LANDING NOT ADVISABLE
PAN PAN PAN PAN PAN PAN CHENNAI APPROACH
INDAIR 430 FLAPS STUCK PASSING FL 60 INTEND TO
LAND BACK AIRCRAFT OVER WEIGHT FOR LANDING
REQUEST FL 50 AND SECTOR TO EXHAUST FUEL INDAIR
430 CHENNAI APPROACH ROGER PAN PAN CLEARED TO FL
50 PROCEED TO FLY BETWEEN RADIAL 050 AND RADIAL
075 AT DME 45 AND MORE CLEARED TO FL 50 PROCEED
TO FLY BETWEEN RADIAL 050 AND RADIAL 075 AT DME
45 AND MORE INDAIR 430 INDAIR 430 CHENNAI
APPROACH DURATION TO FLY FOR FUEL EXHAUSTION FOUR
ZERO MINUTES INDAIR 430 PAN PAN CHENNAI APPROACH
INDAIR 430 CANCEL PAN PAN FLAPS OPERATING NORMAL
PROCEEDING TO MUMBAI AS PER FLIGHT PLAN REQUEST
PERMISSION TO SET COURSE AND CLIMB TO FL
300 INDAIR 430 CHENNAI APPROACH CLIMB TO FL 100
IN HOLDING AREA AND SET COURSE
Slide 171 / Q No 3/2a b
14
YOU ARE INFORMED DESTINATION MUMBAI ATC IS
CLOSED (DIVERSION GIVEN IS IN MUMBAI CONTROL)
CHENNAI CONTROL INDAIR 430 OVER BELLARY 0600 FL
300 REQUEST PERMISSION TO REVERT TO CHENNAI AT FL
290. INDAIR 430 CLEARED TO REVERT TO CHENNAI
DESCEND TO FL 290 REVERTING TO CHENNAI LEAVING
FL 300 FOR FL 290 MONITOR WEATHER ON ATIS WILCO
Slide 110 / Q No 3/3
15
SEE SEVERE CYCLONIC STORM
SECURITE SECURITE SECURITE CHENNAI CONTROL
INDAIR 430 SEE A SEVERE CYCLONIC STORM OVER SEA,
WAVES RISING VERY HIGH APPROXIMATELY ONE ZERO
NAUTICAL MILES PROCEEDING IN NORTHERNLY DIRECTION
Slide 118 / Q No 3/4
16
PASSENGER INTOXICATED
MUMBAI GROUND INDAIR 430 ONE PASSENGER IS
INTOXICATED AND BEHAVING RUDELY SEND SECURITY TO
OFFLOAD HIM AND TAKE ACTION SWITCHING OFF
ENGINE INDAIR 430 MUMBAI GROUND INFORMING
SECURITY MUMBAI GROUND INDAIR 430 PASSENGER
OFFLOADED PERSONS ONBOARD NOW 69 SECURITY CHECK
CLEARDED STAND TWO REQUEST START UP INFORMATION
BRAH VOH
Slide 44 / Q No 4/1a b
17
MUMBAI CONTROL IS CALLING YOU RESPOND AND SHOW
INABLITY TO COMPLY
MUMBAI CONTROL INDAIR 430 GO AHEAD INDAIR 430
MUMBAI CONTROL ARRANGE FLIGHT TO CROSS 80 DME BBB
AT FL 330 OR ABOVE UNABLE TO CROSS 80 DME AT FL
330 OR ABOVE DUE TO AIRCRAFT HEAVY WILL BE ABLE
TO CROSS AT FL 290 INDAIR 430 MUMBAI CONTROLCLIMB
FL 290 AND MAINTAIN DUE TO RECIPROCAL TRAFFIC AT
FL 300 REPORT 80 DME BBB RECLEARED TO FL 290 WILL
REPORT REACHING AND 80 DME BBB
Slide 123 / Q No 4/2
18
SEE SERIES OF RED FLARES
PAN PAN PAN PAN PAN PAN MUMBAI CONTROL INDAIR
430 POSITION GOA SEEN A RED FLARE BEING FIRED
FROM SEA FROM A SHIP IN DISTRESS ON BEARING OF
120 DISTANCE 50 NAUTICAL MILES INDAIR 430 MUMBAI
CONTROL ROGER PAN PAN TAKING ACTION
Slide 167 / Q No 4/3
19
YOU ARE INFORMED BAD WEATHER AT DESTINATION
(DIVERSION WITH IN SAME CONTROL)
TRIVENDRUM CONTROL INDAIR 430 OVERHEAD COCHIN
0600 FL 250 WILL DIVERT COIMBATORE ESTIMATING
COIMBATORE 0630 REQUEST DESCEND INDAIR 430
CLEARED TO COIMBATORE DESCEND TO FL 60 REPORT
PASSING FL 100 INDAIR 430 LEAVING FL 250 FOR FL
60 WILL REPORT PASSING FL 100 REQUEST WEATHER
COIMBATORE. STANDBY FOR WEATHER COIMBATORE
Slide 107 / Q No 4/4
20
OBTAIN TAXI INSTRUCTION/YOU ARE READY TO TAXI
DELHI GROUND INDAIR 430, HEAVY STAND TWO,
REQUEST TAXI, INFORMATION BRAVO INDAIR 430 HEAVY
CLEARED TO HOLDING POINT RUNWAY 28, TAXI VIA GOLF
TO HOLDING RUNWAY 27 CLEARED TO HOLDING POINT
RUNWAY 28, TAXI VIA GOLF TO HOLDING RUNWAY 27
INDAIR 430 DELHI GROUND INDAIR 430, APPROACHING
HOLDING POINT, REQUEST ENTER RUNWAY 27 INDAIR
430 HOLD SHORT RUNWAY 27 BA AIRBUS ON
FINAL HOLDING SHORT RUNWAY 27 INDAIR 430 DELHI
GROUND INDAIR 430, CLEAR OF BRITISH AIRWAYS
AIRBUS, REQUEST ENTER RUNWAY 27 FOR FURTHER
TAXING INDAIR 430 DELHI GROUND CLEARED ENTER
RUNWAY 27 VIA LINK BRAVO AND CLEARED TO HOLDING
POINT RUNWAY 28 ENTERING RUNWAY 27, TAXI VIA
BRAVO CLEARED TO HOLDING POINT RUNWAY 28
Slide 18 / Q No 2/1, Q No 5/1
21
ENTERED CB CELL, EXPERIENCING TURBULENC, WANT TO
DEVIATE CHANNEL IS JAMMED
PAN PAN PAN PAN PAN PAN MUMBAI CONTROL INDAIR 430
WEATHER DEVIATION REQUIRED POSITION 70 DME BBB
0530 FL 330 EXPERIENCING SEVERE TURBULENCE IN CB
CELL REQUEST TO DEVIATE BY THREE ZERO DEGREES TO
RIGHT UNABLE TO APPROVE DEVIATION DUE TO TRAFFIC
VT CRY ON YOUR RIGHT FL 330 SAME DIRECTION REPORT
INTENTION MUMBAI CONTROL MUMBAI CONTROL INDAIR
430 FOR SAFETY OF FLIGHT TURNING RIGHT OF TRACK
TO DEVIATE BY THREE ZERO DEGREES RIGHT BY
CONTACTING VT CRY VT CRY INDAIR 430
INTERPILOT INDAIR 430 VT CRY POSITION 80 DME BBB
0530 ON MUMBAI BANGALORE ROUTE FL 330 DEVIATING
TO RIGHT BY THREE ZERO DEGREES DUE TO SEVERE
TURBULENCE IN CB CELL EXTERNAL LIGHTS SWITCHED ON
KEEP LOOK OUT INDAIR 430 VT CRY WILL KEEP LOOK
OUT REPORT RESUMING NORMAL NAVIGATION
Slide 113 / Q No 5/2
22
MUMBAI CONTROL IS CALLING BAD WEATHER AT
DESTINATION (DIVERSION IN ANOTHER CONTROL)
MUMBAI CONTROL INDAIR 430 GO AHEAD INDAIR 430
MUMBAI CONTROL WEATHER WARNING RECIEVED FROM
BANGALORE HEAVY RAIN AND CB ACTIVITY VISIBLITY
NIL REPORT INTENTIONS REQUEST PERMISSION TO
DIVERT MANGALORE CHANGING TO MANGALORE NEGATIVE
TRAFFIC WITH MUMBAI CONTACT MANGALORE CONTROL FOR
DIVERSION MANGALORE CONTROL INDAIR 430 HEAVY
POSITION BELGAUM 0500 FL 330 DIVERTING TO
MANGALORE DUE BAD WEATHER AT BANGALORE REQUEST FL
320 MUMBAI HAS NEGATIVE TRAFFIC CLEARED TO
MANGALORE DESCEND TO FL 320 MANGALORE CONTROL
SETTING COURSE FOR MANGALORE LEAVING FL 330 TO
FL 320 ESTIMATING CHENNAI/MANGALORE CONTROL
BOUNDRY 0530 ETA MANGALORE 0600 INDAIR 430
Slide 103 / Q No 5/3
23
ASK FOR DESCEND
MANGALORE CONTROL INDAIR 430 HEAVY POSITION
MUMBAI MANGALORE CONTROL BOUNDARY 0500 FL 320 DME
MML 60 ETA MANGALORE 0530 INFORMATION BRAVO
REQUEST DESCEND INDAIR 430 MANGALORE CONTROL
CLEARED DESEND FL 200 REPORT REACHING LEAVING FL
320 FOR FL 200 WILL REPORT REACHING INDAIR 430
Slide 82 / Q No 5/4
24
OBTAIN START UP DISPATCH HAS INFORMED THAT WIND
IS FAVOURABLE AT FL 330
DELHI GROUND INDAIR 430 HEAVY, STAND TWO SECURITY
CHECK CARRIED OUT, PERSON ON BOARD ONE TWO ZERO
REQUEST START UP FOR FL 330 INFORMATION
BRAVO INDAIR 430 DELHI GROUND START UP APPROVED
START UP APPROVED INDAIR 430
Slide 1 / Q No 6/1, Q No 11/1a
25
OBTAIN ATC CLEARENCE
DELHI TOWER INDAIR 430 HEAVY REQUEST ATC
CLEARENCE INDAIR 430 IS CLEARED TO MUMBAI AT FL
300 AFTER DEPARTURE CLIMB RUWAY HEADING 2500 TURN
RIGHT INTERCEPT RADIAL 350 AT 15 DME OR LESS ,
CLIMB TO FL 70 , THEREAFTER RESUME NORMAL
NAVIGATION CLIMBING FL 300 CLEARED TO MUMBAI AT
FL 300 AFTER DEPARTURE CLIMB RUWAY HEADING 2500
TURN RIGHT INTERCEPT RADIAL 350 AT 15 DME OR LESS
, CLIMB TO FL 70 , THEREAFTER RESUME NORMAL
NAVIGATION CLIMBING FL 300 INDAIR 430 (GO TO THE
NEXT QUESTION)
Slide 28 / Q No 3/1a , Q No 6/2a
26
SHOW COMPLIANCE WITH ATC CLEARENCE
DELHI TOWR INDAIR 430 PASSING 2500 TURNING
RIGHT CONTACT DELHI APPROACH 127.9 CHANGING TO
DELHI APPROACH 127.9 INDAIR 430 DELHI APPROACH
INDAIR 430 PASSING 2500 TURNING RIGHT ROGER DELHI
APPROACH INDAIR 430 RADIAL 350 DME 15 ROGER DELHI
APPROACH INDAIR 430 RADIAL 350 PASSING FL 70
TURNING LEFT TO RESUME NORMAL NAVIGATION ROGER (G
O TO THE NEXT QUESTION)
Slide 29 / Q No 3/1b, Q No 6/2b
27
POSITION REPORT
NAGPUR CONTROL INDAIR 430 POSITION NAGPUR 0430 FL
330 ESTIMATING NIPAD 0500, KINKI 0530 ETA KOLKATA
0600 INDAIR 430 REPORT NIPAD, MESSAGE FROM MUMBAI
THAT TYRE PIECES WERE FOUND ON RUNWAY AFTER
DEPARTURE TYRE PIECES WERE FOUND ON RUNWAY AFTER
DEPARTURE, WILL REPORT NIPAD INDAIR 430 NOTE
CALL WILL GO TO CONTROL DURING CRUISE. GIVE
ESTIMATES OF MANDATORY REPORTING POINT TIME,
CONTROL BOUNDRY CROSSING, ATS ROUTE CROSSING OR
JOINING AND ETA DESTINATION. MONITOR THE
ACKNOWLEDGEMENT AND CORRECT IN CASE MESSAGE HAS
NOT BEEN CORRECTLY COPIED
Slide 61 / Q No 6/3
28
ASK FOR DESCEND
KOLKATA CONTROL INDAIR 430 HEAVY POSITION
JAMSHEDPUR 0500 FL 330 ESTIMATING CHARLIE 0515
ETA KOLKATA 0530 TOP OF DESCEND 0505 INFORMATION
BRAVO WILL BE MAKING PRECAUTIONARY LANDING DUE
TYRE PIECES WERE FOUND AT MUMBAI AFTER DEPARTURE
REQUEST DESCEND INDAIR 430 KOLKATA CONTROL
CLEARED DESEND FL 200 REPORT REACHING WILL
REPORT FL 200 INDAIR 430
Slide 80 / Q No 6/4
29
OBTAIN ATC CLEARENCE
DELHI TOWER INDAIR 430 REQUEST ATC CLEARENCE
INDAIR 430 IS CLEARED TO KOLKATA AT FL 350 AFTER
DEPARTURE CROSS RADIAL 195 FL50 OR BELOW AT 15
DME OR LESS, CLIMB TO FL 90, THERE AFTER RESUME
NORMAL NAVIGATION, CLIMB TO FL 150, REQUEST LEVEL
CHANGE EN-ROUTE CLEARED TO KOLKATA AT FL 350
AFTER DEPARTURE CROSS RADIAL 195 FL50 OR BELOW AT
15 DME OR LESS, CLIMB TO FL 90, THERE AFTER
RESUME NORMAL NAVIGATION, CLIMB TO FL 150,
REQUEST LEVEL CHANGE EN-ROUTE (GO TO THE NEXT
QUESTION)
Slide 32 / Q No 7/1a, Q No 17/2a
30
SHOW COMPLIANCE WITH ATC CLEARENCE
DELHI TOWR INDAIR 430 PASSING 2500 TURNING
LEFT CONTACT DELHI APPROACH 127.9 CHANGING TO
DELHI APPROACH 127.9 INDAIR 430 DELHI APPROACH
INDAIR 430 PASSING 2500 TURNING LEFT INDAIR 430
DELHI APPROACH VOR HAS GONE OFF THE AIR DELHI
APPROACH INDAIR 430 RADIAL DPN OFF THE AIR
REPORTING ON TRACK 195, 15 DME FL 50 CLIMBING TO
FL 90 ROGER (GO TO THE NEXT QUESTION)
Slide 33 / Q No 7/1b, Q No 17/2b
31
ASK FOR CLIMB
DELHI CONTROL INDAIR 430 PASSING FL 120 FOR FL
150 REQUEST CLIMB FL 350 INDAIR 430 REACHING FL
150 MAINTAIN DUE RECIPROCAL TRAFFIC DESCENDING TO
FL 160, LIKELY TO CROSS YOU AT DME 48 REACHING FL
150, WILL MAINTAIN DUE RECIPROCAL TRAFFIC
DESCENDING FL 160, LIKELY TO CROSS AT 1245, DELHI
CONTROL INDAIR 430 DME 48 INDAIR 430 CLIMB TO FL
350 LEAVING FL 150 FOR FL 350INDAIR 430
Slide 79 / Q No 7/2a b
32
POINT TO POINT COMMUNICATION DELHI NOT WORKING
VARANASI CONTROL INDAIR 430 PASSING FL 230 FOR FL
350 WILL CROSS LLK FL 290 ESTIMATIMG LUCKNOW
0530, REQUEST CLEARENCE. INDAIR 430 CROSS LLK,
FL 290 DUE RECIPROCAL TRAFFIC AT FL 300 TO CROSS
LLK, MAINTAINING FL 290 DUE RECIPROCAL TRAFFIC AT
FL 300, CHANGING TO DELHI CONTROL CLEARED TO
CHANGE OVER DELHI CONTROL INDAIR 430 VARANASI
WANTS US TO CROSS LLK MAINTAINING FL 290 DUE
TRAFFIC INDAIR 430 CLIMB FL 290 AND MAINTAIN,
FURTHER CLIMB WITH VARANASI CONTROL
Slide 211 / Q No 7//3,Q No 31/2
33
ASK FOR DESCEND
KOLKATA CONTROL INDAIR 430 HEAVY, 90 DME CEA, FL
350 ESTIMATING BRAVO 0515 ETA KOLKATA 0530
INFORMATION BRAVO REQUEST DESCEND INDAIR 430
KOLKATA CONTROL FL 250 LEAVING FL 350 FOR FL
250, WILL REPORT PASSING FL 270 REQUEST YOUR RATE
OF DESCENT 700 FEET PER MINUTE MAINTAIN RATE OF
DESCENT 700 FEET PER MINUTE OR LESS, CHECK BEFORE
INCREASING WILL MAINTAIN RATE OF DESCENT 700 FEET
PER MINUTE OR LESS, CHECK BEFORE INCREASING
Slide 81 / Q No 7/4
34
OBTAIN ATC CLEARENCE
NAGPUR TOWER INDAIR 430 REQUEST ATC CLEARENCE
INDAIR 430 IS CLEARED TO MUMBAI AT FL 220,
AFTER DEPARTURE CLIMB ON RADIAL 270, 3500 MAKE
LEVEL PROCEDURE TURN TO RIGHT RETURN TO NNP, THEN
SET COURSE CLIMBING FL 220 CLEARED TO MUMBAI AT
FL 220, AFTER DEPARTURE CLIMB ON RADIAL 270, 3500
MAKE LEVEL PROCEDURE TURN TO RIGHT RETURN TO NNP,
THEN SET COURSE CLIMBING FL 220 INDAIR 430 (GO
TO THE NEXT QUESTION)
Slide 37 / Q No 8/1
35
SHOW COMPLIANCE WITH ATC CLEARENCE
NAGPUR TOWR INDAIR 430 RADIAL 270, 3500, 15 DME
COMMENCING LEVEL PROCEDURE TURN ROGER NAGPUR TOWR
INDAIR 430 PROCEDURE TURN COMPLETED, MAINTAINING
3500 RETURNING TO NNP ROGER NAGPUR TOWR INDAIR
430 OVER NNP, SETTING COURSE LEAVING 3500 FOR FL
220 CONTACT NAGPUR APPROACH 127.9 CONTACTING
NAGPUR APPROACH ON 127.9 INDAIR 430 (GO TO THE
NEXT QUESTION)
Slide 38 / Q No 8/2
36
FL 120 OVER BHOPAL THEN CLIMB
BHOPAL TOWER INDAIR 430 ATR , DEPARTED NAGPUR
0435 70 NM OUTBOUND NAGPUR IMC ESTIMATING BHOPAL
0600 WILL JOIN AT FL 120 THEREAFTER CLIMB TO FL
220, KOLKATA MUMBAI ATS ROUTE TRUE AIR SPEED 350
REQUEST JOINING ATS ROUTE INDAIR 430 CLEARED JOIN
OVER BHOPAL AT FL 120 FOR MUMBAI CLEARED JOIN
OVER BHOPAL AT FL 120 FOR MUMBAI INDAIR 430
Slide 63 / Q No 8/3
37
OVER INDORE AHMADABAD IS CALLING BAD WEATHER AT
DESTINATION (DIVERSION IN ANOTHER CONTROL)
AHMADABAD CONTROL INDAIR 430 GO AHEAD INDAIR 430
AHMADABAD CONTROL MUMBAI RUNWAY IS CLOSED DUE TO
AIR CRASH REQUEST INTENTIONS WOULD LIKE TO
DIVERT TO AURANGABAD ROUTING INDORE DIRECT TO
DUBOX THEN AURANGABAD NEGATIVE TRAFFIC WITH
AHMADABAD CONTACT APPROPRIATE CONTROL FOR
DIVERSION CHANGING TO NAGPUR CONTROL INDAIR
430 NAGPUR CONTROL INDAIR 430 POSITION INDORE
0500 FL 220DIVERTING TO AURANGABAD MUMBAI RUNWAY
CLOSED DUE AIR CRASH, REQUEST PERMISSION AND FL
210 AHMADABAD HAS NEGATIVE TRAFFIC CLEARED TO
AURANGABAD VIA DUBOX CLEARED TO FL 210 SETTING
COURSE FOR DUBOX LEAVING FL 220 FOR FL 210
Slide 104 / Q No 8/4
38
VULTURE HITS STRUCTURAL DAMAGE
MAY DAY MAY DAY MAY DAY AURANGABAD TOWER INDAIR
430, ATR, GOT A BIRD HIT, AIRCRAFT DAMAGED,
DIFFICULT TO CONTROL, WILL BE FORCE LANDING
POSITION LONG FINALS PERSONS ON BOARD 70 FUEL
2000 INDAIR 430 ROGER YOUR MAYDAY CLEARED TO
LAND WIND CALM CLEARED TO LAND WIND CALM INDAIR
430
Slide 138 / Q No 8/5
39
STARTED UP PLAN TO CARRY OUT COCKPIT CHECKS AFTER
LINE UP
DELHI GROUND INDAIR 430 HEAVY STAND TWO READY
TO TAXI INFORMATION BRAVO WILL BE CARRYING OUT
CHECKS AFTER LINING UP FOR DEPARTURE INDAIR 430
IN THAT CASE EXPECT DELAY 15 MINUTES TO
TAXI WILL TAKE DELAY
Slide 19 / Q No 9/1a
40
CLIMBING FROM 3500 TO FL 70 LOOSE CONTACT WITH
TOWER
MUMBAI APPROACH INDAIR 430 HEAVY NEGATIVE CONTACT
WITH DELHI TOWER APPROACH 3500 FOR FL 70 INDAIR
430 MUMBAI APPROACH MAINTAIN THIS FREQUENCY CLIMB
AS CLEARED, RECIPROCAL TRAFFIC INDAIR 655 BOEING
777 DESCENDING TO FL 70 ESTIMATE TO CROSS AT 37
DME CLIMBING AS CLEARED RECIPROCL TRAFFIC INDAIR
655 BOEING 777 DESCENDING TO FL 70 ESTIMATE TO
CROSS AT 37 DME INDAIR 430 MUMBAI APPROACH INDAIR
430 DME 37 INDAIR 655 HAS REPORTED DME 26 REQUEST
CLIMB FL 330
Slide 207 / Q No 9/1b, Q No 24/2 a b
41
BAD WEATHER ASK FOR LOWER FL
MUMBAI CONTROL INDAIR 430 PASSING FL 330 FOR FL
350 REQUEST FL 310 DUE WEATHER INDAIR 430 MUMBAI
CONTROL MAINTAIN FL 330 STANDBY FOR FL 310 DUE
RECIPROCAL TRAFFIC VTATT AIRBUS FL 320 ESTIMATE
TO CROSS AT 80 DME DESCENDING FL 330 WILL
MAINTAIN FL 330 STANDBY FOR FL 310 DUE RECIPROCAL
TRAFFIC VTATT AIRBUS FL 320 ESTIMATE TO CROSS AT
80 DME INDAIR 310 MUMBAI CONTROL INDAIR 430 DME
90 REQUEST FL 310 INDAIR 430 DESCEND FL
310 LEAVING FL 330 FOR FL 310 INDAIR 310
Slide 95 / Q No 9/ 2a 2b
42
BAD WEATHER NO CONTACT WITH CONTROLLER DEVIATE ON
OWN
ALL AIRCRAFT ALL AIRCRAFT VICINITY OF MUMBAI
INDAIR 430 FL 313DEVIATED 20 NM RIGHT OF MUMBAI
AHMADABAD ATS ROUTE DUE WEATHER 50 DME BBB ALL
EXTERNAL LIGHTS SWITCHED ON KEEP A LOOK OUT GO TO
NEXT QUESTION
Slide 96 / Q No 9/3
43
AIR REPORT
NAGPUR CONTROL INDAIR 430 AIR REPORT INDAIR 430
POSITION NIPAD 0500 FL 310 ESTIMATING KINKI 0530
ETA KOLKATA 0600 AIR TEMPERATURE MINUS 20 DEGREES
SPOT WIND 180 DEGREES 20 KNOTS SKY CLEAR
EXPERIENCING MILD TURBULENCE NOTE POSITION AND
THREE ELEMENTS OF WEATHER IS TO BE GIVEN STICK TO
WHAT YOU HAVE PREPARED. ADD IF ANYTHING IS GIVEN
IN QUESTION PAPER LIKE EXPERIENCING TURBULENCE
Slide 76 / Q No 9/4
44
YOU SEE AN AIRCRAFT ON BASE LEG BUT YOU WILL BE
ABLE TO TAKE OFF BEFORE IT LANDS
DELHI TOWER INDAIR 430 SEE AN AIRCRAFT ON BASE
LEG WILL BE ABLE TO TAKE OFF BEFORE IT LANDS
READY FOR IMMIDIATE DEPARTURE CLEARED FOR TAKE
OFF RUNWAY 27 DELHI TOWER CLEARED FOR TAKE OFF
RUNWAY 27 INDAIR 430.
Slide 40 / Q No 10/1
45
AS YOU ENTER RUNWAY TECHNICAL SNAGS DEVELOPS
NAGPUR TOWER INDAIR 430 ENTERED RUNWAY 27
TECHNICAL SNAGS DEVELOPS, UNABLE TO DEPART
REQUEST TAXI TO APRON TAXI VIA PAH PAH TO STAND
TWO
Slide 48 / Q No 10/2
46
DELHI IS CALLING YOU SHOW COMPLIANCE
DELHI CONTROL INDAIR 430 GO AHEAD INDAIR 430
DELHI CONTROL ROUTE VIA ALIGARH DUE TRAFFIC WILL
ROUTE VIA ALIGARH ESTIMATING ALIGARH 0600
Slide 129 / Q No 10/2a
47
DELHI FAILS TO PASS DETAILS, DELHI IS NOT
RESPONDING
LUCKNOW APPROACH INDAIR 430 HEAVY NEGATIVE
CONTACT WITH DELHI CONTROL POSITION CROSSING
CONTROL BOUNDARY DELHI KOLKATA ATS ROUTE FL 110
ESTIMATING LLK 0600 ROGER MAINTAIN THIS
FREQUENCY REPORT LLK FL 110, LUCKNOW APPROACH
MAINTAIN THIS FREQUENCY, WILL REPORT CROSSING
LLK FL 110, INDAIR 430
Slide212 / Q No 10/2b
48
LINE SQUALL APPROACHING
LUCKNOW APPROACH INDAIR 430 A SEVERE LINE SQUALL
APPROACHING 20 NM MOVING IN DIRECTION OF LUCKNOW
DEVASTATING TYPE TREES BEING UPROOTED ROOF TOPS
BEING BLOWN
Slide 116 / Q No 10/3
49
CRASHED NEAR GWALIOR/KOLKATA
MAY DAY MAY DAY MAY DAY ALL STATION INDAIR 430
AIRBUS ON 121.5 CRASHED NEAR GWALIOR, 30
NAUTICAL MILES NORTH WEST OF GWALIOR ,
PASSENGERS SAFE AIRCRAFT DAMAGED RUSH MEDICAL
ASSISTANCE AND FIRE FIGHTING SERVICES PERSONS ON
BOARD 70 OR MAY DAY MAY DAY MAY DAY ALL STATION
INDAIR 430 AIRBUS ON 121.5 CRASHED NEAR
KOLKATA, 30 NAUTICAL MILES WEST OF KOLKATA ,
PASSENGERS SAFE AIRCRAFT DAMAGED RUSH MEDICAL
ASSISTANCE AND FIRE FIGHTING SERVICES PERSONS ON
BOARD 70
Slide 141 / Q No 10/4
50
OBTAIN START UP DISPATCH HAS INFORMED THAT WIND
IS FAVOURABLE AT FL 330
DELHI GROUND INDAIR 430 HEAVY, STAND TWO SECURITY
CHECK CARRIED OUT, PERSON ON BOARD ONE TWO ZERO
REQUEST START UP FOR FL 330 INFORMATION
BRAVO INDAIR 430 DELHI GROUND START UP APPROVED
START UP APPROVED INDAIR 430
Slide 1 / Q No 6/1, Q No 11/1a
51
AFTER GETTING AIRBORNE FROM JODHPUR NO CONTACT
WITH JODHPUR TOWER
DELHI RADIO INDAIR 430 NEGATIVE CONTACT WITH
JODHPUR TOWER POSITION 30 NM OUTBOUND JODHPUR
0500 PASSING FL 70 CLIMBING AS CLEARED INDAIR
430 CONTINUE CLIMB AS CLEARED AND REPORT PASSING
FL 150 WILL REPORT PASSING FL 150 INDAIR 430
Slide 203 / Q No 11/1b
52
ESTIMATE UDAIPUR 1050
DELHI RADIO INDAIR 430 INDAIR 430 DELHI RADIO GO
AHEAD ATR , POSITION 40 NM INBOUND UDAIPUR 1040
PASSING FL 190 FOR FL 250 ESTIMATING UDAIPUR 1050
DESTINATION INDORE TRUE AIR SPEED 350 REQUEST
CROSSING CLEARANCE INDAIR 430 ENTER AHMADABAD
AIRSPACE AT FL 230 DUE CROSSING TRAFFIC OVER
UDAIPUR CONTACT AHMADABAD CONTROL 132.5 WILL
ENTER AHMADABAD AIRSPACE FL 230 AHMADABAD CONTROL
INDAIR 430 REQUEST DESCEND FL 230 DUE CROSSING
TRAFFIC OVER UDAIPUR INDAIR 430 DESCEND
FL230 LEAVING FL 250 FOR FL 230 INDAIR 430
Slide 66 / Q No 11/2a b
53
OVER PRATAPGARH TAKE ACTION
AHMADABAD CONTROL INDAIR 430, POSITION 20
NAUTICAL MILES INBOUND PRATAPGARH 1120, FL 250,
ETA INDORE 1140 REQUEST DESCENT DESCEND FL 150
REPORT REACHING AHMADABAD CONTROL DESCEND FL 150
WILL REPORT REACHING INDAIR 430
Slide 68 / Q No 11/3
54
DURING TAXI ASK FOR CHANGE OF RUNWAY
DELHI GROUND INDAIR 430 ON TAXIWAY AL PHA REQUEST
RUNWAY 09 FOR DEPARTURE DUE TO STRONG CROSS WIND
COMPONENT INDAIR 430 EXPECT DELAY OF 10 MINUTES
FOR RUNWAY 09 DUE ARRIVAL AIRCRAFT REQUEST
INTENTION WILL TAKE DELAY INDAIR 430 RECLEARED
TO HOLDING POINT R/W 09, TAXI VIA MIKE AND HOH
TEL RECLEARED TO HOLDING POINT R/W 09, TAXI VIA
MIKE AND HOH TEL NOTEYOU MAY BE ASKED TO ASK FOR
A CHANGE OF RUNWAY ON FINALS.
Slide 47 / Q No 12/1a
55
DELHI IS CALLING YOU SHOW COMPLIANCE
DELHI CONTROL INDAIR 430 GO AHEAD LAND LINES
WITH LUCKNOW IS DOWN,CONTACT LUCKNOW AND OBTAIN
RECIPROCAL TRAFFIC ADVISORY ROGER CHANGING TO
LUCKNOW APPROACH INDAIR 430 LUCKNOW APPROACH
INDAIR 430 DEPARTED DELHI 0600 FOR KOLKATA FL 310
REQUEST RECIPROCAL TRAFFIC ADVISORY NEGATIVE
TRAFFIC LUCKNOW APPROACH CHANGING TO DELHI
CONTROL INDAIR 430 DELHI CONTROL INDAIR 430
LUCKNOW HAS NEGATIVE TRAFFIC MAINTAINING WITH YOU
Slide 130 / Q No 12/1b
56
WILL BE ABLE TO CROSS LUCKNOW FL 350/JALLABAD FL
180
DELHI CONTROL INDAIR 430, POSITION ALIGARH 0530,
FL 110, ESTIMATING CONTROL BOUNDARY DELHI LUCKNOW
0600, LUCKNOW 0630, WILL BE ABLE TO REACH FL 350
AT LLK ROGER REPORT CROSSING CONTROL BOUNDARY
DELHI CONTROL WILL REPORT CROSSING CONTROL
BOUNDARY INDAIR 430 DELHI CONTROL INDAIR 430,
PASSING FL 110, WILL BE CROSSING JALLALABAD FL
170 DUE AIRCRAFT FULLY LOADED INDAIR 430
LANDLINES ARE DOWN CHECK FOR RECIPROACL
TRAFFIC ROGER CHANGING TO LUCKNOW
APPROACH LUCKNOW APPROACH INDAIR 430 DELHI TO
KOLKATA, WILL CROSS JALLALABAD CLIMBING FL 170 TO
FL 350, ESTIMATE JALLALABAD 0530 CONFIRM ANY
RECIPROCAL TRAFFIC NEGATIVE RECIPROCAL TRAFFIC
LUCKNOW APPROACH NEGATIVE RECIPROCAL TRAFFIC,
CHANGING TO DELHI CONTROL DELHI CONTROL INDAIR
430 NEGATIVE TRAFFIC WITH LUCKNOW
Slide 69 / Q No 12/2a, Q No 13/2
57
MODE C NOT / ALTIMETER REDUNDANCY
VARANASI CONTROL INDAIR 430 40 NM INBOUND BBN,
TRANSPONDER MODE C IS FAILED, AIRCRAFT RVSM NON
COMPLAINT, REQUEST DESCENT TO FL 270 VARANASI
CONTROL INDAIR 430 40 NM INBOUND BBN, ALTIMETER
SYSTEM UNRELIABLE, AIRCRAFT RVSM NON COMPLAINT,
REQUEST DESCENT TO FL 270 AIRINDIA 430 LEAVE ATS
ROUTE, DESCENT FL 270, PASSING FL 290 RESUME
NORMAL NAVIGATION LEAVING FL 350 FOR FL 270,
TURNING LEFT TO LEAVE ATS ROUTE, DESCENT FL 270,
PASSING FL 290 WILL RESUME NORMAL NAVIGATION
Slide 178 / Q No 12/3 , Q No 13/3
58
HYDRAULIC FAILURE
MAY DAY MAY DAY MAY DAY DELHI APPROACH INDAIR
430 AIRBUS HYDRAULIC FAILURE WILL BE MAKING FORCE
LANDING POSITION 30 NM INBOUND DELHI RADIA 030 AT
0500 FL 80 HEADING 030 SPEED 350 PERSONS ONBOARD
120 REQUEST FURTHER DESCENT ROGER MAYDAY
RECLEARED FL 50 NO 1 TO LAND REPORT WHEN RUNWAY
IN SIGHT DELHI APPROACH INDAIR 430 WILL REPORT
WHEN RUNWAY IN SIGHT RUNWAY IN SIGHT REQUEST
FURTHER LANDING INSTRUCTION CLEARED TO LAND
RUNWAY 09 QNH 1009 REPORT WHEN LANDED CLEARED TO
LAND RUNWAY 09 QNH 1009 REPORT WHEN LANDED WILCO
INDAIR 430 LANDED DELHI 0510 INDAIR 430
Slide 143 / Q No 12/4 , Q No 13/4
59
DURING TAXI ASK FOR CHANGE OF RUNWAY
DELHI GROUND INDAIR 430 ON TAXIWAY AL PHA REQUEST
RUNWAY 09 FOR DEPARTURE DUE TO STRONG CROSS WIND
COMPONENT INDAIR 430 EXPECT DELAY OF 10 MINUTES
FOR RUNWAY 09 DUE ARRIVAL AIRCRAFT REQUEST
INTENTION WILL TAKE DELAY INDAIR 430 RECLEARED
TO HOLDING POINT R/W 09, TAXI VIA MIKE AND HOH
TEL RECLEARED TO HOLDING POINT R/W 09, TAXI VIA
MIKE AND HOH TEL NOTEYOU MAY BE ASKED TO ASK FOR
A CHANGE OF RUNWAY ON FINALS.
Slide 47 / Q No 12/1,Q No 13/1
60
WILL BE ABLE TO CROSS LUCKNOW FL 350/JALLABAD FL
180
DELHI CONTROL INDAIR 430, POSITION ALIGARH 0530,
FL 110, ESTIMATING CONTROL BOUNDARY DELHI LUCKNOW
0600, LUCKNOW 0630, WILL BE ABLE TO REACH FL 350
AT LLK ROGER REPORT CROSSING CONTROL BOUNDARY
DELHI CONTROL WILL REPORT CROSSING CONTROL
BOUNDARY INDAIR 430 DELHI CONTROL INDAIR 430,
PASSING FL 110, WILL BE CROSSING JALLALABAD FL
170 DUE AIRCRAFT FULLY LOADED INDAIR 430
LANDLINES ARE DOWN CHECK FOR RECIPROACL
TRAFFIC ROGER CHANGING TO LUCKNOW
APPROACH LUCKNOW APPROACH INDAIR 430 DELHI TO
KOLKATA, WILL CROSS JALLALABAD CLIMBING FL 170 TO
FL 350, ESTIMATE JALLALABAD 0530 CONFIRM ANY
RECIPROCAL TRAFFIC NEGATIVE RECIPROCAL TRAFFIC
LUCKNOW APPROACH NEGATIVE RECIPROCAL TRAFFIC,
CHANGING TO DELHI CONTROL DELHI CONTROL INDAIR
430 NEGATIVE TRAFFIC WITH LUCKNOW
Slide 69 / Q No 12/2a, Q No 13/2
61
MODE C NOT / ALTIMETER REDUNDANCY
VARANASI CONTROL INDAIR 430 40 NM INBOUND BBN,
TRANSPONDER MODE C IS FAILED, AIRCRAFT RVSM NON
COMPLAINT, REQUEST DESCENT TO FL 270 VARANASI
CONTROL INDAIR 430 40 NM INBOUND BBN, ALTIMETER
SYSTEM UNRELIABLE, AIRCRAFT RVSM NON COMPLAINT,
REQUEST DESCENT TO FL 270 AIRINDIA 430 LEAVE ATS
ROUTE, DESCENT FL 270, PASSING FL 290 RESUME
NORMAL NAVIGATION LEAVING FL 350 FOR FL 270,
TURNING LEFT TO LEAVE ATS ROUTE, DESCENT FL 270,
PASSING FL 290 WILL RESUME NORMAL NAVIGATION
Slide 178 / Q No 12/3 , Q No 13/3
62
HYDRAULIC FAILURE
MAY DAY MAY DAY MAY DAY DELHI APPROACH INDAIR
430 AIRBUS HYDRAULIC FAILURE WILL BE MAKING FORCE
LANDING POSITION 30 NM INBOUND DELHI RADIA 030 AT
0500 FL 80 HEADING 030 SPEED 350 PERSONS ONBOARD
120 REQUEST FURTHER DESCENT ROGER MAYDAY
RECLEARED FL 50 NO 1 TO LAND REPORT WHEN RUNWAY
IN SIGHT DELHI APPROACH INDAIR 430 WILL REPORT
WHEN RUNWAY IN SIGHT RUNWAY IN SIGHT REQUEST
FURTHER LANDING INSTRUCTION CLEARED TO LAND
RUNWAY 09 QNH 1009 REPORT WHEN LANDED CLEARED TO
LAND RUNWAY 09 QNH 1009 REPORT WHEN LANDED WILCO
INDAIR 430 LANDED DELHI 0510 INDAIR 430
Slide 143 / Q No 12/4 , Q No 13/4
63
DURING TAXI VISIBLITY FALLS BELOW AOM
SRINAGAR TOWER INDAIR 430 ON TAXIWAY AL FAH,
VISIBLITY BELOW AOM, REQUEST TREND VISIBLITY
LIKELY TO FALL FURTHER, REPORT INTENTION,
SRINAGAR TOWER REQUEST TAXI TO APRON, WILL WAIT
FOR WEATHER TO IMPROVE INDAIR 430 TAXI STAND TWO
VIA BRAH VOH SRINAGAR TOWER TAXI STAND TWO VIA
BRAH VOH INDAIR 430
Slide 93 / Q No 14/1
64
AMRITSAR IS CALLING YOU REPLAN YOUR FLIGHT
AMRITSAR TOWER INDAIR 430 GO AHEAD WEATHER
WARNING FOR HEAVY CB ACTIVITY OVER CHANDIGARH AND
SARSAWA REPORT YOUR INTENTION. WOULD LIKE TO
ROUTE VIA AMRITSAR, ASRI AND ERLUX REQUEST
PERMISSION CLEARED TO ROUTE VIA AMRITSAR , ASRI
AMRITSAR TOWER CLEARED TO ROUTE VIA AMRITSAR ,
ASRI ESTIMATING AMRITSAR 0430 ASRI 0500 INDAIR 430
Slide 112 / Q No 14/2, Q No15/2
65
ASK FOR DESCEND
DELHI CONTROL INDAIR 430 HEAVY 50 DME DPN 0500
FL 260 ETA DELHI 0530 TOP OF DESCEND 0505
INFORMATION BRAVO REQUEST DESCEND INDAIR 430
DELHI CONTROL CLEARED TO LEAVE FL 260 INTERCEPT
RADIAL 210 FL 110 OR HIGHER DESEND FL 50 DUE
TRAFFIC LEAVING FL 260 FOR FL 110 WILL REPORT ON
RADIAL 210 ROGER CONTACT DELHI APPROACH ON
127.9 CHANGING TO DELHI APPROACH ON 127.9 DELHI
APPROACH INDAIR 430 DESCENDING FL 110 WILL REPORT
ON RADIAL 210 ROGER DELHI APPROACH INDAIR 430
RADIAL 210 PASSING FL 110 FOR FL 50 CONTACT DELHI
TOWER ON 122.7 EXPECTED APPROACH TIME
1243 EXPECTED APPROACH TIME 1243 CHANGING TO
DELHI TOWER DELHI TOWER INDAIR 430 PASSING FL 90
FOR FL 50 RADIAL 210 CLEARED TO DPN FOR ILS
APPROACH RUNWAY 27 TRANSITION LEVEL FL 50 CLEARED
TO DPN FOR ILS APPROACH RUNWAY 27 TRANSITION
LEVEL FL 50
Slide 84 / Q No 14/3, Q No 15/3
66
COMMUNICATION FAILURE VHF ABOUT TO LAND
DELHI TOWER INDAIR 430 TRANSMITTING BLIND
POSITION 20 DME DPN RADIAL 020 FL 50 WILL REPORT
OVER DPN AND HOLD TILL 0945 , I SAY AGAIN, DELHI
TOWER INDAIR 430 TRANSMITTING BLIND POSITION 20
DME DPN RADIAL 020 FL 50 WILL REPORT OVER DPN AND
HOLD TILL 0945 DELHI TOWER INDAIR 430
TRANSMITTING BLIND OVERHEAD DPN FL 50 ENTERING
HOLD, I SAY AGAIN, DELHI TOWER INDAIR 430
TRANSMITTING BLIND OVERHEAD DPN FL 50 ENTERING
HOLD DELHI TOWER INDAIR 430 TRANSMITTING BLIND
LEAVING DPN HOLD AT 1440 FOR ILS APPROACH RUNWAY
27, I SAY AGAIN DELHI TOWER INDAIR 430
TRANSMITTING BLIND LEAVING DPN HOLD AT 1440 FOR
ILS APPROACH RUNWAY 27
Slide 197 / Q No 14/4, Q No 15/4
67
PASSENGER SICK ON GROUND/TAXI ONLY AIRCRAFT
OPERATING
MUMBAI GROUND INDAIR 430 ONE PASSENGER FALLEN
SICK RETURNING TO APRON POSITION TAXIWAY AL FAH
REQUEST TAXI AND DOCTOR INDAIR 430 MUMBAI GROUND
TURN RIGHT APPROACHING INTERSECTION, TAXI VIA ECH
OH AND GOLF STAND 5 DOCTOR BEING ARRANGED REQUEST
DETAILS OF PASSENGER AND ILLNESS TURN RIGHT
APPROACHING INTERSECTION, TAXI VIA ECH OH AND
GOLF STAND 5, PATIENT IS MALE FORTY SIX YEARS OLD
APPEARS TO HAVE SUFFERED HEART ATTACK
Slide 45 / Q No 15/1
68
AMRITSAR IS CALLING YOU REPLAN YOUR FLIGHT
AMRITSAR TOWER INDAIR 430 GO AHEAD WEATHER
WARNING FOR HEAVY CB ACTIVITY OVER CHANDIGARH AND
SARSAWA REPORT YOUR INTENTION. WOULD LIKE TO
ROUTE VIA AMRITSAR, ASRI AND ERLUX REQUEST
PERMISSION CLEARED TO ROUTE VIA AMRITSAR , ASRI
AMRITSAR TOWER CLEARED TO ROUTE VIA AMRITSAR ,
ASRI ESTIMATING AMRITSAR 0430 ASRI 0500 INDAIR 430
Slide 112 / Q No 14/2, Q No15/2
69
ASK FOR DESCEND
DELHI CONTROL INDAIR 430 HEAVY 50 DME DPN 0500
FL 260 ETA DELHI 0530 TOP OF DESCEND 0505
INFORMATION BRAVO REQUEST DESCEND INDAIR 430
DELHI CONTROL CLEARED TO LEAVE FL 260 INTERCEPT
RADIAL 210 FL 110 OR HIGHER DESEND FL 50 DUE
TRAFFIC LEAVING FL 260 FOR FL 110 WILL REPORT ON
RADIAL 210 ROGER CONTACT DELHI APPROACH ON
127.9 CHANGING TO DELHI APPROACH ON 127.9 DELHI
APPROACH INDAIR 430 DESCENDING FL 110 WILL REPORT
ON RADIAL 210 ROGER DELHI APPROACH INDAIR 430
RADIAL 210 PASSING FL 110 FOR FL 50 CONTACT DELHI
TOWER ON 122.7 EXPECTED APPROACH TIME
1243 EXPECTED APPROACH TIME 1243 CHANGING TO
DELHI TOWER DELHI TOWER INDAIR 430 PASSING FL 90
FOR FL 50 RADIAL 210 CLEARED TO DPN FOR ILS
APPROACH RUNWAY 27 TRANSITION LEVEL FL 50 CLEARED
TO DPN FOR ILS APPROACH RUNWAY 27 TRANSITION
LEVEL FL 50
Slide 84 / Q No 14/3, Q No 15/3
70
COMMUNICATION FAILURE VHF ABOUT TO LAND
DELHI TOWER INDAIR 430 TRANSMITTING BLIND
POSITION 20 DME DPN RADIAL 020 FL 50 WILL REPORT
OVER DPN AND HOLD TILL 0945 , I SAY AGAIN, DELHI
TOWER INDAIR 430 TRANSMITTING BLIND POSITION 20
DME DPN RADIAL 020 FL 50 WILL REPORT OVER DPN AND
HOLD TILL 0945 DELHI TOWER INDAIR 430
TRANSMITTING BLIND OVERHEAD DPN FL 50 ENTERING
HOLD, I SAY AGAIN, DELHI TOWER INDAIR 430
TRANSMITTING BLIND OVERHEAD DPN FL 50 ENTERING
HOLD DELHI TOWER INDAIR 430 TRANSMITTING BLIND
LEAVING DPN HOLD AT 1440 FOR ILS APPROACH RUNWAY
27, I SAY AGAIN DELHI TOWER INDAIR 430
TRANSMITTING BLIND LEAVING DPN HOLD AT 1440 FOR
ILS APPROACH RUNWAY 27
Slide 197 / Q No 14/4, Q No 15/4
71
OBTAIN START UP FOR DELAYED DEPARTURE UNABLE TO
CONTACT GROUND
DELHI GROUND INDAIR 430 HEAVY STAND TWO SECURITY
CHECK CARRIED OUT, PERSON ON BOARD ONE TWO ZERO
REQUEST START UP INFORMATION BRAVO INDAIR 430
YOUR FIC HAS EXPIRED START UP NOT APPROVED WILL
OBTAIN FRESH FIC NUMBER INDAIR 430 DELHI GROUND
INDAIR 430 FIC NUMBER HOH TELL 756 REQUEST START
UP ( NO REPLY ) DELHI TOWER INDAIR 430 NEGATIVE
CONTACT WITH DELHI GROUND STAND TWO SECURITY
CHECK CLEARED PERSONS ON BOARD 120 FIC NUMBER HOH
TELL 756 REQUEST START UP INDAIR 430START UP
APPROVED START UP APPROVED INDAIR 430
Slide 2 / Q No 16/1
72
SLOW DECREASE IN CABIN PRESSURE AND NO GROUND
CONTROLLER IS RESPONDING
ALL STATION IN VICINITY OF MANGALORE INDAIR 430
ON 121.5 POSITION 60 DME TO MML ON TRIVENDRUM
MUMBAI ROUTE, UNABLE TO MAINTAIN FL 320 DUE TO
DEPRESSURIZATION, DESCENDING TO FL 100, ALL
EXTERNAL LIGHTS SWITCHED ON KEEP A LOOK OUT
INDAIR 430
Slide 180 / Q No 16/2
73
SLOW DECREASE IN CABIN PRESSURE AND ABLE TO
CONTACT ATC
MANGALORE CONTROL INDAIR 430 EXPERIENCING
DEPRESSURIZATION, FOR SAFETY OF FLIGHT, DEVIATED
FROM ATS ROUTE POSITION 60 DME INBOUND MML 0500
PASSING FL 100, INTEND TO LAND MML, REQUEST
PERMISSION TO SET COURSE TO MML, CONTINUE TO
DESCENT FL 70 RADIAL 030, REQUEST FURTHER
DESCENT INDAIR 430 CLEARED TO MML. DESCENT TO FL
70 SAY AGAIN YOUR RADIAL MML RADIAL 030 INDAIR
430
Slide 181 / Q No 16/3
74
LANDED RUNWAY 27 AT 1245 TAKE ACTION
MANGALORE TOWER INDAIR 430 HEAVY LANDED RUNWAY 27
1245 REQUEST TAXI TO APRON INDAIR 430 CONTACT
MANGALORE GROUND ON 122.7 FOR TAXI CHANGING TO
MANGALORE GROUND INDAIR 430 MANGALORE GROUND
INDAIR 430 HEAVY LANDED RUNWAY 27 1245 REQUEST
TAXI TO APRON
Slide 22 / Q No 16/4
75
DELHI IS CALLING YOU MESSAGE FROM DISPATCH
DELHI GROUND KINGFISHER 430 GO AHEAD KINGFISHER
430 CONTACT DISPATCH CHANGING TO DISPATCH
KINGFISHER 430 KINGFISHER DISPATCH KINGFISHER
430 MESSAGE FROM COMMERCIAL A DGR PACKAGE HAS
BEEN LOADED NOT SURE OF CLEARENCE SWITCHING OFF
ENGINES THE PACKAGE IS TO BE OFFLOADED AND
CONFIRM FOR ITS DGR CLEARANCE ROGER DELHI GROUND
KINGFISHER 430 SWITCHING OFF ENGINES FOR
RECHECKING OF A CARGO PACKAGE KINGFISHER 430
REVISE YOUR RPL WILCO KINGFISHER 430
Slide 10 / Q No 17/1
76
EXPERIENCING WIND SHEAR ON TAKE OFF LEG
DELHI TOWER INDAIR 430 WIND SHEAR REPORT TIME
0500 INTENSITY MODERATE ON TAKE OFF PATH RUNWAY
27 1000 FEET TURNING LEFT ONE FIVE DEGREES ROGER
DELHI TOWER
Slide 59 / Q No 17/2
77
AIRPROX REPORT LESS SEPERATION
DELHI CONTROL AIRPROX SAFETY NOT ASSURED INDAIR
430 POSITION JAIPUR 0500 TRUE AIR SPEED 350 FL
320 IMC TIME OF INCIDENT 0505 ONE BOEING 737
DESCENDED THROUGH OUR LEVEL AT ABOUT 5 NM IN
DIRECTION 360 INDAIR 430 ROGER YOUR
AIRPROX FORMAT IS WHOM ARE YOU CALLING , AIRPROX
WHO YOU ARE, POSITION TRAFFIC, TIME , BRIEF
DESCRIPTION
Slide 77 / Q No 17/3 , Q No 18/3
78
HIGH DURING DESCEND SUGGEST PLAN
MUMBAI APPROACH INDAIR 430 HEAVY PASSING FL 100
35 DME BBB WE ARE TOO HIGH WE CAN MAKE AN ORBIT
TO LOOSE HEIGHT AT PRESENT POSITION OR WE CAN
DESCEND IN VOR HOLD TO LOOSE HEIGHT INDAIR 430
REQUEST LEVEL YOU CAN REACH BBB FL 80 INDAIR
430 REACHING BBB FL 80, PROCEED ON RADIAL 260
DESCENT TO FL 50 THEREAFTER RETURN TO BBB FOR ILS
APPROACH RUNWAY 27 REACHING BBB FL 80, PROCEED ON
RADIAL 260 DESCENT TO FL 50 THEREAFTER RETURN TO
BBB FOR ILS APPROACH RUNWAY 27
Slide 91 / Q No 17/4 , Q No 18/4
79
DELHI IS CALLING YOU MESSAGE FROM DISPATCH
DELHI GROUND KINGFISHER 430 GO AHEAD KINGFISHER
430 CONTACT DISPATCH CHANGING TO DISPATCH
KINGFISHER 430 KINGFISHER DISPATCH KINGFISHER
430 MESSAGE FROM THERE HAS BEEN A LAPSE IN
SECURITY CHECK OF PASSENGERS WILL DISEMBARK ALL
PASSENGERS FOR SECURITY CHECK AGAIN AIRCRAFT ALSO
TO BE CHECKED AGAIN SWITCHING OFF SEND VEHICLES
FOR PASSENGERS SENDING VEHICLES FOR
PASSENGERS DELHI GROUND KINGFISHER 430 SWITCHING
OFF ENGINES DUE LAPSE IN SECURITY DISEMBARKING
PASSENGERS CANCEL START UP APPROVAL KINGFISHER
430 REVISE YOUR RPL WILCO KINGFISHER 430
Slide 11 / Q No 18/1
80
OBTAIN START UP ( RPL NOT RECEIVED )
DELHI GROUND INDAIR 430 HEAVY, STAND TWO,
SECURITY CHECK CARRIED OUT, PERSON ON BOARD NOW
ONE ONE EIGHT REQUEST START UP FOR FL 330
INFORMATION BRAVO INDAIR 430 DELHI GROUND
AMENDED RPL NOT RECIEVED REVISED ETD 0700 REST
NO CHANGE START UP APPROVED START UP APPROVED
INDAIR 430
Slide 4 / Q No 18/2
81
AIRPROX REPORT LESS SEPERATION
DELHI CONTROL AIRPROX SAFETY NOT ASSURED INDAIR
430 POSITION JAIPUR 0500 TRUE AIR SPEED 350 FL
320 IMC TIME OF INCIDENT 0505 ONE BOEING 737
DESCENDED THROUGH OUR LEVEL AT ABOUT 5 NM IN
DIRECTION 360 INDAIR 430 ROGER YOUR
AIRPROX FORMAT IS WHOM ARE YOU CALLING , AIRPROX
WHO YOU ARE, POSITION TRAFFIC, TIME , BRIEF
DESCRIPTION
Slide 77 / Q No 17/3 , Q No 18/3
82
HIGH DURING DESCEND SUGGEST PLAN
MUMBAI APPROACH INDAIR 430 HEAVY PASSING FL 100
35 DME BBB WE ARE TOO HIGH WE CAN MAKE AN ORBIT
TO LOOSE HEIGHT AT PRESENT POSITION OR WE CAN
DESCEND IN VOR HOLD TO LOOSE HEIGHT INDAIR 430
REQUEST LEVEL YOU CAN REACH BBB FL 80 INDAIR
430 REACHING BBB FL 80, PROCEED ON RADIAL 260
DESCENT TO FL 50 THEREAFTER RETURN TO BBB FOR ILS
APPROACH RUNWAY 27 REACHING BBB FL 80, PROCEED ON
RADIAL 260 DESCENT TO FL 50 THEREAFTER RETURN TO
BBB FOR ILS APPROACH RUNWAY 27
Slide 91 / Q No 17/4 , Q No 18/4
83
BOMB THREAT ON GROUND ATC CHANNEL BUSY
PAN PAN PAN PAN PAN PAN DELHI GROUND INDAIR
430 STAND 2 OPERATIONS HAS INFORMED OF BOMB
THREAT ON BOARD REQUEST BOMB DISPOSAL SQUAD AND
INSTRUCTION TO DISEMBARK PASSENGERS INDAIR 430
PROCEED TO DUMB BELL RUNWAY 27 VIA A AND G BOMB
DISPOSAL SQUAD AND SAFETY SERVICES BEING
RUSHED PROCEEDING TO DUMB BELL RUNWAY 27 VIA A
AND G INDAIR 430
Slide 165 / Q No 19/1a
84
MUMBAI GROUND IS CALLING RESPOND AND SHOW
INABLITY TO COMPLY
MUMBAI GROUND INDAIR 430 GO AHEAD INDAIR 430 ARE
YOU READY FOR IMMEDIATE DEPARTURE FROM RUNWAY
INTERSECTION NEGATIVE WE ARE FULLY LOADED WILL
NEED FULL LENGTH OF RUNWAY INDAIR 430 HOLD AT
HOLDING POSITION RUNWAY 28 EXPECT DELAY 10
MINUTES WILL HOLD AT HOLDING POSITION RUNWAY 28
EXPECT DELAY 10 MINUTES
Slide 126 / Q No 19/1b
85
UNABLE TO CLIMB
MUMBAI CONTROL INDAIR 430 PASSING FL 230 UNABLE
TO CROSS 60 DME AT FL 290 WILL BE ABLE TO CROSS
AT FL 270 INDAIR 430 MUMBAI CONTROL CLIMB FL 250
AND MAINTAIN DUE TO RECIPROCAL TRAFFIC EXPECT
CLIMB AFTER GOA CLIMBING FL 250 FURTHER CLIMB
AFTER GOA
Slide 127 / Q No 19/2
86
SEE SINKING SHIP
PAN PAN PAN PAN PAN PAN MANGALORE CONTROL
INDAIR 430 A SINKING SHIP IN SIGHT OFF COAST
MANGALORE ON BEARING OF 120 DISTANCE 45 NAUTICAL
MILES SEA IS ROUGH WAVES HIGH APPEARS TO BE A
PASSENGER SHIP TILTED TO LEFT RUSH
ASSISTANCE INDAIR 430 MUMBAI CONTROL ROGER PAN
PAN TAKING ACTION
Slide 168 / Q No 19/3
87
TURBULENCE NOT ABLE TO MAINTAIN HEIGHT
PAN PAN PAN PAN PAN PAN MANGALORE CONTROL
INDAIR 430 EXPERIENCING SEVERE TURBULENCE UNABLE
TO MAINTAIN FL 330 POSITION MML 0530 REQUEST FL
270 INDAIR 430 DESCENT TO FL 270 LEAVING FL 330
FOR FL 270 INDAIR 430
Slide 175 / Q No 19/4a
88
ON FINALS APPROACH SEE AN AIRCRAFT IN BASE
SWITCHING ON OFF LANDING LIGHT
TRIVENDRUM TOWER INDAIR 430 SIGHTED AN AIRCRAFT
ON BASE LEG IN EMERGENCY INITIATING GO AROUND
WILL REPORT OVER VOR TVM REPORT TVM FL
50 WILL REPORT TVM FL 50 INDAIR 430
Slide 182 / Q No 19/4b
89
DELHI GROUND IS CALLING TAKE ACTION
DELHI GROUND INDAIR 430 GO AHEAD SRINAGAR
VISIBLITY NIL DUE HEAVY RAIN REPORT INTENTION
WILL WAIT FOR IMPROVEMENT POSITION TAXIWAY AL
FAH REQUEST TAXI INSTRUCTION TO APRON AND STAND
NUMBER INDAIR 430 TAXI VIA GOLF STAND 2 TAXI VIA
GOLF STAND 2 INDAIR 430
Slide 13 / Q No 20/1a
90
YOU ARE WAITING OTHER AIRCRAFT HAS BEEN CLEARED
TO START
DELHI GROUND INDAIR 430 REQUEST REASON FOR GIVING
START UP TO VT SGH BEFORE US VT SGH HAS VIP
ONBOARD AND WILL CRUISE AT HIGHER LEVEL YOU ARE
NUMBER TWO STARTUP APPROVED UNDERSTOOD STARTUP
APPROVED NUMBER TWO INDAIR 430
Slide 14 / Q No 20/1b
91
OBTAIN ATC CLEARENCE
DELHI TOWER INDAIR 430 HEAVY REQUEST ATC
CLEARENCE INDAIR 430 IS CLEARED TO SRINAGAR FL
260 AFTER DEPARTURE CLIMB RUWAY HEADING 2500 TURN
RIGHT INTERCEPT RADIAL 350 AT 15 DME OR LESS ,
CLIMB TO FL 70 , THEREAFTER RESUME NORMAL
NAVIGATION CROSS SARSAWA FL 260 CLEARED TO
SRINAGAR FL 260 AFTER DEPARTURE CLIMB RUWAY
HEADING 2500 TURN RIGHT INTERCEPT RADIAL 350 AT
15 DME OR LESS , CLIMB TO FL 70 , THEREAFTER
RESUME NORMAL NAVIGATION CROSS SARSAWA FL 260
INDAIR 430 (GO TO THE NEXT QUESTION)
Slide 30 / Q No 7/1, Q No 20/2a
92
SHOW COMPLIANCE WITH ATC CLEARENCE
DELHI TOWR INDAIR 430 PASSING 2500 TURNING
RIGHT CONTACT DELHI APPROACH 127.9 CHANGING TO
DELHI APPROACH 127.9 INDAIR 430 DELHI APPROACH
INDAIR 430 PASSING 2500 TURNING RIGHT ROGER DELHI
APPROACH INDAIR 430 RADIAL 350 DME 15 ROGER DELHI
APPROACH INDAIR 430 RADIAL 350 PASSING FL 70
TURNING LEFT TO RESUME NORMAL NAVIGATION WILL
CROSS SARSAWA FL 260 ROGER (GO TO THE NEXT
QUESTION)
Slide 31 / Q No 7/2, Q No 20/2b
93
FIGHTER JET ROCKING WING NEAR AMRITSAR
AL FAH CONTROL VT ADX ON 121.5 AIRBUS OPERATOR
SPIRIT AVIATION FLYING FROM DELHI TO SRINAGAR A
CHARTERED FLIGHT WITH INDIAN CREW AND ALL INDIAN
PASSENGERS WE HAVE BEEN INTERCEPTED REQUEST
INSTRUCTIONS VT ADX ALFA CONTROL YOU HAVE ENTERED
RESTRICTED AREA NOT PERMITTED TO PROCEED FURTHER
LAND AT PATHANKOT REPORT FL WILL LAND AT
PATHANKOT FL 240 VT ADX
Slide 183 / Q No 20/3
94
UNSURE OF POSITION NEED RADAR HELP
AL FAH CONTROL VT ADX AIRBUS NOT SURE OF
POSITION DUE VOR UN RELIABLE REQUEST RADAR
VECTORING VT ADX ALFA CONTROL REPORT YOUR
HEADING HEADING 075 VT ADX TURN LEFT HEADING
060 TURNING LEFT HEADING 060 VT ADX
Slide 184 / Q No 20/4
95
OBTAIN START UP (LADDER ATTATCHED)
DELHI GROUND INDAIR 430 HEAVY STAND TWO SECURITY
CHECK CARRIED OUT, PERSON ON BOARD ONE TWO ZERO
REQUEST START UP INFORMATION BRAVO INDAIR 430
DELHI GROUND CHECK YOUR LADDER STILL
ATTACHED CANCEL REQUEST FOR START UP WILL CALL
YOU AGAIN
Slide 3 / Q No 18/1a,Q No 21/1
96
DURING TAXI TAKEN A WRONG TURN
DELHI GROUND INDAIR 430 ENTERED GOLF 1 BY MISTAKE
REQUEST INSTRUCTIONS INDAIR 430 NOW CONTINUE
STRAIGHT AHEAD HOLD SHORT OF INTERSECTION GIVE
WAY TO VT ADX. STANDBY FOR FURTHER TAXI CONTINUE
STRAIGHT AHEAD WILL HOLD SHORT OF INTERSECTION
GIVE WAY TO VT ADX.
Slide 25 / Q No 21/1b
97
AT RUNWAY HOLDING SEE AN AIRCRAFT ON FINALS
SWITCHING ON OFF LANDING LIGHT
MAYDAY MAYDAY MAYDAY MANGALORE TOWER INDAIR 430
SIGHTED AN AIRCRAFT IN DISTRESS REPEATEDLY
SWITCHING ON AND OFF LANDING LIGHT POSITION ON
FINALS RUNWAY 27 GET RUNWAY CLEARED GETTING
RUNWAY CLEARED DISTRESS AIRCRAFT IN SIGHT
Slide 147 / Q No 21/2
98
DEVIATED FROM ATS ROUTE
CHARLIE CONTROL INDAIR 430 AIRBUS POSITION 10 NM
EAST OF PATHANKOT 0500 FL 280 DEVIATED FROM ATS
ROUTE WHEN 30 NM OUTBOUND AMRITSAR AT 0450 FL 280
IN DIRECTION 065 DEGREES BY 20 NM INDAIR 430
CLEAR TO RE ENTER ATS ROUTE AT JAMMU FL 280 WILL
RE ENTER ATS ROUTE AT JAMMU ESTIMATING 0510 FL
280
Slide 97 / Q No 21/3
99
ASK FOR DESCEND
CHARLIE CONTROL INDAIR 430 HEAVY POSITION JAMMU
0500 FL 260 ESTIMATING MESAR 0515 ETA SRINAGAR
0530 TOP OF DESCEND 0505 REQUEST
DESCEND NEGATIVE TRAFFIC WITH CHARLIE CONTROL
CONTACT SRINAGAR TOWER FOR DESCEND CHANGING TO
SRINAGAR TOWER INDAIR 430 SRINAGAR TOWER INDAIR
430 HEAVY POSITION JAMMU 0500 FL 260 ESTIMATING
MESAR 0515 ETA SRINAGAR 0530 TOP OF DESCEND 0505
REQUEST DESCEND NEGATIVE TRAFFIC WITH CHARLIE
CONTROL CLEARED DESCEND FL 150 REPORT PASSING FL
180 CLEARED DESCEND FL 150 WILL REPORT PASSING
FL 180 INDAIR 430
Slide 85 / Q No 21/4
100
DURING TAXI TAKEN A WRONG TURN AND LOST
JODHPUR TOWER INDAIR 430 ENTERED AIRFORCE
DISPERSAL AREA UNABLE TO DETERMINE POSITION NEED
FOLLOW ME TO TAXI OUT INDAIR 430 NOW HOLD
POSITION SENDING FOLLOW ME HOLDING POSITION
INDAIR 430
Slide 26 / Q No 22/1
101
ESTIMATE JAIPUR 0815
DELHI CONTROL INDAIR 430 , ATR , POSITION 40 NM
INBOUND JAIPUR 0800 FL 210 ESTIMATING JAIPUR 0815
DESTINATION DELHI TRUE AIR SPEED 350 REQUEST
PERMISSION TO JOIN ATS ROUTE INDAIR 430 REPORT
JJP FL 210, NEGATIVE TRAFFIC. WILL REPORT JJP FL
210, NEGATIVE TRAFFIC.INDAIR 430
Slide 67 / Q No 22/2
102
SOMEONE IS CALLING DELHI RELAY
DELHI CONTROL INDAIR 430 RELAYING FOR INDAIR 160
POSITION KABAR 0500 FL 330 ESTIMATING JJP 0530
ALPHA NEXT INDAIR 160 MAINTAIN FL 330 REPORT JJP
REQUEST RELAY INDAIR 160 INDAIR 430 MESSAGE FROM
DELHI CONTROL MAINTAIN FL 330 REPORT JJP
Slide 192 / Q No 22/3
103
HYDRAULIC PRESSURE LOW CONTROL SLUGGISH
PAN PAN PAN PAN PAN PAN DELHI CONTROL INDAIR
430 ATR HYDRAULIC PRESSURE FALLEN LOW AIRCRAFT
CONTROLS HAVE BECOME SLUGGISH LANDING AT DELHI
POSITION 45 NM INBOUND DELHI RADIAL 030 AT 0500
DESCENDING FL 170 FOR FL 100 REQUEST FURTHER
DESCEND HEADING 030 SPEED 350 FUEL 2000 PERSONS
ONBOARD 120 WOULD LIKE TO MAKE VISUAL
APPROACH ROGER PAN PAN CONTINUE DESCEND FL 50 AND
REPORT PASSING FL 70 RUNWAY 14 QNH 1012 EXPECT
VISUAL APPROACH REPORT WHEN RUNWAY IS IN
SIGHT CONTINUE DESCEND FL 50 AND WILL REPORT
PASSING FL 70 RUNWAY 14 QNH 1012 EXPECT VISUAL
APPROACH WILL REPORT WHEN RUNWAY IS IN SIGHT
INDAIR 430
Slide 163 / Q No 22/4a
104
SWITCHED OFF ON RUNWAY
DELHI TOWER INDAIR 430 ATR POSITION MIDDLE OF
RUNWAY 14 ENGINE SWITCHED OFF UNABLE TO TAXI
REQUEST TOWING VEHICLE ARRANGING TRACTOR TO TOW
DELHI GROUND
Slide 164 / Q No 22/4b
105
HIGH SPEED TAXI
NAGPUR TOWER INDAIR 430 HEAVY STAND TWO REQUEST
HIGH SPEED TAXI FOR TRAINING PURPOSE INFORMATION
BRAH VOH HIGH SPEED TAXI NOT APPROVED DUE TRAFFIC
CLEARED TO HOLDING POINT RUNWAY 12 VIA I, B. AND
R HIGH SPEED TAXI NOT APPROVED DUE TRAFFIC
CLEARED TO HOLDING POINT RUNWAY 12 VIA I, B. AND
R INDAIR 430
Slide 24 / Q No 23/1
106
DURING TAKE OFF TYRE FAILURE
NAGPUR TOWER INDAIR 430 RUNWAY SURFACE ROUGH
EXPERIENCED TIRE FAILURE ON TAKE OFF CHECK FOR
ANY TIRE PIECES ON RUNWAY ROGER WILL CHECK
Slide 49 / Q No 23/1b
107
NAGPUR CONTROL IS CALLING YOU RESPOND AND SHOW
INABLITY TO COMPLY
NAGPUR CONTROL INDAIR 430 GO AHEAD INDAIR 430
NAGPUR CROSS BHOPAL IN 15 MINUTES DUE CONVERGING
TRAFFIC VT FGX FL 280 UNABLE TO CROSS BHOPAL IN
15 MINUTES DUE STRONG HEAD WINDS INDAIR
430 INDAIR 430 NAGPUR CONTROL CLIMB FL 260 AND
MAINTAIN RECLEARED TO FL 260 WILL REPORT
REACHING INDAIR 430
Slide 125 / Q No 23/2
108
COMMUNICATION DIFFICULT REACH BAVOX
DELHI CONTROL INDAIR 430 DELHI CONTROL INDAIR 430
POSITION BAVOX 1200 POSITION BAVOX 1200 FL 260 FL
260 ETA JAIPUR 1230 ETA JAIPUR 1230 REQUEST
DESCENT REQUEST DESCENT INDAIR 430 DESCENT TO FL
110 REPORT WHEN IN CONTACT WITH JAIPUR
TOWER LEAVING FL 260 LEAVING FL 260 FOR FL 110
FOR FL 110 WILL REPORT IN CONTACT WITH JAIPUR
TOWER WILL REPORT IN CONTACT WITH JAIPUR
TOWER DELHI CONTROL INDAIR 430 DELHI CONTROL
INDAIR 430 IN CONTACT WITH JAIPUR TOWER IN
CONTACT WITH JAIPUR TOWER INDAIR 430 CLEARED TO
CHANGE OVER TO JAIPUR TOWER CHANGING TO JAIPUR
TOWER
Slide 198 / Q No 23/3
109
RUDDER STUCK
MAY DAY MAY DAY MAY DAY JAIPUR TOWER INDAIR 430
BOMBARDIER RUDDER STUCK UNABLE TO COME OUT OF
TURN AIRCRAFT IN NOSE DIVE LOOSING HEIGHT PASSING
FL 70 PERSONS ON BOARD 7 TRYING TO CONTROL
AIRCRAFT ROGER MAYDAY ( call when YAMDOOT in
SIGHT humour) MAYDAY JAIPUR TOWER CANCEL MAYDAY
PULLED OUT FROM DIVE AND LEVELLED OUT FL
40 INDAIR 430 ROGER DESCENT TO CIRCUIT ALTITUDE
QNH 1006 LEAVING FL 40 FOR CIRCUIT ALTITUDE QNH
1006 THAT IS CORRECT
Slide 144 / Q No 23/4a b
110
START UP PLAN TO FLY IN SECTOR OR ILS
CALLIBERATION OR CARRY OUT CIRCUIT BEFORE SETTING
COURSE
MUMBAI GROUND INDAIR 430 HEAVY, STAND TWO,
SECURITY CHECK CARRIED OUT, PERSON ON BOARD ONE
TWO ZERO, PLAN TO FLY IN SECTOR BBB RADIAL 270 TO
300 DME DISTANCE 50 BETWEEN FL 60 AND FL 80
DURATION 30 MINUTES BEFORE PROCEEDING 250
NAUTICAL MILES, REQUEST START UP INFORMATION
BRAVO TRIVENDRUM GROUND INDAIR 430 HEAVY STAND
TWO SECURITY CHECK CARRIED OUT, PERSON ON BOARD
ONE TWO ZERO PLAN TO FLY IN SECTOR TVM RADIAL 040
TO 060 DME DISTANCE 50 BETWEEN FL 60 AND FL 80
DURATION 30 MINUTES BEFORE PROCEEDING TO CHENNAI
REQUEST START UP INFORMATION BRAVO OR DELHI
GROUND INDAIR 430 HEAVY SECURITY CHECK CARRIED
OUT, PERSON ON BOARD ONE TWO ZERO STAND TWO
REQUEST START UP FOR ILS CALLIBERATION
INFORMATION BRAVO OR DELHI GROUND INDAIR 430
HEAVY SECURITY CHECK CARRIED OUT, PERSON ON BOARD
ONE TWO ZERO STAND TWO WOULD LIKE TO CARRY OUT
CIRCUIT APPROACH AND LANDING BEFORE SETTING
COURSE REQUEST START UP INFORMATION BRAVO
Slide 8 / Q No 24/1, Q No 25/1
111
CLIMBING FROM 3500 TO FL 70 LOOSE CONTACT WITH
TOWER
MUMBAI APPROACH INDAIR 430 HEAVY NEGATIVE CONTACT
WITH DELHI TOWER APPROACH 3500 FOR FL 70 INDAIR
430 MUMBAI APPROACH MAINTAIN THIS FREQUENCY CLIMB
AS CLEARED, RECIPROCAL TRAFFIC INDAIR 655 BOEING
777 DESCENDING TO FL 70 ESTIMATE TO CROSS AT 37
DME CLIMBING AS CLEARED RECIPROCL TRAFFIC INDAIR
655 BOEING 777 DESCENDING TO FL 70 ESTIMATE TO
CROSS AT 37 DME INDAIR 430 MUMBAI APPROACH INDAIR
430 DME 37 INDAIR 655 HAS REPORTED DME 26 REQUEST
CLIMB FL 330
Slide 207 / Q No 9/1b, Q No 24/2 a b
112
AUTO ALTITUDE CONTROL HAS FAILED NO CONTACT
PAN PAN PAN PAN PAN PAN ALL AIRCRAFT ALL
AIRCRAFT INDAIR 430 POSITION 80 DME BBB RADIAL
260 TIME 0600 FL 330, UNABLE RVSM DUE EQUIPMENT
FAILURE RETURNING TO MUMBAI, TURNING LEFT BY 90
DEGREES WILL FLY 15 NM LATERAL TO RADIAL 260 WILL
DESCEND FL 315 ON DEVIATED TRACK ALL EXTERNAL
LIGHT SWITCHED ON KEEP LOOK OUT
Slide 169 / Q No 24/3
113
PRIMARY ALTIMETER FAILURE
MAY DAY MAY DAY MAY DAY MUMBAI CONTROL INDAIR
430 CESSNA CITATION PRIMARY ALTIMETER SYSTEM
FAILED, RETURNING TO MUMBAI , POSITION DME 40,
15 DME RIGHT OF RADIAL 250 UNSURE OF FL
ESTIMATING BBB IN 20 MIN REQUEST DESCEND INDAIR
430 ROGER YOUR MAYDAY DESCENT AT YOUR DESCRETION
REPORT OVER BBB OR AERODROME IN SIGHT, REPORT
LEVEL WHEN YOU GET ON RADIO ALTIMETER LEAVING OUR
PRESENT LEVEL DESCENDING AT OUR DISCRETION WILL
REPORT BBB OR AERODROME IN SIGHT, WILL REPORT
LEVEL WHEN ON RADIO ALTIMETER
Slide 145 / Q No 24/4
114
START UP PLAN TO FLY IN SECTOR OR ILS
CALLIBERATION OR CARRY OUT CIRCUIT BEFORE SETTING
COURSE
MUMBAI GROUND INDAIR 430 HEAVY, STAND TWO,
SECURITY CHECK CARRIED OUT, PERSON ON BOARD ONE
TWO ZERO, PLAN TO FLY IN SECTOR BBB RADIAL 270 TO
300 DME DISTANCE 50 BETWEEN FL 60 AND FL 80
DURATION 30 MINUTES BEFORE PROCEEDING 250
NAUTICAL MILES, REQUEST START UP INFORMATION
BRAVO TRIVENDRUM GROUND INDAIR 430 HEAVY STAND
TWO SECURITY CHECK CARRIED OUT, PERSON ON BOARD
ONE TWO ZERO PLAN TO FLY IN SECTOR TVM RADIAL 040
TO 060 DME DISTANCE 50 BETWEEN FL 60 AND FL 80
DURATION 30 MINUTES BEFORE PROCEEDING TO CHENNAI
REQUEST START UP INFORMATION BRAVO OR DELHI
GROUND INDAIR 430 HEAVY SECURITY CHECK CARRIED
OUT, PERSON ON BOARD ONE TWO ZERO STAND TWO
REQUEST START UP FOR ILS CALLIBERATION
INFORMATION BRAVO OR DELHI GROUND INDAIR 430
HEAVY SECURITY CHECK CARRIED OUT, PERSON ON BOARD
ONE TWO ZERO STAND TWO WOULD LIKE TO CARRY OUT
CIRCUIT APPROACH AND LANDING BEFORE SETTING
COURSE REQUEST START UP INFORMATION BRAVO
Slide 8 / Q No 24/1, Q No 25/1
115
TRIVENDRUM IS CALLING RESPOND AND SHOW RELUCTANCE
TRIVENDRUM APPROACH INDAIR 430 GO AHEAD INDAIR
430 REPORT YOUR POSITION RADIAL 070 FL 80 DME 30
DESCENT TO FL 70 AND ORBIT RIGHT 30 NM FROM VOR,
EXPECT DELAY 40 MINUTES DUE ARRIVING TRAFFIC
WOULD NOT LIKE TO HOLD FOR SO LONG, REQUEST
PERMISSION TO SET COURSE FOR MADURAI DESCENT FL
70 AND MAINTAIN REPORT OVER TVM FOR MADURAI, 15
NM OUTBOUND ON TRACK CLIMB TO FL 290 LEAVING FL
80 FOR FL 70, WILL REPORT TVM AND MAINTAIN FL 70
TILL 15 NM OUTBOUND, THEREAFTER CLIMB TO FL 290
INDAIR 430
Slide 128 / Q No 25/2
116
SEARCH AND RESCUE AIRCRAFT RELAY
TRIVENDRUM CONTROL INDAIR 430 RELAYING FOR ZIG
ZAG MISSING AIRCRAFT HAS CRASHED POSITION OF
CRASH SITE 240 DEGREES 60 NM FROM MADURAI
AIRCRAFT IS DAMAGED, THERE ARE SURVIVORS, RUSH
ALL ASSISTANCE INDAIR 430 REQUEST CHECK IF RELIEF
MATERIAL CAN BE AIRDROPPED. WILL CHECK ZIG ZAG
YOUR MESSAGE RELAYED TRIVENDRUM REQUESTS IF
RELIEF MATERIALS CAN BE DROPPED
Slide 193 / Q No 25/3
117
CABIN CREW SICK ALREADY ON ILS APPROACH ASK FOR
VISUAL APPROACH
CHENNAI TOWER INDAIR 430 ONE CABIN CREW MEMBER
HAS FALLEN SICK PASSING FL 50 FOR 3500 RUNWAY IN
SIGHT REQUEST STRAIGHT IN VISUAL APPROACH RUNWAY
09 ARRANGE DOCTOR ON LANDING CLEARED FOR STRAIGHT
IN VISUAL APPROACH RUNWAY 09 CLEARED TO LAND WIND
CALM CLEARED TO LAND WIND CALM INDAIR 430
Slide 176 / Q No 25/4
118
KANPUR UNABLE TO GET CLEARANCE
LUCKNOW TOWER VT ILM ATR DEPARTED KANPUR 0600
CLIMBING FL 50 OVERHEAD, DESTINATION VARANASI,
KANPUR HAS NEGATIVE CONTACT WITH YOU REQUEST
PERMISSION TO SET COURSE AND CLIMB FL 210 LUCKNOW
HAS NEGATIVE TRAFFIC CLEARED TO FL 170 STANDBY
FOR FURTHER CLIMB SETTING COURSE FOR LLK
CLIMBING FL 170 STANDING BY FOR FL 210 ESTIMATING
LLK 0630 CHANGING TO KANPUR WILL BE BACK WITH
YOU CLEARED CHANGE OVER KANPUR TOWER VT ILM IN
CONTACT WITH LUCKNOW CLIMBING TO FL 170 SETTING
COURSE FOR LLK CHANGING TO LUCKNOW CLEARED
CHANGE OVER LUCKNOW TOWER VT ILM BACK ON YOUR
FREQUENCY REPORT LLK WILCO VT LJM
Slide 208 / Q No 26/1
119
CLIMBING FROM FL 90 LOOSE CONTACT WITH LLK
VARANASI CONTROL INDAIR 430 HEAVY NEGATIVE
CONTACT WITH LUCKNOW POSITION LLK 0630 PASSING FL
90 FOR FL 170 ETA BBN 0730 REQUEST FL 210 INDAIR
430 HEAVY VARANASI CONTROL MAINTAIN THIS
FREQUENCY CLIMB FL 210 MAINTAIN THIS FREQUENCY
CLIMBING FL 210 INDAIR 430
Slide 210 / Q No 26/2
120
AIRPROX REPORT DANGEROUSLY CLOSE
VARANASI CONTROL AIRPROX NEAR COLLISION INDAIR
430 POSITION 40 NM OUTBOUND LLK TRUE AIR SPEED
350 FL 190 IMC TIME OF INCIDENT 0705 ONE BOEING
737 CROSSED OUR FLIGHT PATH CLIMBING THROUGH OUR
LEVEL FROM LEFT TO RIGHT MISSED BY 2 NM INDAIR
430 ROGER YOUR AIRPROX FORMAT IS WHOM ARE YOU
CALLING , AIRPROX WHO YOU ARE, POSITION TRAFFIC,
TIME , BRIEF DESCRIPTION
Slide 78 / Q No 26/3
121
EXPECTING LADY
PAN PAN PAN PAN PAN PAN VARANASI TOWER INDAIR
430 AN EXPECTING LADY NEEDS IMMIDIATE MEDICAL
ASSISTANCE HOLDING OVER BBN FL 50 REQUEST
PRIORITY LANDING INDAIR 430 LEAVE BBN CLEARED FOR
ILS APPROACH R/W 27 MAINTAIN FL 50 TILL MIDDLE
MARKER OUTBOUND THEREAFTER LEAVE FL50 QNH
1009 LEAVING BBN FOR ILS R/W 27 WILL LEAVE FLIGHT
LEVEL 50 AFTER MIDDLE MARKER OUTBOUND QNH
1009 THAT IS CORRECT VARANASI TOWER INDAIR 430
CROSSING MIDDLE MARLER LEAVING FL 50
Slide 174 / Q No 26/4
122
OBTAIN START UP HUMAN ORGAN
TRIVENDRUM GROUND INDAIR 430 HEAVY STAND TWO
SECURITY CHECK CARRIED OUT PERSON ON BOARD ONE
TWO ZERO REQUEST START UP INFORMATION
BRAVO EXPECT DELAY 15 MINUTES DUE
TRAFFIC CARRYING HUMAN ORGANS FOR TRANSPLANT
REQUEST EXPEDITIOPUS HANDLING START UP APPROVED
EXPEDITE TO DEPART BY 33 START UP APPROVED
EXPEDITE TO DEPART BY 33 INDAIR 430
Slide 5 / Q No 27/1
123
TRIVENDRUM APPROACH IS CALLING YOU RECIPROCAL
TRAFFIC
TRIVENDRUM APPROACH INDAIR 430 GO AHEAD INDAIR
430 RECIPROCAL TRAFFIC VT HGK GULFSTREAM
DESCENDING FL170 LIKELY TO CROSS YOU AT 50 DME ,
NOT IN CONTACT, WHEN CLEAR OF TRAFFIC EXPECT
FURTHER CLIMB UNRESTRICTED WILL CALL VT HGK
INDAIR 430 VT HGK INDAIR 430 DO YOU READ INDAIR
430 VT HGK GO AHEAD REQUEST YOUR DME DISTANCE
DME 62 TRIVENDRUM APPROACH INDAIR 430 VT HJK DME
DISTANCE 62 ROGER , CHECK WITH TRAFFIC WHEN
CLEAR WILCO INDAIR 430 TRIVENDRUM APPROACH INDAIR
430 DME DISTANCE 55, DME DISTANCE VT HGK 40
INDAIR 430 TRIVENDRUM APPROACH CLEARED CLIMB TO
FL 320 LEAVING FL 160 FOR FL 320 INDAIR 430
Slide 131 / Q No 27/2a b, Q No 28/2a b
124
SEE TSUNAMI / GAINT WAVE
SECURITE SECURITE SECURITE MANGALORE CONTROL
INDAIR 430 SEE A GAINT SIZED WAVE ADVANCING
TOWARDS COAST OF MANGALORE AT A FREAT SPEED,
APPEARS SEA HAS SWELLED UP, APPROX DISTANCE 40 NM
, ALL SHIPS AND PERSONS IN GREAT DANGER, TAKE
IMMIDIATE ACTION INDAIR 430 ROGER YOUR SECURITE
TAKING ACTION
Slide 119 / Q No 27/3
125
EXPEDITIOUS HANDLING HUMAN ORGAN
MUMBAI APPROACH INDAIR 430 CARRYING CARGO OF
HUMAN ORGAN FOR TRANSPLANT REQUEST LANDING ON
PRIORITY INDAIR 430 LEAVE BBB CLEARED FOR ILS
APPPROACH R/W 27 CROSS MIDDLE MARKER FL 90
THEREAFTER DESCEND 3500 AND MAINTAIN SWISSAIR IN
PROCEDURE TURN QNH 1009 LEAVING BBB FOR ILS
APPPROACH R/W 27 MAINTAINING FL 90 WILL REPORT
CROSSING MIDDLE MARKER QNH 1009 THAT IS
CORRECT MUMBAI APPROACH INDAIR 430 CROSSING
MIDDLE MARKER LEAVING FL 90 FOR 3500
Slide 89 / Q No 27/4
126
OBTAIN START UP FOREIGN DIGNATARIES/ VIP
TRIVENDRUM GROUND INDAIR 430 HEAVY STAND TWO
SECURITY CHECK CARRIED OUT PERSON ON BOARD ONE
TWO ZERO REQUEST START UP INFORMATION
BRAVO EXPECT DELAY 15 MINUTES DUE TRAFFIC TEAM
OF VISITING FOREIGN DIGNATRIES ON BOARD REQUEST
PRIORITY START UP APPROVED REQUEST EXPEDITE
START UP APPROVED EXPEDITING INDAIR 430
Slide 6 / Q No 28/1
127
TRIVENDRUM APPROACH IS CALLING YOU RECIPROCAL
TRAFFIC
TRIVENDRUM APPROACH INDAIR 430 GO AHEAD INDAIR
430 RECIPROCAL TRAFFIC VT HGK GULFSTREAM
DESCENDING FL170 LIKELY T
About PowerShow.com
