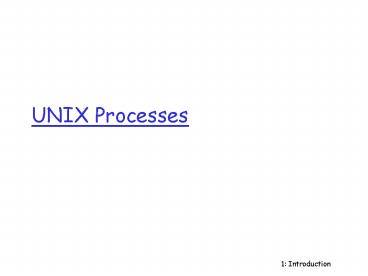

UNIX Processes

1
UNIX Processes
2
Overview

• The UNIX Process
• What is a Process
• Representing a process
• States of a process
• Creating and managing processes
• fork()
• wait()
• getpid()
• exit()
• etc.

• Files in UNIX
• Directories and Paths
• User vs. System Mode
• UNIX I/O primitives
• A simple example
• The basic I/O system calls
• Buffered vs. un-buffered I/O

3
UNIX Processes

• A program that has started is manifested in the
  context of a process.
• A process in the system is represented
• Process Identification Elements
• Process State Information
• Process Control Information
• User Stack
• Private User Address Space, Programs and Data
• Shared Address Space

4
Process Control Block

• Process Information, Process State Information,
  and Process Control Information constitute the
  PCB.
• All Process State Information is stored in the
  Process Status Word (PSW).
• All information needed by the OS to manage the
  process is contained in the PCB.
• A UNIX process can be in a variety of states

5
States of a UNIX Process

• User running Process executes in user mode
• Kernel running Process executes in kernel mode
• Ready to run in memory process is waiting to be
  scheduled
• Asleep in memory waiting for an event
• Ready to run swapped ready to run but requires
  swapping in
• Preempted Process is returning from kernel to
  user-mode but the system has scheduled another
  process instead
• Created Process is newly created and not ready
  to run
• Zombie Process no longer exists, but it leaves a
  record for its parent process to collect.
• See Process State Diagram!!

6
Process State Transitions
1
user running
return
sys-call
interrupt/ interrupt return
kernel running
2
sleep
schedule
3
4
wakeup
ready to run
asleep
7
Creating a new process

• In UNIX, a new process is created by means of the
  fork() - system call. The OS performs the
  following functions
• It allocates a slot in the process table for the
  new process
• It assigns a unique ID to the new process
• It makes a copy of process image of the parent
  (except shared memory)
• It assigns the child process to the Ready to Run
  State
• It returns the ID of the child to the parent
  process, and 0 to the child.
• Note, the fork() call actually is called once but
  returns twice - namely in the parent and the
  child process.

8
Fork()

• Pid_t fork(void) is the prototype of the fork()
  call.
• Remember that fork() returns twice
• in the newly created (child) process with return
  value 0
• in the calling process (parent) with return value
  pid of the new process.
• A negative return value (-1) indicates that the
  call has failed
• Different return values are the key for
  distinguishing parent process from child process!
• The child process is an exact copy of the parent,
  yet, it is a copy i.e. an identical but separate
  process image.

9
A fork() Example

• include ltunistd.hgt
• main()
• pid_t pid / process id /
• printf(just one process before the fork()\n)
• pid fork()
• if(pid 0)
• printf(I am the child process\n)
• else if(pid gt 0)
• printf(I am the parent process\n)
• else
• printf(DANGER Mr. Robinson - the fork() has
  failed\n)

10
Basic Process Coordination

• The exit() call is used to terminate a process.
• Its prototype is void exit(int status), where
  status is used as the return value of the
  process.
• exit(i) can be used to announce success and
  failure to the calling process.
• The wait() call is used to temporarily suspend
  the parent process until one of the child
  processes terminates.
• The prototype is pid_t wait(int status), where
  status is a pointer to an integer to which the
  childs status information is being assigned.
• wait() will return with a pid when any one of the
  children terminates or with -1 when no children
  exist.

11
more coordination

• To wait for a particular child process to
  terminate, we can use the waitpid() call.
• Prototype pid_t waitpid(pid_t pid, int status,
  int opt)
• Sometimes we want to get information about the
  process or its parent.
• getpid() returns the process id
• getppid() returns the parents process id
• getuid() returns the users id
• use the manual pages for more id information.

12
Orphans and Zombies or MIAs

• A child process whose parent has terminated is
  referred to as orphan.
• When a child exits when its parent is not
  currently executing a wait(), a zombie emerges.
• A zombie is not really a process as it has
  terminated but the system retains an entry in the
  process table for the non-existing child process.
• A zombie is put to rest when the parent finally
  executes a wait().
• When a parent terminates, orphans and zombies are
  adopted by the init process (prosess-id -1) of
  the system.

13
Fun with Zombies!

• Consider the following program
• include ltunistd.hgt
• main()
• pid_t pid
• int num1, num2
• pid fork()
• printf(pidd enter 2 numbers, getpid())
• scanf(d d, num1 num2)
• printf(\n pidd the sum is\n, getpid(),
  num1 num2)

14
What is going on??

• Who is getting to write to the standard output -
  parent or child ??
• Who is going to receive the first input ?
• What happens if the child process completes while
  the parent is still waiting for input ?
• What UNIX tools would you use to get some
  indication of what is going on ?
• Exercise Go try it !!

15
The exec() family

• Why is the basic fork() facility not enough for a
  serious system programmer?
• Remember, a process consists among other things
  of text and data segments that represent the
  running program!
• What if we could change the program code that the
  text-segment represents?
• gt The process would of course execute a
  different program.

16
notable exec properties

• an exec call transforms the calling process by
  loading a new program in its memory space.
• the exec does not create a new sub-process.
• unlike the fork there is no return from a
  successful exec.
• all types of exec calls perform in principle the
  same task.
• ----gt see chapter 2.7 in the textbook for a
  detailed description of the various exec()
  formats.

17
exec??() calls

• execl() must be given the arguments as a NULL
  terminated list. It needs a valid pathname for
  the executable.
• execlp() only needs the filename of the
  executable but an NULL terminated argument list.
• execv()must receive an array of arguments in
  addition to the path of the executable
• execvp()only needs the filename of the
  executable and the corresponding argument list

18
exec() example

• include ltunistd.hgt
• main()
• printf(executing ls\n)
• execl(/bin/ls, ls, -l, (char )0)
• / if execl returns, then the call has
  failed.... /
• perror(execl failed to run ls)
• exit(1)

19
By Convention

• Consider int execl ( const char path, const char
  arg0 ... )
• Here, the parameter arg0 is, by convention, the
  name of the program or command without any
  path-information.
• Example
• execl( /bin/ls, ls, -l, (char )0 )
• In general, the first argument in a command-line
  argument list is the name of the command or
  program itself!

20
An execvp() example

• include ltunistd.hgt
• main()
• char const av myecho,hello,world
  , (char ) 0
• execvp(av0, av)
• where myecho is name of a program that lists all
  its command line arguments.

21
ps and kill

• Two of the shell commands that you will be using
  when working with processes are ps and kill.
• ps reports on active processes.
• -A lists all processes
• -e includes the environment
• -u username, lists all processes associated with
  username
• NOTE the options may be differ on different
  systems!!
• What if you get a listing that is too long?
• try ps -A grep username

22
kill and killall

• In order to communicate with an executing process
  from the shell, you must send a signal to that
  process.
• The kill command sends a signal to the process.
• You can direct the signal to a particular process
  by using its pid
• The kill command has the following format
• kill options pid
• -l lists all the signals you can send
• -p (on some systems prints process informantion)
• -signal is a signal number

23
more on kill

• To terminate a process you can send the HUB
  signal, which is signal number 9.
• Example kill -9 24607 will force the process
  with pid 24607 to terminate.
• On LINUX you have the option to use killall to
  kill all processes that are running and are owned
  by you.
• USE THE KILL-COMMAND TO TERMINATE ANY UNWANTED
  BACKGROUND PROCESSES !!!

24
Files

• UNIX Input/Output operations are based on the
  concept of files.
• Files are an abstraction of specific I/O devices.
• A very small set of system calls provide the
  primitives that give direct access to I/O
  facilities of the UNIX kernel.
• Most I/O operations rely on the use of these
  primitives.
• We must remember that the basic I/O primitives
  are system calls, executed by the kernel. What
  does that mean to us as programmers???

25
User and System Space
User Space
Kernel Space
26
Different types of files

• UNIX deals with two different classes of files
• Special Files
• Regular Files
• Regular files are just ordinary data files on
  disk - something you have used all along when you
  studied programming!
• Special files are abstractions of devices. UNIX
  deals with devices as if they were regular files.
• The interface between the file system and the
  device is implemented through a device driver - a
  program that hides the details of the actual
  device.

27
special files

• UNIX distinguishes two types of special files
• Block Special Files represent a device with
  characteristics similar to a disk. The device
  driver transfers chunks or blocks of data between
  the operating system and the device.
• Character Special Files represent devices with
  characteristics similar to a keyboard. The device
  is abstracted by a stream of bytes that can only
  be accessed in sequential order.

28
Access Primitives

• UNIX provides access to files and devices through
  a (very) small set of basic system calls
  (primitives)
• create()
• open()
• close()
• read()
• write()
• ioctl()

29
the open() call

• include ltsys/types.hgt
• include ltsys/stat.hgt
• include ltfcntl.hgt
• int open(const char path, int flags, mode_t
  mode)
• char path is a string that contains the fully
  qualified filename of the file to be opened.
• int flags specifies the method of access i.e.
  read_only, write_only read_and_write.
• mode_t mode optional parameter used to set the
  access permissions upon file creation.

30
read() and write()

• include ltunistd.hgt
• ssize_t read(int filedes, void buffer, size_t
  n)
• ssize_t write(int filedes, const void buffer,
  size_t n)
• int filedes file descriptor that has been
  obtained though an open() or create() call.
• void buffer pointer to an array that will hold
  the data that is read or holds the data to be
  written.
• size_t n the number of bytes that are to be read
  or written from/to the file.

31
A close() call

• Although all open files are closed by the OS upon
  completion of the program, it is good programming
  style to clean up after you are done with any
  system resource.
• Please make it a habit to close all files that
  you program has used as soon as you dont need
  them anymore!
• include ltunistd.hgt
• int close(int filedes)
• Remember, closing resources timely can improve
  system performance and prevent deadlocks from
  happening (more later)

32
A rudimentary example

• include ltfcntl.hgt / controls file attributes /
• includeltunistd.hgt / defines symbolic constants
  /
• main()
• int fd / a file descriptor /
• ssize_t nread / number of bytes read /
• char buf1024 / data buffer /
• / open the file data for reading /
• fd open(data, O_RDONLY)
• / read in the data /
• nread read(fd, buf, 1024)
• / close the file /
• close(fd)

33
Buffered vs unbuffered I/O

• The system can execute in user mode or kernel
  mode!
• Memory is divided into user space and kernel
  space!
• What happens when we write to a file?
• the write call forces a context switch to the
  system. What??
• the system copies the specified number of bytes
  from user space into kernel space. (into mbufs)
• the system wakes up the device driver to write
  these mbufs to the physical device (if the
  file-system is in synchronous mode).
• the system selects a new process to run.
• finally, control is returned to the process that
  executed the write call.
• Discuss the effects on the performance of your
  program!

34
Un-buffered I/O

• Every read and write is executed by the kernel.
• Hence, every read and write will cause a context
  switch in order for the system routines to
  execute.
• Why do we suffer performance loss?
• How can we reduce the loss of performance?
• gt We could try to move as much data as possible
  with each system call.
• How can we measure the performance?

35
Buffered I/O

• explicit versus implicit buffering
• explicit - collect as many bytes as you can
  before writing to file and read more than a
  single byte at a time.
• However, use the basic UNIX I/O primitives
• Careful !! Your program my behave differently on
  different systems.
• Here, the programmer is explicitly controlling
  the buffer-size
• implicit - use the Stream facility provided by
  ltstdio.hgt
• FILE fd, fopen, fprintf, fflush, fclose, ...
  etc.
• a FILE structure contains a buffer (in user
  space) that is usually the size of the disk
  blocking factor (512 or 1024)

36
The fcntl() system call

• The fcntl() system call provides some control
  over already open files. fcntl() can be used to
  execute a function on a file descriptor.
• The prototype is int fcntl(int fd, int cmd,
  .......) where
• fd is the corresponding file descriptor
• cmd is a pre-defined command (integer const)
• .... are additional parameters that depend on
  what cmd is.

37
The fcntl() system call

• Two important commands are F_GETFL and F_SETFL
• F_GETFL is used to instruct fcntl() to return the
  current status flags
• F_SETFL instructs fcntl() to reset the file
  status flags
• Example int i fcntl(fd, F_GETFL) or
• int i fcntl(fd, F_SETFL,

38
Using fcntl() to change tonon-blocking I/O

• We can use the fcntl() system call to change the
  blocking behavior of the read() and write()
• Example
• include ltfcntl.hgt
• ..
• if ( fcntl(filedes, F_SETFL, O_NONBLOCK) -1)
• perror(fcntl)

39
The select() call

• Suppose we are dealing with a server process that
  is supporting multiple clients concurrently. Each
  of the client processes communicates with the
  server via a pipe.
• Further let us assume that the clients work
  completely asynchronously, that is, they issue
  requests to the server in any order.
• How would you write a server that can handle this
  type of scenario? DISCUSS!!

40
select() contd

• What exactly is the problem?
• If we are using the standard read() call, it will
  block until data is available in the pipe.
• if we start polling each of the pipes in
  sequence, the server may get stuck on the first
  pipe (first client), waiting for data.
• other clients may, however, issued a request that
  could be processed instead.
• The server should be able to examine each file
  descriptor associated with each pipe to determine
  if data is available.

41
Using the select() call

• The prototype of select() is
• int select(int nfds, fd_set readset, fd_set
  writeset, fd_set errorset, timeval timeout )
• ndfs tells select how many file descriptors are
  of interest
• readset, writeset, and errorset are bit maps
  (binary words) in which each bit represents a
  particular file descriptor.
• timeout tells select() whether to block and wait
  and if waiting is required timeout explicitly
  specifies how long

42
fd_set and associated functions

• Dealing with bit masks in C, C, and UNIX makes
  programs less portable.
• In addition, it is difficult to deal with
  individual bits.
• Hence, the abstraction fd_set is available along
  with macros (functions on bit masks).
• Available macros are
• void FD_ZERO(fd_set fdset) resets all the bits
  in fdset to 0
• void FD_SET(int fd, fd_set fdset) set the bit
  representing fd to 1
• int FD_ISSET(int fd, fd_set fdset) returns 1 if
  the fd bit is set
• void FD_CLR(int fd, fd_set fdset) turn of the
  bit fd in fdset

43
a short example

• include .....
• int fd1, fd2
• fd_set readset
• fd1 open (file1, O_READONLY)
• fd2 open (file2, O_READONLY)
• FD_ZERO(readset)
• FD_SET(fd1, readset)
• FD_SET(fd2, readset)
• select (5, readset, NULL, NULL, NULL)
• ..........

44
more select

• The select() system call can be used on any file
  descriptor and is particularly important for
  network programming with sockets.
• One important note when select returns it
  modifies the bit mask according to the state of
  the file descriptors.
• You should save a copy of your original bit mask
  if you execute the select() multiple times.
