Title: Chapter 2: Protocols and Architecture


1

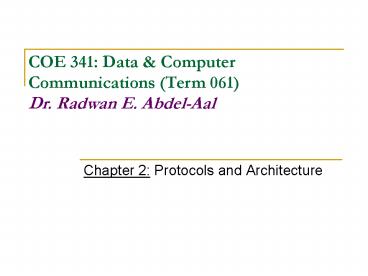

COE 341 Data Computer Communications (Term
061)Dr. Radwan E. Abdel-Aal
  • Chapter 2 Protocols and Architecture

2
Agenda
  • Need for protocols and for a layered protocol
    architecture
  • Key Elements of a Protocol
  • Framework for Standardization
  • Simplified File Transfer Architecture
  • A Three-Layer Model
  • Protocol Architectures and Networks Addressing
  • Primitives and Parameters
  • Protocol operation Protocol Data Units (PDUs)
  • Standard Protocol Architectures
  • The OSI Protocol Architecture
  • The Model
  • OSI Layers
  • The OSI versus the TCP/IP (the Internet) Protocol
    Architecture

3
What is a Protocol?
  • A set of rules or conventions agreed upon and
    observed by two communicating entities for
    successful exchange of data

4
Why we Need Protocols?
  • Equipment come from different vendors and run
    different operating systems Need common standard
    procedures and language to communicate properly
  • Example File transfer
  • Source must
  • Activate communications link
  • Check if destination is prepared to receive data
  • Source file transfer application must
  • Check if destination file management system will
    accept and can store file
  • May need file format translation, etc

5
Why we need Architecture (hierarchy) for
Protocols?
  • A large task is better handled through splitting
    it into smaller subtasks (divide Conquer)
  • Can be developed simultaneously by different
    teams using different platforms (hardware,
    software)
  • Hierarchical layered architecture
  • The subtasks are implemented separately in layers
    forming a stack
  • The stack is implemented in all communicating
    end systems
  • Higher layers handle higher-level tasks
  • A layer provides/requests services to/from an
    adjacent layer on a system
  • Peer layers in the two communicating systems
    interact with each other using a protocol
  • Examples from everyday life

High Level, e.g. Applications
Low Level, e.g. Signals, Bits
6
Guidelines for layering
  • Each layer performs a subset of related subtasks
  • Each layer provides services to the higher layer
    and requests services from the lower layer
  • Ideally, changes in one layer should not require
    changes to other layers,
  • e.g. changing the link from wire to optical
    fibre
  • should require changing only the physical layer
  • Information hiding Each layer sees only what it
    needs to see
  • Not too few layers
  • Not enough splitting of functionality
  • Not too many layers
  • Difficult to manage
  • Large communication overhead between them

Physical Link
7
Protocol Architecture Layered Structure
High-level functions
Communicating Entity
By exchanging formatted data blocks that obey a
protocol (PDUs)
Services Provided
Services Requested
Highest Level
Communication with peer layers on other entities
Lowest Level
Most primitive functions
Physical Link
Protocol stack on an end system
8
Framework for Standardization
Well-defined interfaces at layer boundaries
Standards/code for various layers can be
developed Independently, Simultaneously, Using
different platforms (Advantage)
Requests
From/To
Services
To/From
? Changes and upgrades in a layer need not affect
other layers
WK 2
9
Scope for Standardization at the Layers
  • Service Definitions
  • State only as a functional description- not how
    to implement it (for flexibility)
  • For internal use only within this communicating
    entity (not a protocol)

(at the layer interfaces)
2
SAP 2

SAP 1
Here we are dealing with other (foreign) systems!
?Need a strict protocol
Addressing within the same system Services are
requested from /provided by a layer through
Service Access Points (SAPs) (or Ports). Use the
SAP (port) number for addressing
1
3
10
So, three standardization elements
  • Addressing within the same system
  • Referencing by SAP numbers We name the entity in
    a layer requesting a service from a lower layer
    by the SAP used on that lower layer
  • Service definitions (vertically within a system)
  • Only Functional description of what is required
    between layers within the same system
  • Protocol specification (Horizontally, more
    strict)
  • Operates between the same layer on the two
    communicating entities (peer layers)
  • May involve different operating systems
  • So, protocol specifications must be defined
    precisely
  • Format of data units
  • Semantics (meanings) of all fields

11
Example Simplified Protocol Architecture
  • The task of file transfer is broken down into
    three modules (layers) that handle
  • File transfer application ? Application layer
    (Top)
  • Communication services ? Transport layer
  • Network access ? Network access
    layer

12
Simplified Architecture for File Transfer
A Three-Layer Model
End System
Peer layers on the two systems communicate using
Protocols
End System
Services Requested/ Provided On the same system
13
Network Access Layer
  • Function Exchange of data between a computer and
    the network
  • Depends on type of network used
  • (LAN, packet switched, etc.)
  • (should be the only layer that worries about
    such details)
  • Should specify
  • Address of destination computer on the network
  • Possibly the level of service required from the
    network, e.g. priority, delay, etc.

14
Transport Layer (communication services)
  • Function Reliable exchange of data (error and
    flow etc.)
  • Independent of network used (significance)
  • Independent of application
    (serves all the higher-level applications-
    sharing of resources)

15
Application Layer
  • Function Supports different user applications
    running on the communicating entity
  • e.g. e-mail, file transfer, etc.

16
Protocol Architecture and Networks
Applications Layer contains modules, each
supporting an application running on this computer
(SAP)
Each application accesses the services of the
transport layer through a SAP or a Port
3 computers communicating over a network Using a
3-layer protocol architecture
17
Addressing Requirements
  • Two levels of addressing
  • Each computer on the network needs a unique
    computer address
  • Each application on a (multi-tasking) computer
    needs a unique application address within that
    computer
  • We identify the application on a computer by the
    SAP number it uses
  • Service access point or SAP in OSI, e.g. SAP 3
  • Port in TCP/IP, e.g. Port 5
  • Each of the two addressing levels is handled only
    by the appropriate layer (information hiding)
  • Computer address is handled by the Network Access
    layer
  • Application address (SAP ) is handled by the
    Transport layer

Example KFUPM mail bag
18
Protocol Data Units (PDU)
  • Peer layers communicate (through the lower
    layers of course!) by exchanging
    PDU data blocks
  • At source Each layer adds its relevant control
    information (header) to the data it receives
    from a higher layer, thus forming its PDU, and
    pushes it down to the lower layer
    Encapsulation
  • At destination that PDU is handled by the
    corresponding peer layer The relevant control
    header is removed, used, and the remaining part
    of the PDU is pushed up to the higher layer
    Decapsulation
  • Example
  • Transport layer may fragment user data into
    smaller packets
  • A transport header is appended to each packet,
    which would include
  • Destination SAP
  • Sequence number of the data fragment
  • Possibly, error detection/correction code
  • This makes the transport layer protocol data unit
    (PDU)

Example The mail service
19
Protocol Data Units (PDUs)
Application Layer
User Data
Transport Layer
What to include in the header?
  • Address of destination application on the
    destination computer
  • Packet sequence
  • Error detection code?

Network Access Layer
  • Address of destination computer on the network
  • Network facilities required, e.g. delay

Network
20
Generating PDUs at Source layers
  • Layer L generates its PDU by appending a control
    part to data received from the next higher layer
    (L1)
  • Appended control part takes the form of a header
  • That header will be used by the peer layer L on
    the destination entity
  • Both the new PDU and header are labeled
    (identified) by the layer generating/using them,
    i.e.
  • Header (L) PDU (L1) ? PDU (L)

. . .
Lower Layers
L1
L
. . .
Source End System
21
Operation of a Protocol Architecture
User Data
Destination SAP
TFER (record, DSAP, Dhost)
Destination Host
PDU Decapsulation
PDU Encapsulation
(Transport PDU)
TFER (transport_PDU, Dhost)
Network
(Network Access PDU)
Concept of overhead
22
Standardizing Vertical Communication Service
Primitives and Parameters
  • Services between vertically adjacent layers
    within the same system are expressed in terms of
    primitives and parameters
  • Primitives specify the action to be performed
  • Parameters pass data and control information
    required to perform the action
  • Services are requested by a service user layer
  • and performed by a service provider layer

TFER (record, DSAP, Dhost)
23
Types of Primitives
Source (X)
Destination (Y)
D Service User
A Service User
2
3
1
4
C Service Provider
B Service Provider

REQUEST A primitive issued by a service user to invoke some service and to pass the parameters needed to specify fully the requested service
INDICATION A primitive issued by a service provider, either to indicate that a procedure has been invoked by the peer service user on the connection and to provide the associated parameters, or Notify the service user of a provider-initiated action
RESPONSE A primitive issued by a service user to acknowledge or complete some procedure previously invoked by an indication to that user
CONFIRM A primitive issued by a service provider to acknowledge or complete some procedure previously invoked by a request by the service user
Time Sequence
A to B Deliver this packet to Y
1
C to D Here is a packet for you!
2

D to C Thanks!
3
B to A Done it!
4
Which pair of primitives is more important?
24
Timing Sequence for Service Primitives
Destination System
Destination System
Source System
Source System
Provider
Provider
Provider
Provider
A
D
B
C
No Response or Confirm (Assumed Done!) Saves time
25
Standardized Protocol Architectures
  • Required to allow devices from different
    manufacturers to communicate (inter-operability)
  • A win-win environment
  • Helps different vendors market their products
    better
  • Helps customers shop around for best deals from
    different manufacturers (assured that equipment
    will work together)
  • Main standard networking architectures
  • OSI Reference model (X.200, 1977)
  • A theoretical system delivered too late! Never
    lived up to early promises
  • TCP/IP protocol suite (Developed for early forms
    of the internet)
  • (The Internet protocol) Most widely used A de
    facto Standard

26
OSI - The Model
  • Developed by the International Standardization
    Organization (ISO) in 1977
  • A 7-layer model
  • Each layer
  • performs a subset of the required communication
    functions
  • relies on the next lower layer to perform more
    primitive functions
  • provides services to the next higher layer
  • Changes in one layer should not require changes
    in other layers

27
The OSI Seven Layers
Internetworking (network of networks) (Internet)
End to End Virtual Connection
The Physical Medium
28
The OSI Environment
Encapsulation
Decapsulation
Hardware or software
Trailer Marking end of frame
Note information hiding! e.g. DL layer does not
look inside the N-DPU
29
OSI Layers with examples (1)
  • Physical Example 10Base-T for Ethernet LAN
  • Physical interface between devices
  • Mechanical Connectors, etc.
  • Electrical Bit representation, V and I levels,
    Data rates,...
  • Functional Functions of individual interface
    circuits
  • Procedural Sequence of events for exchanging bit
    streams
  • Data Link Example HDLC (High level data link
    control) (Ch 7)
  • Activating, maintaining and deactivating the data
    link (link management)
  • Reliable data transfer across the link
    synchronization, error detection and control,
    flow control, so that higher layers may assume
    error free transmission over the link

30
OSI Layers with examples (2)
  • Network Example X.25 (Packet switching network)
  • Data transportation over a network
  • Relieves higher layers from worrying about
    underlying network details (routing, switching
    technology, etc)
  • Only needs info on destination host address and
    required facilities
  • Not needed (bypassed) on direct (point-to-point)
    connections
  • Transport Example TCP (Transmission Control
    Protocol)
  • Reliable exchange of data between end systems
  • (possibly across multiple networks!)
  • Without errors
  • Without loss
  • Without duplication
  • Allows different levels of Quality of Service
    (QoS) Regarding acceptable error rates, maximum
    delay, priority, and security

31
OSI Layers (3)
  • Session
  • Control of dialogues between applications
    running on end systems
  • Dialogue disciplines, e.g. full duplex or half
    duplex
  • Grouping Marking of data to indicate different
    groups
  • Recovery Use of data check points
  • Presentation
  • Data formats and coding
  • Data compression
  • Data Encryption
  • Application
  • Allows user applications running on a host to
    access the OSI network environment
  • Support for e-mail, file transfer, terminal
    access to remote computers (telnet), etc.

32
Do we always need all the seven protocol layers?
  • Only hosts at end points need to have all 7
    layers
  • Point-to-Point on a single link
  • - Network layer is bypassed
  • Intermediate nodes in network are not interested
    in user data!-
  • - Will have only the minimum number of required
    lower layers
  • Within the same network An intermediate node
    needs only the bottom 3 layers (3-layer switch)
  • Between multiple networks A node linking two
    networks (router) needs only the bottom layers

33
Layers for a Relay node in a network
A 3-Layer node
(Network node)
?
  • Relay Node, Joins
  • Different physical links
  • Different data links
  • In the same network

What about a router that connects two networks?
(Intermediate Network node is not interested in
the data content- so, only the lower layers)
34
TCP/IP Protocol Architecture
  • Developed by the US Defense Advanced Research
    Project Agency (DARPA) for its packet switched
    network ARPANET (ancestor of the present
    Internet, 1966)
  • Used today by the Internet
  • Did not start as a formal model.. but as a
    working one
  • Five Layers
  • Application layer
  • Host to host (end to end) Transport layer
  • Internet layer (multiple interconnected networks)
  • Network access layer (Data link/Network)
  • Physical layer

Same layer exists also in OSI
35
OSI vs. TCP/IP
36
Summary (Chapter 2)
  • Need for protocols and for a layered protocol
    architecture
  • Key Elements of a Protocol
  • Framework for Standardization
  • Simplified File Transfer Architecture
  • A Three-Layer Model
  • Protocol Architectures and Networks Addressing
  • Primitives and Parameters
  • Protocol operation PDUs
  • Standard Protocol Architectures
  • The OSI Protocol Architecture
  • The Model
  • OSI Layers
  • The OSI versus the TCP/IP (the Internet) Protocol
    Architecture)
Write a Comment
User Comments (0)
About PowerShow.com
