Title: INTRODUCTION TO COMPUTER SCIENCE

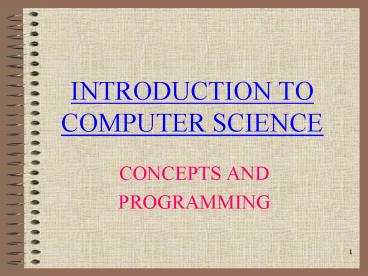

1
INTRODUCTION TO COMPUTER SCIENCE
  • CONCEPTS AND
  • PROGRAMMING

2
Outline
  • Part I An overview of Computer Science.
  • Part II Computer hardware and software.
  • Part III Computer languages.

3
Part I An Overview of Computer Science
4
What is Computer Science?
  • The study of how to solve problems with
    computers
  • 1) Design and build a computer
  • Cpsc-321 Computer Architecture
  • Cpsc-462 Microcomputer Systems
  • Cpsc-469 Advanced Computer Architecture
  • Cpsc-483 Computer Systems Design
  • and others.

5
2) Use and share the computer
efficiently Cpsc-311 Analysis of
Algorithms Cpsc-410 Operating Systems Cpsc-431
Software Engineering Cpsc-436 Computer-Human
Interaction Cpsc-437 Software
Engineering Products
and others.

6
  • 3) Communicate a solution to a Computer
  • Cpsc 121- Intro to CS Concepts Pgming.
  • Cpsc 221- Data Structures and Their
  • Implications.
  • Cpsc 310- Database Systems.
  • Cpsc 332- Programming Language Design.
  • Cpsc 334- Compiler Design.
  • Cpsc 438- Distributed Objects Programming
  • Cpsc 442- Scientific Programming.
  • Cpsc 452- Robotics Spatial Intelligence.
  • and others. 3

7
Semantics Vs. Syntax
  • Syntax The grammar rules for writing
  • code in a program.
  • Semantics The meaning of the code. The
  • action that will be
    executed.
  • How you write the code vs. why you write the
    code.

8
  • 4) Find a solution automatically
  • -Artificial Intelligence (CPSC 320).
  • 5) Make your solution easier for people to
    use
  • - Human-Computer Interaction (CPSC 436).
  • 6) Solve BIG problems
  • - Software Engineering (CPSC 431) .
  • 7) Exploit multiple computers
  • -Parallel and Distributed systems, Networking.

9
  • Real-life programs are usually
  • large (thousands of lines of code).
  • created by teams of people.
  • modified over the course of years.
  • Rules and methods are needed to cope with this
    complexity.
  • Computer Science is more than
  • Programming!

10
Part II Computer Hardware and Software
11
Outline
  • The development of modern computer systems.
  • Computer organization.
  • Solving problems on computers.
  • Programming and software engineering.

12
The Development of Modern Computer Systems
  • Early electronic computers.
  • Computer Architecture.
  • Time sharing.
  • Microcomputers.
  • Networked computing.

13
Early Electronic Computers
  • ENIAC (1946) - Electronic Numerical Integrator
    and Calculator.
  • First general purpose purely electronic digital
    computer.
  • Built for US Army to make calculations for
    weather predictions ballistics tables.
  • 18,000 vacuum tubes, space 50 X 30 ft, weighed 30
    tons.
  • Numbers are entered by manually setting its 6000
    switches.

14
  • EDVAC - Electronic Discrete Variable
  • Calculator.
  • Executed a general instruction set and a stored
    program.
  • Both numbers and program instructions were stored
    electronically in the computers memory.
  • UNIVAC - Universal Automatic Computer.
  • First commercially built computer.
  • Delivered to the U.S. Census Bureau in 1951 to
    tabulate the results of the previous years
    census.

15
Computer Architecture
  • Generations
  • The development of modern computers is often
    described in terms of the generation, in which
    a particular technology was used.
  • Design
  • The overall design of a computers electronic
    circuitry and its logical functionality is called
    its architecture.

16
Mainframes
  • First generation 1940s/1950s
  • Architecture
  • Electronic Circuitry Vacuum Tubes
  • Stored program
  • Program machine language.
  • Processing a single program at a time.
  • Peripheral devices
  • Input and output punched cards.
  • Data storage magnetic tapes.

17
  • Second and Third Generations
  • 1960s
  • Electronic circuitry transistors to integrated
    circuits (ICs).
  • Symbolic Languages
  • Assembly languages.
  • High-Level languages
  • FORTRAN - FORmula TRANslation, first high-
  • level language.
  • COBOL - COmmon Business-Oriented
  • Language.
  • LISP - LISt Processing.

18
  • Translators translating high-level language to
    machine-understandable form.
  • Assemblers converting program instructions from
    assembly languages into the machine language.
  • Compilers translating program statements from
    FORTRAN and COBOL to machine language.
  • Interpreter translating and executing each
    program statement dynamically.

19
  • Operating Systems (OS) a program to control the
    overall processing of the machine.
  • Batch processing jobs that were similar in their
    requirements were grouped together into batches
    and run sequentially.
  • JCL (Job Control Language) to minimize operator
    intervention, JCL cards were inserted between the
    card decks of each job to direct how each job was
    to be processed.
  • Mass storage disk drives provide permanent
    storage and fast access to large quantities of
    data.

20
Microcomputers
  • Fourth generation 1970s.
  • Chip circuitry VLSI - Very Large Scale
    Integration, which could contain all logic
    circuits on a single chip. These chips were known
    as microprocessors.
  • Minicomputers 1970s.
  • Lower cost and more accessible computing power.
  • Architecture is based on the 16-bit (vs. the
    32-bit in use for larger computers)
    representation of data in computer memory.

21
  • PC - Personal Computer 1970s-1980s.
  • Low cost computers intended for personal use.
  • Input keyboard.
  • Output screen.
  • Data storage removable floppy disks.
  • Examples Apple, IBM PC.
  • DOS - Disk Operation System.
  • DOS was developed by Microsoft for the IBM PC.
  • DOS provides the basic functions for a single
    user to handle data storage and to control input
    and output devices and program execution.

22
  • GUI Graphical User Interface.
  • With the introduction of the Mac (Macintosh)
    computer by Apple in 1984.
  • Information was presented to the user via
    pictures, known as icons.
  • A new hand-held input device, called a mouse, was
    available for selecting choices from the screen.
  • Each graphical image is composed of small dots
    called pixels which must be manipulated
    individually by the computer s programs.

23
  • PC software.
  • Software are programs directing a computers
    operations and solving problems.
  • Hardware are the physical devices that form the
    computer itself.
  • The popularity of PCs grew rapidly in the 1980s
    as innovative application programs were developed
    to enable non-technical users to do useful tasks
    on the computer.

24
  • Word processors allow a user to write and edit
    text.
  • Spreadsheet programs provider convenient
    computational power for data stored in tables.
  • Business graphics programs are able to display
    data in the form of graphs and charts.

25
  • Workstations 1980s.
  • For complex number crunching scientific and
    engineering programs.
  • For a single user.
  • Using multiprocessing systems.
  • Well suited for networking use.

26
Networked Computing
  • Computer networks 1980s-present.
  • Users access computers which are at a distance.
  • Users share data.
  • Users transmit messages between computers.
  • Telephone lines.
  • An electronic device called a modem allows
    computers to transmit data over telephone lines,

27
  • LAN Local Area Network.
  • A LAN allows computers in reasonable proximity of
    each other to be connected by cabling over which
    data can be transmitted from one machine to
    another without the use of telephone lines.
  • Distributed Computing.
  • Techniques of shared processing over networks are
    generally called distributed computing.
  • A computer that provides the core of the services
    is called a server.
  • Any computer requesting a service is known as a
    client.

28
Computer Organization
  • Data representation
  • Main Memory
  • Central Processing Unit
  • Secondary Storage
  • Input / Output

29
  • The information which a computer processes is
    generally known as data.
  • Individual data values may represent numbers,
    alphabetic characters, or other coded
    information.
  • The computer programs which direct the computers
    operations are also data, because the
    instructions which they contain must be stored in
    the computers memory before they are able to be
    processed.

30
  • All data is stored and processed in binary form,
    that is, as a series of 0s and 1s.
  • Each binary digit, called a bit, represents the
    smallest unit of information which can be stored
    in the computer.
  • Bits are grouped into longer units known as bytes
    to hold more meaningful data.
  • 1 byte 8 bits

31
  • Two standard coding systems.
  • ASCII American Standard Code for Information
    Interchange.
  • Help ? 01001000 01000101 01001100 01010000
  • 128 64 32 16 8 4 2
    1
  • H -gt 72 27 26 25 24 23 22 21
    20
  • 0 1 0 0 1 0 0 0
  • EBCDIC Extended Binary Coded Decimal
    Interchange Code
  • Hello ? 11001000 11000101 11010011 11010011
    11010110

32
Main Memory
  • Main memory is that part of a computers
    electronic circuitry which holds in binary form
    the program to be executed and any data that the
    program requires.
  • Memory is divided into cells.
  • Each cell is assigned a specific address, from 0
    to the maximum size of the computers memory
    capacity.

33
  • The size of a computers memory is the number of
    the addressable cells it contains.
  • Bit 1
  • Byte 8 bits
  • Kilobyte 210 bytes 1,000
  • Megabyte 210 kilobyte 1,000,000
  • Gigabyte 210 megabyte 1,000,000,000
  • Terrabyte 210 Gigabytes one trillion
  • e.g. 256K bytes of memory have,
  • 256 1024 262,144 bytes.

34
  • ROM Read-Only Memory, is a specialized part of
    main memory which is designed to prevent data
    loss when the power to the computer is turned
    off.
  • Read-Only.
  • Permanent.
  • Typical use ROM is reserved for critical program
    instructions which must be immediately available
    when a computer is first turned on( bootstrap pgm
    ).

35
BootStrap Program
  • Program that is automatically executed when the
    machine is turned on.
  • It directs the CPU to transfer programs (in most
    cases it is the Operating System) and data from a
    predetermined location into the volatile area of
    main memory.
  • The Op Sys takes over and begins controlling the
    machines activities.

36
Central Processing Unit
  • CPU is the heart of a computer.
  • Control unit contains the circuitry for
    coordinating the machines activities.
  • Arithmetic/Logic Unit (ALU) contains the
    circuitry that performs all arithmetic
    computations and logic operations.

37
  • BUS- For the purpose of transferring bits, a
    machines CPU and Main Memory are connected by a
    bus.
  • The CPU extracts(reads) data from main memory by
    supplying the address of the pertinent memory
    cell along with a read signal.
  • The CPU places(writes) data to memory by provided
    the address of the destination cell and the data
    to be stored, along with a write signal.

38
  • CPU Main
    Mem
  • ALU Control ROM
  • unit Bus
  • Register Mem Volatile
    Mem

39
Register Usage
  • Program Counter (PC) is a special-purpose memory
    location which always contains the memory address
    of the instruction that is currently being
    executed.
  • Instruction Register (IR) is another
    special-purpose memory cell which contains the
    instruction currently being processed.

40
  • Hardware Characteristics
  • CPU synchronizes its operations by the regular
    pulses emitted by an electronic device called a
    clock.
  • The speed of a computer can be quoted as
  • Clock speed, e.g. 100MHz means 100 million cycles
    per second(megahertz).
  • MIPS, a million instructions per second

41
  • Arithmetic/Logical Unit (ALU) performs all
    arithmetic computations and logical operations.
  • Arithmetic - Add, subtract, multiply,
  • divide,
    exponentiation etc.
  • Logical - Testing for relationships.
  • AltB Name mary
  • C gt10 possible Answers? True or False
  • The ALU contains special memory cells, known as
    registers, in which the arithmetic is carried out.

42
CPU
  • reads the individual program
  • instructions from main memory. Executes the
    instructions 1 at a time until completion.
  • Fetch - Decode - Execute
  • The machine cycle algorithm is continuously
    repeated until program termination.

Machine Cycle
43
  • Fetch Retrieve a copy of the program
  • command from the address stored in
  • the program counter.
  • update the program counter to the address of the
    next instruction.
  • The instruction just Fetched is placed in the
    instruction register.

44
  • DECODE Decode the Bit pattern
  • in the instruction register.
  • EXECUTE Having decoded the instruction, the
    control unit enters the execute phase. It
    activates the correct circuitry to perform the
    requested task.

45
  • If the instruction is a load from memory, the
    Control unit causes the load to occur.
  • If the instruction is for an arithmetic
    operation, the control unit activates the
    appropriate circuitry in the ALU with the correct
    input stored in registers.
  • When the instruction has been executed, the
    control unit again begins the machine cycle with
    the Fetch cmd (the address of the next cmd is in
    the program counter)

46
Diagram of Architecture
  • CPU
  • R1
  • PC R2
  • IR R3
  • R4
  • control unit
    ALU
  • bus

47
  • First second third
  • Instr. Instr. Instr.
  • 0 1 2 3 4


95 96 97 98 99

..
memory
48
Secondary Storage
  • Mass storage devices.
  • Tape drives, floppy disk drives, zip disk drives,
    CD-ROM drives, etc.
  • Static storage( Fixed Size)
  • Slower Access Speed.
  • Non-volatile

49
User Input / Output
  • Input devices
  • Keyboard, mouse, light pen, etc.
  • Output devices
  • Computer screen, printer (dot matrix, ink jet or
    laser), etc.

50
Solving Problems on Computers
51
Designing Modular Solutions
  • Top-down
  • Start with what you want.
  • Cut it up in parts.
  • If the parts are trivial to solve, then solve
    them.
  • If the parts are non trivial, apply top-down
    again.
  • You will cut up the problem in
    smaller and smaller sub-
  • problems until they can be solved
    trivially.
  • Bottom-up
  • Start with what you small parts.
  • Put them together to form large parts.
  • Until you end up with the thing that you wanted.

52
  • Problem with top-down design
  • You must know how you break the problem up.
  • You need intuition to tell you that this is the
    right way to divide the problem into
    sub-problems.
  • Problem with bottom-up design
  • Where do you start?
  • Usually used in an evolution way, thus systems
    start simple, functionality increases as time
    goes by.

53
An example of Top-Down Design
Compute Tax
Compute deductions
Compute credits
Compute adjusted gross income
Compute adjustments
Compute Income
Wages
Capital gains
Misc. Income
Interest dividends
Business income
54
IPOS Cycle
  • I Input
  • Implies 3 Questions
  • 1) Input what?
  • 2) Input how?
  • 3) Input where?

55
Input What?
  • Program Data
  • Program Load Module in machine code form after
    being compiled Linked.
  • 05C0 5820C00E Hexidecimal
    Notation
  • 0000 0101 1100 0000 .. Binary Notation
  • 0 5 C 0 Hex digits

56
Data
  • e.g. Program to calculate a students avg grade
  • String data Numeric data
  • Bob 72 84
  • Will be stored in memory using a
  • Binary coding scheme
  • ASCII or EBCDIC

57
How Input?
  • Input Devices Floppy disk, Magnetic Tape Drive,
    Disk Drive, CRT, Voice, Light pen, Scanners etc.

Where Input?
Main Memory of the Computer.
58
Processing
  • 2 Categories
  • Arithmetic Add, subtract ,Multiply,
    Divide
  • Exponentiation
  • Trig functions, etc
  • Logical Testing for relationships.
  • Alt B Name Mary
  • C gt10 Possible Answers? (true or false)

59
Output - What?
  • Hard copy physical, tangible, portable.
  • Print outs.
  • Soft copy visual, CRT displays
  • Output Devices printers, floppy disk, Mag
    tape, Mag disk, voice, etc.

60
S - Secondary Storage Medium
  • Long Term Storage Disks, Tapes,

  • etc.
  • Store What? Program Itself.
  • Program output.

61
Algorithm Representations
  • Aides to documentation of your Design.
  • Pseudocode The steps of the algorithm are
    written in English in a shorthand form which
    represents the flow of control through the
    algorithm.
  • It is not language specific.
  • Its purpose is to make the logical sequence of
    the program clear and is an aide to writing the
    actual code.

62
An Example A professor who is about to write a
program to assign grades to the students in his
Programming in C course might express his final
grade algorithm in the following pseudocode.
Repeat for each studentlocate a students
scores compute the average quiz score
compute the average homework score if the
midterm exam was a make-up then reduce the exam
score by 10 compute the students course
grade post the students course grade
63
  • Flowcharts
  • For the problem whose solutions involve decision
    and repeated steps.
  • Flowcharts typically show a programs logic.
  • Symbols

Input/Output
Start/stop
Processing
Decisions
Flow of control
64
An Example An algorithm to control an Automatic
Teller Machines (ATMs).
Start
Read card
no
Correct pwd?
Reject card
yes
Deposit
Inquire
Access account info
Withdraw

Stop
65
  • Decision Trees
  • An example A telephone company bases its rates
    for long distance calls on the time of day and
    day of the week when a call is made.

full rate evening rate night rate
8am to 5pm 5pm to 11pm 11pm to 8am
Weekday
Long distance charges
8am to 5pm 5pm to 11pm 11pm to 8am
night rate evening rate night rate
Saturday Sunday
Weekend
night rate
66
Programming
  • Programming is the process of translating a
    problems solution into instructions that a
    computer can process.
  • Software Life Cycle
  • Analysis analyze the problem.
  • Design use top-down or bottom-up.
  • Implementation use hardware and/or software.
  • Testing try it in the lab.
  • Maintenance keep it working.

Programming
67
  • Paradigms
  • Procedural programming
  • The traditional approach to the programming
    process.
  • The development of a sequence of commands that,
    when followed, manipulate data to produce the
    desired result.
  • Machine languages, Fortran, Cobol, Basic, Pascal,
    C.
  • Declarative programming
  • Task is to discover and implement a
    general-problem solving algorithm first.
  • Problems can be solved merely by stating them in
    a form that is compatible with the algo, and then
    applying the algorithm.
  • It has been used for many years to simulate a
    system(economic, political, environmemtal(weather)
    ).
  • Prolog, GPSS.

68
  • Object oriented programming
  • Like procedural, but has operations on objects
    only.
  • Operations change the state of an object.
  • Eg., A list of student names is constructed as
    an object consisting of the list together with a
    collection of procedures(methods) for
    manipulating the list(insertions, deletions,
    sorting the list, detecting if the list is
    empty..).
  • Smalltalk, Visual basic, C, Java.

69
Part III Computer languages
70
Why Computer Languages?
  • Compute are stupid.
  • They do not understand things.
  • They have to be told very precisely what to do.
  • Natural language are ambiguous.
  • College Stations largest (quality (free)
    newspaper).

71
High-Level Pascal Pgm
  • Program Example
  • const x 12
  • y 30
  • var z integer
  • begin
  • z x y
  • end.

72
Assembly Program
  • EXAMPLE CSECT
  • Balr 12 , 0
  • Using Base 12
  • Base L 2 , X
  • A 2 , Y
  • ST 2 , Z
  • BCR 15 , 14
  • X DC F 12
  • Y DC F 30
  • Z DS F
  • END CSECT

73
Machine Code( Hexidecimal)
  • 05C0 Balr 12 , 0
  • 5820 C00E L 2 , X
  • 5A20 C012 A 2 , Y
  • C016 ST 2 , Z
  • 07FE BCR 15 , 14
  • 0000000C X DC F 12
  • 0000001E Y DC F 30
  • 00000000 Z DS F
  • END EXAMPLE
About PowerShow.com
