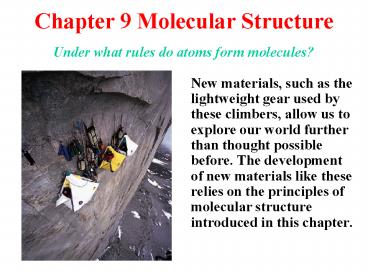

Chapter 9 Molecular Structure

1
Chapter 9 Molecular Structure
Under what rules do atoms form molecules?

• New materials, such as the lightweight gear used
  by these climbers, allow us to explore our world
  further than thought possible before. The
  development of new materials like these relies on
  the principles of molecular structure introduced
  in this chapter.

2
Chemical Bond Theories
The limitations of Lewis Model Bonding
electron pairs are not localized between two
bonded atoms.

• Valence-Bond (VB) Theory
• Molecular Orbital (MO) Theory

3
Valence-Bond (VB) Theory
Chemical bonds are formed by pairs of (unpaired)
valence electrons
There are three types of valence bond
s-bond p-bond hybrid bonds
4
Recollecting Atomic Orbitals.
VB theory, roughly speaking, is a procedure
that describes how the valence atomic orbitals
of different atoms combine (mix) to form bonds.
5
Figure 9.25 When the electrons (depicted ? and ?)
in two hydrogen 1s-orbitals pair and the
s-orbitals overlap, they form a s-bond, depicted
here by the boundary surface of the electron
cloud. The cloud forms a cylinder around the
internuclear axis and spreads over both nuclei.
That is, it has cylindrical symmetry.
VB for H2
Notice the difference between VB and Lewis
model.
1s
1s
The spins of the two electrons must be opposite
to each otehr
End to end paring
Overlap (high electron density)
6
VB for HF
7
Figure 9.26 A ?-bond can also be formed when
electrons in 1s- and 2pz-orbitals pair (z is the
direction along the internuclear axis). The two
electrons in the bond are concentrated within the
region of space surrounded by the boundary
surface.
End to end pairing
8
VB for N2
9
Figure 9.27 A ?-bond is formed by the pairing of
electron spins in two 2pz-orbitals on neighboring
atoms. At this stage, we are ignoring the effect
of the 2px- (and 2py-) orbitals that may also
contain unpaired electrons. The electron pair is
concentrated within the boundary surface shown in
the bottom diagram.
?-bond in N2
End to end pairing
10
Figure 9.28 A ?-bond is formed when electrons in
two 2p-orbitals (top) pair and overlap side by
side. The middle diagram shows the overlap of the
orbitals, and the bottom diagram shows the
corresponding boundary surface. Even though the
bond has a complicated shape, with two lobes, it
is occupied by one pair of electrons and counts
as one bond.
p-bond in N2
Side by side pairing
11
Figure 9.29 The bonding pattern in a nitrogen
molecule, N2. (a) The two atoms are bonded
together by one ?-bond (blue) and two
perpendicular ?-bonds (yellow). (b) When the
three orbitals are put together, the two ?-bonds
merge to form a long donut-shaped cloud
surrounding the ?-bond cloud the overall
structure resembles a cylindrical hot dog.
?-bond and p-bonds in N2
12
VB Theory

• A bond forms when unpaired electrons in
  valence shell atomic orbitals on two atoms pair.
  The atomic orbitals they occupy overlap
  end-to-end to form s-bonds or side by side to
  form p-bonds.

• A single bond is a s-bond
• A double bond is a s-bond plus a p-bond
• A triple bond is a s-bond plus two p-bonds

13
More Examples

• How many s-bonds and how many p-bonds in CO2 and
  CO?

• CO2 OCO
• CO CO

• CO2 OCO s-bond 2, p-bond 2
• CO CO, s-bond 1, p-bond 2

14
Classroom Exercise

• How many s-bonds and how many p-bonds in NH3 and
  CH2O?

• NH3 s-bond 3, p-bond 0
• CH2O s-bond 3, p-bond 1

15
How about CH4?
Only two unpaired electrons in carbon. How can
one carbon be bonded with four hydrogens?
It seems the two 2s electrons should also be
used for bonding? we want to break up the pair.
16
Promotion (s?p)
Well, weve got four unparied electrons, but.one
is very different from the other three.
All experimental results show that the four C-H
bonds are equivalent.
17
Hybridization
sp3 hybridization s 3p ? 4 sp
18
Figure 9.30 The hybrid orbitals of a carbon atom
in methane. (a) One s-orbital and three
p-orbitals blend into four sp3 hybrid orbitals
that each point toward one apex of a tetrahedron.
(b) The directions of the four orbitals.
19
Figure 9.31 (a) Each CH bond in methane is
formed by the pairing of an electron in a
hydrogen 1s-orbital and an electron in one of the
four sp3 hybrid orbitals of carbon. (b) As a
result, there are four equivalent ?-bonds in a
tetrahedral arrangement.
End to end
s-bond formed by s and sp3
20
Promotion and Hybridization in NH3
Nonbonding orbital (lone pair)
21
Figure 9.32 Two common hybridization schemes. (a)
An s- and two p-orbitals can blend together to
give three sp2 hybrid orbitals that point toward
the corners of an equilateral triangle. (b) An
s-orbital and a p-orbital hybridize into two sp
hybrid orbitals that point in opposite
directions. Only one of the orbitals is shown in
each case.
sp2 hybridization s 2p ? 3 sp
22
Figure 9.33 The atomic orbitals that overlap to
form the three ?-bonds in formaldehyde, CH2O. LP,
lone pair.
23
Figure 9.34 Unhybridized p-orbitals on the C and
O atoms overlap to form the ?-bond in
formaldehyde.
24
Figure 9.35 The atomic orbitals that overlap to
form the two ?-bonds in carbon dioxide. The lone
pairs are also shown. Note that the planes of
?-bonds around each C atom are perpendicular to
each other. LP, lone pair.
25
Figure 9.36 Each of the two unhybridized
p-orbitals on the C atom in CO2 overlaps with an
unhybridized p-orbital on an O atom to form a
?-bond between each pair of atoms. The two
?-bonds are perpendicular to each other.
26
(No Transcript)
27
Figure 9.37 One of the five sp3d hybrid orbitals,
and their five directions, that may be formed
when d-orbitals are available. They form a
trigonal bipyramidal arrangement of electron
pairs. Each arrow represents the location of a
bond or electron pair.
Hybrids Including d-Orbitals
As 3d104s24p3
sp3d
28
Figure 9.38 One of the six sp3d2 hybrid orbitals,
and their six directions, that may be formed when
d-orbitals are available. They form an octahedral
arrangement of electron pairs. Each arrow
represents the location of a bond or electron
pair.
Hybrids Including d-Orbitals
S 3s23p4
sp3d2
29
How the electron arrangement of a molecule is
matched to a hybridization scheme.

1. Draw Lewis structure and determine the electron
   arrangement about the central atom. The number
   of s-bonds and lone pairs required for the
   electron arrangement is the number of orbitals
   used by the central atom.
2. Construct hybrid orbitals from atomic orbitals
   using the same number of atomic orbitals as
   hybrid orbitals required. Start with the
   s-orbital, then add p- and d-orbitals as needed
   to create the patterns listed in Table 9.5.
3. Use any remaining p-orbitals to form p-bonds with
   the p-orbitals of the adjacent atoms
4. Check Table 9.5.

30
Example Water

1. Lewis structure
2. 4 orbitals required for the central atom?sp3
3. No unhybridized p-orbitals after sp3
   hybridization
4. Result 4 sp3 orbitals.

31
Example SF6

1. Lewis structure
2. 6 orbitals required for the central atom?sp3d2
3. No unhybridized p-orbitals after sp3d
   hybridization
4. Result 6 sp3d2 orbitals.

S 3s23p4
sp3d2
32
Classroom Exercise

1. Lewis structure
2. 5 orbitals required for the central atom?sp3d
3. No unhybridized p-orbitals after sp3d
   hybridization
4. Result 5 sp3d orbitals.

P 3s23p3
sp3d
33
Multiple Carbon-Carbon Bonds
34
Ethane
4 bonds for the central atoms ? sp3 hybridization.
35
Figure 9.40 The valence-bond description of the
bonding in an ethane molecule, C2H6. The boundary
surfaces of only two of the bonds are shown. Each
pair of neighboring atoms is linked by a ?-bond
formed by the pairing of electrons in either
H1s-orbitals or Csp3 hybrid orbitals. All the
bond angles are close to 109.5 (the tetrahedral
angle).
C-C Single Bond
36
Experimental results indicate that all six atoms
are in the same plane and the H-C-H angle is
120o, suggesting sp2 hybridization.
37
Figure 9.41 The atomic orbitals that overlap to
form the five ?-bonds in ethene (ethylene).
?-Bonds in Ethene
38
Figure 9.42 The formation of a ?-bond from the
side-by-side overlap of the unhybridized
p-orbitals on the C atoms in ethene.
Carbon-Carbon Double Bond
39
Figure 9.43 The bonding pattern in ethene
(ethylene), showing the framework of ?-bonds and
the single ?-bond (represented by two lines above
and below the ?-bond) formed by side-to-side
overlap of unhybridized C2p-orbitals. The double
bond is resistant to twisting because twisting
would reduce the overlap between the two
C2p-orbitals and weaken the ?-bond.
Carbon-Carbon Double Bond
40
Figure 9.44 The framework of ?-bonds in benzene
each carbon atom is sp2 hybridized, with bond
angles of 120 in the hexagonal molecule. Only
bonding around one carbon atom is shown
explicitly all the others are the same.
sp2 Hybridization Ring
41
Figure 9.45 The unhybridized p-orbital on each C
atom in benzene can form a ?-bond with either of
its immediate neighbors. Two arrangements are
possible, each one corresponding to one Kekulé
structure. One Kekulé structure and the
corresponding ?-bonds are shown here.
sp2 Hybridization Benzene
42
Figure 9.46 As a result of resonance between two
structures like the one shown in the preceding
illustration (corresponding to resonance of the
two Kekulé structures), the ?-electrons form
double donut-shaped clouds, one above and one
below the plane of the ring.
Resonance
43
Figure 9.47 The atomic orbitals that overlap to
form the three ?-bonds in ethyne (acetylene).
Carbon-Carbon Triple Bond
44
Figure 9.48 The pattern of bonding in ethyne
(acetylene). (a) The carbon atoms are sp
hybridized, and the two remaining p-orbitals on
each ring form two perpendicular ?-bonds. (b) The
resulting pattern is very similar to that for
nitrogen (see Fig. 9.29), but two CH groups
replace the N atoms.
Carbon-Carbon Triple Bond
45
Exercise
Describe the structure of a formic acid molecule,
HCOOH in terms of hybrid orbitals, bon angles,
and s- and p-bonds.
Carbon is sp2 hybridized, OH oxygen is sp3, CO
oxygen is sp2.
46
Figure 9.49 The pattern of ?-bonds in formic acid
(methanoic acid). LP, lone pair.
Carbon is sp2 hybridized, OH oxygen is sp3, CO
oxygen is sp2.
47
Exercise
Describe the structure of a hydrogen cyanide
molecule, HCN in terms of hybrid orbitals, bon
angles, and s- and p-bonds.
Carbon is sp hybridized. Nitrogen is sp
hybridized.
48
Classroom Exercise
Describe the structure of a propane molecule,
CH3-CHCH2 in terms of hybrid orbitals, bon
angles, and s- and p-bonds.
49
Importance of p-Bonds
Single bond is flexible.
Double bond prevents one part of a molecule from
rotating relative to another part.
50
Importance of p-Bonds
I see it!
51
Molecular Orbital (MO) Theory
Electrons are distributed to entire molecule.
52
Case 1 VB Invalid
Only 12 valence electrons. But at least 7 bonds
(14 electrons) are needed to bind 8 atoms!
Electron deficient compounds cannot be understood
with VB.
53
Figure 9.50 The paramagnetic properties of oxygen
are evident when liquid oxygen is poured between
the poles of a magnet. The liquid sticks to the
magnet instead of flowing past it.
Case 2 VB Invalid
54
O2 is a biradical!
Wrong!
55
Figure 9.51 When two 1s-orbitals overlap in such
a way that they have the same signs in the same
regions of space, their wavefunctions (red lines)
interfere constructively and give rise to a
region of enhanced amplitude between the two
nuclei (blue line).
Bonding Orbitals
56
Figure 9.52 When two 1s-orbitals overlap in the
same region of space with opposite signs, their
wavefunctions (red lines) interfere destructively
and give rise to a region of diminished amplitude
and a node between the two nuclei (blue line).
Anti-bonding Orbitals
57
Figure 9.53 A molecular orbital energy-level
diagram for the bonding and antibonding molecular
orbitals that can be built from two s-orbitals.
The signs of the s-orbitals are depicted by the
different shades of blue.
58
Figure 9.54 The two electrons in an H2 molecule
occupy the lower (bonding) molecular orbital and
result in a stable molecule.
Ground State of the MO of H2
59
Two MOs of H2
Frontier Orbitals
Lowest Unoccupied MO
Highest Occupied MO
60
Why are HOMO and LUMO important?

• HOMO offers information on the electrons in the
  top orbitals that
• would determine the physical properties of
  the ground state.
• LUMO offers the information on the most probable
  orbitals the
• electrons may go into when a reaction occurs.

• Combing HOMO and LUMO, chemical reactions and
  properties
• related to them can be understood.
• In particular, the gap between LUMO and HOMO is
  the most important
• factor that affect the properties of
  materials (semiconductors, light-
• emitting materials, displaying materials etc
  ) and biomolecules
• (DNA, RNA, enzymes, proteins, ATP, sacchrides
  etc).

61
Figure 9.55 Two of the four electrons in a
hypothetical He2 molecule occupy the bonding
orbital, but the Pauli principle forces the
remaining two electrons to occupy the antibonding
orbital. As a result, the He2 molecule does not
have a lower energy than two separate He atoms
and does not exist as a stable species.
MO of He2
In total 4 electrons
62
Figure 9.56 A typical molecular orbital
energy-level diagram for the homonuclear diatomic
molecules Li2 through N2. Each box represents one
molecular orbital and can accommodate up to two
electrons.
MO of Li2 through N2
63
MO of N2
B number of electrons in bonding orbitals A
number of electrons in anti-bonding orbitals
Bond Order (B-A)/2(8-2)/23
In total 10 electrons
64
Draw the molecular orbital energy-level diagram
for the homonuclear diatomic molecules Be2.
Classroom Exercise
In total 4 valence electrons
Bond order 0
65
Figure 9.57 The molecular orbital energy-level
diagram for the homonuclear diatomic molecules to
the right of Period 2, specifically O2 and F2.
MO of O2 and F2
66
Why Is O2 a Biradical and Paramagnetic?
In total 12 electrons
Bond order 2
Many fundamentally important biochemical and
physiological processes are related to this page!
67
MO of F2
In total 14 electrons
Bond order 1
68
Classroom Exercise
Deduce the electronic configuration and bond
order of the carbide ion ( )
Bond Order (B-A)/2 (8-2)/23
69
Investigating Matter 9.2 (a) The absorption
spectrum of chlorophyll as a plot of percentage
absorption against wavelength. Chlorophyll a is
shown in red, chlorophyll b in blue.
Molecular SpectroscopyUltraviolet (UV) and
Visible Absorption (Vis)
Thats the reason why living leaves look
green, (some leaves turn red in fall) and dead
leaves look yellow or grey.
70
Investigating Matter 9.2 (b) In a ?-to- ?
transition, an electron in a bonding ?-orbital is
excited into an empty antibonding ?-orbital.
160 nm (UV)
71
Conjugated Double Bond

• Bond forming and breaking are responsible for our
  vision.

I see it!
72

• There are many energy levels for this type of
  bonds
• (visible lights may be absorbed) in carotene. The
  transitions between
• these levels are responsible for the color of
  carrots, mangoes,
• persimmons and shrimps.

73
MO of Polyatomic Molecules

• Delocalized Electrons
• The MOS spread over all atoms.
• The electron pairs in bonding orbitals help to
  bind together the whole molecule, not just a pair
  of atoms.

74
Case Study 9 (a) Sunscreens protect our skin from
ultraviolet radiation, which can cause burns and
even skin cancer.
Tanning cream zinc oxide, p-Aminobenzoic acid
(PABA), etc
75
Case Study 9 (b) The sensitivity of living things
to electromagnetic radiation in the ultraviolet
region (green) superimposed over the ultraviolet
spectrum of solar radiation (violet).
76
More Complicated Cases of MO
Only 12 valence electrons. But at least 7 bonds
(14 electrons) are needed to bind 8 atoms!
Electron deficient compounds cannot be understood
with VB.
Diborane B2H6
Actually in this case, 2 electrons bind 3 nuclei
together!
77
(No Transcript)
78
(No Transcript)
79
Assignment for Chapter 9
9.7, 9.12, 9.15, 9.21, 9.25, 9.28, 9.33 9.44,
9.54, 9.56
80
Quiz

• What is the most significant difference between
  MO and VB theories?
• What is LUMO? What is HOMO? Why are they
  important?
• Explain with MO theory that oxygen molecule is a
  biradical and paramagnetic.

81
What is the most significant difference between
MO and VB theories?

• In VB, bonding electrons are paired up and are
  supposed to be in the region between the bonding
  atoms. In MO, however, bonding electrons belong
  to the entire molecule.

82
What is LUMO?What is HOMO? Why are they important?

• LUMO lowest unoccupied MO.
• HOMO highest occupied MO.
• HOMO offers information on the electrons in the
  top orbitals that would determine the physical
  properties of the ground state.
• LUMO offers the information on the most probable
  orbitals the
• electrons may go into when a reaction occurs.

• Combing HOMO and LUMO, chemical reactions and
  properties
• related to them can be understood.
• In particular, the gap between LUMO and HOMO is
  the most important factor that affect the
  properties of materials (semiconductors,
  light-emitting materials, displaying materials
  etc ) and biomolecules (DNA, RNA, enzymes,
  proteins, ATP, sacchrides etc).

83
Why Is O2 a Biradical and Paramagnetic?
In total 12 electrons
Bond order 2
