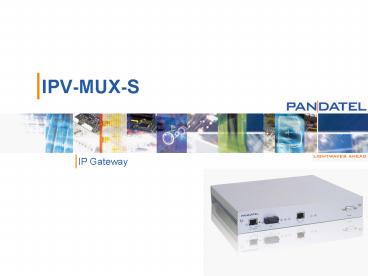

IPV-MUX-S

1
IPV-MUX-S

• IP Gateway

2
IPV-MUX-S IP Gateway

• VT100 Control Port
• Can be accessed via local terminal
• Can be accessed via SNMP

• Interface Modules
• G.703 E1/T1, RJ45
• RS530, DB-25
• V.35, Winchester Plug
• X.21, DB-15

• Line Ports
• 10/100BaseT Ethernet auto-negotiation
• Fiber Optic Module, 100BaseFX
• 1300nm Multimode LED
• 1300nm Singlemode Laser
• 1550nm Singlemode Laser

3
IPV-MUX-S Technical features

• X.21, V.35, G.703 or RS530 interfaces
• Any data rate from n x 56/64 kbps up to
  1.544/2.048 Mbps can be transmitted
• Always works in pairs, i.e. the demultiplexing
  has to be done by another IPV-MUX-M or IPV-MUX-S
• Transparent transmission of user data over the
  line interface(s)
• Devices can be cascaded to increase the number of
  interfaces

4
IPV-MUX-S Management interfaces

• Integrated SNMP management
• V.24 interface for VT-100 console
• Modem interface for remote maintenance via
  dial-up connection

5
IPV-MUX-S Mounting possibility

• Standalone unit
• Dimensions 44 x 259 x 250 mm (H x W x D)
• Power Supply 100-240 V AC, or -48 V DC

6
IPV-MUX-SConnecting PBXs and data networks over
an existing IP network
The IPV-MUX-S can also connect PBXs and local
area networks over an existing IP network. This
requires each PBX to be connected to an E1/T1
port of a IPV multiplexer and the local area
networks to one of the Ethernet ports. The second
Ethernet port is then connected to the company
wide IP network.
7
IPV-MUX-S Possible applications

• Point-to-point and point-to-multipoint
  connections can be created, also via optical
  fiber
• The IPV-MUX-S can simultaneously transfer up to
  2.048 Mbps of serial data. An optional
  fiber-optic connection can be configured for
  backup or multi-drop applications
• Connecting PBXs and data networks over an
  existing IP network
• The IPV-MUX-S can also connect PBXs and local
  area networks over an existing IP network. This
  requires each PBX to be connected to the E1/T1
  port of an IPV-MUX multiplexer and the local area
  networks to one of the Ethernet ports. The second
  Ethernet port is then connected to the company
  wide IP network
• Also meshed networks can be created with
  IPV-Muxes
• Circuit Extension over IP Generic Enterprise
  Application

8
IPV-MUX-SPoint-to-point connections over optical
fiber
The IPV-MUX-S can simultaneously transfer up to
1x 2.048 Mbit/s of serial data and about 90
Mbit/s of Ethernet data.
9
IPV-MUX-SIPV-MUX-S and IPV-MUX-M in a carrier
network and as access device in a free space
optic application
10
IPV-MUX-S Customer benefits

• Save on access costs No need for more leased
  lines
• Save on equipment costsNo need to replace
  legacy equipment
• Save on operating costsNo need to replace the
  data infrastructure

11
IPV-MUX-S Orderkey
