INL/OSU LDRD

1

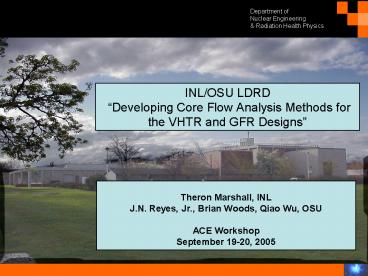

INL/OSU LDRD Developing Core Flow Analysis
Methods for the VHTR and GFR Designs

• Theron Marshall, INL
• J.N. Reyes, Jr., Brian Woods, Qiao Wu, OSU
• ACE Workshop
• September 19-20, 2005

2
TABLE OF CONTENTS

• Introduction
• Research Objectives
• Research Plan
• Gas Reactor Test Section (Preliminary)
• Towards a Large Scale GRTF at INL

3
INTRODUCTION

• The Idaho National Laboratory (INL), through its
  LDRD program, has established a research project
  at Oregon State University (OSU) to investigate
  the flow behavior in the VHTR and GFR during a
  LOCA.
• OSU will conduct LOCA experiments and participate
  in a joint modeling and analysis effort to
  validate ATHENA modeling for the GFR and VHTR.

4
RESEARCH OBJECTIVES

• The principal objective is the experimental
  validation and optimization of RELAP5/ATHENA
  thermal hydraulics modeling of a Loss of Coolant
  Accident (LOCA) for both the thermal and fast
  gas-cooled next-generation nuclear reactors.
• Design, construct, and operate a small scale Gas
  Reactor Vessel Test Section (GRTS).
• Provide LOCA core flow data to benchmark
  RELAP5/ATHENA predictions.
• Develop and assess Computational Fluid Dynamics
  (CFD) models for the LOCA.
• Provide the INL with a technological basis for
  seeking funding for a national, large-scale gas
  reactor thermal fluids test facility at INL.

5
Research Plan
6
Flow Directions in VHTR and GFR
GFR with concentric inlet/outlet and upward flow
through core
NGNP with concentric inlet/outlet and downward
flow through core
7
Flow Behavior During a LCOA in VHTR and GFR
Figure 1 Helium mass flow through the VHTR core
following the LOCA initiation. Onset of natural
circulation occurs after 200 hours (Moore, 2002).
Figure 2 Helium mass flow through the GFR core
following the LOCA initiation. Onset of natural
circulation occurs within one minute.
(Marshall, 2005).
8
Scaling Analysis

• Fluid Properties Scaling
• Top-Down System Scaling
• Natural Circulation
• Bottom-Up Phenomena Scaling
• Local Transport Phenomena
• Air Ingress by Diffusion
• Lower Plenum Turbulent Mixing

9
Description of GRTS Normal Flow Path for VHTR
Configuration
10
Air Ingress Flow Path for VHTR Configuration
11
GRTS Preliminary Design
Drawing by Jim Nylander, Harris Thermal
12
GTRS Proposed Operating Conditions

• Pressure Vessel Wall Rated to operate at 550oC
  (1022oF) and 1 MPa (155 psia).
• Ceramic lined shroud and upper head can operate
  above 1000oC
• Hexagonal Ceramic Heaters to simulate the
  prismatic core.
• Matches VHTR Temperature Conditions
• Inlet Temperature 490oC (914oF)
• Outlet Temperature 1000oC( 1832oF)

13
GRTS Benchmark Tests

• OSU will conduct tests for upward and downward
  flow through the core under reduced circulation
  pump flow conditions.
• Core flow stability assessment
• LOCA (air ingress study)
• Future Proposal
• Thermal mixing in the hot duct
• Thermal mixing in the lower plenum

14
GRTS Benchmark Calculations

• INL will use RELAP5/ATHENA to predict GRTS core
  flow data.
• OSU will use the computational fluid dynamics
  code FLUENT to predict GRTS thermal mixing
  behavior.
• Ph.D. Graduate Student to support INL code
  development effort.

15
Significance of LDRD Results

• Provide INL with a technological basis for
  seeking funding for a national, large-scale gas
  reactor thermal fluids test facility
• Scaling Analysis Methods
• Reduced Scale Benchmark Data
• Benchmarked Analysis Tools
• Support Basis for INL Design and Certification of
  the NGNP

16
Conclusions

• OSU/INL LDRD project Developing Core Flow
  Analysis Methods for the VHTR and GFR Designs is
  underway.
• Scaling Analysis Methods
• Reduced Scale GRTS
• Reduced Scale Benchmark Data
• Benchmarked Analysis Tools
