Title: Mask Cost Reduction with Circuit Performance Consideration for Self-Aligned Double Patterning


1

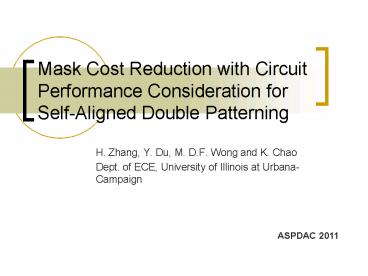

Mask Cost Reduction with Circuit Performance
Consideration for Self-Aligned Double Patterning
  • H. Zhang, Y. Du, M. D.F. Wong and K. Chao
  • Dept. of ECE, University of Illinois at
    Urbana-Campaign

ASPDAC 2011
2
Outline
  • Introduction
  • Overview of Self-Aligned Double Patterning (SADP)
  • Problem Formulation
  • Polygon Simplification Algorithm
  • Experimental Results
  • Conclusion

3
Introduction
  • Double patterning lithography (DPL) is the
    enabling technology for printing in sub-32nm
    nodes
  • DPL technologies can be classified into two major
    types
  • Double-exposure double-patterning (DEDP)
  • Single-exposure double-patterning (SEDP)

4
Introduction
5
Introduction
  • The leading candidate among SEDP technologies is
    self-aligned double patterning (SADP)
  • In SADP, since all critical features come from a
    single exposure, basically no overlay error
    exists
  • SADP is an excellent option for the 1-D on-track
    design, such as memory array

6
Introduction
  • SADP
  • Print dense lines
  • The portions not on the design will be trimmed
    away by a cut mask
  • However, due to the high complexity of cut mask,
    the SADP technology becomes very costly

7
Overview of SADP
  • SADP has two major steps
  • Step 1 is dense line generation
  • Suppose the intended pitch of circuit patterns is
    p
  • 1-D tracks, called spacer, are first manufactured
    on the wafer with 2p pitch
  • Sidewalls are deposited along the boundary of the
    spacers
  • After the spacers are etched, the dense lines are
    generated by the remaining sidewalls

8
Overview of SADP
  • In step 2, by printing the cut patterns onto the
    features, an etching process is applied
  • The features under the exposed region will be
    etched away
  • The cut mask will affect the final wafer only
    where the cut is performed

9
Problem Formulation
  • In SADP, what the designer can control is the
    circuit wires and the corresponding cut mask
    patterns
  • The more the cut can be merged together, the
    lower the edge number of the cut polygon and
    therefore the lower the cut mask cost can be
    obtained
  • Extend some line-ends and reduce the edge number
    of the intended cut

10
Problem Formulation
11
Problem Formulation
  • However, the extra wire patterns on the line-end
    will have a potential impact on the circuit
    performance
  • Find an optimal way to reach the cost reduction
    target and minimize the impact on circuit
    performance simultaneously

12
Problem Formulation
  • Assume the track is horizontal and reduce the
    edge number of the polygon by pushing vertical
    edge inwards
  • Recast the SADP cost reduction problem as a
    polygon simplification problem
  • For a polygon set R r1,r2rn and a target
    edge number k
  • By only pushing edges in R inwards, find a
    modified polygon set R r1,r2rn which has
    exact k total edges and minimum area change

13
Polygon Simplification Algorithm
  • The constrained shortest path (CSP) problem is to
    find, given an integer k, directed graph G,
    source node S and target node T, the shortest
    path from S to T that has exactly k edges in G
  • CSP was initially introduced in 24 and can be
    optimally solved using dynamic programming

14
Polygon Simplification Algorithm
  • How to transform a polygon into a directed graph
    for CSP

15
Polygon Simplification Algorithm
  • Edge cost W(i,j) can be expressed by the area
    change in the following equation
  • xi x location of edge i
  • xmax(i,j) the inner-most position among all the
    vertical edges between hi and hj
  • Lk the length of the kth vertical edge

16
Polygon Simplification Algorithm
17
Polygon Simplification Algorithm
18
Polygon Simplification Algorithm
19
Experimental Results
20
Experimental Results
21
Experimental Results
22
Experimental Results
23
Conclusion
  • When the conventional DPL (DEDP) has difficulties
    handling overlay errors, SADP is considered to be
    a promising method to overcome the lithography
    challenges
  • This paper present a mask cost reduction method
    with circuit performance consideration for SADP
