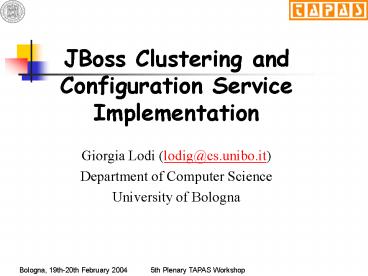

JBoss Clustering and Configuration Service Implementation

1
JBoss Clustering and Configuration Service
Implementation Giorgia Lodi (lodig_at_cs.unibo.it)
Department of Computer Science University of
Bologna
2
Summary

• Configuration Service
• JBoss Clustering
• load balancing and fail-over mechanisms
• Clustering Experiments
• Current work and Future works
• Concluding Remarks
• References

3
Configuration Service (1/2)

• Configuration service exercises coarse-grained
  configuration control
• It can manage such macro resources as host
  computers
• It will not be able to view and manage the
  activities of the resources at a finer
  granularity than that
• JVM does not allow a high-level programmer to
  manage parameters such as CPU utilization, memory
  usage, and disk space usage

4
Configuration Service (2/2)

• It will not reserve and allocate a certain amount
  of CPU or memory or disk for a particular
  application
• It will not change the scheduler of the machine
  as well
• It is responsible for setting up the platform and
  distributing the load among the hosts

5
JBoss Clustering Service (1/7)

• Clustering service
• useful for meeting such non-functional
  requirements as availability and scalability
• provides load-balancing and fail-over services

6
JBoss Clustering Service (2/7)

• JBoss cluster set of nodes
• each node instance of JBoss AS
• several nodes in cluster can be grouped to form a
  partition
• partition
• identified by a unique name in cluster
• partition name defined in the AS configuration
  files
• a node may belong to one or more partitions
  (i.e., partitions may overlap)

7
JBoss Clustering Service (3/7)
8
JBoss Clustering Service (4/7)

• JGroups open source project
• reliable group communication toolkit written in
  Java
• Highly Available Partition (HAPartition)
• abstracts the communication layer
• provides access to basic communication primitives
• gives informational data (e.g. the cluster name,
  the name of the node, information about the
  membership of the cluster)
• two categories of primitives take place
• the state transfer
• RPC calls

9
JBoss Clustering Service (5/7)

• Distributed Replicant Manager (DRM)
• responsible for managing replicated objects
  through a given partition
• assume to manage a list of stubs for a RMI
  server. DRM allows sharing these stubs in the
  cluster and knowing to which node a stub belongs
• Distributed State Service (DS)
• manages replicated states (e.g. Stateful Session
  Bean states, HTTP sessions)
• allows sharing a set of dictionaries in the
  cluster

10
JBoss Clustering Service (6/7)

• HA JNDI
• global, shared, cluster-wide JNDI Context
• used by clients when they want to lookup and bind
  objects
• HA RMI
• responsible for implementing the smart proxies of
  the JBoss clustering
• HA EJB
• provides mechanisms to cluster the EJBs (i.e.
  Stateless Session Bean, Stateful Session Bean,
  Entity Bean)
• Message Driven Beans no cluster version
  currently implemented by the JBoss 3.x

11
JBoss Clustering Service (7/7)

• Supports both so-called homogeneous and
  heterogeneous deployment (in the cluster)
• homogeneous each node contains the same beans
• heterogeneous each node contains different set
  of beans

12
Homogeneous Deployment

• Realized using JBoss farming service
• application copied into JBoss farm directory

13
Heterogeneous Deployment

• No available documentation for that
• Realized defining to which node an EJB belongs
• Not recommended
• distributing transaction is a problem
• requires propagation of Tx Context and
  synchronization of the transaction monitors
  across nodes
• requires distributed notifications
• it is currently missing a distributed transaction
  manager
• it has deep performance impact
• Conclusion (in every JBoss documentation)
• USE HOMOGENEOUS DEPLOYMENT!!

14
Load Balancing Policies (1/3)

• JBoss adopts the third model
• motivations
• no single point of failure
• load balancing activity can only die when client
  application dies
• performance cost minimal (client pays the full
  price)

15
Load Balancing Policies (2/3)

• Defined at deployment time into Deployment
  Descriptors (DDs)

16
Load Balancing Policies (3/3)

• Four load balancing strategies already included
  into JBoss clustering service
• Random-robin, Round-robin, First available, First
  available identical all proxies
• Using the RMI mechanism (HA RMI)
• clients get references to remote EJB components
  using the RMI mechanism
• a stub (i.e. proxy) to objects is downloaded into
  the client
• the proxy code includes the clustering logic
  (i.e. load balancing and fail-over)
• the proxy contains the list of target nodes the
  client can access and the load balancing policy

17
Fail-over Mechanism

• If the cluster topology changes
• the JBoss server will piggyback a new list of
  target nodes
• The proxy, before returning the response to the
  client code
• unpacks the list of target nodes from the
  response
• updates the list with the new one and returns the
  real invocation result to the client code

18
Positioning the clustering logic

• Clustering logic (i.e. load balancing and
  fail-over) located in the last interceptor of the
  client-side proxy

Client JVM
Client
Invocation Handler
Clustered Interceptor
Security
Transaction
Invokers to target nodes
Run time generated interfaces
19
What we are investigating

• Currently, we are investigating
• use of homogeneous deployment
• use of notion of partition for
  configuration/reconfiguration purposes

20
Clustering Experiments (1/2)

• Very simple application implemented

Entity relationship
21
Clustering Experiments (2/2)
Cluster
Account Application
Account Application
JBoss AS
JBoss AS
Client
22
Clustering Experiments Results

• The state is correctly transferred among the
  nodes of the cluster
• Each update is seen in every node of the cluster
• Cluster membership correctly updated and seen by
  the cluster nodes
• Fail-over guarantees that application instances
  continue to operate in survived nodes of the
  cluster

23
JBoss Clustering Limitations

• Synchronization
• no distributed locking mechanisms for
  synchronization of concurrent Entity Beans
• these beans can only be synchronized by using
  locking at the database level
• Missing cluster-wide configuration management
• cluster administration connect directly to each
  nodes JMX console
• Load balancing
• current implementation embodies non-adaptive
  strategies, only (i.e. none of them considers
  dynamic load conditions of the machines in the
  cluster)

24
Current work (1/2)

• Experimental assessment of the extent to which
  JBoss can be programmed, so as to distribute the
  computational load dynamically at run time
• extension to JBoss load balancing mechanism
• integration of dynamic/adaptive load balancing
  strategies, to be defined at deployment time (for
  the time being)
• testbed cluster of machines, running JBoss,
  which will be subjected to variable load
  conditions (e.g. use of ECPerf for simulation
  purposes)

25
Current work (2/2)

• Configuration service driven, run time management
  of faulty/overloaded nodes
• assume application homogeneously deployed in
  JBoss (partition of) cluster (i.e., each node
  runs a full instance of the application)
• node failure
• JBoss fail-over mechanism guarantees that
  surviving application instances continue to
  operate normally
• in contrast, TAPAS configuration service
  guarantees that new node replaces the failed one
  (and state of failed node is restored)
• motivation assume partition consists of two
  nodes, only,

26
Future works (1/2)

• Current JBoss
• cluster used completely (i.e. all its nodes) when
  deploying the application (i.e. no dynamic
  Farming Service)
• application components cannot be deployed in a
  sub-set of nodes of the initial cluster
• TAPAS Configuration Service selects sub-set of
  nodes (of the cluster) on which deploying and
  running applications

27
Future works (2/2)

• Geographical clustering
• evaluation of VPN technology to support
  geographically clustered AS
• experimental evaluation of geographically
  clustered AS

28
SLA Interpreter

• Two phases
• pure parsing process using either SAX or DOM XML
  parsers
• final result Java object with as many attributes
  as the elements of the original XML document
• Java object processed again to obtain low-level
  QoS requirements (it may require statistical
  analysis)
• Currently
• first phase (i.e. SLA parser) implemented
• using DOM XML parser as applied in all JBoss
  source code
• using old SLA version
• SLA file included into META-INF application
  directory with DDs

29
Concluding Remarks

• SLA parser must be re-viewed with the new SLA
• If possible, use of distributed transactions from
  Arjuna
• overcome JBoss problems for the heterogeneous
  deployment?

30
References

• JBoss group Feature Matrix JBossClustering
  (Rabbit Hole), 19th of March 2002.
• S.Labourey and B.Burke JBoss Clustering 2nd
  Edition, 2002.
• http//www.javagroups.com/
• G.Ferrari and G.Lodi Implementing the TAPAS
  Architecture, TAPAS Internal Draft, December
  2003.
• S. Labourey Load Balancing and Failover in the
  JBoss Application Server, 2001-2004 IEEE Task
  Force on Cluster Computing, Available at
  http//www.clusteringcomputing.org/
• B.Burke and S.Lauborey Clustering with JBoss
  3.0, ONJava.com, October 2002.
