Title: Scanner


1

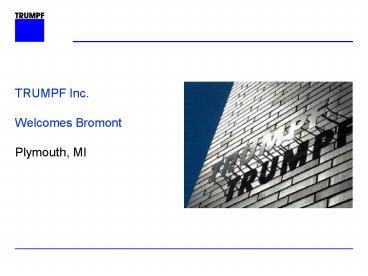

TRUMPF Inc. Welcomes Bromont Plymouth, MI

2
The TRUMPF Group
3
The TRUMPF Group
  • Established in 1923
  • Headquartered in Ditzingen, Germany
  • World leader in sheet metal fabrication machinery
    and industrial lasers
  • More than 5,700 employees worldwide.
  • 1.25 Billion in sales (FY 2002/03)
  • 40 Sales / Service / Engineering / Manufacturing
    locations in 23 countries

4
TRUMPF Worldwide
TRUMPF Locations (40 Companies in 23 Countries)
5
TRUMPF Worldwide, Production Locations
TRUMPF Production Locations
6
Business Sectors
Machine Tools
Laser Technology
Electronics
Power Tools
In leading edge production technology TRUMPF
offers machine tools for flexible sheet metal
fabrication for cutting, forming and bending
TRUMPF is both world market leader and
technological leader in industrial lasers and
laser systems.
In this field we produce radio and medium
frequency generators for surface technology, for
induction heating and for CO2-laser excitation.
TRUMPF manufactures power tools for cutting,
fastening and bevelling.
Medical Technology
This business unit provides system solutions for
the surgical sector and intensive care.
3,760
940
760
220
No. of Employees
No. of Employees
No. of Employees
No. of Employees
7
Average Product Age
5 - 7 Years, (28)
0 - 4 Years, (71)
Over 7 Years, (1)
8
TRUMPF In America
9
TRUMPF America (TUS)
  • Established 1969 with 3 employees in a leased
    building
  • Largest US Manufacturer of Fabricating Machinery
    And Industrial Lasers
  • Over 550 employees
  • 326,000 sq. ft. of total manufacturing and
    support facility
  • Locations in North America
  • Farmington, CT (Headquarters)
  • Plymouth, MI
  • Fremont, CA
  • Princeton, NJ
  • Charleston, SC
  • Ontario, Canada
  • Mexico City, Mexico

(Farmington, CT)
(Plymouth, MI)
10
TLF Scanner Technology
Scanner Station TLW60S
11
TLF Scanner Technology
Mirror 2
  • Beam movement with 2 scanner mirrors
  • Z-axis movement with focussing unit mounted on
    linear drive

Focussing unit
Mirror 1
12
Advantages of Scanner Technology
  • No mechanical part movement
  • Highest dynamics
  • Virtually no indexing times
  • Very high geometry flexibility
  • Highly precise
  • High processing speed
  • Applications in
  • Laser Marking
  • Laser Surface Treatment
  • Laser Welding

13
Components of TRUMPF TLF Scanner System
  • Laser
  • Scanner head with
  • Focussing unit
  • Scanner unit
  • Control
  • Frame, table, enclosure

14
Technical Specifications
  • Laser
  • TLW 60 S
  • TLF 1800-3000HQ M21.11
  • TLF 3500HQ M21.11
  • TLF 4000-5000 (6000) M21.82
  • TLF 4000 (5000) AM M22/1.25
  • Scanner head detachable for OEM
  • Frame customized to specific project
  • Includes electrical, mechanical, cooling water,
    gas interface
  • Tables, enclosures upon request

15
Technical Specifications
  • Focussing unit
  • Scanner head
  • 2 Mirrors
  • Direct cooled
  • Linear direct drive (SIEMENS)
  • Positioning speed gt200 m/min
  • Focal length 1500 mm (others upon request)
  • SCANLAB Power Scan 70 (SEF optional)
  • 2 Mirrors
  • Indirect air cooled
  • Galvo drives
  • Jump speed gt700 m/min
  • Angular speed gt12.5rad/s

16
Technical Specifications
  • Control unit
  • Teach unit
  • SCAPS
  • Windows based programming system
  • Object based graphical user interface
  • Technology tables for welding parameters
  • Import DXF, HPGL, APT
  • LEICA DISTO
  • Measures absolute z-axis position of part
  • No estimating by user

17
Technical Specifications
  • Work envelope
  • Stationary scanner head
  • Enlarge work area with multiple scanner heads
  • Optical cone angle /- 20 deg
  • TLF 4000, 5000, 6000 with
  • Focal length 1500 mm
  • Laser focus diameter lt0.5 mm
  • Work area X800mm, Y800mm, Z300mm
  • Optional for TLF 1800-3500 HQ with
  • Focal length 2250 mm
  • Laser focus diameter lt0.5 mm
  • Work area X1200mm, Y1200mm, Z300mm

18
TLF Product Range
TEM 00
not released yet
19
Scanner welding head
20
Thanks for listening
TRUMPF Inc. Laser Technology Center Plymouth
Township, MI
